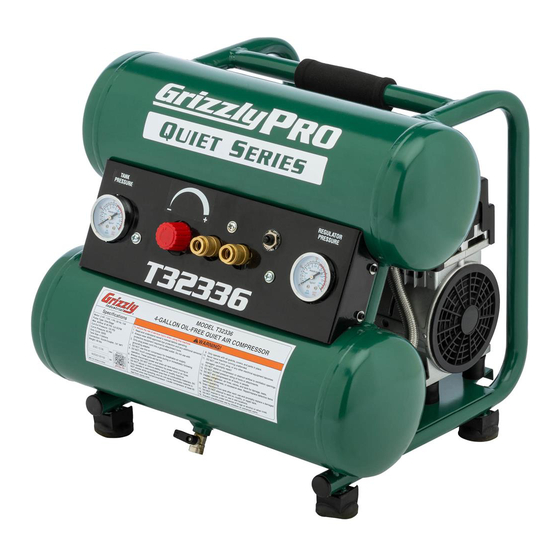

MODEL T32336
4-GALLON OIL-FREE QUIET
SERIES AIR COMPRESSOR
OWNER'S MANUAL
(For models manufactured since 05/22)
COPYRIGHT © APRIL, 2022 BY GRIZZLY INDUSTRIAL, INC., REVISED APRIL, 2022 (CS)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#CS22202 PRINTED IN CHINA
V2.04.22
***Keep for Future Reference***

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T32336 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grizzly T32336

Summary of Contents for Grizzly T32336

  • Page 1 OWNER'S MANUAL (For models manufactured since 05/22) COPYRIGHT © APRIL, 2022 BY GRIZZLY INDUSTRIAL, INC., REVISED APRIL, 2022 (CS) WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
  • Page 2 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

  • Page 3: Table Of Contents

    Table of Contents INTRODUCTION ..........................2 Contact Info ..........................2 Manual Accuracy ........................2 Identification ..........................3 Controls & Components ......................4 Machine Data Sheet ........................6 SECTION 1: SAFETY ........................8 Safety Instructions for Machinery ....................8 Additional Safety for Air Compressors ..................10 SECTION 2: POWER SUPPLY ......................

  • Page 4: Introduction

    ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documentation is available for your machine. Manufacture Date Serial Number Model T32336 (Mfd. Since 05/22)

  • Page 5: Identification

    (1 of 2) (1 of 4) Compressor Drain Valve Pump Safety Relief Discharge Valve Line Air Filter Pressure Switch Exhaust Tube Motor To reduce your risk of serious injury, read this entire manual BEFORE using machine. Model T32336 (Mfd. Since 05/22)

  • Page 6: Controls & Components

    D. Dual Compressor Pump: Uses piston to draw in and compress air before transferring air to tanks. E. Air Filter: Cleans air entering compressor pump. Exhaust Tube: Transfers compressed air from pump to tanks. Model T32336 (Mfd. Since 05/22)
  • Page 7 105 PSI (cut-in pressure) and switch is in AUTO position. Switch contains pressure relief valve that will activate discharge line when tank pressure exceeds 135 PSI (cut-out pressure) or pres- sure switch is turned OFF. Model T32336 (Mfd. Since 05/22)

  • Page 8: Machine Data Sheet

    Main Specifications: Operation Information Compressor.Style...............................Horizontal Pump.Type............................... One-Stage Max..Airflow/Delivery.(at.40.PSI)........................5.2.SCFM Max..Airflow/Delivery.(at.90.PSI)........................4.5.SCFM Cut-Out.Pressure..............................135.PSI Cut-In.Pressure..............................105.PSI Duty.Cycle.................................50/50 Tank.Size............................4.Gallons.(Twin.Stack) Number.of.Cylinders.................................2 Pump.Lubrication..............................Oil-Free Drain.Valve.Type..............................Ball-Valve Roll.Cage..................................Yes Regulator..................................Yes Model T32336 (Mfd. Since 05/22) Model T32336 Page 1 of 2...
  • Page 9 Cage/Frame................................Steel Paint.Type/Finish..............................Enamel Other Specifications: Country.of.Origin................................China Warranty.................................... 1.Year Serial.Number.Location..............................ID.Label Sound.Rating................................60-71.dB Features: Sound.Rating.of.Under.71.dB Oil-Free.Lubrication 4-Gallon.Twin-Stack.with.Maximum.Airflow.of.4.5.SCFM.at.90.PSI Ball-Valve.Drain.Control Durable.Roll.Cage.with.Rubber.Feet.for.Protected.Portability Included.Air.Regulator.for.Airflow.Adjustment Two.Quick-Coupler.Hose.Connections Internal.PTC.Overload.Protection Model T32336 (Mfd. Since 05/22) Page 2 of 2 Model T32336...

  • Page 10: Section 1: Safety

    Never operate under the influence of drugs or injury or blindness from flying particles. Everyday alcohol, when tired, or when distracted. eyeglasses are NOT approved safety glasses. Model T32336 (Mfd. Since 05/22)
  • Page 11 Make sure they are properly installed, you experience difficulties performing the intend- undamaged, and working correctly BEFORE ed operation, stop using the machine! Contact our operating machine. Technical Support at (570) 546-9663. Model T32336 (Mfd. Since 05/22)

  • Page 12: Additional Safety For Air Compressors

    Do not use compres- moving or servicing to prevent impact injuries, soft sor to inflate low-pressure objects that are likely to tissue injuries, and burns. burst (like children’s toys). -10- Model T32336 (Mfd. Since 05/22)

  • Page 13: Section 2: Power Supply

    -11- Model T32336 (Mfd. Since 05/22)
  • Page 14 Two-prong outlets do not meet the grounding requirements for this machine. Do not modify or use an adapter on the plug provided—if it will not fit the outlet, have a qualified electrician install the proper outlet with a verified ground. -12- Model T32336 (Mfd. Since 05/22)

  • Page 15: Section 3: Setup

    Grizzly or the shipping agent. You MUST have the original pack- Inventory (Figure 6) aging to file a freight claim.

  • Page 16: Site Considerations

    Figure 7. Minimum working clearances. Children and visitors may be seriously injured if unsuper- vised around this machine. Lock entrances to the shop or disable start switch or power connection to prevent unsupervised use. -14- Model T32336 (Mfd. Since 05/22)

  • Page 17: Test Run

    Locate machine in well-ventilated area at operation. least 18 inches from nearest wall or any obstructions. Motor should run smoothly and without unusual problems or noises. Eye injury hazard! Always wear safety glasses when handling pressurized air system. -15- Model T32336 (Mfd. Since 05/22)
  • Page 18 135 PSI, then tanks. immediately turn OFF machine and dis- connect it from power. Safety feature of Congratulations! Test Run is complete. check valve is NOT working properly and must be replaced before further using machine. -16- Model T32336 (Mfd. Since 05/22)

  • Page 19: Section 4: Operations

    Puts on safety glasses. ects. Regardless of the content in this sec- tion, Grizzly Industrial will not be held liable Pulls safety valve ring to test valve and clear for accidents caused by lack of training.

  • Page 20: Choosing Air Hose

    The hose length must allow for the air compressor to remain Figure 14. Example of male and female fittings. at least 20 feet away from the operation. The outlet ports on the T32336 are ⁄ " NPT Diameter...

  • Page 21: Connecting Air Tool

    Airflow Delivery (CFM) The Model T32336 has a regulator and pressure The first consideration when choosing an air tool gauge for controlling and observing line pressure.
  • Page 22 Figure 18. Plug inserted into coupler. Connect other end of hose to air tool. Figure 19. Pushing coupler sleeve to release plug. Note: Refer to air tool instructions for speci- fications, method of connection, and proper use of tool. -20- Model T32336 (Mfd. Since 05/22)

  • Page 23: Section 5: Accessories

    T20451—“Kirova” Clear Safety Glasses To reduce this risk, only install accessories T20456—DAKURA Safety Glasses, Black/Clear recommended for this machine by Grizzly. NOTICE T20503 Refer to our website or latest catalog for additional recommended accessories.
  • Page 24 ⁄ " NPT air inlet. Includes a case. Figure 26. G8110 ⁄ " x 50' PVC Air Hose. Figure 24. H5527 18-Gauge Brad Nailer Kit. www.grizzly.com 1-800-523-4777 order online at or call -22- Model T32336 (Mfd. Since 05/22)

  • Page 25: Section 6: Maintenance

    Ongoing To minimize your risk of injury and maintain proper The Model T32336 is an oil-free air compres- machine operation, shut down the machine imme- sor, so no lubrication is necessary. Refer to the...

  • Page 26: Draining Tanks

    — If filter is dirty or clogged, or there has been a drop in efficiency of compressor, replace cap. Proceed to Step 4. Replace old filter with new filter element (refer to Part #2 in Parts beginning on Page 35). -24- Model T32336 (Mfd. Since 05/22)

  • Page 27: Machine Storage

    Cover machine with tarp or plastic sheet that will keep out dust and resist liquid or mois- ture. If machine will be stored in/near direct sunlight, use cover that will block UV rays. Figure 29. T23951 Blue Tarp 8' x 10'. -25- Model T32336 (Mfd. Since 05/22)

  • Page 28: Checking For Leaks

    Note: If a fitting or valve continues to leak — If bubbles do not form, repeat at different after preceding steps, replace part. location. — If bubbles do form, proceed to Fixing Leaks. -26- Model T32336 (Mfd. Since 05/22)

  • Page 29: Section 7: Service

    7. Check valve components are dirty/damaged. 7. Clean/replace check valve components (Page 30). 8. Motor or motor bearings at fault. 8. Replace motor. 9. Worn valves or rings/compressor pump at 9. Rebuild/replace. fault. -27- Model T32336 (Mfd. Since 05/22)
  • Page 30 9. Worn pump piston rings. 9. Inspect and replace pump piston rings. Compressor 1. Air filter dirty/clogged. 1. Replace air filter (Page 24). knocking. 2. Piston assembly loose. 2. Inspect and repair piston and connecting rod. -28- Model T32336 (Mfd. Since 05/22)
  • Page 31 1. Tanks need to be drained. 1. Open drain valve to drain condensation. is dirty or has 2. Delivery pipes are dirty (if used). 2. Remove delivery pipes, clean out and replace. excessive moisture. -29- Model T32336 (Mfd. Since 05/22)

  • Page 32: Inspecting Check Valve

    10 PSI. Open drain valve to release any remaining air (see Figure 30). Diaphragm Seal Ring Drain Valve Handle Figure 33. Check valve components. Figure 30. Drain valve handle open. -30- Model T32336 (Mfd. Since 05/22)

  • Page 33: Adjusting Cut-In/Cut-Out Settings

    Phillips head screw. pressures. Tanks could burst if filled with more pressure than it is designed for. Eye injury hazard! Always wear safety glasses when handling pressurized air system. -31- Model T32336 (Mfd. Since 05/22)
  • Page 34 OFF at 135 PSI, turn machine OFF before pressure reaches 140 Operate compressor and record cut-in and PSI. Adjust pressure switch settings until cut- cut-out pressures. out pressure is 135 PSI or lower. DISCONNECT MACHINE FROM POWER! -32- Model T32336 (Mfd. Since 05/22)

  • Page 35: Section 8: Wiring

    Technical Support at (570) 546-9663. The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com. -33- Model T32336 (Mfd. Since 05/22)

  • Page 36: Wiring Diagram

    Wiring Diagram 5-15 Plug Neutral Ground 120 VAC PRESSURE SWITCH LEFOO LF10-4H Run Capacitor CBB60 80uF 250V MOTOR 120V Figure 37. Run capacitor wiring. Figure 38. Pressure switch wiring. READ ELECTRICAL SAFETY -34- Model T32336 (Mfd. Since 05/22) ON PAGE 33!

  • Page 37: Section 9: Parts

    SECTION 9: PARTS To order parts, contact MEGA by phone at (832) 415-6995 or email at CS@megacompressor.com. Main -35- Model T32336 (Mfd. Since 05/22)
  • Page 38 CONTROL PANEL ECCENTRIC BEARING CABLE CLIP STATOR ELBOW FITTING ROTOR PLUG BALL BEARING 6908ZZ FLAT WASHER 5MM EXT RETAINING RING 14MM PHLP HD SCR M5-.8 X 12 R CAPACITOR 80M 250V 1-5/8 X 3-1/2 -36- Model T32336 (Mfd. Since 05/22)

  • Page 39: Labels & Cosmetics

    Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com. -37-...
