Starter Kit Hardware
A34M418YLN v1.2
User Manual
Version 1.0.0
Jun. 28, 2019
For additional information or inquiry, please contact ABOV Semiconductor
or visit its website at www.abov.co.kr.
Advertisement
Table of Contents
Related Manuals for Abov A34M418YLN
Summary of Contents for Abov A34M418YLN
- Page 1 Global Top Smart MCU Innovation Company Global Top Smart MCU Innovation Company Global Top Smart MCU Innovation Company Starter Kit Hardware A34M418YLN v1.2 User Manual Version 1.0.0 Jun. 28, 2019 For additional information or inquiry, please contact ABOV Semiconductor or visit its website at www.abov.co.kr.
- Page 2 Revision History Date Date Version Version Description Description Jun. 28, 2019 Jun. 28, 2019 1.0.0 1.0.0 Document created. Document created. Starter Kit Hardware A34M418YLN v1.2 Page 2 / 8 Version 1.0.0...
-
Page 3: Table Of Contents
LED pin description ........Version 1.0.0 Page 3 / 8 Starter Kit Hardware A34M418YLN v1.2... -
Page 4: Chapter 1. Starter Kit Board Overview

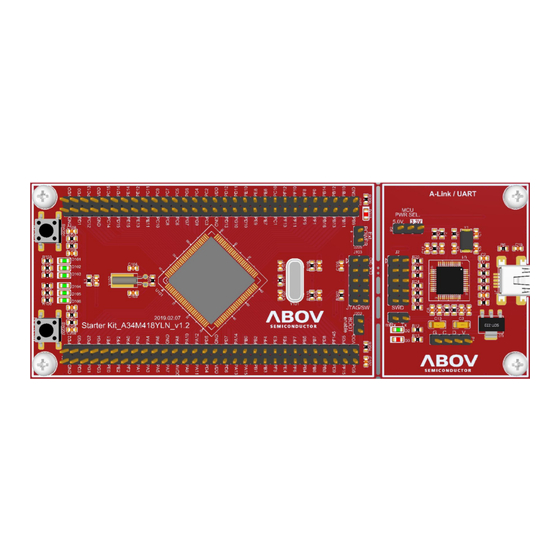

10-pin Connector 10-pin Connector SWD / JTAG SWD / JTAG Input buttons Input buttons 1 reset & 1 event input 1 reset & 1 event input TACT Switch TACT Switch Starter Kit Hardware A34M418YLN v1.2 Page 4 / 8 Version 1.0.0... -
Page 5: Chapter 2. A-Link Part
J3: USB to UART connection Table 5: USB to UART description Connection Connection MCU RXD0 ← PC MCU RXD0 ← PC Short Short Open Open MCU RXD0 Open MCU RXD0 Open Version 1.0.0 Page 5 / 8 Starter Kit Hardware A34M418YLN v1.2... -
Page 6: Chapter 3. Device Part
Figure 3: Power/boot mode and switch Open Open Normal mode Normal mode S1 & S2: switches Table 8: S1 & S2 description and function Switch Switch Function Function nRESET / PC10 nRESET / PC10 Starter Kit Hardware A34M418YLN v1.2 Page 6 / 8 Version 1.0.0... -
Page 7: Led Display (D101 - D106)
Figure 5: LED display LED pin assignment Table 9: LED pin description LED name LED name PORT PORT D101 D101 D102 D102 D103 D103 D104 D104 D105 D105 D106 D106 Version 1.0.0 Page 7 / 8 Starter Kit Hardware A34M418YLN v1.2... -
Page 8: 3.3 Pin Assignment
PF7/OVINEW/ PF13 PF12 CAN_RX CAN_TX PF11 PF10 PB4/MP0WH/T8IO PB5/MP0WL/T9IO PB6/PRTIN0U PB7/OVIN0U PB8/PRTIN1U/ PD8/T6IO/WDTO PB15/MP1WL PB14/MP1WH RXD3 PB13/MP1VL PB12/MP1VH PD9/T7IO/STBYO PF14 PB11/MP1UL PB10/MP1UH PF15 PB9/OVIN1U/ TXD3 Figure 6: Pin assignment Starter Kit Hardware A34M418YLN v1.2 Page 8 / 8 Version 1.0.0...
