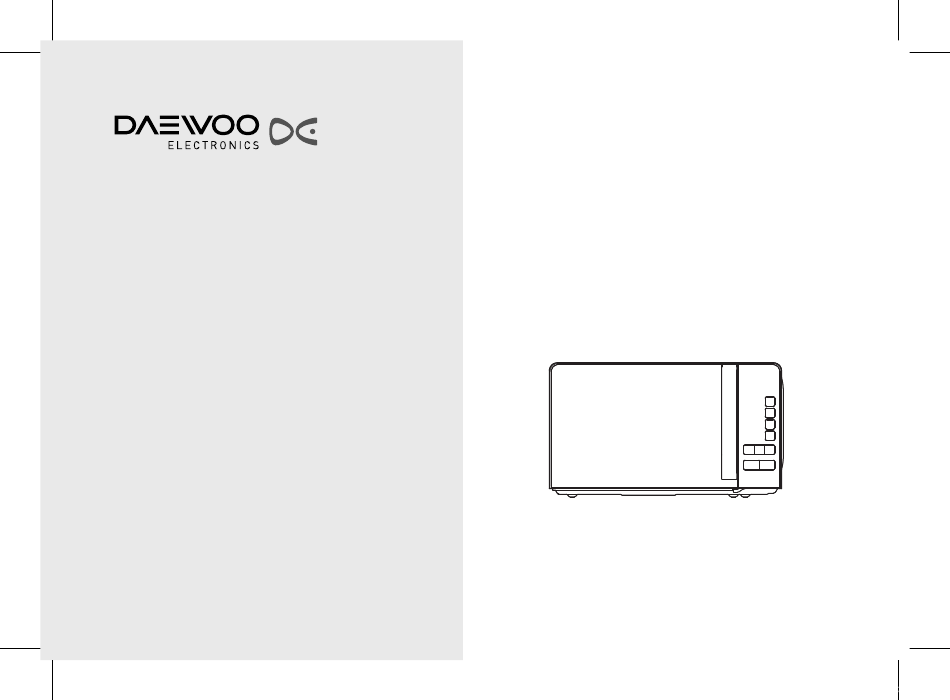

MICROWAVE
OVEN
OPERATING INSTRUCTIONS
KOR 6S3**
KQG 6S3** (grill)
Before operating this oven, please read these instructions completely.
2017-10-19 오후 2:37:24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KOR 6S3 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DAEWOO ELECTRONICS KOR 6S3 Series

Summary of Contents for DAEWOO ELECTRONICS KOR 6S3 Series

  • Page 1 MICROWAVE OVEN OPERATING INSTRUCTIONS KOR 6S3** KQG 6S3** (grill) Before operating this oven, please read these instructions completely. 2017-10-19 오후 2:37:24...

  • Page 2: Precautions To Avoid Possible Exposure To Excessive Microwave Energy

    PRECAUTIONS TO AVOID (d) WARNING : It is hazardous for anyone other POSSIBLE EXPOSURE TO than a competent person to carry out any service or repair operation that involves the EXCESSIVE MICROWAVE removal of a cover which gives protection ENERGY against exposure to microwave energy.
  • Page 3 (g) WARNING : When the appliance is operated n the combination mode, children should only use the oven under adult supervision due to the temperature generated. (h) WARNING : The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS • PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ................1 • IMPORTANT SAFETY INSTRUCTIONS ..........3 READ CAREFULLY AND KEEP FOR FUTURE • EARTHING INSTRUCTIONS ..............6 REFERENCE • INSTALLATION ..................6 • SPECIFICATIONS ..................7 WARNING : To prevent fire, burns, electric •...
  • Page 5 5. Make sure you remove caps or lids prior to cooking or may break. when you cook food sealed in bottles. 11. If smoke is observed, switch off or unplug the 6. Do not put foreign material between the oven surface appliance and keep the door closed in order to stifle and door.
  • Page 6 the oven interior with a soft damp cloth after each the container. use. If you leave grease or fat anywhere in the cavity e) Use extreme care when inserting a spoon or other it may overheat, smoke or even catch fire when next utensil into the container.

  • Page 7: Earthing Instructions

    EARTHING INSTRUCTIONS 3. Leave space behind and side All air vents should be kept a clearance. If all vents are covered during operation, the oven may overheat and, eventually, oven failure. This appliance must be earthed. In the event of an electrical short circuit, 4.

  • Page 8: Specifications

    SPECIFICATIONS IMPORTANT 230V AC, 50Hz, SINGLE POWER SUPPLY The wires in this mains lead fitted to this appliance are coloured in PHASE WITH EARTHING accordance with the following code. POWER CONSUMPTION 1150 W Green-and-yellow : Earth MICROWAVE OUTPUT POWER 700 W Blue : Neutral Brown...

  • Page 9: Features Diagram

    FEATURES DIAGRAM 1 Door latch - When the door is closed, it will automatically shut off. If the door is opened while the oven is operating, the magnetron will automatically shut off. 2 Door seal - The door seal surfaces prevent microwaves escaping from the oven cavity.
  • Page 10 FEATURES DIAGRAM ( continued ) 1 Display - It shows you some cooking information such as cooking time, power level, food weight and so on. 2 Auto Cook - Press this pad to select Autocook feature. 3 Defrost - Press this pad to defrost foods by weight 4 Grill/Combi - Press this pad once for grill feature or twice for combi feature.

  • Page 11: Operation Procedure

    OPERATION PROCEDURE This section includes useful information about oven operation. Make sure the oven is properly installed and plugged into the electrical 1. Plug power supply cord into a 230V 50Hz power outlet. outlet. 2. After placing the food in a suitable container, open the oven door and put it on the glass tray.

  • Page 12: Zero Stand-By - How It Works

    ZERO STAND-BY - HOW IT WORKS What is Stand-by Power ... This oven has a special feature that can reduce stand-by power consumption by not unplugging or totally switching off. The oven will turn off automatically when not in use for 2 minutes after finishing working.

  • Page 13: Controls

    CONTROLS MICROWAVE COOK AUTO COOK This feature allows you to cook food with microwave energy. AUTO COOK allows you to cook your favorite foods. You can change the microwave power level from 100% to 0% . 1. Put food in the oven and close the door. 1.

  • Page 14: Defrost

    DEFROST (QUICK DEFROST) +30 sec This feature allows you to deforst food. +30 sec allows you to reheat for 30 seconds at full power by simply touching the +30 sec pad. By repeatedly touching the +30 sec pad, you can also extend reheating time 1.

  • Page 15: Grill

    GRILL COMBI This oven has grill cooking mode. This feature allows you to brown and This oven has combination cooking mode. This feature allows you to crisp food quickly. cook food quickly with heater and microwave energy. 1. Put food in the oven and close the door. 1.

  • Page 16: To Stop The Oven While The Oven Is Operating

    BEFORE YOU CALL FOR TO STOP THE OVEN WHILE THE OVEN IS OPERATING SERVICE 1. Press Stop/Clear button. • You can restart the oven by pressing Start button. Refer to following checklist, you may prevent an unnecessary service call. • Press Stop/Clear button once more to erase all instructions. •...

  • Page 17: Caring For Your Microwave Oven

    CARING FOR YOUR MICROWAVE OVEN The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

  • Page 18: Questions And Answers

    QUESTIONS AND ANSWERS * Q : Can the oven be used with the glass tray or roller guide removed? covered for additional time to allow it to finish cooking. This frees the A : No. Both the glass tray and roller guide must always be used in the oven oven for other cooking.

  • Page 19: Cooking Instructions

    COOKING INSTRUCTIONS Microwave Combined Material Grill cooking cooking Glass (general) Yes (1) Only use the utensils that are suitable for use in microwave ovens. Glass (heat resistant) Glass-ceramic and ceramic (heat resistant) Yes (1) Yes (1) UTENSILS TEST Earthenware China (heat resistant) Place the utensil in question next to a glass measure filled with water, in Plastic (general) Yes (2)

  • Page 20: Use Your Microwave Oven Safely

    USE YOUR MICROWAVE OVEN SAFELY General Use Always allow a standing time of at least 20 seconds after the oven has been switched off to allow the temperature to even out, stir during heating, if Do not attempt to defeat or tamper with safety interlocks. necessary, and ALWAYS stir after heating.

  • Page 21: Microwaving Principles

    MICROWAVING PRINCIPLES Microwave energy has been used in this country to cook and reheat food since ABSORPTION early experiments with RADAR in World War ll. Microwaves are present in the atmosphere all the time, both naturally and manmade sources. Manmade sources include radar, radio, television, telecommunication links and car phones.

  • Page 22: Cooking Techniques

    COOKING TECHNIQUES STANDING TIME STARTING TEMPERATURE Dense foods e.g. meat, jacket potatoes and cakes, require standing The colder the food, the longer it takes to heat up. Food from a fridge takes time(inside or outside of the oven) after cooking, to allow heat to finish longer to reheat than food at room temperature.

  • Page 23: Defrosting Guide

    DEFROSTING GUIDE DEFROSTING CHART Defrosting Standing Item & Weight Special Techniques Time Time ▶ Do not defrost covered meat. Covering might allow cooking to take BEEF place. Always remove outer wrap and tray. Use only containers that are Break apart and remove Mized beef 8-10 min.

  • Page 24: Cooking & Reheating Chart

    COOKING & REHEATING CHART Cooking chart Cooking Power Item Time Per Special Instruction Level lb./450g MEAT Beef joint -Rare 8-10 min. - Chilled meat and poultry should be removed from -Medium 9-11 min. the refrigerator at least -well done 11-13 min. 30 minutes before Pork Joint 12-15 min.
  • Page 25 Reheating chart Cooking Item Special Instructions time • Baby food particularly needs to be checked carefully before serving to Baby food Empty into a small serving bowl. prevent burns. 30 sec. 128g jar Stir well once or twice during heating. •...

  • Page 26: Vegetable Chart

    VEGETABLE CHART Cooking Guide for fresh vegetables Use a suitable glass pyrex bowl with lid. Add 30-45ml cold water(2-3 tbsp.) for every 250g unless another water quantity is recommended - see table. Vegetables Weight Time Comments Cook covered for the minimum time - see table. Continue cooking to get the result you prefer.

  • Page 27: Recipes

    RECIPES TOMATO & ORANGE SOUP STIR FRIED VEGETABLES 1 oz.(25g) butter 1 tbsp(15ml) sunflower oil 1. Melt the butter in a large bowl on 1. Place the oil, soy sauce, sherry, 1 medium onion, chopped 2 tbsp (30ml) soy sauce P-HI for 1 minute.
  • Page 28 BLUE CHEESE & CHIVE STRAWBERRY JAM JACKETS lb.(675g) strawberries, hulled 1. Prick each potato in several places. 1. Place strawberries and lemon juice 2 baking potatoes, 3 tbsp(45ml) lemon juice Cook on in a very large bowl, heat on P-HI (approx.9 oz.(250g) each) lb.(675g) caster sugar P-HI for 12-13 minutes.
  • Page 29 OMELETTS oz.(15g) butter 1. Whisk together eggs and milk. 4 eggs Season. 6 tbsp(90ml) milk 2. Place butter in 10"(26cm) flan dish. salt & pepper Cook on P-HI for 1 minute, until melted. Coat the dish with the melted butter. 3.
