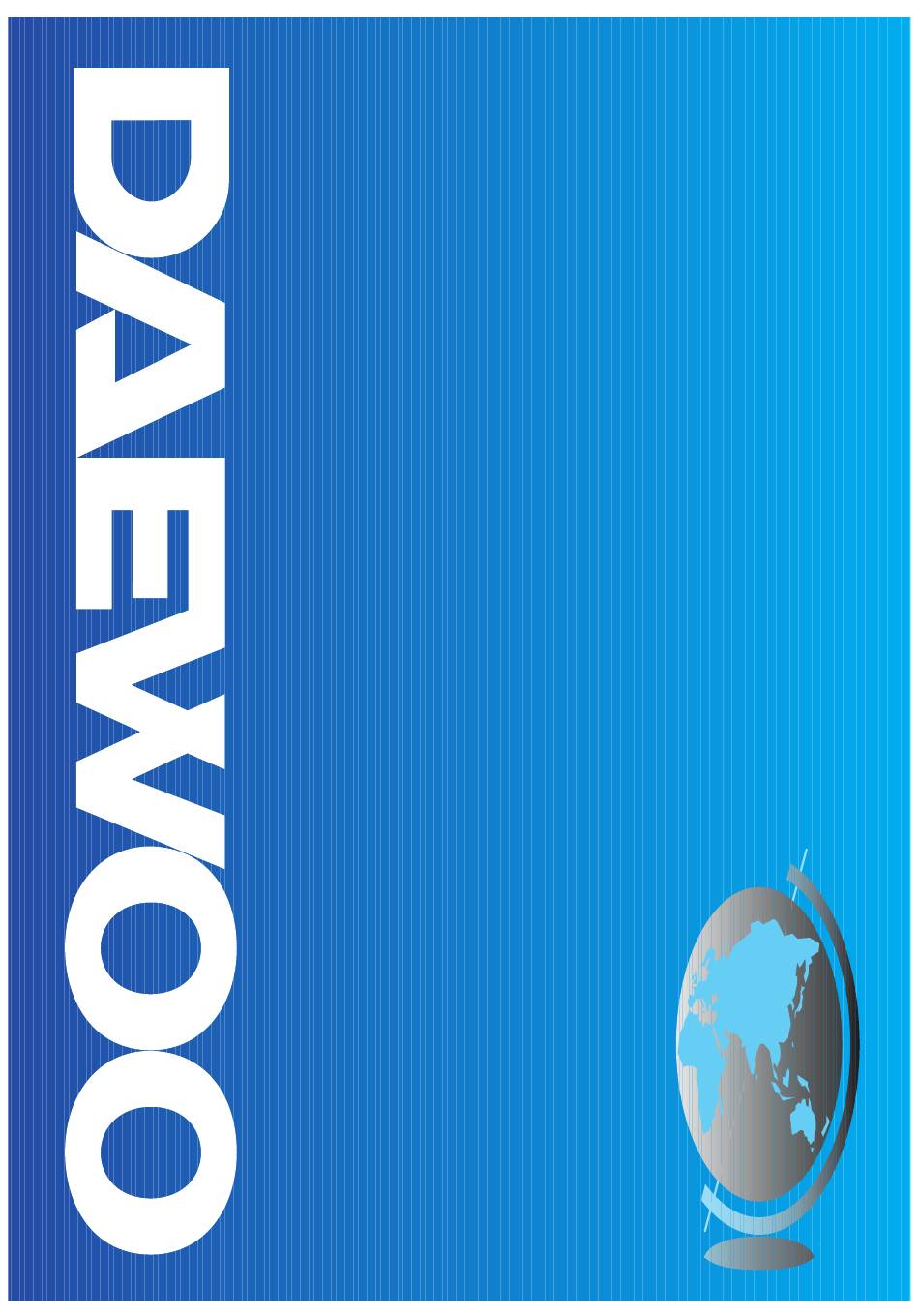

- Page 1 Service Manual Microwave Oven Model: KOR-63470S DAEWOO ELECTRONICS CO., LTD. h t t p : / / s v c . d w e . c o . k r...
-
Page 2: Table Of Contents
PRECAUTIONS TO BE OBSERVED BEFORE AND DURING SERVICING TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not operate or allow the oven to be operated with the door open. (b) Make the following safety checks on all ovens to be serviced before activating the magnetron or other micro- wave source, and make repairs as necessary: (1) Interlock operation, (2) Proper door closing, (3) Seal and sealing surfaces (arcing, wear, and other damage), (4) Damage to or loosening of hinges and latches, (5) Evidence of dropping or abuse. -
Page 3: Safety And Precautions
SAFETY AND PRECAUTIONS 1. FOR SAFE OPERATION Damage that allows the microwave energy (that cooks or heats the food) to escape will result in poor cooking and may cause serious bodily injury to the operator. IF ANY OF THE FOLLOWING CONDITIONS EXIST, OPERATOR MUST NOT USE THE APPLIANCE. (Only a trained service personnel should make repairs.) (1) A broken door hinge. -
Page 4: Specifications
SPECIFICATIONS MODEL KOR-63470S POWER SUPPLY 230V~50Hz, SINGLE PHASE WITH EARTHING MICROWAVE 1,200 W POWER CONSUMPTION GRILL COMBINATION MICROWAVE ENERGY OUTPUT 800W MICROWAVE FREQUENCY 2450MHz OUTSIDE DIMENSIONS (W X H X D) 465 x 279 x 360 mm (18.3 x 11.0 x 14.2 in) CAVITY DIMENSIONS (W X H X D) 290 x 220 x 306 mm (11.4 x 8.7 x 12.0 in.) -
Page 5: External View
EXTERNAL VIEW 1. OUTER DIMENSION 2. FEATURE DIAGRAM 1. Safety interlock system 6. Glass cooking tray - Made of special heat resistant glass. Food in a proper receptacle is placed on this 2. Door viewing screen - Allows viewing of food. The tray for cooking. -
Page 6: Installation
INSTALLATION 1. Steady, flat location This microwave oven should be set on a steady, flat surface. This microwave oven is designed for counter top use only. 2. Leave space behind and side All air vents should be kept a clearance. If all vents are covered during operation, the oven may overheat and, eventually, cause oven failure. -
Page 7: Operations And Functions
When the V.P.C knob is set to the desired position and timer knob to the desired position, the V.P.C switch has a cycle (ON/OFF time(sec.)) listed below. Variable power setting Approximate Percentage Power level Symbol (KOR-63470S) of Power HIGH 100% MED HIGH... -
Page 8: Disassembly And Assembly
DISASSEMBLY AND ASSEMBLY Cautions to be observed when trouble shooting. Unlike many other appliances, the microwave oven is high-voltage, high-current equipment. It is completely safety during normal operation. However, carelessness in servicing the oven can result in an electric shock or possible danger from a short circuit. You are asked to observe the following precautions carefully. - Page 9 1. To remove cabinet 1) Remove three screws on cabinet back. 2) Push the cabinet backward. 2. To remove door assembly 1) Remove two screws which secure the stopper hinge top. 2) Remove the door assembly from top plate of cavity. 3) Reverse the above for reassembly.
- Page 10 (1) Remove the gasket door from door weld as. (2) Remove the barrier screen inner from weld as. (3) Remove the door frame from door weld as. (4) Remove the stopper hinge top from door weld as. (5) Remove the spring and the hook. (6) Remove the barrier screen outer from door frame.
- Page 11 5. To remove control panel parts. REF NO. PART CODE PART NAME DESCRIPTION Q’TY REMARK 3513402650 KNOB VPC ABS XR-401, H-2938 3513402550 KNOB TIMER ABS XR-401, H-2938 3511603930 DECORATOR C-PANEL STS T0.6 3516003950 SPECIAL DOUBLE TAPE SI-161 T0.15 3516719070 CONTROL PANEL ABS XR-401, H-2938 3515101600 SPRING FLAT...
- Page 12 6. To remove high voltage capacitor. 1) Remove a screw which secure the grounding ring terminal of the H.V. diode and the capacitor holder. 2) Remove the H.V. diode from the capacitor holder. 3) Reverse the above steps for reassembly. High voltage circuit wiring...
- Page 13 7. To remove magnetron. 1) Remove a screw which secure the magnetron. 2) Remove the magnetron. 3) Reverse the above steps for reassembly. NOTE : Never install the magnetron without the metallic gasket plate which is packed with each magnetron to pre- vent microwave leakage.
- Page 14 8. To remove wind guide assembly. 1) Remove a screw for earthing. 2) Remove the noise filter from the wind guide. 3) Remove a screw which secure the wind guide assembly. 4) Draw forward the wind guide assembly. 5) Pull the fan from the motor shaft. 6) Remove two screws which secure the motor shaded pole.
-
Page 15: Interlock Mechanism And Adjustment
INTERLOCK MECHANISM AND ADJUSTMENT The door lock mechanism is a device which has been specially designed to completely eliminate microwave radiation when the door is opened during operation, and thus to perfectly prevent the danger resulting from the leakage of microwave. (1) Primary interlock switch When the door is closed, the hook locks the oven door. -
Page 16: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE Following the procedure below to check if the oven is defective or not. 1. Check grounding before trouble checking. 2. Be careful of the high voltage circuit. 3. Discharge the high voltage capacitor. 4. When checking the continuity of the switches, fuse or high voltage transformer, disconnect one lead wire from these parts and check continuity with the AC plug removed. - Page 17 Does the fan motor work when you shut the door and turn the timer? Does the oven lamp light? Replace or repair oven lamp, Does the turntable turn? turntable motor. Normal reading should be approx. 0Ω If microwave do not Check continuity Continuity No Continuity...
-
Page 18: Measurement And Test
MEASUREMENT AND TEST 1. MEASUREMENT OF THE MICROWAVE POWER OUTPUT Microwave output power can be checked by indirectly measuring the temperature rise of a certain amount of water exposed to the microwave as directed below. PROCEDURE 1. Microwave power output measurement is made with the microwave oven supplied at rated voltage and operated at its maximum microwave power setting with a load of 1000±5cc of potable water. -
Page 19: Microwave Radiation Test
2. MICROWAVE RADIATION TEST CAUTION : 1. Make sure to check the microwave leakage before and after repair of adjustment. 2. Always start measuring of an unknown field to assure safety for operating personnel from microwave energy. 3. Do not place your hands into any suspected microwave radiation field unless the safe density level is known. 4. -
Page 20: Component Test Procedure
3. COMPONENT TEST PROCEDURE • High voltage is present at the high voltage terminal of the high voltage transformer during any cooking cycle. • It is neither necessary nor advisable to attempt measurement of the high voltage. • Before touching any oven components or wiring, always unplug the oven from its power source and discharge the capacitor. -
Page 21: Wiring Diagram
WIRING DIAGRAM... -
Page 22: Exploded View And Parts List
EXPLODED VIEW AND PARTS LIST 1. DOOR ASSEMBLY Refer to Disassembly and assembly. 2. CONTROL PANEL ASSEMBLY Refer to Disassembly and assembly. 3. TOTAL ASSEMBLY... - Page 23 NAME PART CODE PART NAME DESCRIPTION Q'TY DOOR AS Refer to disassembly and assembly CONTROL PANEL AS Refer to disassembly and assembly 3510801310 CABINET PCM T0.36 GE 7112401011 SCREW TAPPING T1 TRS 4X10 MFZN 3516109000 CAVITY WELD AS CAVITY WELD AS 3516109600 CAVITY JOINT AS CAVITY JOINT AS...
- Page 24 DAEWOO ELECTRONICS CO., LTD. 686, AHYEON-DONG MAPO-GU SEOUL, KOREA C.P.O. BOX 8003 SEOUL, KOREA TELEX: DWELEC K28177-8 CABLE: “DAEWOOELEC” FAX: 02) 360-8184 TEL: 02) 360-8183 E-mail : G7F00E@web.dwe.co.kr S/M NO. : PRINTED DATE: Nov. 1999...
