schmersal AZM201-AS Operating Instructions Manual

Operating instructions

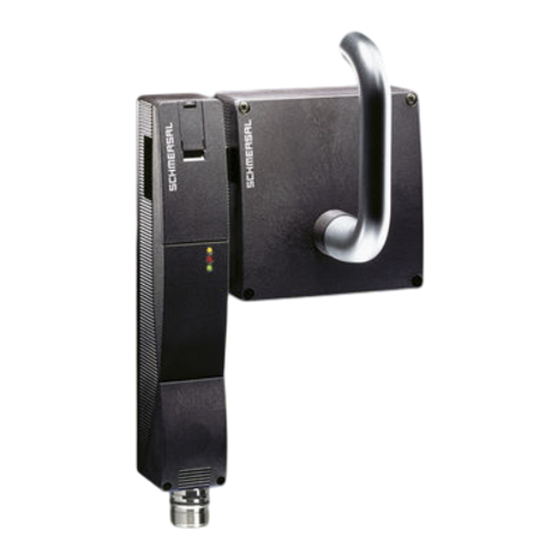

Solenoid interlock
Operating Instructions . . . . . . . . . . .pages 9 to 16
EN
Original
Aktuální verzi návodu k použití
CS
ve vašem jazyce naleznete na
products.schmersal.com.
Encontrará el manual de
ES
instrucciones actual en su
idioma oficial de la UE en
nuestra página de Internet
products.schmersal.com.
Il manuale d'istruzioni aggiornato
IT
nella vostra lingua (lingua ufficiale
UE) è scaricabile in Internet
all'indirizzo products.schmersal.com.
U vindt de huidige versie van
NL
de gebruikshandleiding in uw
officiële landstaal op het Internet,
products.schmersal.com.
O manual de instruções actual,
PT
no seu idioma oficial da UE,
encontra-se na nossa página de
Internet products.schmersal.com.
Content
1 About this document
1.1 Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.2 Target group: authorised qualified personnel . . . . . . . . . . . . . . . .1
1.3 Explanation of the symbols used. . . . . . . . . . . . . . . . . . . . . . . . . .1
1.4 Appropriate use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.5 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.6 Warning about misuse. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1.7 Exclusion of liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2 Product description
2.1 Ordering code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2.2 Special versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2.3 Comprehensive quality insurance to 2006/42/EC . . . . . . . . . . . . .2
2.4 Purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2.5 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2.6 Safety classification of the interlocking function . . . . . . . . . . . . . .3
2.7 Safety classification of the guard locking function. . . . . . . . . . . . .3
3 Mounting
3.1 General mounting instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3.2 Manual release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3.3 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3.4 Retrofit kit for Manual release/Emergency exit . . . . . . . . . . . . . . .4
4 Electrical connection
4.1 General information for electrical connection . . . . . . . . . . . . . . . .5
5 Functions and configuration
5.1 Mode of operation of the safety outputs . . . . . . . . . . . . . . . . . . . .5
5.2 Magnet control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
5.3 Configuration of the safety monitor . . . . . . . . . . . . . . . . . . . . . . . .5
5.4 Programming the slave address . . . . . . . . . . . . . . . . . . . . . . . . . .5
5.5 Status signal "safety release" . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
5.6 Actuator teaching / actuator detection. . . . . . . . . . . . . . . . . . . . . .5
På products.schmersal.com
DA
findes aktuelle
betjeningsvejledninger på EU's
officielle sprog.
Vous trouverez la version
FR
actuelle du mode d'emploi
dans votre langue nationale
officielle sur l'Internet,
products.schmersal.com.
日本語の取扱説明
JP
書は、インターネット
(products.schmersal.com)から
ダウンロード出来ます。
Tutaj znajdziesz aktualną wersję
PL
instrukcji obsługi w Twoim
języku na stronie internetowej
products.schmersal.com.
På products.schmersal.com
SV
finner ni de aktuella versionerna
av bruksanvisningen på EU's
officiella språk.
6 Diagnostic
6.1 LED indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
6.2 Error / Error warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
6.3 Diagnostic information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
6.4 Diagnostic signal periphery error (FID) . . . . . . . . . . . . . . . . . . . . .7
6.5 Locking/unlocking of the solenoid interlock blocked . . . . . . . . . . . 7
6.6 Read-out of the parameter ports . . . . . . . . . . . . . . . . . . . . . . . . . .7
7 Set-up and maintenance
7.1 Functional testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
7.2 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
8 Disassembly and disposal
8.1 Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
8.2 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
9 EU Declaration of conformity
1. About this document
1.1 Function
This operating instructions manual provides all the information you
need for the mounting, set-up and commissioning to ensure the safe
operation and disassembly of the safety switchgear. The operating
instructions must be available in a legible condition and a complete
version in the vicinity of the device.
1.2

Target group: authorised qualified personnel

All operations described in this operating instructions manual must
be carried out by trained specialist personnel, authorised by the plant
operator only.
Please make sure that you have read and understood these operating
instructions and that you know all applicable legislations regarding
occupational safety and accident prevention prior to installation and
putting the component into operation.
The machine builder must carefully select the harmonised standards
to be complied with as well as other technical specifications for the
selection, mounting and integration of the components.
1.3

Explanation of the symbols used

Information, hint, note:
This symbol is used for identifying useful additional information.
Caution: Failure to comply with this warning notice could
lead to failures or malfunctions.
Warning: Failure to comply with this warning notice could
lead to physical injury and/or damage to the machine.
1.4

Appropriate use

The products described in these operating instructions are developed
to execute safety-related functions as part of an entire plant or machine.
It is the responsibility of the manufacturer of a machine or plant to
ensure the correct functionality of the entire machine or plant.
The safety switchgear must be exclusively used in accordance with
the versions listed below or for the applications authorised by the
manufacturer. Detailed information regarding the range of applications
can be found in the chapter "Product description".
1.5

General safety instructions

The user must observe the safety instructions in this operating
instructions manual, the country specific installation standards as well
as all prevailing safety regulations and accident prevention rules.
Further technical information can be found in the Schmersal
catalogues or in the online catalogue on the Internet:
products.schmersal.com.
EN
AZM201-AS
1
