READY
Before assembling your Portland Bed Headboard, please read through these
Phillips Head
Screwdriver
Please note that you will require a Phillips Head Screwdriver and an Allen wrench.
Customer Supplied
PORTLAND QUEEN BED SHOWN WITH FLAT PANEL FOOTBOARD
HEADBOARD HARDWARE
A
B

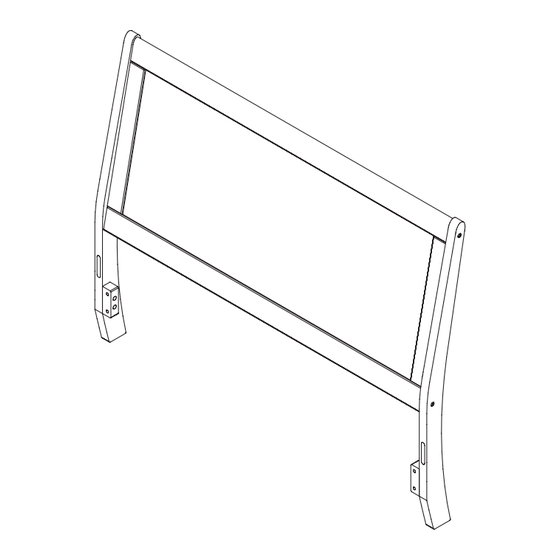

Portland Bed Headboard
PORTLAND BED HEADBOARD
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
( TWIN > FULL > QUEEN )
( TWIN > FULL > QUEEN )
instructions carefully, familiarising yourself with the different parts.
JCB M6 X 2 3/4"(70mm) - 4 pcs
Fix Post to Panel Headboard
JCB M6 X 1 1/4"(35mm) - 4 pcs
Fix Mounting Block to Post
C
BARREL NUT M6 X 13mm - 4 pcs
D
ALLEN WRENCH - 1 pc
12232009
Assembling by Adult
Page 1 of 2
