- Page 1 Service Manual Multi-Split Type Outdoor Unit ATMI-26HRDC1 ATMI-36HRDC1 ATMI-53HRDC1 (Refrigerant R32)
-
Page 2: Table Of Contents

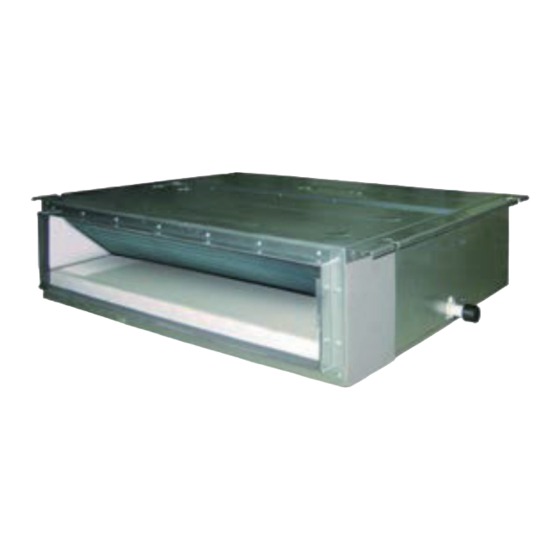

Service Manual Table of Contents Part Ⅰ : Technical Information ...............1 1. Summary ........................1 2. Specifications ......................2 3. Outline Dimension Diagram ................6 4. Refrigerant System Diagram ..............7 5. Electrical Part ......................8 5.1 Wiring Diagram .........................8 5.2 PCB Printed Diagram .......................9 6. - Page 3 Service Manual Part Ⅰ : Technical Information 1. Summary Indoor Unit ATMI-26HRDC1 ATMI-36HRDC1 ATMI-53HRDC1 Remote Controller YT1F(MOTO) Technical Information...
-
Page 4: Specifications
Service Manual 2. Specifications 2.1 Specification Sheet Parameter Unit Value Model ATMI-26HRDC1 ATMI-36HRDC1 Product Code CN210N0150 CN210N0160 Rated Voltage 220-240 220-240 Power Rated Frequency Supply Phases Cooling Capacity 2500 3500 Heating Capacity 2800 3850 Air flow volume(SH/H/M/L/SL) -/450/350/280/- -/550/400/300/- Dehumidifying Volume... - Page 5 Service Manual Parameter Unit Value Model ATMI-53HRDC1 Product Code CN210N0170 Rated Voltage 220-240 Power Rated Frequency Supply Phases Cooling Capacity 5000 Heating Capacity 5500 Air flow volume(SH/H/M/L/SL) -/700/600/500/- Dehumidifying Volume Fan Type Centrifugal Fan Diameter-height Φ139.45-134.62 Fan Motor Speed 1140/955/755/670 Fan Motor Power Output Fan Motor Power Input Motor Full Load Amp(FLA)
- Page 6 Service Manual Notes: a. The rated cooling capacity data is measured under the following work condition: Indoor Temperature is 27 DB, 19 WB. Outdoor Temperature is 35 DB. The rated heating capacity data is measured under the following work condition: Indoor Temperature is 20 DB. Outdoor Temperature is 7 DB, 6 WB. b.
-
Page 7: Outline Dimension Diagram
Service Manual 3. Outline Dimension Diagram Unit:mm Item Model ATMI-26HRDC1 ATMI-36HRDC1 ATMI-53HRDC1 Technical Information... -
Page 8: Refrigerant System Diagram
Service Manual 4. Refrigerant System Diagram Schematic Diagram of Super Free Match Series Inverter Heat Pump Multi System The units start to work once the power is switched on. During the cooling operation, the low temperature, low pressure refrigerant gas from the heat exchanger of each indoor unit gets together and then is taken into the compressor to be compressed into high temperature, high pressure gas, which will soon go to the heat exchanger of the outdoor unit to exchange heat with the outdoor air and then is turned into refrigerant liquid. -
Page 9: Electrical Part
Service Manual 5. Electrical Part 5.1 Wiring Diagram ● Instruction Symbol Symbol Color Symbol Symbol Color Symbol Name White Green Jumper cap Yellow Brown COMP Compressor Blue Grounding wire YEGN Yellow/Green Black Violet Orange Note: Jumper cap is used to determine fan speed and the swing angle of horizontal lover for this model. ●... -
Page 10: Pcb Printed Diagram
Service Manual 5.2 PCB Printed Diagram ● Top view ● Bottom view Name Fan terminal Communication terminal for indoor unit and outdoor unit Water pump terminal Liquid level switch inspection Live wire Output terminal of transformer Neutral wire Ambient temperature sensor Fuse Tube temperature sensor Transformer input... -
Page 11: Function And Control
Service Manual 6. Function and Control 6.1 Remote Controller Introduction set fan speed operation mode auto mode send signal health function cool mode I feel dry mode ventilation operation X-fan mode fan mode set temperature heat mode turbo mode set time TIMER ON/TIMER clock sleep mode... - Page 12 Service Manual AUTO COOL DRY HEAT Technical Information...
- Page 13 Service Manual no display (horizontal louvers stops at current position) no display Technical Information...
- Page 14 Service Manual Sketch map for replacing batteries Technical Information...
-
Page 15: Brief Description Of Modes And Functions
Service Manual 6.2 Brief Description of Modes and Functions 1.Basic function of system (1)Cooling mode (1) Under this mode, fan and swing operates at setting status. Temperature setting range is 16~30ºC. (2) During malfunction of outdoor unit or the unit is stopped because of protection, indoor unit keeps original operation status. (2)Drying mode (1) Under this mode, fan operates at low speed and swing operates at setting status. - Page 16 Service Manual (2) Exit refrigerant recycling function After entering refrigerant recycling mode, when receive any remote control signal or enter refrigerant recycling mode for 25min, the unit will exit refrigerant recycling mode automatically If the unit is in standby mode before refrigerant recycling, it will be still in standby mode after finishing refrigerant recycling;...
-
Page 17: Wired Remote Controller Xk19
Service Manual 6.3 Wired Remote Controller XK19 Technical Information... - Page 18 Service Manual Technical Information...
- Page 19 Service Manual Technical Information...
- Page 20 Service Manual Technical Information...
- Page 21 Service Manual Technical Information...
- Page 22 Service Manual memmorizing memmorizing Technical Information...
- Page 23 Service Manual Installation and Maintenance...
- Page 24 Service Manual Installation and Maintenance...
- Page 25 Service Manual Installation and Maintenance...
-
Page 26: Part Ⅱ : Installation And Maintenance
Service Manual Part Ⅱ : Installation and Maintenance 7. Indoor Unit Installation 7.1.1 7.1.2 7.1.3 Installation and Maintenance... - Page 27 Service Manual 7.1.4 ATMI-26 / 36HRDC1 ATMI-53HRDC1 7.1.5 Installation and Maintenance...
- Page 28 Service Manual 7.1.6 Installation and Maintenance...
- Page 29 Service Manual 7.1.7 7.1.8 Installation and Maintenance...
- Page 30 Service Manual Installation and Maintenance...
- Page 31 Service Manual 7.1.9 7.1.10 Installation and Maintenance...
- Page 32 Service Manual 7.1.11 7.1.12 Installation and Maintenance...
- Page 33 Service Manual 7.1.13 Installation and Maintenance...
- Page 34 Service Manual Please read this operating manual carefully before operating the unit. to the material objects for reference. The Refrigerant To realize the function of the air conditioner unit, a special refrigerant circulates leads to explosion . It can Compared to common refrigerants, R32 is a nonpolluting refrigerant with no lower.
- Page 35 Service Manual Safety operation of flammable refrigerant Qualification requirement for installation and maintenance man All the work men who are engaging in the refrigeration system should bear the valid certification awarded by the authoritative organization and the qualification for dealing with the refrigeration system recognized by this industry. If it needs other technician to maintain and repair the appliance, they should be supervised by the person who bears the qualification for using the flammable refrigerant.
- Page 36 e. Cutting or welding f. Carry back to the service spot for welding The refrigerant should be recycled into the specialized storage tank. Service Manual Make sure that there isn’t any naked flame near the outlet of the vacuum pump and it’s well-ventilated.
-
Page 37: Maintenance
Service Manual 8. Maintenance 8.1 Error Code List 1. In defect of refrigerant; 2. Indoor evaporator The Dual-8 Code Display In defect of temperature will show F0 and the refrigerant sensor works abnormally; complete unit stops. 3. The unit has been plugged up somewhere. -
Page 38: Troubleshooting For Main Malfunction
Service Manual 8.2 Troubleshooting for Main Malfunction ●Indoor unit: 1. Malfunction of Temperature Sensor F1, F2 Main detection points: ● Is the wiring terminal between the temperature sensor and the controller loosened or poorly contacted? ● Is there short circuit due to trip-over of the parts? ●... - Page 39 Service Manual 2. Communication malfunction E6 Start Cut off power supply. Check if connection line of IDU and ODU and the wire inside electric box are correctly connected. Connect the line Correct connection? according to Malfunction eliminated? wiring diagram. Main board matches Match correctly with display board? Main board of Malfunction eliminated?
- Page 40 Service Manual 3.E9 Full Water Protection E9 protection Short circuit the full water If the unit is protection interface on indoor installed with mainboard according to the circuit water pump diagram Check if the water pump Replace the water pump works normally Replace the full water switch or make sure the float of full...
- Page 41 Service Manual 4. Malfunction of Insufficient fluorine protection F0 Troubleshooting for F0 malfunction Heat exchangers are Clean the heat exchangers and remove Malfunction is too dirty or the air inlet/outlet eliminated. blockage of air inlet/outlet. is blocked. Compressor doesn't work Malfunction is Make compressor run normally.
-
Page 42: Exploded View And Parts List
Service Manual 9. Exploded View and Parts List ATMI-26HRDC1, ATMI-36HRDC1 12 13 14 15 4 5 6 9 10 The component picture is only for reference; please refer to the actual product. Installation and Maintenance... - Page 43 Service Manual Part Code Description ATMI-36HRDC1 ATMI-26HRDC1 Product Code CN210N0150 CN210N0160 Air outlet frame assy 01865216 01865216 Cover of air outlet 01265298 01265298 Water Tray Assy 01285332 01285332 Top Cover Board Assy 01265200099 01265325 Evaporator Assy 01024266 01024905 Plate of the Evaporator Sub-Assy...
- Page 44 Service Manual ATMI-53HRDC1 The component picture is only for reference; please refer to the actual product. Installation and Maintenance...
- Page 45 Service Manual Part Code Description ATMI-53HRDC1 Product Code CN210N0170 Air outlet frame assy 01865217 Cover of air outlet 01265331 Water Tray Assy 01285333 Evaporator Assy 01024268 Lower Cover Plate Sub-Assy 01265328 Left Side Plate Assy 01315334 Plate of the Evaporator Sub-Assy 01495317 Plate of the Exit Tube Sub-Assy 01495316...
-
Page 46: Removal Procedure
Service Manual 10. Removal Procedure Caution: discharge the refrigerant completely before removal. r t s i t a Open the cover plate of the 1.Pull out the electric box and then pull electric wire of the out the electric wire inside motor the box. - Page 47 Service Manual Unscrew the fixed screws 5.Loosen the fan of the fan blades and then blade and fan undo the buckle of the motor motor Separate the motor away from the motor support. Remove the fan blade Remove the Take the motor out motor away.
- Page 48 ALPICAIR AIR CONDITIONING Note: AlpicAir is commited to continuous improvement of its products to ensure the highest quality and reliabilty standards and to meet local regulations and market requirements. V 3.15.0 * Under our policy of continuous improvement, we reserve the right to change...
