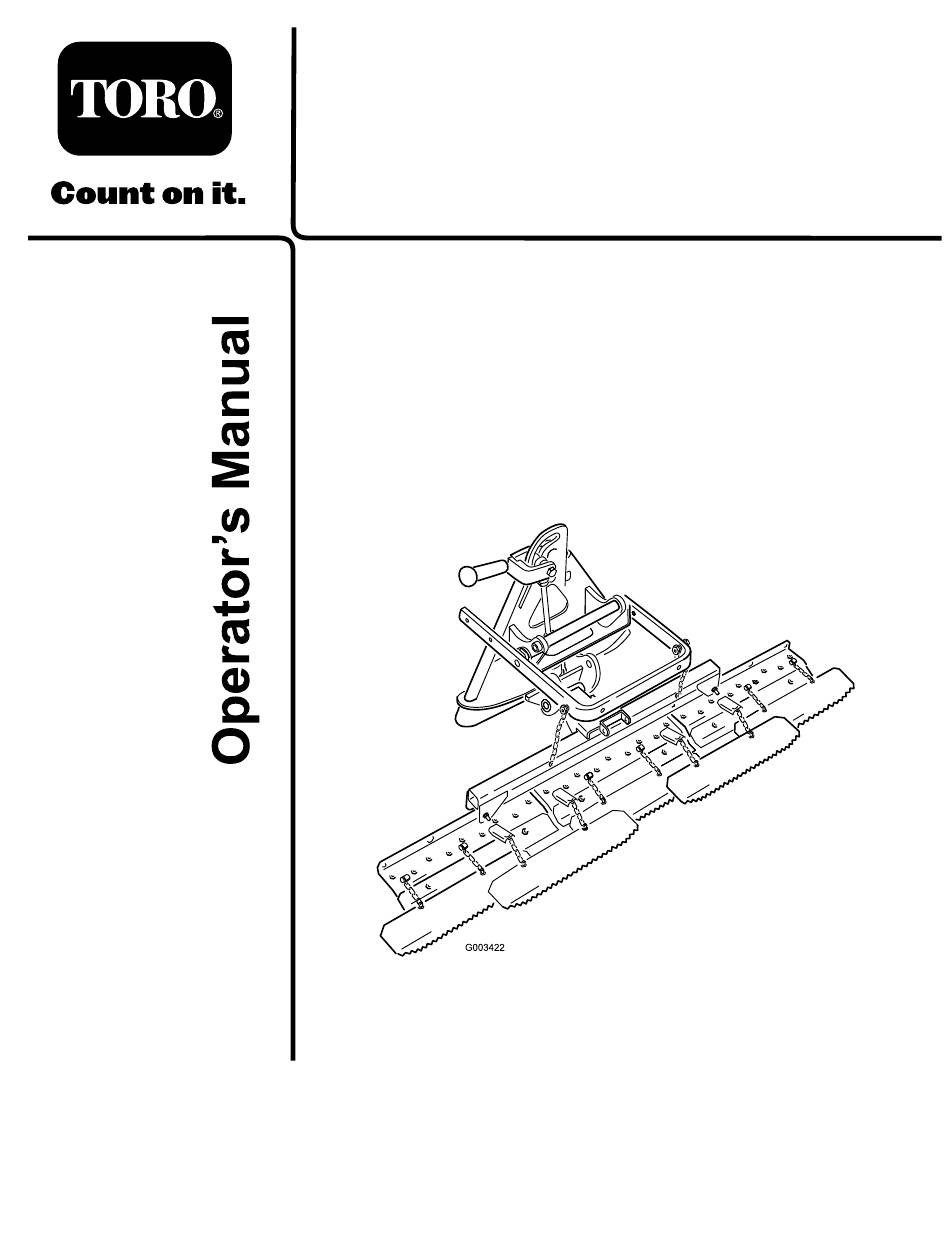

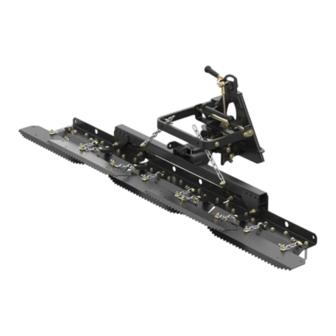

- Page 1 Form No. 3370-336 Rev A Tooth Rake Sand Pro ® 3040 and 5040 Traction Units Model No. 08751—Serial No. 310000851 and Up To register your product or download an Operator's Manual or Parts Catalog at no charge, go to www.Toro.com. Original Instructions (EN)
-
Page 2: Table Of Contents
Whenever you need service, genuine Toro parts, or Contents additional information, contact an Authorized Service Dealer or Toro Customer Service and have the model and serial numbers of your product ready. Figure 1 Introduction..............2 identifies the location of the model and serial numbers Safety ................ -
Page 3: Safety
Safety Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost. 106-5517 1. Warning–Do Not touch the hot surface. -
Page 4: Setup
Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. Tooth rake assembly Shoulder bolt Washer Jam nut Attachment adapter assembly Assemble the rake. Cotter pin Lift arm assembly Pivot bar Bolt (3/8 x 1-1/4 inches) Locknut (3/8 inch) Bolt (3/8 x 2-1/2 inches) Washer (3/8 x 7/8 inch) -
Page 5: Mounting The Tooth Rake To The Traction Unit
2. Align the lift arm with the bracket on the attachment adapter (Figure 4) and connect them using the pivot bar as illustrated in Figure 5. Note: When moving the attachment adapter, use Mounting the Tooth Rake to the handle provided on the back of the adapter the Traction Unit (Figure 4). -
Page 6: Adjusting The Link Assembly
Figure 7 1. 0.060 to 0.080 inch (.15 to 3. Adjustment nut Figure 6 .20 cm) 1. Chain 5. Locknut (3/8 inch) 2. Jam nut 2. Spacer 6. Traction unit rear frame 3. Bolt (3/8 x 2-1/2 inches) 7. Long arm of the lift arm assembly 3. -
Page 7: Product Overview
Product Overview Figure 8 1. Attachment adapter 3. Lift arm 5. Prong 7. Tooth rake hanger 2. Handle 4. Finishing rake 6. Trowel 8. Locking lever Operation If the sand feathers out to the turf, stay far enough away from the edge to avoid disturbing the underlying soil. We suggest that you read this entire section on raking Do not rake too close to a short steep bank. -
Page 8: Entering And Leaving The Trap
G003409 Figure 10 Figure 9 1. Rake pivot 3. More aggressive 1. Enter a trap straight into 2. Exit a trap at a right angle 2. Attachment adapter 4. Less aggressive the long dimension in a in a level area. brackets level area. -
Page 9: Using Drag Weights
When the raking operation is completed, clean the weights may be bolted to the finishing rakes. Order machine thoroughly. Since this machine is used weight part no. 18-7570 from your Authorized Toro primarily in sand, and sand is extremely abrasive, Distributor. -
Page 10: Maintenance
Maintenance Greasing the Attachment Adapter If the locking lever on the attachment adapter does not pivot freely and easily, apply a light coat of grease to the area shown in Figure 13. Figure 13... - Page 11 Notes:...
- Page 12 Countries Other than the United States or Canada Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining guarantee information, contact the Toro importer.
