Digilent chipKIT Max32 Reference Manual

c h i p K I T ™ M a
c h i p K I T ™ M
R e f e r e n c e M
R e f e r e n c e M
Revision: July 21, 2011
Overview

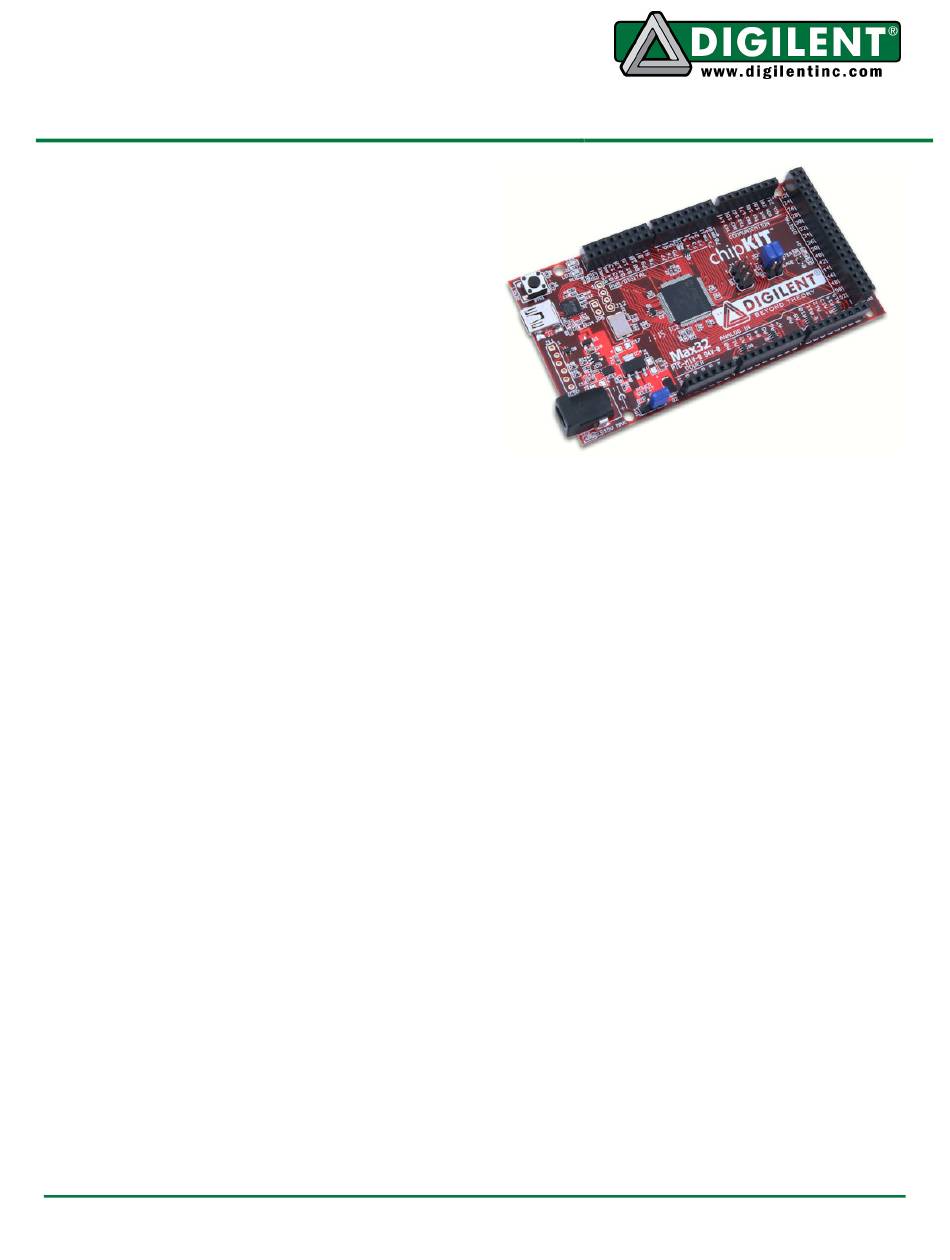

The chipKIT Max32 is a microcontroller board
based on the Microchip PIC32MX795F512L, a
member of the 32-bit PIC32 microcontroller
family. The chipKIT boards are compatible with
the popular Arduino™ microcontroller board
shields.
The Max32 is designed to be easy to use and
suitable for use by anyone from beginners to
advanced users for experimenting with
electronics and embedded control systems.
The Max32 is intended to be used with the
Multi-Platform IDE, (modified Arduino IDE),
MPIDE, and contains everything needed to
start developing embedded applications.
The Max32 provides 83 I/O pins that support a
number of peripheral functions, such as UART,
2
SPI and I C™ ports and pulse width modulated
outputs. Sixteen of the I/O pins can be used as
analog inputs or as digital inputs and outputs.
The PIC32 microcontroller on the Max32 also
provides a 10/100 Ethernet MAC, USB 2.0 Full
Speed OTG controller, and two CAN
controllers. Use of these advanced peripherals
requires an add-on board (for example the
Digilent Network Shield) to provide the
additional hardware required.
The Max32 can be powered via USB, an
external AC-DC power adapter, or batteries.
Doc: 502-202
Copyright Digilent, Inc. All rights reserved. Other product and company names mentioned may be trademarks of their respective owners.
x 3 2 ™ B o a r d
a x 3 2 ™ B o a r d
a n u a l
a n u a l
1300 NE Henley Court, Suite 3
(509) 334 6306 Voice | (509) 334 6300 Fax
Specifications:
Microcontroller: PIC32MX795F512L
Flash Memory: 512K
RAM Memory: 128K
Operating Voltage: 3.3V
Operating Frequency: 80Mhz
Typical operating current: 90mA
Input Voltage (recommended): 7V to 15V
Input Voltage (maximum): 20V
I/O Pins: 83 total
Analog Inputs: 16
Analog input voltage range: 0V to 3.3V
DC Current per pin: +/-18mA
Advanced peripherals:
10/100 Ethernet MAC
USB 2.0 Full Speed OTG controller
2 CAN controllers.
Pullman, WA 99163
