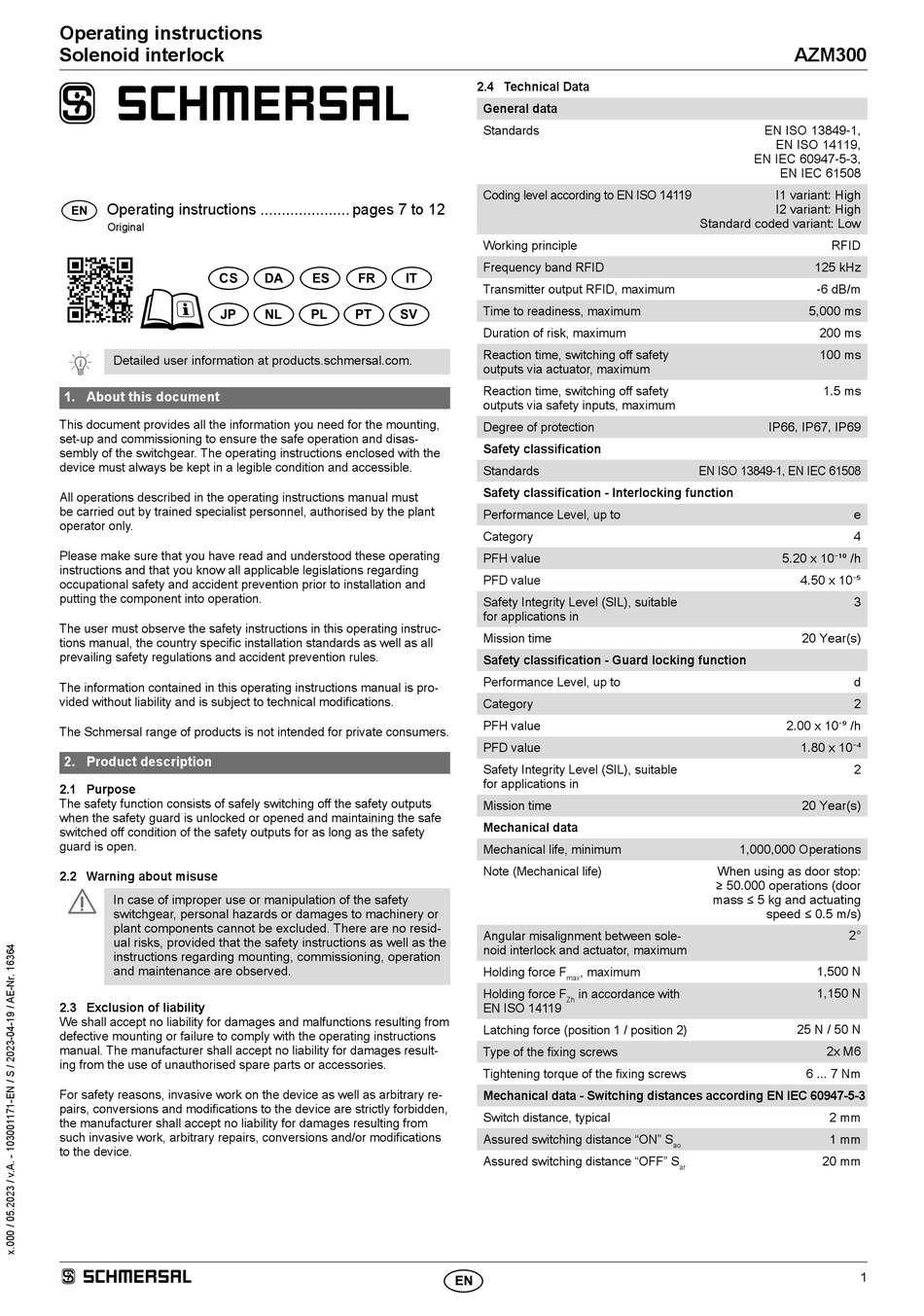

schmersal AZM300 Operating Instructions Manual

Operating instructions

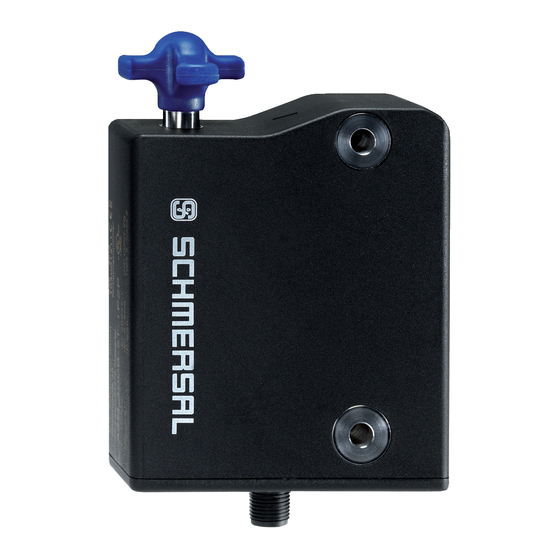

Solenoid interlock
ü
Operating instructions ..................... pages 7 to 12
Original
ßä$€.
:,;!?
F
Detailed user information at products.schmersal.com.
1. About this document
This document provides all the information you need for the mounting,
set-up and commissioning to ensure the safe operation and disas-
sembly of the switchgear. The operating instructions enclosed with the
device must always be kept in a legible condition and accessible.
All operations described in the operating instructions manual must
be carried out by trained specialist personnel, authorised by the plant
operator only.
Please make sure that you have read and understood these operating
instructions and that you know all applicable legislations regarding
occupational safety and accident prevention prior to installation and
putting the component into operation.
The user must observe the safety instructions in this operating instruc-
tions manual, the country specific installation standards as well as all
prevailing safety regulations and accident prevention rules.
The information contained in this operating instructions manual is pro-
vided without liability and is subject to technical modifications.
The Schmersal range of products is not intended for private consumers.
2. Product description
2.1 Purpose
The safety function consists of safely switching off the safety outputs
when the safety guard is unlocked or opened and maintaining the safe
switched off condition of the safety outputs for as long as the safety
guard is open.
2.2 Warning about misuse
2
In case of improper use or manipulation of the safety
switchgear, personal hazards or damages to machinery or
plant components cannot be excluded. There are no resid-
ual risks, provided that the safety instructions as well as the
instructions regarding mounting, commissioning, operation
and maintenance are observed.
2.3 Exclusion of liability
We shall accept no liability for damages and malfunctions resulting from
defective mounting or failure to comply with the operating instructions
manual. The manufacturer shall accept no liability for damages result-
ing from the use of unauthorised spare parts or accessories.
For safety reasons, invasive work on the device as well as arbitrary re-
pairs, conversions and modifications to the device are strictly forbidden,
the manufacturer shall accept no liability for damages resulting from
such invasive work, arbitrary repairs, conversions and/or modifications
to the device.
2.4 Technical Data
General data
Standards
Coding level according to EN ISO 14119
Working principle
Frequency band RFID
Transmitter output RFID, maximum
Time to readiness, maximum
Duration of risk, maximum
Reaction time, switching off safety
outputs via actuator, maximum
Reaction time, switching off safety
outputs via safety inputs, maximum
Degree of protection
Safety classification
Standards
Safety classification - Interlocking function
Performance Level, up to
Category
PFH value
PFD value
Safety Integrity Level (SIL), suitable
for applications in
Mission time
Safety classification - Guard locking function
Performance Level, up to
Category
PFH value
PFD value
Safety Integrity Level (SIL), suitable
for applications in
Mission time
Mechanical data
Mechanical life, minimum
Note (Mechanical life)
Angular misalignment between sole-
noid interlock and actuator, maximum
Holding force F , maximum
max
Holding force F in accordance with
Zh
EN ISO 14119
Latching force (position 1 / position 2)
Type of the fixing screws
Tightening torque of the fixing screws
Mechanical data - Switching distances according EN IEC 60947-5-3
Switch distance, typical
Assured switching distance "ON" S
Assured switching distance "OFF" S
AZM300
EN ISO 13849-1,
EN ISO 14119,
EN IEC 60947-5-3,
EN IEC 61508
I1 variant: High
I2 variant: High
Standard coded variant: Low
RFID
125 kHz
-6 dB/m
5,000 ms
200 ms
100 ms
1.5 ms
IP66, IP67, IP69
EN ISO 13849-1, EN IEC 61508
5.20 x 10⁻¹⁰ /h
4.50 x 10⁻⁵
20 Year(s)
2.00 x 10⁻⁹ /h
1.80 x 10⁻⁴
20 Year(s)
1,000,000 Operations
When using as door stop:
≥ 50.000 operations (door
mass ≤ 5 kg and actuating
speed ≤ 0.5 m/s)
1,500 N
1,150 N
25 N / 50 N
2x M6
6 ... 7 Nm
2 mm
1 mm
ao
20 mm
ar
e
4
3
d
2
2
2°
1
