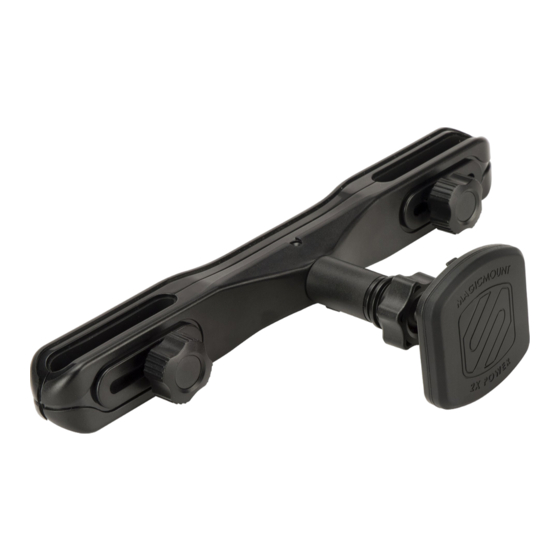

Scosche MAGICMOUNT XL Quick Start Manual

Register your product online at
Magnetic ReaR Seat HeadReSt Mount
for all iPads and tablets
FeatuReS
• Installs in minutes –no tools required
• 360° swivel mount
• Mounting arm section features ball-joint adjustment and quick-release to easily install or
remove holder assembly from headrest mounting base
• High strength design and construction
PaRtS incLuded
(1) Magnetic mount
(1) Mounting arm
(1) Headrest-mount base unit
(1) Small metal plate
(1) XL plate
MagicMount XL
tM
Magnetic Mount
caution: This magnetic mount
is not a toy. The small magnets
are harmful if swallowed. Keep
away from children.
Mounting aRM
©2015 SCOSCHE INDUSTRIES, INC.
www.scosche.com/register
MagicMOUNT
MagtHM2/MagtHM2i
MagicPLate
tM
MetaL PLateS
(small & XL)
Mounting BaSe
SI 300MAGTHM2/MAGTHM2I (ENGLISH) 3/15
attacHing and ReMoVing
tHe Magnetic Mount
Press down on the quick release lever and pull
TM
XL
the mount up to release it. Reinsert to reattach the
HEADREST
mount to the mounting arm and listen for a click to
ensure it is secured.
1
A
HeadReSt Mounting
BaSe inStaLLation
1. option a: Carefully remove the headrest from the seat
as shown. Place the MagicMount XL base on the top of the seat so the slots line up directly over the
hole for the vehicle's headrest post. Reinstall the headrest as shown.
option B: Do not remove the headrest. Loosen and remove the clamping knobs on the base unit.
Position the two halves of the base on either side of the headrest posts, and reassemble the base around
the posts as shown.
2. Tighten the two clamping knobs (turn clockwise) on the base.
3. Insert the mounting arm until a click is heard.
4. To remove the mounting arm for storage when not in use, press the release button as shown.
incLudeS
integRated caBLe
ManageMent Hook
B
3
2
2
4
