Summary of Contents for Electrolux DFW51
-
Page 2: Table Of Contents
User’s Manual 1. Safety Thank you for choosing Electrolux. In this manual This refrigerator is not intended for use by persons you will find all the information for your safety and (including children) with physical, sensory or mental proper use of your Fridge. Read all the instructions... -
Page 3: Installation
2. Installation ATTENTION Your refrigerator was developed to use the Unpacking leveling feet, which come with it. Therefore, do not use other feet other than the Remove the package of the pro- original. There are wheels on the back part of duct and, to remove the base of your refrigerator to facilitate movement. -
Page 4: Description Of The Refrigerator

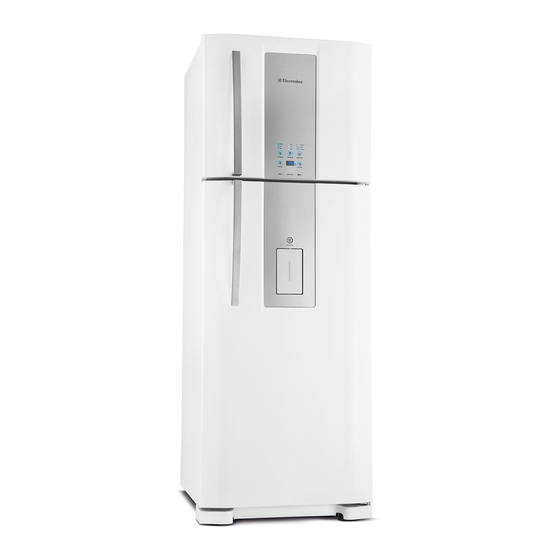

3.Description of the Refrigerator IMPORTANT In case the voltage at installation site is out of the indicated limits on Admissible Voltage Varia- Parts tion table, ask the dealer energy the adequacy 1. “Ice Twister” of voltage levels and adapt a voltage stabilizer 2. - Page 5 Control Panel...
- Page 6 “AUTO CONTROL” Button (Automatic Control) rature. Avoid opening the freezer or fridge door By pressing the “AUTO CONTROL” button, it is pos- frequently when this function is being used and sible to select one of the automatic control functions: be careful with glass bottles put in the freezer. Vacation, Party and Shopping.
- Page 7 “Water Dispenser Activator” button “ICE EXPRESS” button Pressing the button and keeping it pressed, you can This buttons allows the ice to be formed faster in the serve water in a glass. For this, it is necessary to: a) the freezer compartment.
- Page 8 Frosty Cups Multi-use Drawers Developed to store cups and Those drawers serve to store glasses, so they can be cooled at several types of food. the moment of use. Fruit/Vegetables Drawers Keep the humidity and the freshness of the vegetables and fruit due to the Ice Stock circulation of the cold air, which is not This compartment is able to store...
- Page 9 Removible Multi Use Drawers How to Use the Water Container These shelf serve to store several To serve, open the dispenser, rotating it, put a glass types of food. These shelf can be along with the water exit, located in the external part assembled in several positions in of the refrigerator door and activate the button (A) the refrigerator, but it shall not be...
-
Page 10: How To Use
Electronic Control of Freezer Tempe- 4. How to Use rature By touching the button succes- How to turn your refrigerator on and off sively, you can select the freezer To turn your refrigerator on or off, Just connect temperature. or disconnect the plug of the socket, verifying the correct voltage of the product. - Page 11 2. Setting Options: Fridge Temperature Control To increase 0,5 ºC in the pre-established tempera- To properly control your refrigerator’s temperature, ture, press the TEMP. FREEZER BUTTON until consider the following factors: it shows 05 in the Functions indicator. 1. The quantity of food stored. 2.
-
Page 12: Cleaning And Maintenance
5. Cleaning and Maintenance WARNING Do not remove the collector when cleaning Before realizing any maintenance it, and do not displace the tubes located operation, including the ones inside this colector. Do not throw water described in this guide, turn the directly inside or outside the refrigerator. - Page 13 Light Replacement Water Container Cleaning To replace the light of your Refrigerator, proceed in the following manner: ATTENTION Refrigerator Compartment: Before removing the container from the door, 1. Turn the refrigerator off of the completely empty it. electric power. 2. Press the inferior part of the 1.
- Page 14 Shelf of the Fresh Food Compartment: Cleaning Aluminum Bar Area Remove it pulling the shelf until If really exists the need to it locks and lift it up. remove the Aluminum Bar to clean the door area where the Bar is mounted, proceed in the following manner: Press the buttons of the Locks of the Aluminum Bar Removable Glass Shelves:...
-
Page 15: Solving Problems
6. Solving Problems Customer Support In case the refrigerator presents any malfunction, check for the possible causes and corrections. Probable Causes/Corrections • Plug is off the socket. • Connect the plug to the socket. If the refrigerator fails to work ) •... - Page 16 • Refrigerator is in automatic freezer defrost • Wait for the defreezing period to end (about 30 When the Turbo process. minutes) and the selected function will be run Freezer or “Drink as requested. Express” button is pressed, the com- •...
-
Page 17: Hints And Suggestions
7. Hints and Suggestions Avoid the contact of any kind of oil or fat with the plastic parts of the refrigerator as they may be damaging. Do not, in any circumstance, lubricate the door hinge as the plastic parts may be damaged. Attention: Avoid magnets in the doors;... - Page 18 How to Save Energy Storing Foodstuff Keep your refrigerator door open for the necessary To preserve the characteristics of food items or time only. liquids, keep the recipients closed. If the door is not properly closed, power con- For leafy vegetables, fruits and vegetables, put sumption will increase and irregular ice formation them in a plastic bag and store them in the crisper occurs.
-
Page 19: Technical Information
91,5 kg Lamp power 15 W Freezing capacity 7 kg/24h Retention time 12 h Cooling gas R134a CONSUMO DE ENERGÍA - DFW51 y DW51X Voltage Frequency 127V/60Hz 220V/60Hz 220V/50Hz According to ISO 8561 (1995)/Amd.(1996) 59 kWh/month 59 kWh/month 575 kWh/year... - Page 20 Manual del Usuario 1. Seguridad Gracias por elegir Electrolux. En este manual usted Este refrigerador no está diseñado para ser utilizado encuentra todas las informaciones para su seguridad por personas (incluidos niños) con discapacidad física, y el uso adecuado de su Refrigerador. Lea todas las sensorial o mental, o personas con falta de experiencia instrucciones antes de utilizar el aparato y guárdelas...
