1.
Unpack
2.
Initial Setup
3.
Overview of the
ready-to-use device
SETUP GUIDE
Sparklike
Laser Portable
Thank you for choosing Sparklike Laser
Portable 2.1™ to measure the gas
concentrations on your insulating glass
products. Sparklike Laser Portable™ is
a unique product for non-destructive
analysis, that measures even through
coatings
and
Laser Portable™ measures oxygen and
the results can be converted to argon,
krypton or other insulating gases.

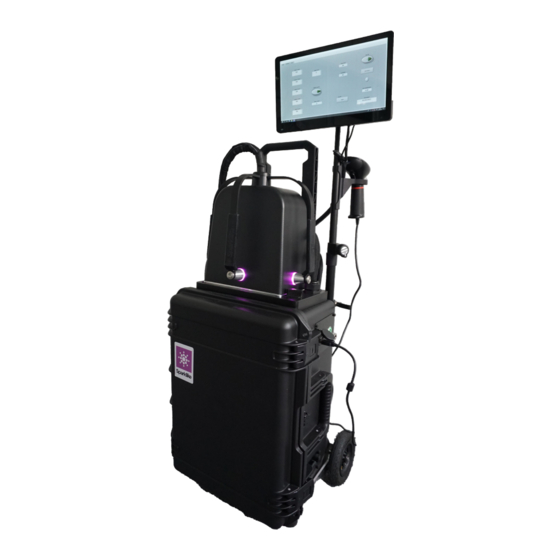

The equipment consists of three parts: a
trolley case with the main unit, measuring
head and display with additional parts.
Before operating the equipment, register
your device at our website
register. Follow the Setup Guide carefully
before using the device.
Sparklike technology since 2000
™
laminations..
Sparklike
sparklike.com/
2.1
Advertisement
Table of Contents
Related Manuals for sparklike Laser Portable 2.1
Summary of Contents for sparklike Laser Portable 2.1
- Page 1 SETUP GUIDE Sparklike Laser Portable ™ Thank you for choosing Sparklike Laser Portable 2.1™ to measure the gas concentrations on your insulating glass products. Sparklike Laser Portable™ is a unique product for non-destructive analysis, that measures even through coatings laminations..
- Page 2 (keep these for future shipments!) Accessories and spare parts Power cord Calibration certificate Fan filter replacement instructions Sparklike barcode reader and holder Spare parts box Fan filters x 6 Foam ribbon Quick connector for the gas hose Pin clips x 2...
- Page 3 2. INITIAL SETUP Place the measuring head to the Attach the display to the display holder at the top of the device. stand and tighten the screw. Remember to lock the measuring head in place with the locking knob. Attach the display stand to the Connect the HDMI, USB and the main unit and tighten the screw.
- Page 4 Register your device On the first start-up, the sparklike.com/register to receive activation code is entered as a password for the device. Use the an activation code to your email. On-Screen Keyboard provided by Windows. Go to sparklike.com/...
- Page 5 3. OVERVIEW OF THE READY-TO-USE DEVICE Ready to use device: Led light is green inside the main unit, next to » the main switch. Software is ON and functioning » Led lights are ON in the handels of the » measuring head Green light in the power switch button is ON.
- Page 6 Scan the QR-code for further instructions and support sparklike.com/guidance/lp SPARKLIKE OY www.sparklike.com Helsinki, Finland 04/2023...
