SERVICE MANUAL

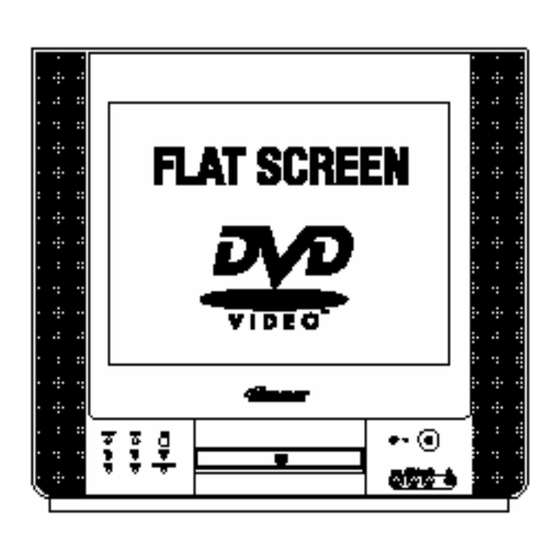

15" TV+DVD COMBO
（MODEL：MVD1402）
MODEL
CHASSIS
DOCUMENT :
DATE
This manual is the latest at the time of print, and does not include the modification
which may be made after the printing, by the constant improvement of product.
MEMOREX
:
:
PHILIPS UOC TDA8377 + DS-C005B
SM-05PM
:
05/05/2005
MVD1402
Advertisement
Table of Contents
Related Manuals for Memorex MVD1402
Summary of Contents for Memorex MVD1402
- Page 1 SERVICE MANUAL 15” TV+DVD COMBO （MODEL：MVD1402） MEMOREX MODEL MVD1402 CHASSIS PHILIPS UOC TDA8377 + DS-C005B DOCUMENT : SM-05PM DATE 05/05/2005 This manual is the latest at the time of print, and does not include the modification which may be made after the printing, by the constant improvement of product.
-
Page 2: Table Of Contents
CONTENTS Safety precautions……………………………………………………………..……………3 TV block diagram……………………………………………………………………..…….4 Replacement of memory IC………………………………………………………….……5 Service adjustment……………………………………………………………..…………...5 ICs functional description…………………………………………………………………8 Test point waveform………………………………………………………………………10 All ICs voltages……………………………..……………………………………………….10 Purity / convergence adjustment………………………………………………………11 DVD maintenance…………………………………………………………………………13 10. List of Parts ………………………………………………………………………….…….14 11. Circuit diagram………………………………………………………………………Attached... -
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS The design of this product contains special hardware, many Isolation Check circuits and components especially for safety purposes. For (Safety for Electrical Shock Hazard) continued protection, no changes should be made to the After re-assembling the product, always perform an isolation original design unless authorized in writing by the check on the exposed metal parts of the cabinet (antenna manufacturer. -
Page 4: Tv Block Diagram
Block diagram TDA8377 PS/N2 series with mono intercarrier sound demodulator... -
Page 5: Replacement Of Memory Ic
3. REPLACEMENT OF MEMORY IC 1. MEMORY IC. This TV uses memory IC. In the memory IC are memorized data for correctly operating the video and deflection circuits. 2. PROCEDURE FOR REPLACING MEMORY IC (1) Standby off Switch the power off and unplug the power cord from AC outlet. (2) Replace IC Be sure to use memory IC written with the initial data values. - Page 6 Adjustable Items Direct access key Items Description Preset Remark “1” 5/6HSH Horizontal shift “2” 5/6VSL Vertical slop 5/6VAM Vertical amplitude 5/6SCL S-correction 5/6VSH Vertical shift 5/6VOF OSD Vertical offset HOF* OSD Horizontal offset “3” Black level offset R Black level offset G White point R White point G White point B...
- Page 7 Optional data Function Description Preset Remark Bit 7 RESERVE 1 = Enable Bit 6 1 = Enable Bit 5 Halftone 1 = Enable Bit 4 1 = Enable Bit 3 1 = Enable Bit 2 Comb filter 1 = Enable Bit 1 SVHS 1 = Enable...
-
Page 8: Ics Functional Description
6. OP6 Function Description Preset Remark Bit 7 RESERVE Bit 6 RESERVE 1 = Enable Bit 5 SOFT CHANGE AV 1 = Enable Bit 4 LISTEN 1 = Enable Bit 3 INNER DVD 1 = Enable Bit 2 ZOOM 1 = Enable Bit 1 9860 1 = Enable... - Page 9 CHROMA SVHS (C) input AUDOUT Audio output INSSW2 YUV insertion input R2/VIN R input / V (R-Y) input / PR input G2/YIN G input / Y input B2/UIN B input / U (B-Y) input / PB input BCLIN Beam current limiter input BLKIN Black current input Red output...
-
Page 10: Test Point Waveform
6. Test point Waveforms 3.8Vpp 2.5Vpp 2.5Vpp 1.2Vpp 2.6Vpp TDA9370 PIN38 TDA9370 PIN40 TDA9370 PIN53 TDA9370 PIN52 TDA9370 PIN51 0.9Vpp 5Vpp 95Vpp 95Vpp 95Vpp CRT KR CRT KG CRT KB TDA9370 PIN33 TDA9370 PIN34 0.8Vpp 1Vpp 1.3Vpp TDA9370 PIN21 TDA9370 PIN22 TDA9370 PIN59 7. -
Page 11: Purity / Convergence Adjustment
8. PURITY / CONVERGENCE ADJUSTMENT PURITY ADJUSTMENT WEDGE Demagnetize CRT with the demagnetizer. DEFLECTION YOKE Loosen the retainer screw of the deflection yoke. Remove the wedges. Input a green raster signal from the signal generator, and turn the screen to green raster. Move the deflection yoke backward. - Page 12 STATIC CONVERGENCE ADJUSTMENT 1. Input a crosshatch signal. 2. Using 4-pole convergence magnets overlap the red and blue lines in the center of the screen (Fig. 1) and turn them to magenta (red/blue). (FRONT VIEW) 3. Using 6-pole convergence magnets overlap the magenta (red/blue) and green lines in the center of the screen and turn them to white.
-
Page 13: Dvd Maintenance
9. DVD Part: Introduction of MTK1379 maintenance Under normal power supply conditions, the maintenance plan for MT1379 mono-chip is: first the reset circuit resets the MT1379, after the crystal oscillator circuit gave the clock signal to MT1379, MT1379 will start the initialization check for Flash、E PROM、SDRAM, after everything is checked to be normal, it will start initialization check for 7Audio DAC, MT1336 and motor Driver. -
Page 14: List Of Parts
10. List of Parts LOCATION material code specification specification DA0SW0E0100-001 MODEL: MVD1402 0090806682 BJH3156-----Q FRONT FRAME MODULE 0090806683 MTAA3191AC--Q FRONT FRAME ASSEMBLY 0090401734 WIRING HARNESS TJC3-2A 0094009173 SPEAKER YDT0313-8W-8Ω 0090600013 SCROW SJ2825-87 ST3x12F 0090401336 FRONT AV WIRING HARNESS 0090600013 SCROW... - Page 15 0090206948 packaging box 0090506472 0094000213 battery 7#（ENGLISH） plastic bag of manual 0090205727 remote cotroller 0094011254A Memorex plastic bag of TV 0090205728 nail 0090100027 bag of power cord 0090500018 service manual(english) 0090506257 guarantee 0090505495 label of power cord...
- Page 16 LD01 0094401957 TOL-30mRGdEHa infrared receiver A1001 0094004386 HS0038B XZ03 0090401317 wiring harness 450mm XZ05 0090402174 wiring harness controller PCB module 0094011764 machine inserting assembly 0094011767 0091801880 jumper wire φ0.58mm/10mm 0094101552 jumper wire 0094101552 φ0.58mm/7.5mm CARBON FILM RESISTOR 0094100020 RT13-1/6W-470-J------T 0094100916 CARBON FILM RESISTOR RT13-1/6W-620-J------T CARBON FILM RESISTOR...
- Page 17 N301C 0094401409 TDA8357J screw N301D 0090600076 ST3X10F SJ2831-87 screw C005B（32M） 0094008041 heat sink V401B 0090600076 ST3X10F SJ2831-87 triode V401A 0090100017 QHS-30184A heat sink V401 0094401644 TT2140 N801A 0090100661 QHS-30184A screw N801C 0094401392 KA5Q0765RTH-YDTU N801D 0090600076 ST3X10F SJ2831-87 screw N802C 0094400808 L7809CS heat sink N802B...
- Page 18 rivet EY28 0090100008 φ1.6*3.0 rivet φ1.6*3.0 EY29 0090100008 rivet φ1.6*3.0 EY30 0090100008 rivet EY31 0090100008 φ1.6*3.0 rivet EY32 0090100008 φ1.6*3.0 rivet EY33 0090100008 φ1.6*3.0 rivet φ1.6*3.0 EY34 0090100008 rivet EY35 0090100008 φ1.6*3.0 rivet φ1.6*3.0 EY36 0090100008 rivet EY37 0090100008 φ1.6*3.0 rivet φ1.6*3.0 EY38...
- Page 19 jumper wire R315 0094101552 φ0.58mm/5mm------B jumper wire φ0.58mm/5mm------B W226 0094101552 jumper wire φ0.58mm/5mm------B W228 0094101552 jumper wire W245 0094101552 φ0.58mm/5mm------B jumper wire W266 0094101552 φ0.58mm/5mm------B jumper wire W410 0094101552 φ0.58mm/5mm------B jumper wire φ0.58mm/5mm------B W602 0094101552 jumper wire W603 0094101552 φ0.58mm/5mm------B jumper wire φ0.58mm/5mm------B W607...
- Page 20 jumper wire W200 0094101552 φ0.58mm/7.5mm------B jumper wire φ0.58mm/7.5mm------B W201 0094101552 jumper wire φ0.58mm/7.5mm------B W216 0094101552 jumper wire W233 0094101552 φ0.58mm/7.5mm------B jumper wire W227 0094101552 φ0.58mm/7.5mm------B jumper wire W264 0094101552 φ0.58mm/7.5mm------B jumper wire φ0.58mm/7.5mm------B W259 0094101552 jumper wire W267 0094101552 φ0.58mm/7.5mm------B jumper wire φ0.58mm/7.5mm------B W282...
- Page 21 jumper wire R713 0094101552 φ0.58mm/7.5mm------B jumper wire φ0.58mm/7.5mm------B R719 0094101552 jumper wire φ0.58mm/7.5mm------B W707 0094101552 jumper wire L701 0094101552 φ0.58mm/7.5mm------B jumper wire L702 0094101552 φ0.58mm/7.5mm------B jumper wire W831 0094101552 φ0.58mm/7.5mm------B jumper wire φ0.58mm/8.5mm------B R401 0094101552 jumper wire W612 0094101552 φ0.58mm/9mm------B jumper wire φ0.58mm/10mm------B W102...
- Page 22 jumper wire W231 0094101552 φ0.58mm/12.5mm------B jumper wire φ0.58mm/12.5mm------B W203 0094101552 jumper wire φ0.58mm/12.5mm------B W406 0094101552 jumper wire W409 0094101552 φ0.58mm/12.5mm------B jumper wire W614 0094101552 φ0.58mm/12.5mm------B jumper wire W735 0094101552 φ0.58mm/12.5mm------B jumper wire φ0.58mm/12.5mm------B L103 0094101552 jumper wire W982 0094101552 φ0.58mm/12.5mm------B jumper wire φ0.58mm/12.5mm------B R417...
- Page 23 carbon film resistor WSC3 0094100067 RT13-1/6W-75-J-T52 carbon film resistor RS01 0094100067 RT13-1/6W-75-J-T52 carbon film resistor RS02 0094100017 RT13-1/6W-100-J-T52 carbon film resistor R208 0094100017 RT13-1/6W-100-J-T52 carbon film resistor R209 0094100017 RT13-1/6W-100-J-T52 carbon film resistor R210 0094100017 RT13-1/6W-100-J-T52 carbon film resistor R230 0094100017 RT13-1/6W-100-J-T52 carbon film resistor...
- Page 24 carbon film resistor R215 0094101328 RT13-1/6W-3.3K-J-T52 carbon film resistor R266 0094101328 RT13-1/6W-3.3K-J-T52 carbon film resistor R247 0094101328 RT13-1/6W-3.3K-J-T52 carbon film resistor R220 0094101328 RT13-1/6W-3.3K-J-T52 carbon film resistor R278 0094101328 RT13-1/6W-3.3K-J-T52 carbon film resistor R286 0094101328 RT13-1/6W-3.3K-J-T52 carbon film resistor R747 0094101328 RT13-1/6W-3.3K-J-T52 carbon film resistor...
- Page 25 carbon film resistor W610 0094100038 RT13-1/6W-56K-J------T carbon film resistor R275 0094100943 RT13-1/6W-270K-J------T carbon film resistor R273 0094100036 RT13-1/6W-33K-J------T carbon film resistor R621 0094100036 RT13-1/6W-33K-J------T carbon film resistor R851 0094100036 RT13-1/6W-33K-J------T carbon film resistor R233 0094100767 RT13-1/6W-36KΩ-J carbon film resistor R261 0094100039 RT13-1/6W-68K-J------T carbon film resistor...
- Page 26 ceramic capacitor C218 0094200760 CT1-B-63V-2200pF-K-F05 ceramic capacitor C249 0094200715 CC1-CH-63V-150PF-J-F05 ceramic capacitor C232 0094202373 CC1-CH-63V-330PF-J-F05 ceramic capacitor C231 0094200981 CT1-B-63V-1000pF-K-F05 ceramic capacitor C234 0094200981 CT1-B-63V-1000pF-K-F05 ceramic capacitor C110 0094200981 CT1-B-63V-1000pF-K-F05 ceramic capacitor C229 0094201178 CT1-B-63V-3300PF-K-F05 ceramic capacitor C221 0094201039 CT1-B-63V-4700PF-K-F05 ceramic capacitor C603 0094201039...
- Page 27 Al ELECTROLYTIC CAPACITOR C246 0094200008 CD110X-16V-10µF-M-F05 Al ELECTROLYTIC CAPACITOR C250 0094200008 CD110X-16V-10µF-M-F05 Al ELECTROLYTIC CAPACITOR C842 0094200008 CD110X-16V-10µF-M-F05 Al ELECTROLYTIC CAPACITOR C107 0094200008 CD110X-16V-10µF-M-F05 Al ELECTROLYTIC CAPACITOR C108 0094200988 CD110X-16V-47µF-M-F05 Al ELECTROLYTIC CAPACITOR C252 0094200988 CD110X-16V-47µF-M-F05 Al ELECTROLYTIC CAPACITOR C257 0094200988 CD110X-16V-47µF-M-F05 Al ELECTROLYTIC CAPACITOR...
- Page 28 diode VD809 0094400049 1N4148------T diode VD816 0094400049 1N4148------T diode VD817 0094400049 1N4148------T diode DZ831 0094400049 1N4148------T diode VD620 0094400049 1N4148------T diode VD217 0094400049 1N4148------T diode VD507 0094400053 TC2406------T diode VD401 0094400473 1N4004-T52 diode VD402 0094400473 1N4004-T52 diode L209 0094400473 1N4004-T52 diode VD804 0094400052...
- Page 29 triode V620 0094400203 KSA539-YTA------F triode V622 0094400203 KSA539-YTA------F triode V402 0094400072 KSC2331-YTA------F triode V206 0094400192 KSC815-YTA------F triode V208 0094400192 KSC815-YTA------F triode V212 0094400192 KSC815-YTA------F triode V213 0094400192 KSC815-YTA------F triode V621 0094400192 KSC815-YTA------F triode V801 0094400192 KSC815-YTA------F triode V802 0094400192 KSC815-YTA------F triode V803 0094400192...
- Page 30 ceramic capacitor C410 0094200958 CT1-R-2Kv-330Pf-K-07-A thin film capacitor C805 0094201071 CT1-B-1kV-1000pF-K-07-A thin film capacitor C216 0094201463 CL21X-63V-224-J------F thin film capacitor C414 0094200098 CL21X-400V-104-J-07-A-A thin film capacitor C227 0094200099 CBB13-50V-104-J-07-A-A thin film capacitor C416 0094200101 CBB21-400V-364-J-20-G-A thin film capacitor C409 0094201023 CBB81-1.6KV-6800Pf-J-25-A thin film capacitor C802A...
- Page 31 tuner TU101 0094003734 ENV56DB4G3 CRT plug seat V999 0094300007 GZS10-2-BD plug seat CN801 0094300193 TJC1-3A plug seat CN802 0094300063 TJC2-2A plug seat CN203 0094300092 TJC3-2A plug seat CN601 0094300092 TJC3-2A plug seat CN602 0094300092 TJC3-2A plug seat CN502 0094300111 TJC3-3A plug seat CN200 0094300012...
- Page 32 MENU TV/AV AV1-VINAV1-ALAV1-AR TJC3-2Y CNS01 RS01 CT01 SW201 RT02 RS03 stand by CNS02 RB05 RB04 RB03 RB02 RB01 CNB01 1.8K 1.2K TJC3-2Y CNT01 TJC3-10A A6-5V R208 A6-5V N202 R278 R222 R220 R212 R211 R215 24C08 CN704 CN200 CN703 A6-5V 3.3K 3.3K 3.3K 3.3K...
