2-2
C
2: I
HAPTER
NSTALLATION
DIP Switch Number
1
2
3
4

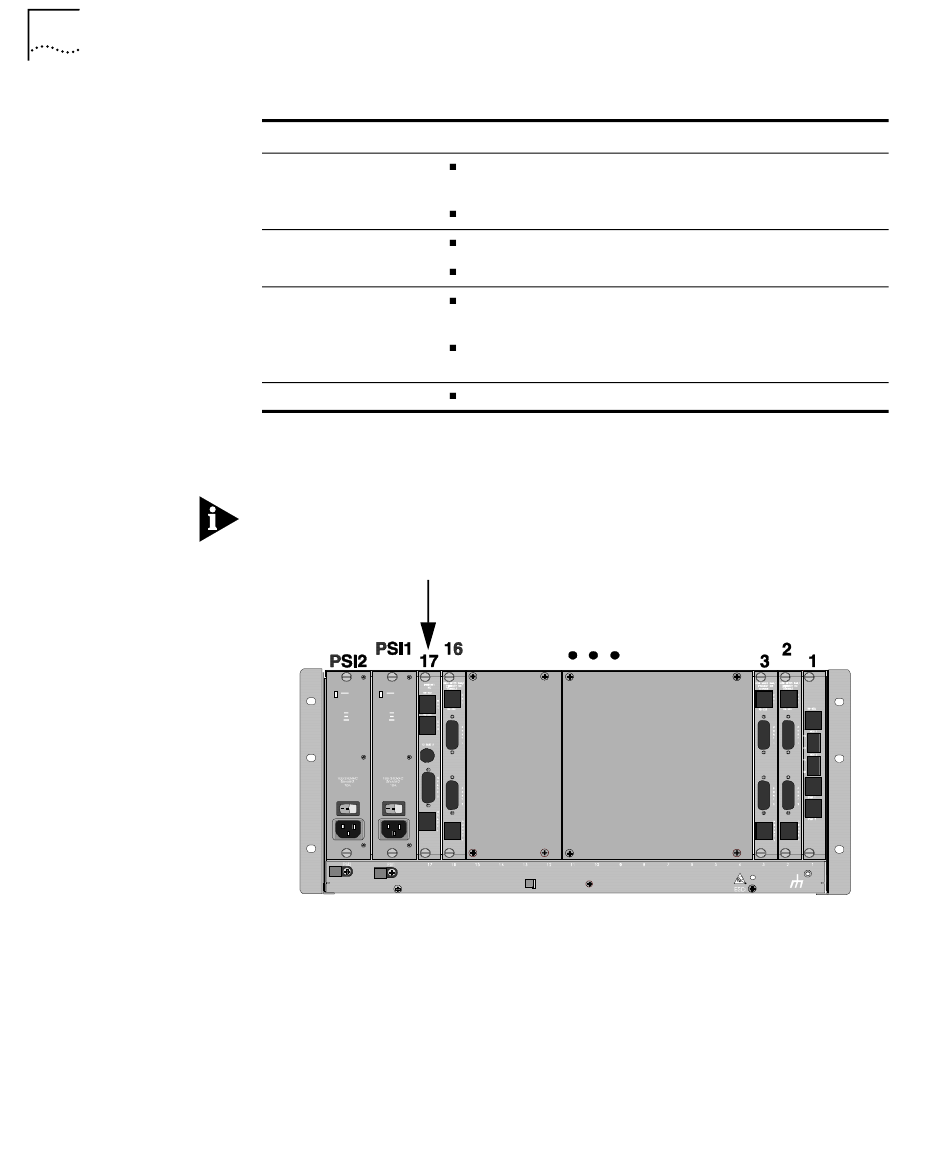

2 Select a slot at the rear of the Total Control chassis for installing the NIC.
Install this NIC in slot(s): 1–17
For managed chassis, slot 17 is reserved for the Network Management
Card (NMC) NIC.
Function
OFF: Unshielded Twisted Pair (UTP) Token Ring cable
used
ON: Shielded Twisted Pair (STP) Token Ring cable used
Off: 4 Mbps Token Ring speed connection
ON: 16 Mbps Token Ring speed connection
Off: Token Ring NIC installed behind an NMC NAC
(slot 17 only)
ON: Token Ring NIC installed behind any other NAC
–
(Slot 1
16)
OFF: Reserved
