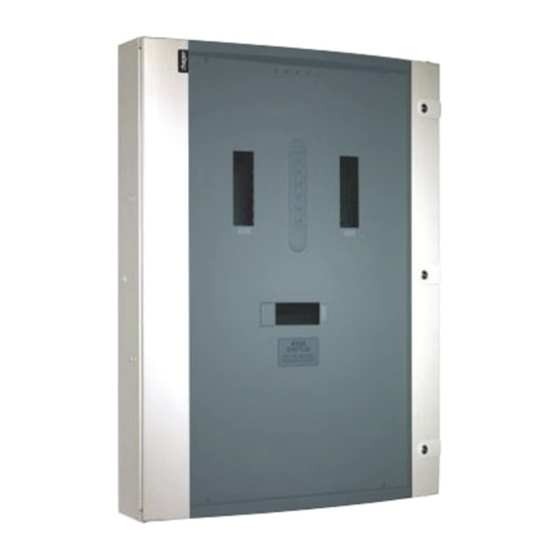

Invicta 3 Panelboard
ZD0741 Issue 6
JF8**B(G)
JF6**B(G)
All product(s) must be installed by a suitably competent
electrician giving consideration to their intended use and in
accordance with the current edition of BS 7671 (IET Wiring
Regulations).
The Electricity at Work regulations and the Health and Safety at
Work Act shall be complied with.
Only equipment and arrangements specified in Hager's technical
documentation / catalogue shall be used
Install in the vertical plane only with the recommendation to use a
cable extension box below the incomer to allow ease of cabling.
Notice:
To prevent potential overheating from loose connections the
installer shall check connections are tightened to the torque levels
stated in these instructions prior to energising this board. This
check should include factory made connections which may have
loosened in transit or as a result of.
Installation instructions
Notice d'instructions
Bedienungsanleitung
Instrucciones de uso
Instruções
Bruksanvisning
Gebruiksaanwijzing
Advertisement
Related Manuals for hager Invicta 3 JF8 B Series
Summary of Contents for hager Invicta 3 JF8 B Series
- Page 1 The Electricity at Work regulations and the Health and Safety at Work Act shall be complied with. Only equipment and arrangements specified in Hager’s technical documentation / catalogue shall be used Install in the vertical plane only with the recommendation to use a cable extension box below the incomer to allow ease of cabling.
- Page 2 Fixing points with central keyhole ZD0741 Issue 6...
- Page 3 JF6/8 3 Pole h 400A MCCB incomer kit 400A Incomer kits contain: • 3 x Phase extension links • 3 x spreader links • 6 x Phase link Allen fixing bolts and washers (M10) • 4 x Long fixing screws •...
- Page 4 JF6/8 3&4 Pole P 400A Electronic MCCB incomer kit JF843P4 & JF844P4 400A Incomer kits contain: • 3 x Phase extension links (per Phase) • 2 x Neutral links (doubled up - 4 Pole only) • 4 x spreader links •...
- Page 5 JF 6/8 3 Pole h 630A MCCB incomer kit 630A Incomer kits contain: • 3 x Phase extension links • 3 x spreader links • 6 x Phase link Allen fixing bolts and washers (M10) • 4 x Long fixing screws •...
- Page 6 JF6/8 4 Pole h 630A MCCB incomer kit 630 A 4 pole incomer kits contain: • 3 x Line extension links • 2 x Neutral links • 4 x spreader links • 8 x Phase link Allen fixing bolts and washers (M10) •...
- Page 7 JF6/ 8 4 Pole 630A Switch disconector incomer kit 630A 4 pole incomer kits contain: • 3 x Line extension links • 2 x Neutral links • 8 x Phase link fixing bolts and washers (M12) • 4 x Long M6 fixing screws and washers •...
- Page 8 JF 6/8 3 Pole direct connect incomer kit Direct connect kit includes: • 3 phase link assembly 3 x nylon pillar 1 x direct connect strap 3 x M6 bolt, spring washer, flat washer 6 x M12 bolt, flat washer, carp nut 1 x insulation barrier •...
- Page 9 Only eq uipment and arrangements specified in Hager’s technical documentation / catalogue shall be used. Fitting Single Pole MCCBs Single pole MCCB contains: • 2 x Fixing bolts • 2 x Spring washers • 2 x Single fixing plates •...
- Page 10 Achieving Form 3b type 2 on x160 frame MCCB outgoing Using HYA021H Terminal cover: Outgoing Devices x160 Frame only (125A) Cut Out Dimensions are shown below to achieve IPXXB (Form 3b type 2) 10mm Cable & 2.5mm Cable 16mm Cable 4mm Cable 6mm Cable 15mm...
-
Page 11: Service Conditions
IK05 Electromagnetic compatibility (EMC) classification EMC Environment B Metallic Enclosure Class 1 *NOTE - Dimensions can be found on the hager web site www.hager.com/uk. (Subject to compliance with relevant regulations in the current edition of BS 7671) ZD0741 Issue 6... - Page 12 Panel board circuit designation chart D.B No: Voltage: Supplied From: Supply cable mm: Incoming Isolator: P.S.C. AMPS TYPE CABLE MM C.P.C MM LOCATION DESCRIPTION ZD0741 Issue 6...
- Page 13 D.B No: Voltage: Supplied From: Supply cable mm: Incoming Isolator: P.S.C. AMPS TYPE CABLE MM C.P.C MM LOCATION DESCRIPTION ZD0741 Issue 6...
- Page 14 Hager Ltd. Hortonwood 50 Telford Shropshire TF1 7FT www.hager.com/uk National Sales Hotline 01952 675612 National Tech Support helpline 01952 675689 ZD0741 issue 6...
