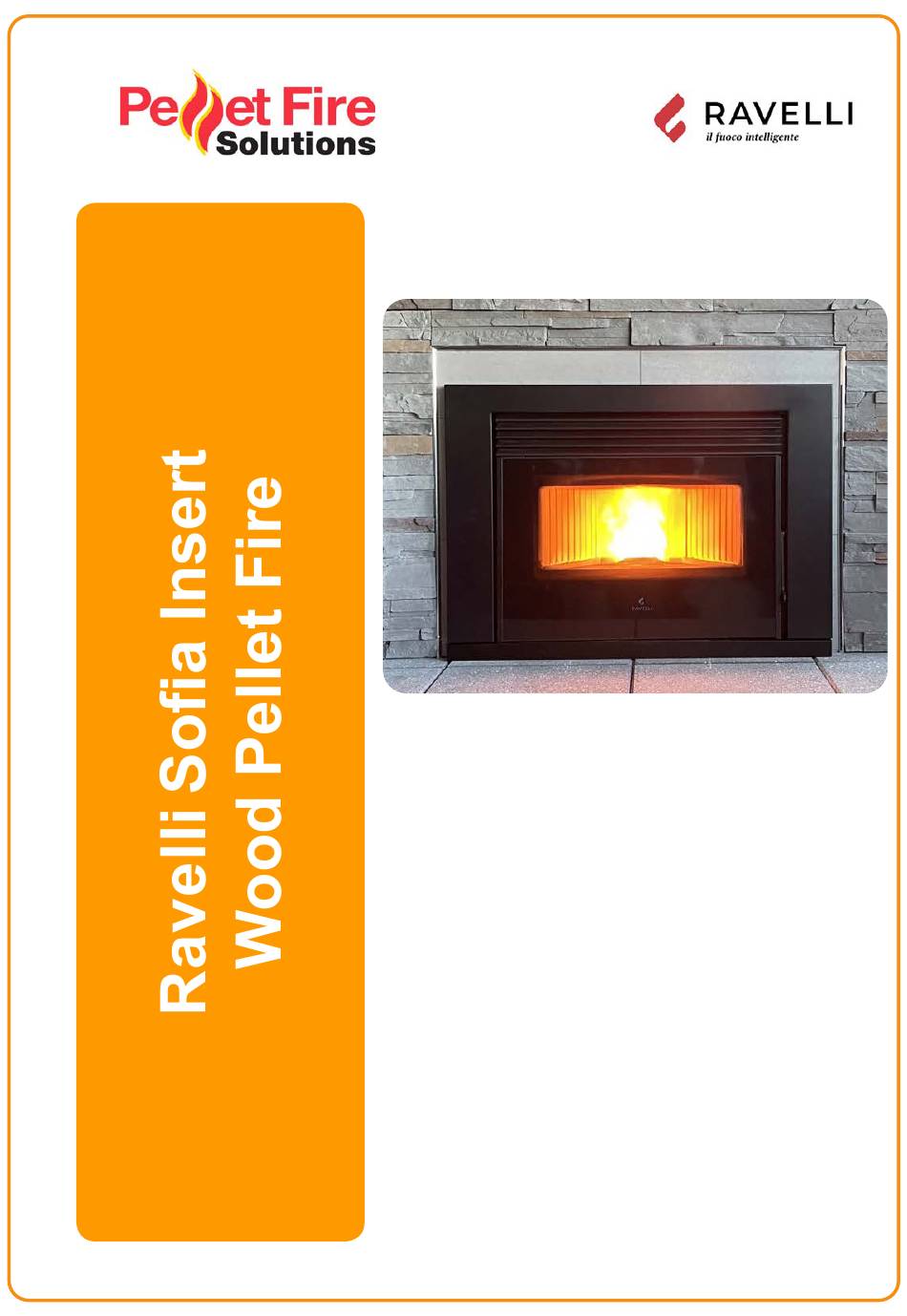

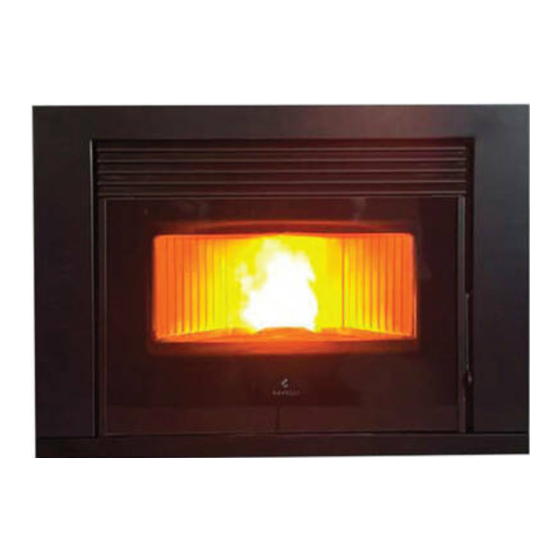

- Page 1 Ravelli Sofia Insert Wood Pellet Fire Installation Specifications Safety testing of the Ravelli Sofia Insert Wood Pellet Burning Heater to AS/NZS 2918:2018 Appendix B ARS 22/3116 & 22/3112R1 Flue Kit Testing to AS/NZS 2918:2001 App F: ARS 05/1185 Emissions CS19 - 0039962 - 01...
-
Page 2: Installation
- Technical drawing There are two critical components when installing a Sofia Insert Wood Pellet Fire: 1) Ensuring the wall cavity is the necessary size and 2) ensuring relevant clearances to combustibles are adhered to both inside and outside the cavity. - Page 3 Build Masonry Installing into an existing cavity As the Sofia Insert Wood Pellet Fire is typically installed extend to a minimum of 320mm above the top of the fi into a m asonry cavity, it can still be installed into Within the cavity, there must be a minimum of 320mm compliant cavity that will house the fi...
- Page 4 100mm Page 7...
- Page 5 flue have adequate clearance. 4. Check clearance for service – as the Sofia is designed to be pulled out, as long as there is front access, this should be sufficient.
-
Page 6: Television Clearances
ATTENTION Producer’s Statement must be forwarded to Pellet Fire Solutions - info@pelletfiresolutions.co.nz There are two critical components when installing a Sofia Insert Wood Pellet Fire: 1) Ensure the wall cavity is the necessary size. 2) Ensure relevant clearances to combustibles are adhered to both inside and outside the cavity. -
Page 7: Seismic Restraint
Adjusting the Support Frame (if required) The Sofia Wood Pellet Fire must be installed on the supplied, adjustable support frame. The height of this frame can be set at the home- owner’s desired height. The frame is adjusted by manipulating the bolts, which are located on each of the four legs to achieve the desired height.
