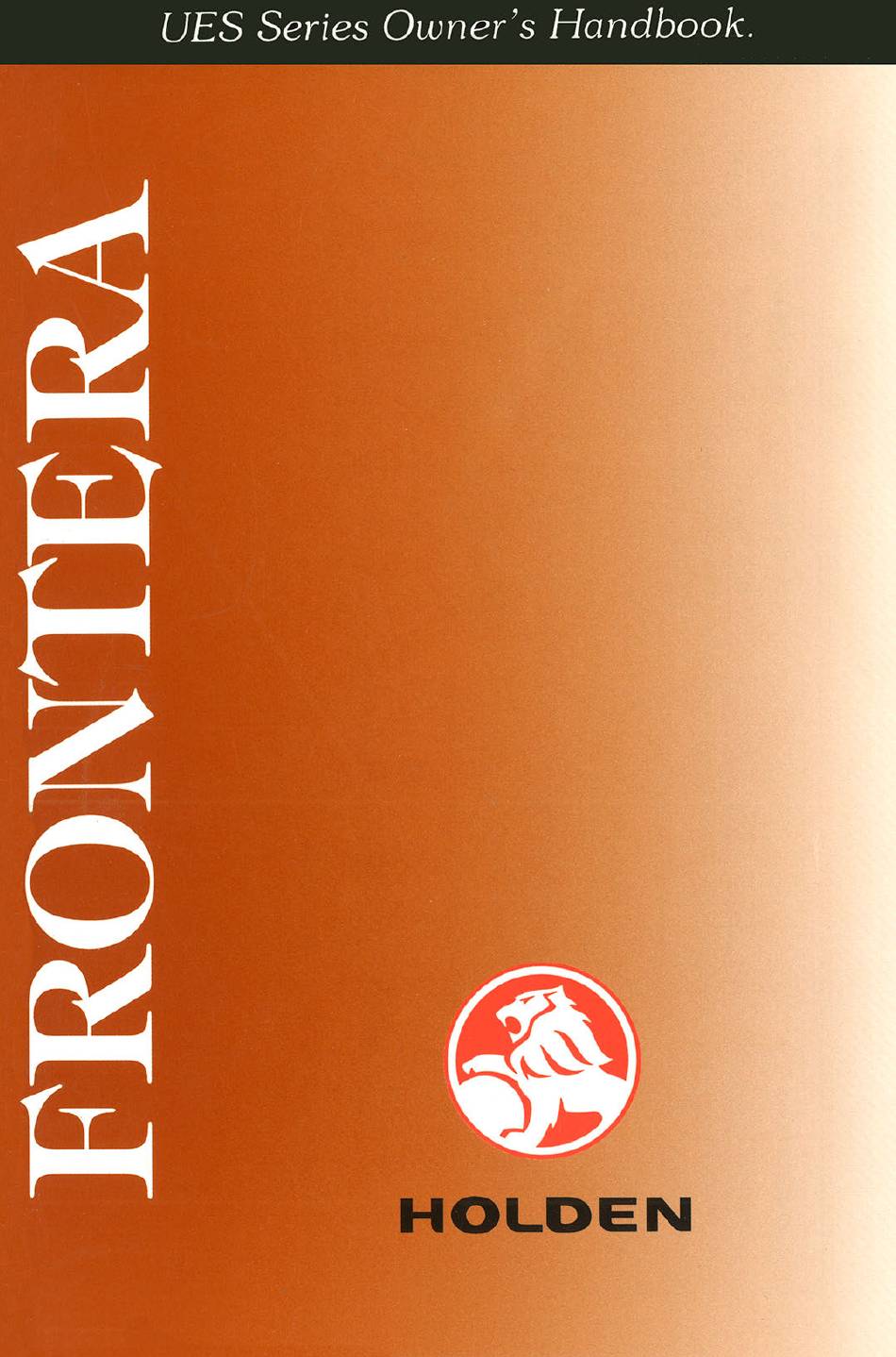

Summary of Contents for HOLDEN UES Series

  • Page 3 After Sales que s t i o n s and answers, r oadside assistance, customer a s s istance, authorised Holden Dealers. Tow& L oad Loading and towing, towing capacity, towing precautions. Cleaning Interior cleaning, exterior cleaning, list of maintenance materials.
  • Page 4 We thank you for choosing Holden and want to assure you of our continuing interest in your driving pleasure and satisfaction. This handbook applies to all Frontera. Therefore, you may find reference in this Handbook to some equipment not fitted to your own vehicie.
  • Page 5: Change Of Address Or Ownership

    Holden requires these details in order to contact the operator in the event of a safety recall and to keep the initial 3 year Roadside Assistance details up to date (refer Chapter 9).
  • Page 6 Place in an envelope and mail to: The Manager - Warranty Administration Service Department Holden Limited Box 5480, G.P.O. Melbourne Victoria, 3001...
  • Page 7 Please fill in the form below if you have changed your name, address, bought the vehicle second-hand, or have become the new driver. Holden requires these details in order to contact the operator in the event of a safety recall and to keep the initial 3 year Roadside Assis tance details up to date (refer Chapter 9).
  • Page 8 Place in an envelope and mail to: The Manager - Warranty Administration Service Department Holden Limited Box 5480, G.P.O. Melbourne Victoria, 3001...
  • Page 9 Holden requires these details in order to contact the operator in the event of a safety recall and to keep the initial3 year Roadside Assistance details up to date (refer Chapter 9).
  • Page 10 Place in an envelope and mail to: The Manager - Warranty Administration Service Department Holden Limited Box 5480, G.P.O. Melbourne Victoria, 3001...
  • Page 11 Dash Page Manual Control Dash 1- 3 Automatic Control Dash Gauges Clock Warning Lights Wipers and Washers 1-10 1-11 Lights 1-12 Turn Signals 1-12 Hazard Warning Flasher 1-12 Fog Lights (if fitted) 1-1 3 Radio/Cassette 1-13 Horn 1-14 Air Vents Rear Window Demister 1-14 1-15...
  • Page 12 Chapter 1 DASH MANUALCONTROLDASHLAYOUT Page Manual heater and air conditioner controls 1-15 ....1-12 Hazard warning switch ..........Rear window/side mirrors demister switch 1-14 .
  • Page 13 Chapter 1 DASH AUTOMATIC CONTROL DASH LAYOUT P a g e Automatic heater and air conditioner controls 1-18 ....Hazard warning switch 1-12 .............. Rear window/side mirrors demister switch ....... I - I 4 Clock ....................Rear wiper switch ................ 1-1 0 Rear washer and wiper switch ..........
  • Page 14: Temperature Gauge

    Chapter 1 DASH TEMPERATURE GAUGE ODOMETER FUEL GAUGE TACHOMETER SPEEDOMETER TRIPMETER TRIPMETER RESET KNOB Temperature Gauge The temperature gauge indicates the engine coolant temperature. Stop/start driving in heavy traffic, driving at high speed in warm weather, hill climbing or towing may cause the needle to move toward the red section of the gauge. This is normal, and is not cause for concern.
  • Page 15: Instrument Lighting

    Chapter 1 DASH Speedometer (including Odometer and Tripmeter) The speedometer shows vehicle speed in kilometres per hour. The odometer is located in the centre of the speedometer and records the kilometers driven since the vehicle was built. The tripmeter is located in the bottom of the speedometer and records the kilometers driven on a particular trip.
  • Page 16: Warning Lights

    ON - until the engine is started. If the symbol is illuminated when driving it indicates that the generator is not charging and you should see your Holden Dealer. Low fuel This symbol is displayed when the petrol tank is approaching empty.
  • Page 17 If the symbol is illuminated while driving it indicates a fault in the E ngine Management Sy stem. Although the vehicle may still b e driveable i t i s recommended you have a Holden Dealer correct the problem as soon as possible.
  • Page 18 If the light does not go out you should have the transmission checked by a Holden Dealer as soon as possible. Power Drive (Auto Transmission Only) To check that the warning light is working, the indicator light illuminates...
  • Page 19 If the light comes on while driving, carefully stop the vehicle and turn off the engine. If the light stays on or illuminates again while driving you should have the system checked by a Holden Dealer. Note: This light only means that the anti-lock system is not operating.
  • Page 20: Wipers And Washers

    Chapter 1 1-10 DASH Wipers Move the lever located on the left-hand side of the steering wheel up or down. MIST - provides a single sweep of the wipers when moved upwards. OFF - wipers do not operate. INTERMITTENT- wipers operate every 3 seconds.
  • Page 21: Interior Lighting

    Chapter 1 1 11 DASH LIGHTS Headlights and Park Lights To turn on the parking lights, tail lights, licence plate lights, marker lights and instrument panel lights, rotate the light switch :00� . knob clockwise to the first step To turn on the headlights in addition to the previously mentioned lights, rotate the knob �0 .
  • Page 22 Chapter 1 1-12 DASH Turn Signals The turn signal lever is on the right side of the steering wheel column. Push the lever up to signal a left turn, down to signal a right turn. In some turns (such as changing lanes) the steering wheel is not turned far enough to cancel the turn signal.
  • Page 23: Radio&Horn

    Chapter 1 1-13 DASH Radio/Cassette Please refer to separate instruction supplement for radio/cassette control provided in the glovebox. Horn The horn can be activated at any time, even with the ignition in the LOCK position, by pressing the pad in the centre of the steering wheel.
  • Page 24 Chapter 1 1-14 DASH AIR VENTS & REAR WINDOW DEMISTER S ide Vents The side vents, located on either far side of the dash, can be angled up/down or left/ right. The air supply can be increased by switching on the fan. Centre Vents The centre vents, located in the middle of the dash, may be angled up/down or left/...
  • Page 25: Manual Heater Control

    Chapter 1 1-15 DASH The manual heater controls are located between the centre air vents and the radio in the middle of the dash. Re-circulation Lever Air intake source is controlled by sliding this knob: � Right Outside air is drawn into the vehicle.
  • Page 26 Chapter 1 1-16 DASH Selecting Air Vents Different vents are selected when the vent select knob is set in the following positions: Air will flow from the centre, knee and side vents. Air will flow from the centre, side, knee and foot vents. The air from the foot vents is warmer than that from the upper vents, except when the temperature control knob is moved to its extreme right or left positions, when the air from the upper and lower vents will be at the same temperature.
  • Page 27 Chapter 1 1-17 DASH Air Conditioning Manual air conditioning is operational when � the engine is running and the fan is on. Press the NC button located on the heater control in to activate the air conditioning. Set the fan position to 1, 2, 3, or 4 to begin air circulation.
  • Page 28 1-18 Chapter DASH Full Auto Air Conditioning This type of air conditioner is only available with the automatic transmission models. 1. Air Conditioner Switch Press this switch to turn the air conditioner ON and OFF. While the air conditioner is operating, the indicator light isilluminated.
  • Page 29: Automatic Operation

    Chapter 1 1-19 DASH Automatic Operation Press AUTO (Automatic) switch and turn variable fan speed switch to AUTO. Set a desired cabin temperature using the (2). TEMPERATURE ADJUST knob Air vents changeover, inside/outside air changeover, a i r flow and outlet a i r temperature are controlled automatically.
  • Page 30: Manual Operation

    Chapter 1 1-20 DASH Notes When the air conditioner is not required, press the A/C button to switch off the air conditioner to reduce fuel consumption. Continued maximum heating may cloud the winshield glass and blur front visibility. Therefore, long time maximum heating operation should be avoided. After parking for long hours in the sun, open the windows and doors to ventilate the heated air in the vehicle before operating the air conditioner.
  • Page 31: Temperature Sensors

    Chapter 1 1-21 DASH Defrosting and Declouding When you want to defrost/decloud the front/ <;W side glass, press air vent changeover switch (5). The air conditioner is also actuated. Be sure not to operate the air CAUTION: conditioner at the maximum cooling position when the changeover switch (5) is set to the <;W position.
  • Page 32: Bonnet Release

    Chapter 1 1-22 DASH From inside the vehicle, pull the right hand lever under the driver's side of the dash towards you. This allows the bonnet to release but is prevented from opening by the safety catch. To open completely, reach in under the centre of the bonnet and move safety catch upwards.
  • Page 33: Front Ashtray

    Chapter 1 1-23 DASH Lighter The cigarette lighter is operational when the ignition is turned to ON or ACC. Press in the lighter knob. When the element is hot the lighter will automatically pop back, ready for use. CAUTION: Avoid holding the lighter in by hand when it is heating, as damage to the heating element may result.
  • Page 34: Power Outlets

    1-24 Chapter 1 DASH Two power outlets are provided on all vehicles, one forward of the gear shift lever underneath the cigarette lighter, and the other of the left hand wall of the load compartment. The power outlets are operational when the ignition is turned to ON or START.
  • Page 35: Setting A Desired Speed

    If a malfunction has developed in the cruise control system, have the system checked and corrected by a Holden Dealer as soon as possible. Manual Operation The cruise control can keep the vehicle at a constant speed so that the driver does not have to use the accelerator pedal.
  • Page 36 Chapter 1 1-26 DASH Accelerating For a short burst of speed to overtake a car, use the accelerator pedal. When you take your foot off the pedal, the vehicle will slow down to maintain the previous set speed. Resetting to a Higher Speed If you wish to increase the cruise control speed you may either: Rotate the end of the lever to RES/ACC for less than 1 second.
  • Page 37 Chapter 1 1-27 DASH Stopping Cruise Control To stop the cruise control while vehicle speed is maintained by the cruise control, you can either: Depress the brake pedal. Depress the clutch pedal (manual transmission). Once the vehicle has stopped, shift the transmission lever to N (automatic transmission).
  • Page 38 NOlES...
  • Page 39 Locks Page Keys and Locks 2- 3 Keyless Entry (if fitted) Tailgate Lock Ignition Lock Glovebox Lock...
  • Page 40: Keys And Locks

    Chapter 2 LOCKS KEYS& LOCKS The one key operates all locks and the ignition. Make a note of the key number and keep the key number and the spare key in a safe place, not in the vehicle. Manual Door Locks All doors are fitted with manually operated lock buttons.
  • Page 41 Chapter2 LOCKS The front and rear doors, the tailgate and the fuel cover of the 4 door model can be � locke and unlocked without using the key in the lock. Press the LOCK button of the remote control .------------- . ------- --, Remote control key (Transmitter) key within about 3 metres of the centre of the vehicle, and all the doors, tailgate and...
  • Page 42: Changing The Battery

    If the transmitter does not function after the re-calibration operation, contact your Holden Dealer. CAUTION: When changing the battery, do not pull up the back cover roughly as it could be damaged. Keyless entry will not work immediately after a battery change. The remote control buttons must be operated three or more times so that the memory code in the vehicle can correspond to the remote control code of the key.
  • Page 43: Tailgate Lock

    Chapter2 LOCKS Tailgate Lock (4 Door Model) To unlock the tailgate, insert the key in the lock and turn to the right until you hear a 'click'. To lock the tailgate, insert the key in the lock and turn to the left until you hear a 'click'.
  • Page 44 Chapter2 LOCKS TAILGATE LOCK cont. Tailgate Lock (2 Door Model) To unlock and open the tailgate, insert the key in the lock, turn anti-clockwise until you hear a 'click' and pull the tailgate handle. The tailgate will swing out towards you and will be held in place by a position staybar.
  • Page 45: Ignition Lock

    Chapter2 LOCKS CAUTION: Do not turn the engine off while the vehicle is moving or there will not be any power assist for brakes or steering. Never remove the key while the vehicle is moving, as this will lock the steering. The ignition lock has four positions: LOCK Steering will be locked when the key is...
  • Page 46: Glove Box

    Chapter 2 LOCKS Glovebox To lock, insert the key, turn it 90 degrees clockwise and then withdraw. To unlock, insert the key and rotate 90 degrees anti­ clockwise. To open, lift the latch upwards and let the lid fall downwards. To close, push the lid upwards and firmly back into place.
  • Page 47: Body Features

    Body Features Page 3 -2 Electric Windows Mirrors Head Restraint Adjustment Front Seat Adjustment 3 -6 Rear Seat Adjustment Seat Belts 3-11 Child Restraints 3-13 Sunroof (2 Door Model Only) 3-15 Park Brake 3-16 Interior Lights 3-18 Interior Features...
  • Page 49 Chapter3 BODYFEATURES MIRRORS Rear View Mirror The rear view mirror can be manually tilted up and down or side to side for correct positioning. Move the lever on the lower edge of the interior mirror to reduce dazzle at night. Electric Mirrors The adjustment switches for the electric mirrors are located on the right hand side of...
  • Page 50: Head Restraint Adjustment

    Chapter3 BODY FEATURES HEAD RESTRAINT ADJUSTMENT Adjusting Head Restraints This safety feature is not intended as a headrest. It is provided for the reduction of whiplash neck movement in an accident. To adjust the height of the head restraint, pull up or push down whilst depressing the lock button.
  • Page 51: Front Seat Adjustment

    Chapter3 BODYFEATURES FRONT SEAT ADJUSTMENT Forward and Rearward Lift up the lever at the front inside of the seat, then slide the seat forwards or backwards. Release the lever. Try to move the seat back and forth to check that the catch is fully engaged.
  • Page 52 Chapter 3 BODY FEATURES REAR SEAT ADJUSTMENT 4 Door Model CAUTION: To avoid injury, keep your hands and feet clear of the rear seat when folding and unfolding the seat. The rear seat can be folded forward to provide additional cargo area. Folding PuU the strap forward and fold the seat cush1on up.
  • Page 53 Chapter3 BODYFEATURES REAR SEAT ADJUSTMENT cont. 2 Door Model CAUTION: To avoid injury, keep your hands and feet clear of the rear seat when folding and unfolding the seat. The rear seat can be folded forward to provide additional cargo area. Folding Pull the release knobs on both the right and left side of the seatback, and push...
  • Page 54 Chapter 3 BODY FEATURES Unfolding 1. To raise the seatback, pull it up to the locked, upright position. 2. When latching the rear seat cushion to the floor, push the cushion with enough force to lock it. Confirm it is locked by pulling the seat belt buckle upwards. Make sure the head restraints are properly reinstalled on the top of the seatback.
  • Page 55: Seat Belts

    Chapter3 BODYFEATURES SEAT BELTS Lap/Sash Belts To fasten, pull the metal tongue across your body and clip into the buckle. When the metal tongue has locked safely into place you will hear a 'click'. After fastening, settle the belt at the hip, and ensure that is goes across to the buckle, then up under the sash.
  • Page 56 3-10 Chapter3 BODY FEATURES Australian law requires that the driver and all passengers be properly restrained at all times with the seat belts provided in the vehicle. Failure to do so could increase the chance of injury and/or the severity of injury in accidents. CAUTION: Seat belts are designed to bear upon the bony structure of the body, and should be worn low across the front of the pelvis, or the pelvis chest and shoulders, as applicable;...
  • Page 57: Child Restraints

    One anchor fitting is already installed in your vehicle in one of the anchorage points. Only approved child restraint harnesses should be used on anchorage points. See your Holden Dealer for advice about the various types of approved child restraints available.
  • Page 58 Additional l o ng bol t anchorage fittings can be purchased from 30mm your Holden Dealer. These illustrations are only applicable to child restraints approved to Australian l o ck washer Standard AS 1754-1991 (and subsequent amendments).
  • Page 59 Chapter3 3-13 BODY FEATURES SUNROOF DOOR MODEL ONL YJ Sun Shade Plate RESIN TOP MODEL Removal: 1. There are two locks at the rear of the sun shade plate. 2. Separate the hooks on the front of the sun shade plate from their holders. Installation: 1.
  • Page 60: Removing The Sunroof

    3-14 Chapter3 BODY FEATURES Removing the Sunroof FRONT SIDE To remove the sunroof panel, pull down the catch handle. Disengage the catch from the hinge pins by sliding the red release button (1) upwards, and pushing the levers inward. Tilt the rear of the sunroof glass panel to REAR SIDE approximately 60 degrees from the closed position and carefully lift the glass panel...
  • Page 61: Park Brake

    Chapter 3 3-15 BODY FEATURES Park Brake The park brake lever is on the centre console, between the front seats. To apply, pull the lever straight up, without pressing the release button. To release, pull the lever slightly upwards until you hear a 'click', push in the release button on the end of the lever and whilst depressed, lower the lever all the way down.
  • Page 62: Interior Lights

    3-16 Chapter3 BODY FEATURES Reading Lights (4 Door Auto) The reading lights for the 4 door auto models are located above the rear view mirror, and contain a sunglasses/card holder which can be pulled down using the tab. Flick the switches inward to turn on. Flick the switches outward to turn off.
  • Page 63 Chapter 3 3-17 BODY FEATURES Load Compartment Light (4 Door) The load compartment light is located on the roof just inside the tailgate. The switch has three positions: On constantly Centre The light will illuminate when the tailgate is opened and will turn off when it is closed.
  • Page 64: Interior Features

    3-18 Chapter 3 BODY FEATURES INTERIOR FEATURES Sunvisors with Vanity Mirrors The sunvisors can be pivoted to the side when unhooked. Vanity mirrors are located on the rear face of both the driver and passenger side sunvisors. Assist Grips Assist grips are located above the driver COAT HANGER and passenger windows to help occupants when getting in and out of the vehicle.
  • Page 65 Chapter3 3-19 BODY FEATURES Centre Console The centre console is located between the two front seats. Lift the front edge of the armrest to reveal a storage space for cassettes or 10 COs. The armrest lid opens to a near vertical position and should not be forced further backwards.
  • Page 66 3-20 Chapter3 BODY FEATURES INTERIOR FEATURES cont. Rear Cup Holders (4 Door Model) The two rear cup holders for the 4 door model are located at the rear of the centre console, underneath the ash tray. To access the cup holders, pull down the flap using the tab provided, to reveal the base of the holder.
  • Page 67 Driving Page Safety Engine Starting and Stopping Manual Transmission Automatic Transmission Four-Wheel Drive 4-10 Driving Precautions 4-10 Running In 4-12 Your 4WD 4-16 Anti-lock Braking System...
  • Page 68: Fasten Seat Belts

    Chapter 4 DRIVING SAFETY Before Entering the Vehicle 1. Check that windows, mirrors and lights are clean. 2. Visually check tyre inflation (check with a pressure gauge each week). If you intend to reverse, check that the area behind your vehicle is clear.
  • Page 69: Engine Starting & Stopping

    Chapter4 DRIVING starting the Engine 1. Ensure the park brake is firmly applied and release only after you have started the engine and are ready to drive off. 2a. Manual Transmission Depress the clutch pedal and shift the gear lever to Neutral position. The clutch pedal can now be released.
  • Page 70: Manual Transmission

    Chapter 4 DRIVING The transmission has 5 forward gears and a reverse gear. The shift pattern illustrated, is also found on the top of the gear shift lever. mark in the illustration represents • neutral position. When selecting 5th gear you must shift the gear lever sideways against spring pressure in order to move the lever into the 5th gear position.
  • Page 71: Automatic Transmission

    If the light flashes it means that the computer controlling the transmission has found a problem. The vehicle can still be driven when the light is flashing but should be checked by your Holden Dealer as soon as possible. Depending on the nature of the problem, the transmission may still be able to change gears without your assistance.
  • Page 72 Chapter 4 DRIVING Power /Winter /Normal Drive The two buttons marked POWER and WINTER located on the top right hand side of the centre console, control the three shift patterns available with your automatic transmission: POWER, WINTER and NORMAL. When the POWER button is pressed in, the power light is illumated and the transmission is operating in the power drive mode, likewise for WINTER.
  • Page 73 Chapter4 DRIVING P (park) This stops the rear wheels from turning and should be selected (together with the park brake) when leaving the vehicle. Never select P until your vehicle is fully stopped. The P position is one of only two positions (the other is N) in which your engine may be started.
  • Page 74: Four-Wheel Drive

    Chapter 4 DRIVING The 4WD indicator light illuminates when the 4WD switch is depressed. Wait until the 4WD light on the dash stops flashing before moving the lever, otherwise loss of control may be experienced. Additional information is provided on the cover of the vanity mirror under the driver's side sunvisor.
  • Page 75 (4Hz) when the 4WD switch is changed from the 4WD to the 2WD position (OFF), shift the transfer control lever to HIGH and reset the 4WD switch. If the 4-wheel drive indicator light fails to either go off or come on, see your Holden Dealer and have the vehicle inspected.
  • Page 76: Driving Precautions

    Engine Misfire Warning Reduce speed and do not tow a caravan or trailer - until the misfiring is corrected at the nearest Holden Dealer. Otherwise, the catalytic converter and exhaust system may overheat, resulting in vehicle damage. Loose Articles Do not leave loose articles or luggage in the passenger compartment.
  • Page 77: Snow Chains

    Chapter DRIVING 4 11 Brakes The "power assisted" brakes, fitted to your vehicle, use vacuum from the engine when it is running. Therefore, never let the vehicle run down hills with the engine off, or coast after switching the engine off. Your seat should be positioned so that you can push the brake pedal easily.
  • Page 78 Chapter 4 4-12 DRIVING Driving on Sealed Roads The increased traction of 4WD vehicles offers greater driving control in adverse road conditions, particularly heavy snow and ice. However, four-wheel drive vehicles are not "skid-proof'. It is usually easier to control a skid in a conventional car than a four-wheel drive vehicle, skidding in the same circumstances.
  • Page 79: Off-Road Driving

    Chapter 4 4 13 DRIVING Off-road Driving When driving off-road you will encounter various driving conditions too numerous to list here. Always think ahead and use common sense. If you feel uncomfortable about tackling a given situation, do not do it. Rough terrain can cause rapid and unexpected Gripping the steering wheel: movement in the steering.
  • Page 80 Chapter 4 4-14 DRIVING Recovery and Towing When recovering or towing a vehicle off-road, observe the following: A greater force is required to move a vehicle from or through mud than when on a firm road surface. Make sure the steering wheel is centred. Attach the tow rope to the towing eye of the vehicle, not to the axle.
  • Page 81 Your Holden Dealer will inform you which additional service is required between the normal service intervals after consideration...
  • Page 82: Anti-Lock Brake System

    Chapter 4 4-16 DRIVING The anti-lock brake system (ABS) is in addition to your vehicle's normal brake system. It prevents the wheels from locking up when braking, irrespective of the road conditions and tyre grip. It starts to regulate the braking as soon as a wheel shows a tendency to lock.
  • Page 83 Fuel Page 5 -2 Carbon Monoxide Caution 5- 2 Petrol Fuel Tank Capacities Emission Control Reducing Fuel Consumption...
  • Page 84 Take the vehicle to your Holden Dealer if you think your vehicle needs inspecting for any of the above reasons.
  • Page 85 ChapterS FUEL The petrol filler is located on the rear left side of the vehicle. To open the fuel filler cover, insert your finger in the right panel recess and pull the cover outwards. Make sure the doors are unlocked before attempting to open the fuel cover.
  • Page 86: Emission Control

    Maintenance Schedufe Chapter 12. It is recommended that the necessary servicing be performed by an authorised Holden Dealer who has the specialised servicing equipment and trained personnel available to ensure that the adjustments and services specified are carried out.
  • Page 87: Reducing Fuel Consumption

    ChapterS FUEL Engine Maintain the engine in peak mechanical condition by having it serviced regularly in accordance with the Maintenance Schedule in Chapter 12. This will ensure items such as the spark plugs and air cleaner are maintained for minimum fuel usage and peak engine performance.
  • Page 88 NOTES...
  • Page 89 Emergencies Page Accidents Medical Assistance 6- 4 Jack and Tool Locations 6 -5 Flat Tyre Towing 6- 9 Engine Overheating 6-11 Flat Battery 6-13 Fuses 6-15 Electric Windows Circuit Breaker 6-16 Bulb Replacement 6-22 Air Bags Your new vehicle is covered for 3 years by 24 hour Roadside Assistance, refer Chapter 9.
  • Page 90 Chapter6 EMERGENCIES ACCIDENTS All drivers are advised to learn what to do at the scene of an accident, particularly where people are injured. Injured people can choke to death if their air passages are not cleared. They can bleed to death unless the bleeding is stopped. They may require mouth-to-mouth resuscitation or may have to be moved, even though badly injured.
  • Page 91: Medical Assistance

    Chapter6 EMERGENCIES Medical Assistance Keep calm and think clearly. Your experience may not be much but do your best. Look after the unconscious person first. Check airway, breathing and circulation. If • they are not breathing, check if air passages are clear, i.e., nose and mouth. Use your fingers to clear air passages if necessary.
  • Page 92 Chapter6 EMERGENCIES JACK & TOOL LOCATIONS Location for 4 Door Model The jack for the 4 door model is located behind the left-hand side storage panel in the load compartment. It is secured in place by extending the ram of the jack. To remove the jack, turn the knob anti­...
  • Page 93 Chapter6 EMERGENCIES CAUTIONS: Use the jack only for lifting the vehicle when changing wheels. • Never get beneath the vehicle when it is only supported by the jack. • Do not start or run the engine while the vehicle is only supported by the jack. •...
  • Page 94 Chapter6 EMERGENCIES FLAT TYRE cont. Loosen, but do not remove, the wheel nuts by turning the wheel wrench anti­ clockwise. To raise the front of the vehicle, place the lifting pad of the jack in the jacking point located immediately behind the transmission crossmember on the side nearest the flat tyre.
  • Page 95 Chapter6 EMERGENCIES FLAT TYRE cont. To lift the rear of the vehicle, place the Rear lifting pad of the jack under the rear axle towards the wheel that is to be replaced. Unfold the jacking stem and insert the stem into the jack. Fit the wheel brace to the outer end of the stem.
  • Page 96: Towing A Disabled Vehicle

    Chapter6 EMERGENCIES TOWING Towing a Disabled Vehicle Proper lifting or towing equipment is necessary when lifting or towing the vehicle to prevent damage. Federal, State and Local laws must be followed. In an emergency, your vehicle may be towed on all four wheels in the following manner: Fit the towing equipment to one of the •...
  • Page 97: Engine Overheating

    Chapter6 EMERGENCIES CAUTION: If the temperature gauge indicates that the engine is overheating, or if you suspect the engine of overheating, immediate action is required. Continued driving, EVEN FOR A SHORT TIME could cause a fire or engine damage. If the coolant temperature gauge needle should move to the red section and remain there for more than 30 seconds, pull over to the side of the road.
  • Page 98 Chapter6 6-10 EMERGENCIES ENGINE OVERHEATING cont. CAUTION: The cooling system is pressurised, so to avoid injury please read all the following instructions before attempting to add fluid. Without undoing the cap, look at the level of the coolant in the "see-through" coolant bottle.
  • Page 99: Jump Starting

    Chapter6 6-11 EMERGENCIES CAUTION: Do not "push start" or "tow start" your vehicle. If unburnt fuel were to reach the catalytic converter and ignite, the converter could overheat or be destroyed by backfire. Therefore, if the battery is flat, you can "jump start", but not "push start" your vehicle.
  • Page 100 Chapter6 6-12 EMERGENCIES 1. The battery in your vehicle has a negative earth and a 12 volt rating. The battery in the other vehicle MUST also have a negative earth and a 12 volt rating. Position the two vehicles so that they are NOT touching, apply the park brakes, put automatic transmission vehicles in PARK, manual transmission vehicles in NEUTRAL.
  • Page 102: Fuse Box In Engine Compartment

    Chapter 6 6-14 EMERGENCIES FUSES cont. Fuse Box in Engine Compartment This fuse box, located on the driver's side of the engine compartment, contains circuit fuses, main fuses and relays. To remove the cover, depress the catch on the side of the box towards the engine and release the two tabs at the opposite side.
  • Page 103 The switches should now operate. However, if the switches still do not work, or if the circuit breaker immediately goes off again, you should see your Holden Dealer as soon as possible. CIRCUIT BREAKER...
  • Page 104: Bulb Replacement

    Re-aim headlights. Detailed procedures for headlight aiming are given in the relevant service manual for your vehicle. However, because headlight aiming is a safety item it is recommended that you have it carried out by your Holden Dealer. Parking Light Open the bonnet and engage the support.
  • Page 105 10. Install the socket and bulb. 11. Install the retaining spring. 12. Connect the lead wire. 13. Insert the connector. 14. Install the protective cover. Front Turn Signals It is recommended that this light be replaced by your Holden Dealer.
  • Page 106: Side Turn Signal Light

    Chapter 6 6-18 EMERGENCIES BULB REPLACEMENT cont. Side Turn Signal Light Remove the light assembly by pushing it firmly towards the front or rear of the vehicle, and pull outwards. Remove the bulb by pressing and turning it anti-clockwise. Pull the bulb from the holder. �' Bulb Insert the new bulb into the holder and...
  • Page 107 Chapter 6 6 19 EMERGENCIES • BULB REPLACEMENT cont. Number Plate Light Remove the lens screws. Pull the bulb from the holder. Insert the new bulb. Install the lens and screws. High Stop Light (4 Door) Remove the two screws from the internal cover and unclip the cover from the light assembly.
  • Page 108 Chapter 6 6-20 EMERGENCIES BULB REPLACEMENT cont. Front Interior Light Before removing the lens, close the front doors so that the light is not live. Lever out the lens by carefully inserting a flat blade screwdriver between the lens and the light housing. �...
  • Page 109: Reading Light

    Chapter 6 6-21 EMERGENCIES BULB REPLACEMENT cont. Reading Light (4 Door Auto) Lever out the lens by i nserting a screwdriver between the front of the lens and the light housing. Push and rotate the reading light bulb and remove it from the holder. Insert the new bulb.
  • Page 110 7 times when the ignition is switched ON. This is to indicate that the air bags are operational. If the light does not flash when the ignition is switched to ON, or if it comes on when driving, you should contact your Holden Dealer.
  • Page 111 Any careless or unskilled interference with the system could lead to its failure or to accidental inflation. It is recommended that any work to the electrical system, steering column, dashboard area, steering wheel or air bag system be carried out by a Holden Dealer.
  • Page 112: Weekly Checks

    Weekly Checks Page Miscellaneous Checks 7 -3 Engine Coolant Level Engine Oil Level Engine Oil Consumption Brake Fluid Level Clutch Fluid Level Power Steering Fluid Level Washer Fluid Level Auto Transmisison Fluid Level Tyres 7 -10 Battery 7- 11 Hoist Locations...
  • Page 113: Miscellaneous Checks

    Chapter 7 WEEKLY CHECKS MISCELLANEOUS CHECKS As well as taking your vehicle to be serviced (Refer Chapter 12) there are a few simple, weekly checks that the owner/operator is required to make. These are shown on the following pages. CAUTION: O n 4 cylinder models, the engine cooling fan can start working unexpectedly, even when the engine is not running.
  • Page 114: Engine Coolant Level

    -30°C, depending on the concentration. If you regularly have to top up the cooling system you should see your Holden Dealer. CAUTION: Corrosion inhibitors and anti-freeze fluids are poisonous. Use extreme care when handling.
  • Page 115 Their use will increase costs, may be detrimental to the operation of your vehicle and may void your New Vehicle Warranty, to the extent that Holden considers the non-recommended fluid to have affected Remove the oil cap by the specifications or quality of your vehicle.
  • Page 116: Engine Oil Consumption

    If, after taking into account the above factors you are still concerned that your engine has excessive oil consumption then you should discuss the situation with a Holden Dealer. Remember thatan engine's oil consumption should not be judged until it has run at least...
  • Page 117 If the brake fluid requires constant topping up it could indicate that a fault exists and you should immediately see your Holden Dealer. Clutch Fluid Level The clutch fluid level should be checked weekly. The fluid level, is visible through the container and should be maintained between the MIN and MAX level marks.
  • Page 118: Power Steering Fluid Level

    The automatic transmission fluid level will be checked by your Holden Dealer when the vehicle is serviced. If an oil leak occurs before the service is due you should consult your Holden Dealer as soon as possible. The transmission fluid level should be inspected and fluid replaced at intervals shown...
  • Page 119 Checkthe tyres regularly for damage: stones, punctures, cuts, cracks, bulges etc. Check the rims for damage. Consult a Holden Dealer if in doubt. Alignment and Balance Improper wheel alignment can cause the tyres to wear faster and unevenly. It can also cause the vehicle to pull to the left or right.
  • Page 120: Replacement And Repair

    Any doubts about the tyres on your vehicle should be referred to your Holden Dealer. New tyres should be fitted in pairs to the front. If replacing only one tyre, it should be paired on the same axle with the least worn of the other three.
  • Page 121 7-10 Chapter 7 WEEKLY CHECKS BAUERY Battery Maintenance The battery is "maintenance-free". This means that the battery is sealed and the level does not have to be checked. Flat Battery Refer page 6-11 for emergency starting when the battery is flat. Battery Specification 12 volt, maintenance free, 60 Ah.
  • Page 122 Chapter 7 7 11 WEEKLY CHECKS You should always use the jack locations shown on page 6-6 when using the original jack supplied with your vehicle. This jack has been designed to correctly and safely lift your vehicle, provided the cautions in Chapter 6 are observed. However, if using a hoist to raise the vehicle, it is important that the hoist pads be positioned as shown below.
  • Page 123 NOTES...
  • Page 124: Specifications

    Specifications Page Fluids and Lubricants Body Dimensions 8- 4 Identification Labels...
  • Page 125: Fluids And Lubricants

    4. 7 lit res approx. 4.5 litres approx. (including filter) oil capacity (including filter) 50% water and 50% coolant, confirming to Holden spec. Coolant spec. no. HN2217, part no. 92140054 (1 litre), 92140057 (5 litres) and 92140055 (20 litres). Coolant cap.
  • Page 126: Body Dimensions

    Chapt SPECIFICATIONS Model 4 Door 2 Door Length 4670 mm 4280 mm Width 1785 mm 1815 mm With roof rail 1690 mm 1690 mm Height, unloaded Without roof rail 1760 mm Wheel base 2700 mm 2460 mm Front track 1515 mm 1515 mm Rear track 1520 mm...
  • Page 127: Vehicle Identification Number

    Chapter specifications /DENT/FICA TION LABELS Engine Number The engine number for the cylinder vehicle is stamped on the passenger side of the engine at the rear of the engine block, on the edge of the transmission mounting flange. The engine number for the V6 vehicle is stamped on the lower passenger side of the engine block on a raised pad just above the starter motor.
  • Page 129 Chapter 8 specifications Safety Compliance (ADR) Plate The ADR plate is riveted to the passenger side dash panel in the engine compartment. It displays the approval numbers, category, manufacturer's name, model name and code, the gross vehicle mass (GVM , seating capacity, build date and VIN.
  • Page 130: After Sales

    Parts and Accessories Warranty Warranty Questions & Answers Roadside Assistance 9-1 0 Customer Assistance 9-11 Authorised Holden Dealers Note: Dealership names and details may change after the printing of this Handbook. The list contains both Authorised Holden Dealers and Authorised Holden Service Operations.
  • Page 131 Subject to the exclusions shown on the following page, this Warranty covers the correction, during the Warranty Period, of any vehicle defect related to materials or workmanship and advised to a Holden Dealer or Authorised Service Outlet, by repair or at 1-GM's option by replacement. Warranty Period...
  • Page 132: Warranty Exclusions

    1- fitting of parts or accessories not marketed by 1-GM. any work carried out on the vehicle by anyone except an authorised Holden Dealer or Service Dealer.
  • Page 133 Accessories installed to the new vehicle • 1-GM approved Accessories installed by a Holden Dealer or authorised Service Outlet to the new vehicle at the time of purchase are covered together with the New Vehicle warranty for the period of years or 100,000 km, whichever occurs first.
  • Page 134 Vehicle Warranty) is required to enable your vehicle to be operated safely and it is not practical for you to go to an Authorised Holden Dealer, the service (to the extent that it is necessary to enable your vehicle to be operated safely) may be performed by any other qualified mechanic or repairer.
  • Page 135 Chapter 9 AFTER SALES Will I have to pay for maintenance costs during the Warranty Period? Maintenance costs are not covered by the 1-GM New Vehicle Warranty. The Maintenance Schedules in this handbook specify the minimum maintenance required for your vehicle operating under normal conditions. The Maintenance items (except where they are required as a result of defects in materials or workmanship) for which you will have to pay for include: Clutch facings...
  • Page 136 Only the fluids and lubricants referred to in this handbook should be used. No Holden Dealer or other person is authorised or permitted to give or make any statement, assertion or undertaking in relation to the quality, performance, characteristics,...
  • Page 137: Roadside Assistance

    Australia wide. We hope the need never arises, but if it does, we'll be there to help through Holden Roadside Assistance. How does Holden Roadside Assistance work? Holden Roadside Assistance is provided by Holden Limited, and is carried out by Assist Australia (A.A.) through the collective resources of the Australian Clubs and Associations.
  • Page 138 What happens if sell my vehicle? Holden Roadside Assistance stays with the vehicle, so if you sell your vehicle during the 36 month period, it is still eligible for the service. The new owner simply registers for the service by using the change of ownership form supplied in the Roadside Assistance booklet.
  • Page 139 If your concern relates to parts/accessories and you have made contact with the Dealer or Distributor without satisfaction, you may contact Holden's Service Parts Operations on (03) 9797 7341. Naturally, telephoning is the quickest and the best way to contact.
  • Page 140 Cnr Hume Hwy/Waterloo Rd R OSE B ERY (02) 9642 0233 (02) 9642 7798 Fax: Suttons City Holden DEE WHY Link Road Peninsula Holden Dee Why (02) 9931 3000 (02) 9931 300 Fax: & Cnr May Mooramba Roads RYDE (02) 9982 131...
  • Page 141 Chapter 9 9-12 AFTER SALES AUSTRALIAN HOLDEN DEALERS CONT. SPRINGWO OD BEGA Springwood Holden Bega Valley Holden Ferguson Road Cnr Upper and Gipps Sts (02) 4751 191 (02) 4751 2481 (02) 6492 2333 (02) 6492 31 Fax: Fax: BLAYNEY ST LEONARDS...
  • Page 142 Chapter 9 9-13 AFTER SALES AUSTRALIAN HOLDEN DEALERS cont. COOMA FOR B ES Summit Holden Frank Spice Holden 66-70 20-22 Sharp Street Dowling Street (02) 6452 (02) 6452 (02) 685 1755 (02) 6852 2825 Fax: Fax: COONABARABRAN GATESHEAD Coonabarabran Holden...
  • Page 143 Chapter 9 9-14 AFTER SALES AUSTRALIAN HOLDEN DEALERS cont. MACLEAN HOLBROOK O'Halloran Motors Lieschke Motors Pty Ltd 78 Albury Street 175 River Street P: (02) 6036 2244 Fax: (02) 6036 2831 P: (02) 6645 2844 Fax: (02) 6645 4003 INVERELL...
  • Page 144 Chapter 9 9-15 AFTER SALES AUSTRALIAN HOLDEN DEALERS cont. NEWCASTLE TENTERFIELD & & Newcastle City Holden Sexton Green (Sales Service) P/L King Street (Cnr Stewart Ave) Rouse Street (02) 6736 1855 Fax: (02) 6736 1946 (02) 4961 530 Fax: (02) 4961 6485...
  • Page 145 Chapter 9 9-16 AFTER SALES AUSTRALIAN HOLDEN DEALERS cont. HOBART WELLINGTON Gersbach's Garage Pty Ltd Motors Pty Ltd MacQuarie Street Lee Street (02) 6845 2733 (02) 6845 3236 (03) 6220 I 171 (03) 6223 81 17 Fax: Fax: WEST WYALONG...
  • Page 146 Chapter 9 9-17 AFTER SALES AUSTRALIAN HOLDEN DEALERS cont. FAWKNER OAKLEIGH & Mantello Holden Garry Warren Smith 1263 1575 Sydney Road Dandenong Road (03) 9568 6333 (03) 9568 5691 (03) 9359 1333 (03) 9359 9334 Fax: Fax: FERNTREE GULLY PRESTON...
  • Page 147 Ctlapter 9 9-18 AFTER SALES AUSTRALIAN HOLDEN DEALERS cont. DAYLESFORD BAI RNSDALE K.R. Little The Big Garage Vincent Street Main Street (03) 5152 413 Fax: (03) 5152 5313 (03) 5348 2248 BALLARAT DIM BOOLA Peter Amor Motors Westerfield Motors Pty Ltd...
  • Page 148 Chapter 9 9-19 AFTER SALES AUSTRALIAN HOLDEN DEALERS cont. KYNETON QUAMBATOOK Quambatook Auto Services Mollison Motors Pty Ltd Mollison Street Gutherie Street (03) 5422 3377 Fax: (03) 5422 350 (03) 5457 1237 Fax: (03) 5457 1420 LEONGATHA R OCHESTER Gleeson Holden...
  • Page 149 Chapter 9 9-20 AFTER SALES AUSTRALIAN HOLDEN DEALERS cont. UNDERBOOL IPSWICH A.J. Gloster & Sons Ross Llewellyn Holden 246 Brisbane Road Cotter Street P: (03) S094 6291 Fax: (03) S094 6297 P: (07) 3282 2922 Fax: (07) 3282 63S9 LAIDLEY...
  • Page 150 Chapter 9 9-21 AFTER SALES AUSTRALIAN HOLDEN DEALERS cont. DALBY & Honeycombes Sales Service Johnson's Holden 213-217 Queen Street 36 Drayton Street P: (07) 4783 2344 Fax: (07) 4783 2079 P: (07) 4662 2422 Fax: (07) 4662 431 BEAUDESERT EMERALD...
  • Page 151 Chapter 9 9-22 AFTER SALES AUSTRALIAN HOLDEN DEALERS cont. LONG REACH ROCKHAMPTON Longreach Motors Lawrence's Swan Street Richardson Road (07) 4658 1700 (07) 4658 1857 Fax: (07) 4930 51 I I Fax: (07) 4930 51 12 MACKAY ROMA Pioneer Holden Maranoa Multi Agencies &...
  • Page 152 Chapter 9 9-23 AFTER SALES AUSTRALIAN HOLDEN DEALERS cont. K ATHERINE B E R R I Kittles Holden Rosenthal Bros Pty Ltd Victoria Highway Vaughan Terrace (08) 8972 (08) 8971 0209 (08) 8582 3644 (08) 8582 3515 Fax: Fax: TENNANT CREEK...
  • Page 153 Chapter 9 9-24 AFTER SALES AUSTRALIAN HOLDEN DEALERS cont. RENMARK LOXTON Rosenthal Motors Pty Ltd Flight Motors Pty Ltd Bookpu rnong Terrace Ral Ral Avenue (08) 8586 6626 (08) 8586 4040 (08) 8584 7277 (08) 8584 5937 Fax: Fax: MINLATON South way Augusta Motor Co.
  • Page 154 Chapter 9 9-25 AFTER SALES AUSTRALIAN HOLDEN DEALERS cont. MANDURAH BROOKTON Mandurah Holden Coote Motors 53 Pinjarra Rd Robinson Road P: (08) 9535 8777 Fax: (08) 9535 8822 P: (08) 9642 08 Fax: (08) 9642 I 003 MELVIL L E...
  • Page 155 Chapter 9 9-26 AFTER SALES AUSTRALIAN HOLDEN DEALERS cont. HARVEY NAREMBEEN Stockman Holden Aquip Machinery I I I Uduc Road 20 Churchill Avenue P: (08) 9729 3333 Fax: (08) 9729 3221 P: (08) 9064 7214 Fax: (08) 9064 7065 KALGOORLIE NARROGIN &...
  • Page 156 Tow&Load Page 10-2 Loading and Towing 10-2 Gross Vehicle Mass 10-2 Towing Capacity 10-3 Tow Bar Ball Load 10-3 Roof Rack Loads 10-4 Starting on Inclines 10-5 Towing Precautions...
  • Page 157 10-2 Chapter 10 TOW AND LOAD CAUTION: Overloading is a safety hazard and could also shorten the life of your vehicle. Curb Mass Some States specify that the load being towed must not exceed the weight of the vehicle. The curb mass shown below is for the weight of a standard unloaded vehicle with a full tank of fuel.
  • Page 158 Roof Rack Loads For your safety and to avoid damaging the roof, only use the Holden roof rack system for your Frontera. The maximum permissible roof rack load for your Frontera is...
  • Page 159 1-GM will not accept liability for defects occurring in towing equipment not marketed by Holden or for defects in the vehicle arising from the use of such equipment. The use of such equipment may void your New Vehicle Warranty, to the extent that 1-GM considers the non-recommended equipment affects the specifications or quaiity of your vehicie.
  • Page 160 Chapter 10 10-5 TOW & LOAD Your vehicle will handle differently when towing. It's a good idea to make a couple of short distance trips with the caravan or trailer before you set off to familiarise yourself with the handling characteristics of the vehicle when towing. Have your vehicle correctly maintained and serviced.
  • Page 161 NOTES...
  • Page 162 Cleaning Page INTERIOR CLEANING 11-2 Upholstery 11-2 Vinyl 11-3 Cloth 11-3 Carpet Seat Belts 11-3 Interior Glass 11-3 EXTERIOR CLEANING Washing 11-4 11-5 Grease, Oil & Tar Spots 11-5 Polishing and Waxing 11-5 Paint Inspection 11-5 Wheels 11-6 Tyres 11-6 Exterior glass 11-7 Cleaning Products...
  • Page 163: Interior Cleaning

    Should dirt accumulate and become embedded in the material pattern: Use luke warm water and soap, or Holden Velour Fabric and Vinyl Cleaner and work up thick suds on a piece of cheesecloth, and apply to the surface. A soft bristle brush can be used to remove embedded dirt and stubborn stains.
  • Page 164: Interior Glass

    The fabric should then be rubbed lightly, and if necessary, sponged again to remove anything stubborn. Soak up excess fluid with a dry cloth. Holden Velour Fabric and Vinyl Cleaner may be used to advantage, but should be used sparingly.
  • Page 165 For the same reason, you should thoroughly dry the vehicle after washing. Holden Foaming Car Wash or Wash On Shine loosens road grime to make washing easier and leaves paint shining clean. Do not use hot water, strong soap or chemical detergents. Any cleaner should be flushed...
  • Page 166: Exterior Cleaning

    Chapter 11 11-5 CLEANING Removing Grease, Oil and Tar Spots Grease and oil, and even tar if it's fresh, can be removed from the finish with a little kerosene or turpentine. As a precaution against staining, wash and polish as soon as possible the area from which the foreign matter has been removed.
  • Page 167: Wiper Blades

    The blades can be cleaned by lifting them off the windscreen and cleaning with Holden Optikleen and a clean cloth. CAUTION: Do not operate the wiper blades by hand as this may damage the wiper drive mechanism.
  • Page 168: Cleaning Products

    Chapter 11 11-7 CLEANING CLEANING PRODUCTS HOLDEN PART SIZE DESCRIPTION USAGE NUMBER 92141386 500ml Polymer glaze Seals in a deep, lustrous glazed finish. polish Long life protection from oxidation, salt and weather damage. 92141387 500 ml Easy gloss polish Contains silicones and hard working waxes for extra shine.
  • Page 170 �12 Servicing Page 12-2 Service Intervals 12-4 Extreme Operating Conditions 12-6 Maintenance Schedule 12-11 Maintenance Coupons...
  • Page 171: Service Intervals

    12-2 SERVICING When it comes to service, remember that your Holden Dealer has the trained personnel and specialised equipment to correctly service your vehicle. Your Dealer invites you to return for all your service needs both during and after the warranty period.
  • Page 172 Failure to have proper maintenance services carried out by an Authorised Holden Dealer or Service Dealer may void your new Vehicle Warranty if the work is not carried out in accordance with Holden's specifications.
  • Page 173: Extreme Operating Conditions

    10,000 km. If you are frequently driving through water, then the propeller shafts and mountings require lubricating and checking every 5,000 Additional services should be verified in the spaces provided below. Your Holden Dealer can inform you which additional service is required between the normal service intervals after considering your specific operating conditions.
  • Page 174 If at any time it is considered that the above items or other items should be more frequently serviced due to the type of operation or before a long trip, discuss the situation with the service manager of your Holden Dealer. Change engine oil every 5,000 km or 3 months...
  • Page 175: Maintenance Schedule

    Chapter 12 12-6 SERVICING MAINTENANCE SCHEDULE 1 0 20 30 40 50 60 70 80 90 1 00 11 0 120 Use odometer reading 1,000 km or years, whichever occurs first or years UNDER BONNET Engine oil Engine oil filter Oil contamination Fluid levels: power steering, brake, washer, clutch, battery, auto trans...
  • Page 176 Chapter 12 12-7 SERVICING MAINTENANCE SCHEDULE cont. 1,000 1 0 20 30 40 50 60 70 80 90 1 00 11 0 120 Use odometer readin g or years, whichever .25 .5 1 1.5 4 4.5 occurs first or years UNDER VEHICLE Clutch fluid Brake fluid...
  • Page 177 Chapter 12 12-8 SERVICING MAINTENANCE SCHEDULE cont. Use odometer reading 1,000 km 1 0 20 30 40 50 60 70 80 90 1 00 11 0 120 or years, whichever .25 .5 occurs first or years UNDER VEHICLE cont. Tyre pressure and wheels for damage Rotate as necessary T yre rotation General under body check: steering and...
  • Page 178 The repair or replacement of any part found faulty during a service check and not covered by Holden Warranty will be added to the charges. Where any deficiencies are noted, such items should be reported to the owner/ operator so that the extra work required can be authorised.
  • Page 179 fYOTES...
  • Page 180 5,000km or 3 month Chapter 12 12 11 SERVICING Inspection This coupon should not be removed until the vehicle is presented for inspection. Cl... Mr . . !: Owner's Mrs. Name Miss. Other ... � � � Address ..................Town .
  • Page 181 Chapter 12 12 12 SERVICING 0 COOLANT- check fluid level, check coolant% 0 ENGINE OIL -check fluid level and contamination 0 FLUID LEVELS- check levels 0 HOSES & PI PES check for leaks 0 PRE -AIR CLEANER- check for dirt and dust particles 0 AIR CLEANER- check for dirt and dust particles 0 ACCESSORY DRIVE BELT -check for wear 0 MANUAL TRANS -check level...
  • Page 183 Chapter 12 12 14 SERVICING 0 ENGINE OIL- replace 0 OIL FILTER- replace 0 COOLANT- check fluid level, check coolant% 0 ENGINE OIL -check fluid level and contamination 0 FLUID LEVELS- check levels 0 HOSES & PIPES- check for leaks 0 ACCESSORY DRIVE BELT - check for wear 0 UNIVERSAL JOINTS &...
  • Page 184: Service Coupon

    Chapter 12 12-15 SERVICING I authorise performance of the services 20,000 km specified on the rear of this coupon. I understand I will be charged for the 1 year following hours of labour: "'0 1.4 hours • SERVICE COUPON (..) -�...
  • Page 185 Chapter 12 12 16 SERVICING • 0 ENGINE OIL- replace 0 COOLANT- check fluid level, check coolant% 0 ENGINE OIL -check fluid level and contamination 0 FLUID LEVELS- check levels 0 RADIATOR CAP - pressure test 0 COOLING SYSTEM - pressure test 0 HOSES &...
  • Page 186 Chapter 12 12 17 SERVICING I authorise performance of the services 30,000 km specified on the rear of this coupon. I understand I will be charged for the 1.5 years following hours of labour: SERVICE "'0 1.9 hours COUPON • 0...
  • Page 187 Chapter 12 12 18 SERVICING • 0 ENGINE OIL- replace 0 OIL FILTER - replace 0 COOLANT- check fluid level, check coolant% 0 ENGINE OIL -check fluid level and contamination 0 FLUID LEVELS - check levels 0 HOSES & PIPES- check for leaks 0 ACCESSORY DRIVE BELT check for wear 0 UNIVERSAL JOINTS &...
  • Page 188 Chapter 12 12 19 SERVICING 40,000 I authorise performance of the services specified on the rear of this coupon. I understand I will be charged for the years following hours of labour: SERVICE "'0 (].) 2.1 hours • COUPON add 0.4 hours for manual trans •...
  • Page 189 Chapter 12 12 20 SERVICING 0 ENGINE OIL - replace 0 COOLANT- check fluid level, check coolant% 0 ENGINE OIL - check fluid level and contamination 0 FLUID LEVELS- check levels 0 RADIATOR CAP - pressure test 0 COOLING SYSTEM- pressure test 0 HOSES &...
  • Page 190 Chapter 12 12 21 SERVICING 50,000 km I authorise performance of the services specified on the rear of this coupon. I understand I will be charged for the 2.5 years following hours of labour: '"C SERVICE 1.2 hours COUPON • -�...
  • Page 191 Chapter 12 12 22 SERVICING 0 ENGINE OIL- replace 0 OIL FILTER- replace 0 COOLANT check fluid level, check coolant % 0 ENGINE OIL -check fluid level and contamination 0 FLUID LEVELS- check levels 0 HOSES & PIPES- check for leaks 0 ACCESSORY DRIVE BELT- check for wear 0 UNIVERSAL JOINTS &...
  • Page 192 Chapter 12 12 23 SERVICING 60,000 km I authorise performance of the services specified on the rear of this coupon. I understand I will be charged for the 3 years following hours of labour: SERVICE "0 2.2 hours • COUPON -�...
  • Page 193 Chapter 12 12 24 SERVICING 0 ENGINE OIL - replace 0 COOLANT - check fluid level, check coolant % 0 ENGINE OIL - check fluid level and contamination 0 FLUID LEVELS- check levels 0 RADIATOR CAP - pressure test 0 COOLING SYSTEM -pressure test 0 HOSES &...
  • Page 194 Chapter 12 12 25 SERVICING I authorise performance of the services 70,000 km specified on the rear of this coupon. I understand I will be charged for the 3.5 years following hours of labour: SERVICE 1.2 hours • COUPON "2: Also, that there will be a charge for all lubricants, filters and parts used as a result :;:J...
  • Page 195 Chapter 12 12 26 SERVICING • 0 ENGINE OIL- replace 0 OIL FILTER - replace 0 COOLANT - check fluid level, check coolant % 0 ENGINE OIL -check fluid level and contamination 0 FLUID LEVELS- check levels 0 HOSES & PIPES- check for leaks 0 ACCESSORY DRIVE BELT - check for wear 0 UNIVERSAL JOINTS &...
  • Page 196 Chapter 12 12 27 SERVICING I authorise performance of the services 80,000 km specified on the rear of this coupon. I understand I will be charged for the 4 years following hours of labour: "'0 SERVICE 2.1 hours • ·add 0.2 hours for auto or 0.4 hours COUPON for manual -�...
  • Page 197 Chapter 12 12 28 SERVICING • 0 ENGINE OIL- replace 0 COOLANT- check fluid level, check coolant% 0 ENGINE OIL - check fluid level and contamination 0 FLUID LEVELS- check levels 0 RADIATOR CAP - pressure test 0 COOLING SYSTEM - pressure test 0 HOSES &...
  • Page 198 Chapter 12 12 29 SERVICING 90,000 km I authorise performance of the services specified on the rear of this coupon. I understand I will be charged for the 4.5 years following hours of labour: SERVICE "'0 1.9 hours COUPON • �...
  • Page 199 Chapter 12 12 30 SERVICING 0 ENGINE OIL- replace 0 OIL FILTER - replace 0 COOLANT check fluid level, check coolant % 0 ENGINE OIL -check fluid level and contamination 0 FLUID LEVELS- check levels 0 HOSES & PIPES- check for leaks 0 ACCESSORY DRIVE BELT - check for wear 0 UNIVERSAL JOINTS &...
  • Page 200 Chapter 12 12 31 SERVICING I authorise performance of the services 100,000 km specified on the rear of this coupon. I understand I will be charged for the 5 years following hours of labour: "'0 SERVICE 6.0 hours for V6 •...
  • Page 201 Chapter 12 12 32 SERVICING 0 ENGINE OIL - replace 0 COOLANT - replace fluid 0 ENGINE OIL - check fluid level and contamination 0 FLUID LEVELS- check levels 0 RADIATOR CAP- pressure test 0 COOLING SYSTEM - pressure test 0 HOSES &...
  • Page 202 Chapter 12 12 33 SERVICING 110,000 km I authorise performance of the services specified on the rear of this coupon. I understand I will be charged for the 5.5 years following hours of labour: SERVICE "0 1.2 hours • COUPON c...
  • Page 203 Chapter 12 12 34 SERVICING • 0 ENGINE OIL- replace 0 OIL FILTER - replace 0 COOLANT - check fluid level, check coolant % 0 ENGINE OIL -check fluid level and contamination 0 FLUID LEVELS- check levels 0 HOSES & PI PES check for leaks 0 ACCESSORY DRIVE BELT -check for wear 0 UNIVERSAL JOINTS &...
  • Page 204 Chapter 12 12 35 SERVICING • I authorise performance of the services 120,000 km specified on the rear of this coupon. I understand I will be charged for the 6 years following hours of labour: SERVICE 2.8 hours • COUPON add 0.4 hours for manual •...
  • Page 205 Chapter 12 12 36 SERVICING 0 ENGINE OIL- replace 0 COOLANT - check fluid level, check coolant % 0 ENGINE OIL -check fluid level and contamination 0 FLUID LEVELS- check levels 0 RADIATOR CAP- pressure test 0 COOLING SYSTEM - pressure test 0 HOSES &...
  • Page 206 Chapter 12 12 37 SERVICING I authorise performance of the services 130,000 km specified on the rear of this coupon. I understand I will be charged for the 6.5 years following hours of labour: "0 SERVICE 1.2 hours • COUPON -�...
  • Page 207 Chapter 12 12 38 SERVICING • 0 ENGINE OIL- replace 0 OIL FILTER- replace 0 COOLANT - check fluid level, check coolant % 0 ENGINE OIL -check fluid level and contamination 0 FLUID LEVELS- check levels 0 HOSES & PIPES- check for leaks 0 ACCESSORY DRIVE BELT - check for wear 0 UNIVERSAL JOINTS &...
  • Page 208 Chapter 12 12 39 SERVICING 140,000 km I authorise performance of the services specified on the rear of this coupon. I understand I will be charged for the 7 years following hours of labour: SERVICE "'0 1.4 hours • COUPON -�...
  • Page 209 Chapter 12 12 40 SERVICING 0 ENGINE OIL- replace 0 COOLANT- check fluid level, check coolant% 0 ENGINE OIL - check fluid level and contamination 0 FLUID LEVELS- check levels 0 RADIATOR CAP - pressure test 0 COOLING SYSTEM- pressure test 0 HOSES &...
  • Page 210 Chapter 12 12 41 SERVICING 150,000 km I authorise performance of the services specified on the rear of this coupon. I understand I will be charged for the 7.5 years following hours of labour: SERVICE "'0 1.9 hours COUPON • 0...
  • Page 211 Chapter 12 12 42 SERVICING • 0 ENGINE OIL- replace 0 OIL FILTER - replace 0 COOLANT - check fluid level, check coolant % 0 ENGINE OIL -check fluid level and contamination 0 FLUID LEVELS- check levels 0 HOSES & PIPES- check for leaks 0 ACCESSORY DRIVE BELT -check for wear 0 02 SENSOR replace...
  • Page 212 Chapter 12 12 43 SERVICING 160�000 km I authorise performance of the services specified on the rear of this coupon. I understand I will be charged for the 8 years following hours of labour: "'0 SERVICE 3.2 hours for V6 COUPON •...
  • Page 213: Differential Gear

    Chapter 12 1 2 44 SERVICING 0 ENGINE OIL- replace 0 COOLANT- check fluid level, check coolant% 0 ENGINE OIL -check fluid level and contamination 0 FLUID LEVELS- check levels 0 RADIATOR CAP - pressure test 0 COOLING SYSTEM - pressure test 0 TIMING BELT- replace 0 HOSES &...
  • Page 214 Chapter 12 12 45 SERVICING 170,000 km I authorise performance of the services specified on the rear of this coupon. I understand I will be charged for the 8.5 years following hours of labour: SERVICE "'0 1.2 hours COUPON • -�...
  • Page 215 Chapter 12 12 46 SERVICING • 0 ENGINE OIL- replace 0 OIL FILTER - replace 0 COOLANT- check fluid level, check coolant% 0 ENGINE OIL -check f luid level and contamination 0 FLUID LEVELS- check levels 0 HOSES & PI PES - check f or leaks 0 ACCESSORY DRIVE BELT- check f or wear 0 UNIVERSAL JOINTS &...
  • Page 216 Chapter 12 12 47 SERVICING 180,000 km I authorise performance of the services specified on the rear of this coupon. I understand I will be charged for the 9 years following hours of labour: SERVICE "0 (].) 2.2 hours COUPON •...
  • Page 217 Chapter 12 12 48 SERVICING 0 ENGINE OIL- replace 0 COOLANT - check fluid level, check coolant % 0 ENGINE OIL -check fluid level and contamination 0 FLUID LEVELS- check levels 0 RADIATOR CAP- pressure test 0 COOLING SYSTEM pressure test 0 HOSES &...
  • Page 218 Chapter 12 12 49 SERVICING I authorise performance of the services 190,000 km specified on the rear of this coupon. I understand I will be charged for the 9.5 years following hours of labour: SERVICE "'0 1.2 hours COUPON • -�...
  • Page 219 Chapter 12 12 50 SERVICING • 0 ENGINE OIL replace 0 OIL FILTER replace 0 COOLANT- check fluid level, check coolant% 0 ENGINE OIL check fluid level and contamination 0 FLUID LEVELS- check levels 0 HOSES & PI PES check for leaks 0 ACCESSORY DRIVE BELT - check for wear 0 UNIVERSAL JOINTS &...
  • Page 220 Chapter 12 12 51 SERVICING I authorise performance of the services 200,000 km specified on the rear of this coupon. I understand I will be charged for the years following hours of labour: SERVICE 7.0 hours for V6 COUPON • 3.0 hours for 4 cylinder •...
  • Page 221: Spark Plugs

    Chapter 12 12 52 SERVICING • 0 ENGINE OIL- replace 0 COOLANT - replace 0 ENGINE OIL -check fluid level and contamination 0 FLUID LEVELS- check levels 0 RADIATOR CAP - pressure test 0 COOLING SYSTEM- pressure test 0 HOSES & PIPES- check for leaks 0 RADIATOR &...
  • Page 222 Chapter 12 12 53 SERVICING 210,000 km I authorise performance of the services specified on the rear of this coupon. I understand I will be charged for the 10.5 years following hours of labour: SERVICE "'0 1.9 hours COUPON • -�...
  • Page 223 Chapter 12 1 2 54 SERVICING 0 ENGINE OIL- replace 0 OIL FILTER- replace 0 COOLANT- check fluid level, check coolant% 0 ENGINE OIL - check fluid level and contamination 0 FLUID LEVELS- check levels 0 HOSES & PIPES - check for leaks 0 ACCESSORY DRIVE BELT - check for wear 0 UNIVERSAL JOINTS &...
  • Page 224 Chapter 12 12 55 SERVICING 220,000 km I authorise performance of the services specified on the rear of this coupon. I understand I will be charged for the 11 years following hours of labour: "'C SERVICE 1.4 hours COUPON • -�...
  • Page 225: Steering Wheel Play

    Chapter 12 12 56 SERVICING 0 ENGINE OIL- replace 0 COOLANT- check fluid level, check coolant% 0 ENGINE OIL - check fluid level and contamination 0 FLUID LEVELS- check levels 0 RADIATOR CAP- pressure test 0 COOLING SYSTEM- pressure test 0 HOSES &...
  • Page 226 Chapter 12 12 57 SERVICING 230,000 km I authorise performance of the services specified on the rear of this coupon. I understand I will be charged for the 11.5 years following hours of labour: SERVICE "0 1.2 hours COUPON • c...
  • Page 227 Chapter 12 12 58 SERVICING • 0 ENGINE OIL- replace 0 OIL FILTER - replace 0 COOLANT check fluid level, check coolant % 0 ENGINE OIL - check fluid level and contamination 0 FLUID LEVELS- check levels 0 HOSES & PIPES- check for leaks 0 ACCESSORY DRIVE BELT check for wear 0 UNIVERSAL JOINTS &...
  • Page 228 Chapter 12 12 59 SERVICING 240,000 km I authorise performance of the services specified on the rear of this coupon. I understand I will be charged for the 12 years following hours of labour: SERVICE "0 2.8 hours COUPON • add 0.2 hours for auto and 0.4 •...
  • Page 229 Chapter 12 12 60 SERVICING • 0 ENGINE OIL- replace 0 COOLANT - check fluid level, check coolant % 0 ENGINE OIL -check fluid level and contamination 0 FLUID LEVELS- check levels 0 RADIATOR CAP - pressure test 0 COOLING SYSTEM- pressure test 0 HOSES &...
  • Page 230 ... . . Automatic transmission ..Authorised Holden Dealers Demister 9-11 ..Automatic Front 1-21 .
  • Page 231 Clutch Holden identification plate ......... .
  • Page 232 INDEX cont. Jack locations Octane rating (fuel) ........
  • Page 233 INDEX cont. Safety Bulb replacement 6-16 ..........

This manual is also suitable for:

Frontera 2000

Table of Contents
