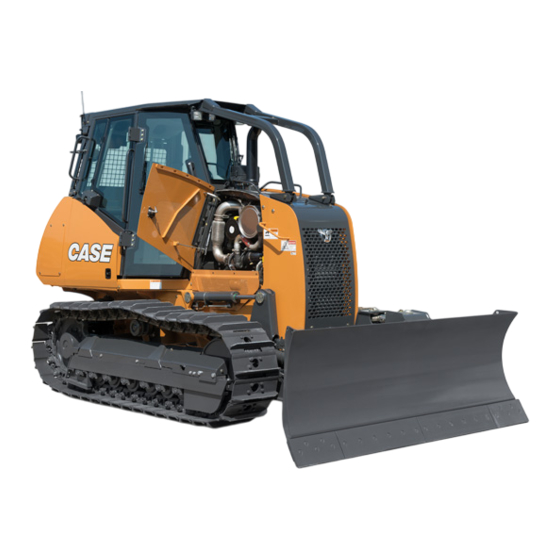

- Page 1 850M Tier 4A (interim) Crawler Dozer PIN NDDC83000 and above; PIN NEDC80000 and above; PIN NFDC80000 and above; PIN NFC103000 and above SERVICE MANUAL Part number 51418566 edition English November 2017 Replaces part number 47907864...
- Page 2 SERVICE MANUAL 850M Long Track (LT) - Tier 4A (interim) [NFC103000 - ], 850M Long Track (LT) [NDDC83000 - ], 850M Long Track (LT) [NEDC80000 - ], 850M Long Track (LT) [NFDC80000 - ], 850M Wide Track (WT) / Low Ground Pressure (LGP) - Tier 4A (interim) [NFC103000 - ], 850M Wide Track (WT) / Low Ground Pressure (LGP) [NDDC83000 - ], 850M Wide Track (WT) / Low Ground Pressure (LGP) [NEDC80000 - ], 850M Wide Track (WT) / Low Ground Pressure (LGP)
- Page 3 Link Product / Engine Product Market Product Engine North America 850M Long Track (LT) - Tier 4A F4HFE413P*A001 (interim) [NFC103000 - ] 850M Wide Track (WT) / Low North America F4HFE413P*A001 Ground Pressure (LGP) - Tier 4A (interim) [NFC103000 - ] 850M Long Track (LT) North America F4HFE413P*A001...
- Page 4 Contents INTRODUCTION Maintenance ................00 [00.150] Start-up................00.1 [00.AAA] Maintenance generic sub-group.
- Page 5 [35.104] Fixed displacement pump ............35.3 [35.359] Main control valve .
- Page 6 [55.988] Selective Catalytic Reduction (SCR) electrical system ......55.15 [55.DTC] FAULT CODES..............55.16 Lubrication system ..............
- Page 7 INTRODUCTION 51418566 10/11/2017...
-
Page 8: Safety Rules
INTRODUCTION Safety rules 850M Personal safety This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible death or injury. Throughout this manual you will find the signal words DANGER, WARNING, and CAUTION followed by special in- structions. -
Page 9: General Safety Rules
INTRODUCTION Safety rules - Personal safety 850M General safety rules Use caution when you operate the machine on slopes. Raised equipment, full tanks and other loads will change the center of gravity of the machine. The machine can tip or roll over when near ditches and embankments or uneven surfaces. -
Page 10: General Maintenance Safety
INTRODUCTION Operate controls only when seated in the operator’s seat, except for those controls expressly intended for use from other locations. Before you leave the machine: 1. Park the machine on a firm, level surface. 2. Put all controls in neutral or park lock position. 3. -
Page 11: Fire And Explosion Prevention
INTRODUCTION When welding, follow the instructions in the manual. Always disconnect the battery before you weld on the machine. Always wash your hands after you handle battery components. Fire and explosion prevention Fuel or oil that is leaked or spilled on hot surfaces or electrical components can cause a fire. Crop materials, trash, debris, bird nests, or flammable material can ignite on hot surfaces. - Page 12 SERVICE MANUAL Engine 850M Long Track (LT) - Tier 4A (interim) [NFC103000 - ], 850M Long Track (LT) [NDDC83000 - ], 850M Long Track (LT) [NEDC80000 - ], 850M Long Track (LT) [NFDC80000 - ], 850M Wide Track (WT) / Low Ground Pressure (LGP) - Tier 4A (interim) [NFC103000 - ], 850M Wide Track (WT) / Low Ground Pressure (LGP) [NDDC83000 - ], 850M Wide Track (WT) / Low Ground Pressure (LGP) [NEDC80000 - ], 850M Wide Track (WT) / Low Ground Pressure (LGP)
- Page 13 Engine - Engine and crankcase Engine - Remove 850M DANGER Heavy objects! Lift and handle all heavy components using lifting equipment with adequate capacity. Always support units or parts with suitable slings or hooks. Make sure the work area is clear of all bystanders. Failure to comply will result in death or serious injury.
- Page 14 Engine - Engine and crankcase 6. Turn master battery disconnect switch (1) to the OFF position. RAIL13DOZ1453AA 7. Disconnect negative ( — ) battery cable (2) from battery negative terminal (3). 8. Open right and left engine access doors. NOTE: The right engine access door is shown. The left door is similar.
