Before you commence the assembly process, we recommend that you read these instructions
thoroughly beforehand to familiarise yourself with the assembly process and to also check that you have
the correct components. If for any reason you need assistance, you can find our contact details on the
final page of these instructions.
We strongly recommend that any assembly is carried out on an open flat, level surface if possible and
with sufficient space. You will also require the assistance of at least 2 adults to complete assembly
safely.
If for any reason you don't feel confident in completing this project, we would recommend consulting a
qualified professional to undertake the work.
Tools required:
Assembly Instructions
10mm socket, No2 Pozidriv screwdriver (or electric driver), step ladder or
platform.

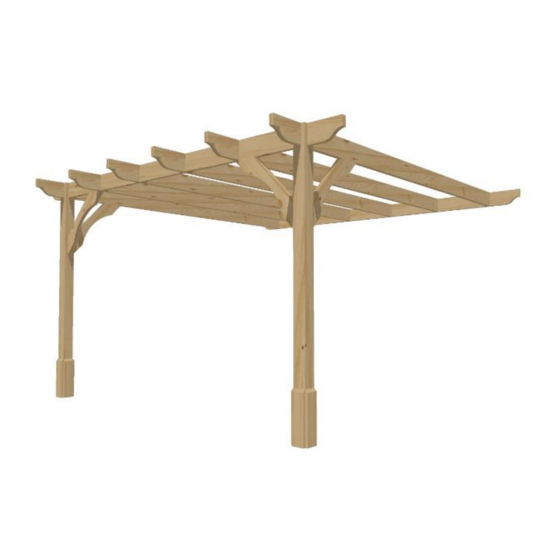

The Rutland Wall Mounted Premium Pergola
Rutland Wall Mounted
Premium Pergola
1
