Assembly Instructions

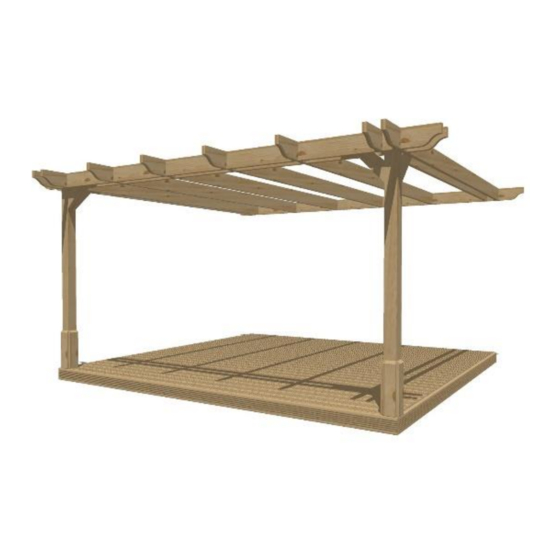

The Wall Mounted Premium
Double Pergola & Decking Kit
Before you commence the assembly process we recommend that you read these instructions thoroughly beforehand to
familiarise yourself with the assembly process and to also check that you have the correct components. If for any reason you
need assistance, you can find our contact details on the final page of these instructions.
We highly recommend that any assembly is carried out on an open flat, level surface if possible with sufficient space. You will
also require the assistance of at least 2 adults to complete assembly safely.
Please note: You can remove up to 400mm from the bottom of each post prior to commencing construction.
The Wall Mounted Premium Double Pergola & Decking Kit
1
Advertisement
Related Manuals for Rutland County Garden Furniture Premium Double Pergola
Summary of Contents for Rutland County Garden Furniture Premium Double Pergola
- Page 1 2 adults to complete assembly safely. Please note: You can remove up to 400mm from the bottom of each post prior to commencing construction. The Wall Mounted Premium Double Pergola & Decking Kit...
-
Page 2: Component List
The Rutland Wall Mounted Premium Double Pergola & Decking Kit Component List 10mm socket, No2 Pozidriv screwdriver (or electric driver) , step ladder Tools required: or platform. 75mm x 65mm x 70mm 120mm Pre-drilled end Rafters Woodscrews Woodscrews coachscrews coachscrews... - Page 3 The Rutland Wall Mounted Premium Double Pergola & Decking Kit Step 1 Step 2 Affix your wall plate in the desired location, making sure Layout the Base frame assembly and 2 x Edge joists (pencil that the area directly in front of it is flat, level and able to marks on top) in a rectangle and then place the remaining support the structure.
- Page 4 The Rutland Wall Mounted Premium Double Pergola & Decking Kit Step 5 Step 6 Line up the ends of each infill joist end with the markings With the base assembly complete, slide it into place on the edge joists, making sure the top faces are also against the wall.
- Page 5 The Rutland Wall Mounted Premium Double Pergola & Decking Kit Step 9 Step 10 Ensure the top of the runner is level with the posts and Attach a second runner to the other side of the posts from the notches align either side of the post before securing the first runner then drop the pre-drilled outer rafters into each end into place with 2 x 70mm coachscrews.
- Page 6 The Rutland Wall Mounted Premium Double Pergola & Decking Kit Step 13 Step 14 Add any remaining rafters… Fixing each end into place with a 120mm coachscrew into the runner and a second into the wall plate as before. Step 15...
- Page 7 The Rutland Wall Mounted Premium Double Pergola & Decking Kit Step 15 Step 16 Place one of the Post deck slats so that it runs post to Align the rear facing end of the same section in place, wall, perpendicular to the cross joists. Make sure the edge...
- Page 8 The Rutland Wall Mounted Premium Double Pergola & Decking Kit Step 19 Step 20 Lay one of the deck slats across the base, perpendicular to Halfway between the post and the frame centre add the joists. Make sure this slat sitting on the base...
- Page 9 The Rutland Wall Mounted Premium Double Pergola & Decking Kit Step 23 Step 24 Locate each of the infill joists by looking through the gaps Attach four cladding panels to each post by aligning with in between the slats and secure every decking slat to each the post, bevelled face uppermost, and secure in place infill joist with a pair of 65mm woodscrews.
