Rutland County Garden Furniture Wall Mounted Pergola Assembly Instructions Manual

Before you commence the assembly process, we recommend that you read these instructions
thoroughly beforehand to familiarise yourself with the assembly process and to also check that you have
the correct components. If for any reason you need assistance, you can find our contact details on the
final page of these instructions.
We highly recommend that any assembly is carried out on an open flat, level surface if possible, with
sufficient space. You will also require the assistance of 2 adults to complete assembly safely.
Please note: The wall plate provided will need to be secured to a sound brick or stone wall. Fixings are not included for this stage.

Package contents

2 x Posts
2 x 500mm diagonal braces
2x 800mm diagonal braces
2 x Runners (one to be used as wall plate)
6 x Rafters
12 x M8 Coach screws
6 x 70mm and 8 x 60mm screws
1 x Wall plate
Assembly Instructions
Rutland Wall Mounted

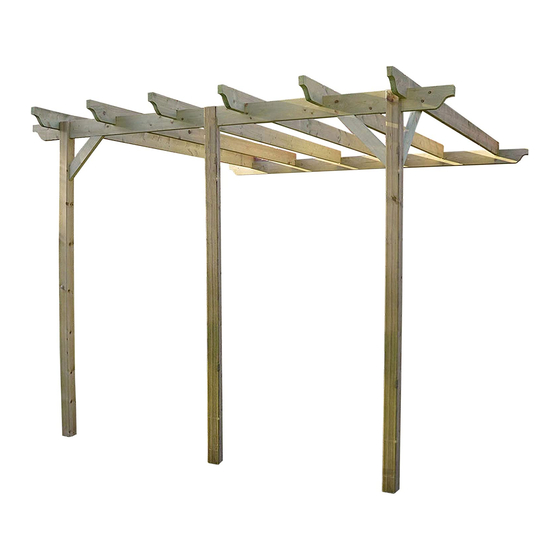

The Rutland Wall Mounted Pergola
Pergola

Tools required

10mm socket drive
Electric screwdriver with No2 Pozidrive bit
Or No2 Pozidrive Screwdriver
Platform or Step ladder
Laser or Spirit level
Electric drill
5 wall fixings for wall plate
1
