Rutland County Garden Furniture The Double Premium Pergola Assembly Instructions Manual

Before you commence the assembly process we recommend that you read these instructions thoroughly beforehand to
familiarise yourself with the assembly process and to also check that you have the correct components. If for any reason you
need assistance, you can find our contact details on the final page of these instructions.
We highly recommend that any assembly is carried out on an open flat, level surface if possible with sufficient space. You will
also require the assistance of at least 2 adults to complete assembly safely.
Please note: For a free-standing pergola you can remove up to 600mm from the bottom of each post prior to commencing construction.

Tools required:

The components listed below are those required to build a Double Premium pergola of 3M in size or larger. For the 2.4M
96 x 65mm
woodscrews
4 x Pre-drilled
end Rafters
Assembly Instructions

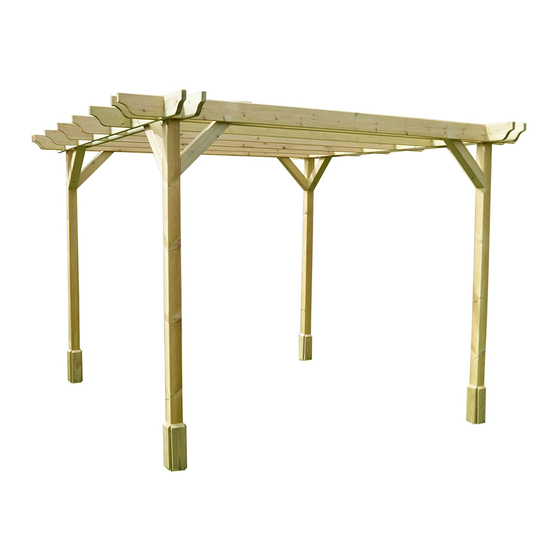

The Double Premium Pergola
10mm socket, No2 Pozidriv screwdriver (or electric driver) , step ladder
or platform.

Components

version there are only 3 rafters and 28 x 120mm coachscrews.
16 x 120mm 32 x 70mm
coachscrews coachscrews
4 x Runners 4 x Posts
8 x 650mm 16 x Post cladding
Braces
1
4 x Rafters
panels
