Instrument controls and indicators

6. Instrument controls and indicators

6.1. Keypad and internal printer panel

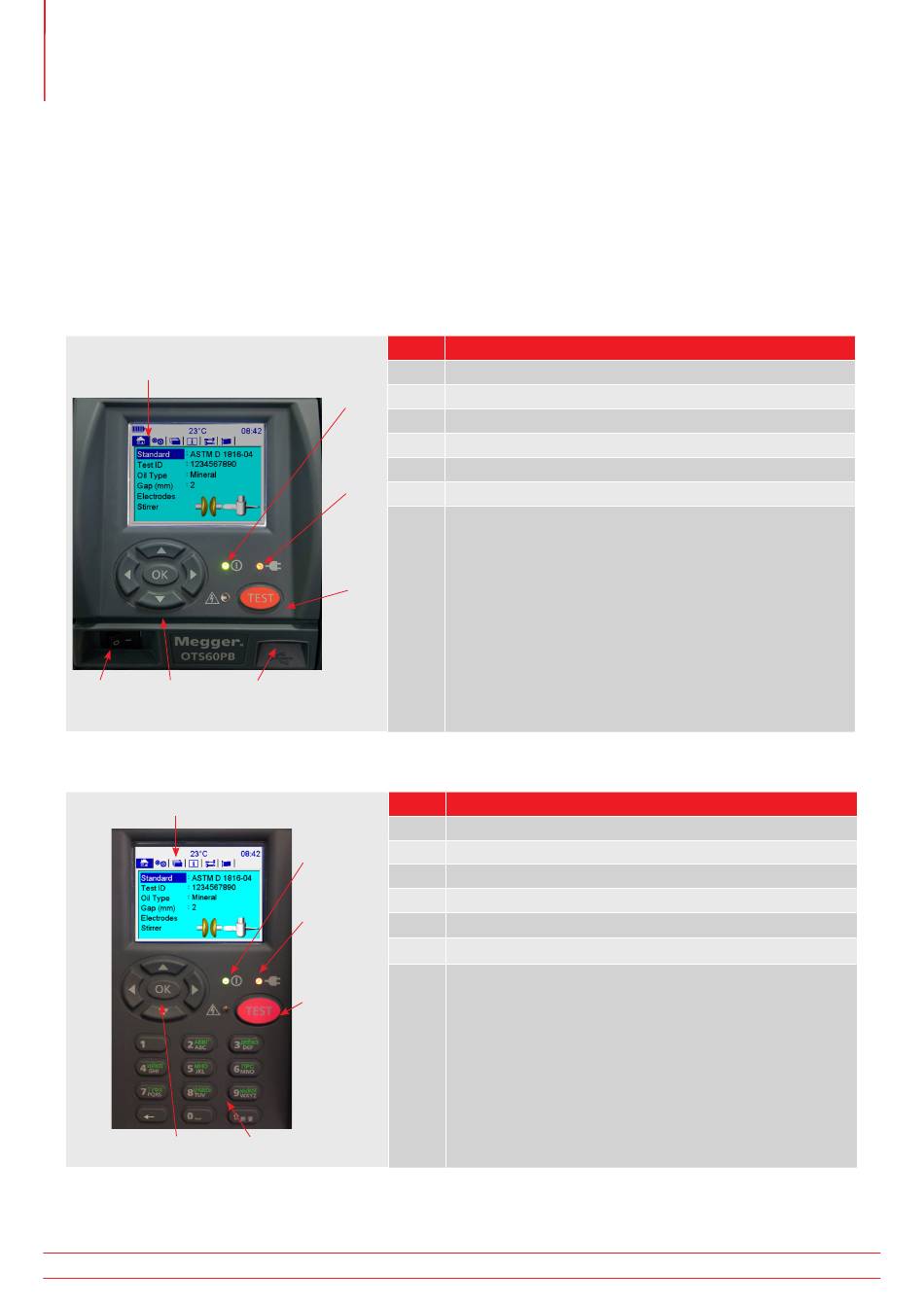

The control panel, illustrated below, is located to the front right side of the instrument and contains a QVGA colour
screen (1), navigation keypad with 'OK' button and a 'TEST' button. The operation is user friendly and driven from
six top level windows. A start-up LED is used during instrument initialisation. The lower, vertical section of the front
panel houses an ON/OFF power switch and a USB Type A interface socket
OTS PB models item description
1
7 6
OTS AF models item description
1
6
OTS80PB and OTS60PB OTS100AF, OTS80AF and OTS60AF
12
Item
1
2
2
3
4
5
3
6
7
4
5
Item
1
2
2
3
4
3
5
6
4
5
Description
3.5 inch, backlight, bright colour QVGA display
On/Off LED
External power LED / icon
TEST' button with associated red warning LED
USB socket
Navigation keypad with 'OK' select button
ON/OFF
Description
3.5 inch, backlight, bright colour QVGA display
On/Off LED
External power LED / icon
TEST' button with associated red warning LED
12 key alphanumeric keypad
Navigation keypad with 'OK' select button
