IMPORTANT:
RETAIN FOR FUTURE REFERENCE,
READ CAREFULLY

Advertisement

loading
Need help?

Need help?

Do you have a question about the OXFORD LETTO 091562 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bebe Care OXFORD LETTO 091562

Summary of Contents for Bebe Care OXFORD LETTO 091562

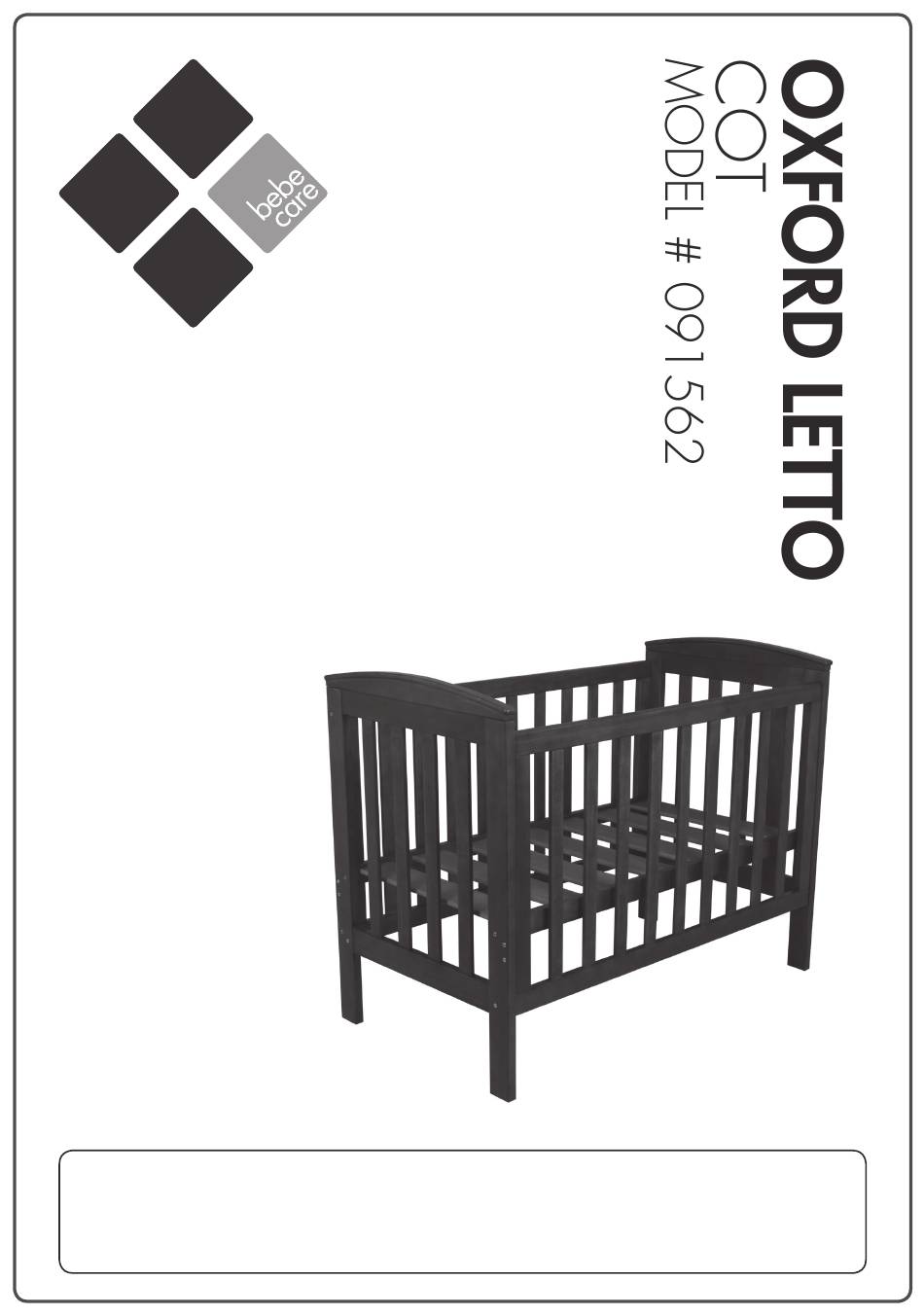

  • Page 1 IMPORTANT: RETAIN FOR FUTURE REFERENCE, READ CAREFULLY...

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS Read all instructions before assembly and use of the cot. Keep instructions for future use. WARNING ADULT ASSEMBLY REQUIRED: DUE TO THE PRESENCE OF SMALL PARTS DURING ASSEMBLY, KEEP OUT OF REACH OF CHILDREN UNTIL ASSEMBLY IS COMPLETE. TO PREVENT FALLS, THE MATTRESS BASE OF THIS COT SHOULD BE ADJUSTED TO THE LOWEST POSITION BEFORE THE CHILD CAN SIT UP.
  • Page 3 CONGRATULATIONS Congratulations on your purchase of the Oxford Letto Cot. This product has been designed and developed with safety, comfort and functionality in mind. Please take the time to read this manual carefully before using this product and keep it in a safe place for future reference.

  • Page 4: Assembly Contents

    ASSEMBLY CONTENTS Check what you have received... You have received 1 box. Please check the contents of the box against the list below. If anything is missing, please contact Customer Service. In Australia, contact CNP Brands on 1300 667 137, in New Zealand contact Wainhouse Distribution on 0800 567 5000.
  • Page 5 ASSEMBLY CONTENTS Supplied loose in box continued: Drop Side Guide Arched Top Rail and Bolt Drop Side Locating Filling Bolt & Nut x 12 (Pre-assembled) 83mm Bolt + Barrel Nut Allen Key (for toddler bed mode assembly) Recommended use with 115282-003 Inner Spring Mattress - White.
  • Page 6 ASSEMBLY / OPERATING INSTRUCTIONS It is advisable that two people assemble the cot in the room in which it is to be used. As small parts are involved in assembly, children should be kept clear of the assembly area. Dispose of all packaging material immediately after the cot is assembled. Identify all parts and components.
  • Page 7 ASSEMBLY / OPERATING INSTRUCTIONS To attach Fixed Side... Attach one end panel to the fixed side panel using two x 43mm bolts. Tighten bolts until firm. Repeat for other end panel. To attach Mattress Base... Lay the cot down on the fixed side. Carefully slide the mattress base between the end panels.
  • Page 8 ASSEMBLY / OPERATING INSTRUCTIONS To fit the Drop Side Panel continued... Align and insert the round guide plastic (on the end panel) at the top of the track in the drop side panel on both ends. Slide the drop side up to allow the locating pin to match up with the small track on the drop side.
  • Page 9 ASSEMBLY / OPERATING INSTRUCTIONS To operate Drop Side Panel... To Lower Drop Side Panel Lift the drop side panel in the centre and push lower rail inwards with your leg, allowing it to lower in to place. To Raise Drop Side Panel Lift the drop side panel in the centre and raise up until it locks in to place.
  • Page 10 THE TODDLER BED IS ONLY DESIGNED FOR USE WHEN THE CHILD CAN GET ON AND OFF THE BED UNAIDED, AT APPROXIMATELY 2-5 YEARS OF AGE. THE COT BED RAILS ARE ONLY DESIGNED FOR USE WITH BEBE CARE COTS AND RECOMMENDED WITH THE INNER SPRING MATTRESS WHICH HAS THE FOLLOWING DIMENSIONS: (1300MM LONG X 690MM WIDE X 100-150MM THICK).
  • Page 11 ASSEMBLY / OPERATING INSTRUCTIONS To convert to Toddler Bed Mode continued... Carefully move end panel outwards to release the locating pin from the track. Repeat for other side. With both locating pins released, slide the drop side panel down to release the plastic guide at the end of the track.
  • Page 12 ASSEMBLY / OPERATING INSTRUCTIONS To convert to Toddler Bed Mode continued... Undo four x 43mm side panel bolts and remove fixed side panel. Repeat steps 4b - 6c. The toddler bed is now ready for use. To convert to Sofa Bed Mode... Ensure that the cot is assembled in cot mode with the mattress base in the lower position.
  • Page 13 ASSEMBLY / OPERATING INSTRUCTIONS To convert to Sofa Bed Mode continued... Unscrew plastic guides and remove locating pins from both end panels. Carefully stand sofa cot back onto its feet. Tighten all bolts on mattress base. WARNING! Do not over-tighten bolts. The sofa bed is now ready for use.

  • Page 14: Maintenance

    HOW TO CARE FOR YOUR BEBE CARE COT Cleaning This product has been designed and developed with safety, comfort and functionality in mind. Please take the time to read this manual carefully before using this product and keep it in a safe place for future reference.
  • Page 15 Lascal, Maclaren, Motorola, Munchkin, OiOi and Summer Infant. Our own brands, including Childcare, have gone from strength to strength in recent years. Childcare, and our premium brand bebe care, demonstrate our commitment to quality and continuing investment in product development.
