Table of Contents Introduction Manufacturer Warranty Product Description Main Features and Functions Label Description Suffix Symbol Specification Parts and Assembly Dimensions Installation YT-2700L Installation YT-2700R Installation Connection Connection - Piping Piping Connection with Actuator Connection - Power Connection - Feedback Signal Connection - Ground Adjustment Variable Orifice...
Thank you for choosing YTC product. Each product is fully inspected after the production to offer you the highest quality. In order to fully utilize the product, we strongly recommend users to read the manual carefully and fully understood. ...
Hart protocol. Main Features and Functions 1. YT-2700 series freezes at the last position when the input signal and/or supply pressure fails without any additional accessories, such as lock-up valve or solenoid valve. 2. LCD display enables users to monitor the status of the positioner.
Indicates ambient temperature for normal operation. Supply Pressure: Indicates the range of supply pressure. Ui, Ii, Pi, Ci, Li: See certificates for parameter values of intrinsically safe. Serial Number: Indicates unique serial number. T5/T6 Suffix Symbol YT-2700 series follows suffix symbols as follows. Specification...
Page 7
Epoxy Polyestere Powder Coating * Tested under ambient temperature of 20℃, absolute pressure of 760mmHg, and humidity of 65%. Please contact YTC for the more detailed specification. * Explosion Proof certification is in progress. Please contact YTC for most current progress.

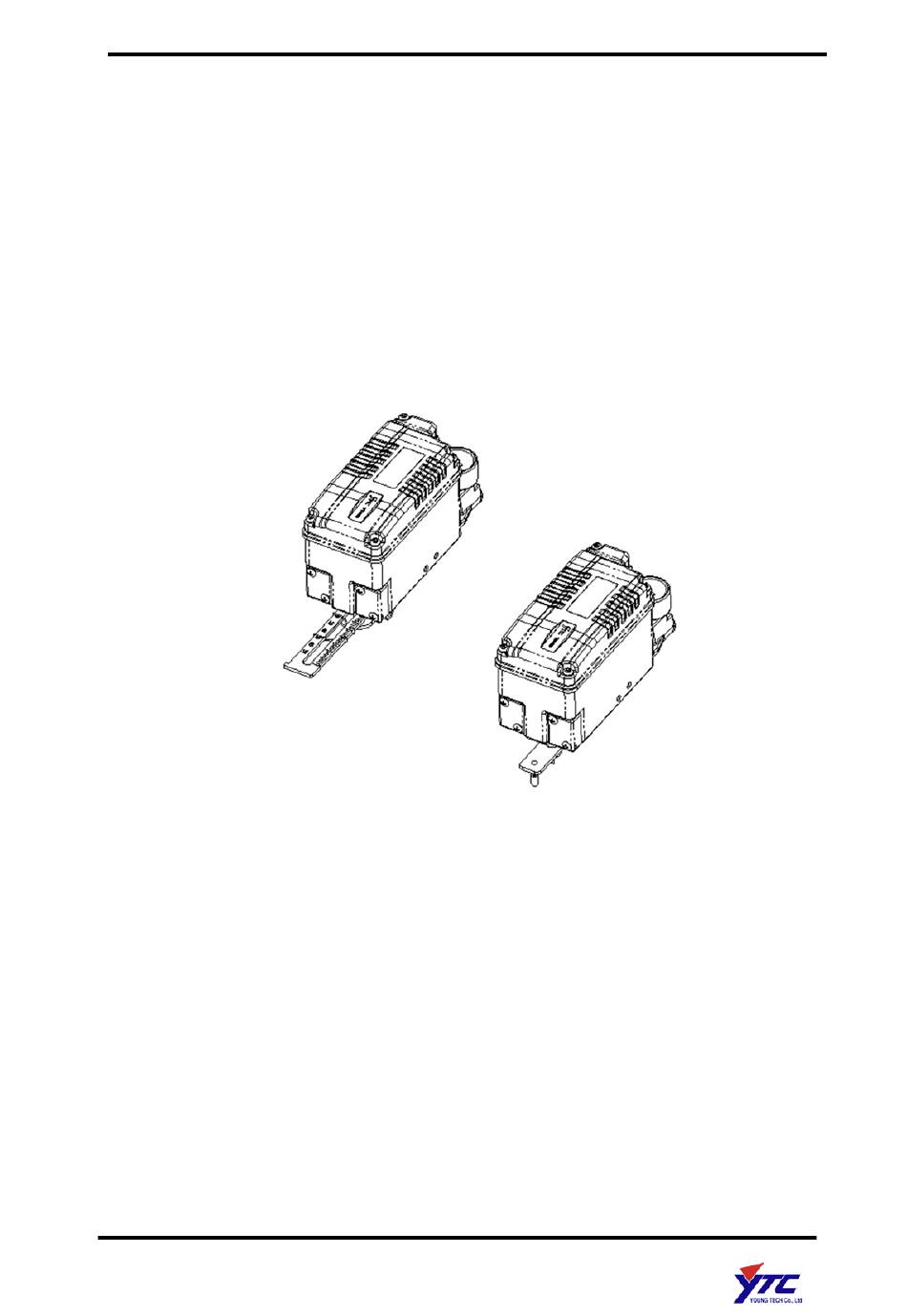

Parts and Assembly The structure of YT-2700L is as shown <Figure1>. The only difference between YT-2500L and YT- 2700R is the feedback lever. Cover Cover Sealing Pilot Relay Main PCB Cover Cover Body Feedback Lever...
The standard size of bolt is M8 x 1.25P, and other bolt sizes are available. Please contact YTC sales department. 3) Attach YT-2700L (with bracket) to the actuator yoke – DO NOT TIGHTEN COMPLETELY.
Page 11
4) Connect YT-2700L feedback lever to the actuator clamp. The gap on the YT-2700L feedback lever is 6.5mm. The connection bar thickness should be less than 6.3mm. <Figure 3> 5) Connect air filter regulator to the actuator temporarily. Set supply pressure of the regulator in order to position the actuator clamp at 50% of valve stroke.
Note After installing YT-2700L, operate the valve from 0% to 100% stroke by using air filter regulator on the actuator. Both of 0% and 100%, the feedback lever should not touch the lever stopper, which is located on the backside of YT-2700L. <Figure 7> If the feedback lever touches the lever stopper, YT-2700L should be installed further away from the center of the yoke.
Page 13
1) Attach bracketed YT-2700R to the actuator by using hexagon-headed and wrench bolts. Size of the bracket hole is 6mm. When tightening bolts, please use spring washer or similar for firm attachment to the actuator, so YT-2700R will not be affected by vibration or any other impact.
④ Do not use extremely long pipeline system. It may affect flow rate due to the friction inside of the pipeline. Piping Connection with Actuator Single acting actuator YT-2700 series single acting type is set to use OUT1 port. OUT1 port should be connected with...
3.2mA for standard YT-2700, and minimum 3.8mA should be supplied for YT-2700 with HART communication. The power should not exceed 24mA. YT-2700 series with PTM option, separate power should be supplied to PTM. The voltage should be between 9~27V and not exceeding 30V. ...
To adjust, use (-) driver to control the orifice. Adjustment – Manual Button <EXH / SUP> By pressing <SUP> and <EXH> button, YT-2700 series can be manually operated without any input signal. <SUP> button allows supply air to transfer to the actuator from positioner’s OUT1 port, and <EXH>...
Following process will operate valve and actuator. Before starting Auto Calibration, please separate valve from the entire system, so Auto Calibration will not affect entire valve process. Button Description Run Mode (RUN) After power connection to YT-2700 series, following message will appear on LCD screen within 6 seconds.
"RUN" indicates that YT-2500 adjusts valve stroke with receiving signals (4~20mA) and "PV" indicates the process value. In RUN mode, the valve stroke continuously changes according to the input signal. There are six types of display message in RUN mode To change display, push <ESC>...
① After connecting power, "READY 6,5,4,3,2,1" message will be appeared on LCD screen. ② Push <ENTER> button for 6 seconds at RUN mode and AUTO CAL message will be appeared. ③ Push <ENTER> and AUTO1 mode will be displayed. ④ Push <ENTER> and AUTO1 will be started. ⑤...
Auto HF Calibration sets all of the parameters, like Auto 2; however, it is used for high friction valve environment Manual Mode (MANUAL) MANUAL MODE is used to move valve stem manually. During MANUAL MODE, YT-2700 moves valve strokes, not by input signal. The movement of the stroke does not affect YT-2700 saved data values, and it just moves valve strokes up/down physically.
