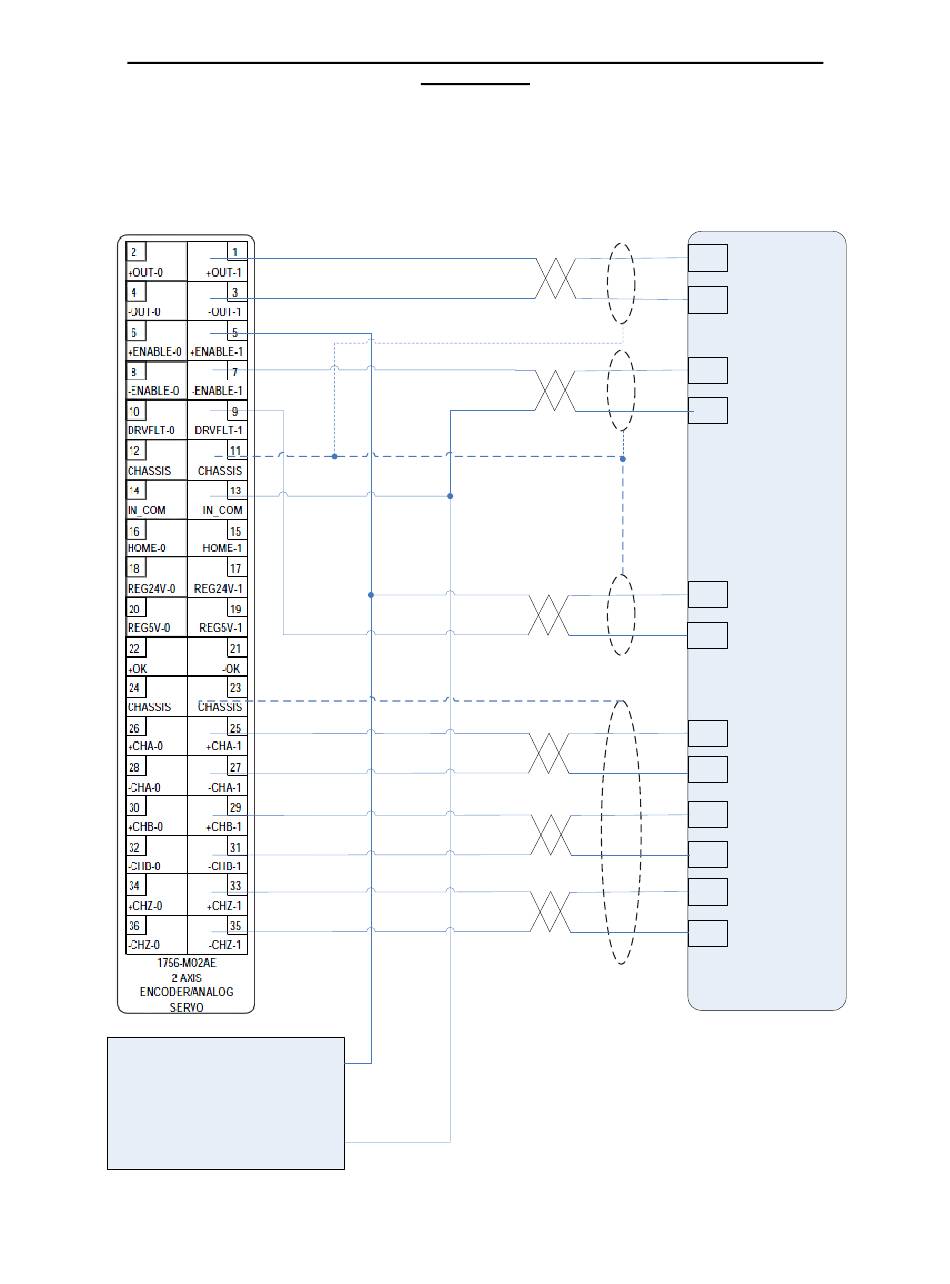

Connection Diagram – Kinetix 300 Drive to ControlLogix Analog Motion Module
Connect the Kinetix 300 drive to the M02AE as shown below. Connections shown for the 1756-
M02AE are for Channel 1.
24V DC Power Supply
(Customer Supplied)
*The Ready Output (Pins 41 & 42) has a fixed function that becomes active when the drive is enabled and the output
power transistors become energized.
A different programmable Output (Run Time Fault) needs to be assigned.

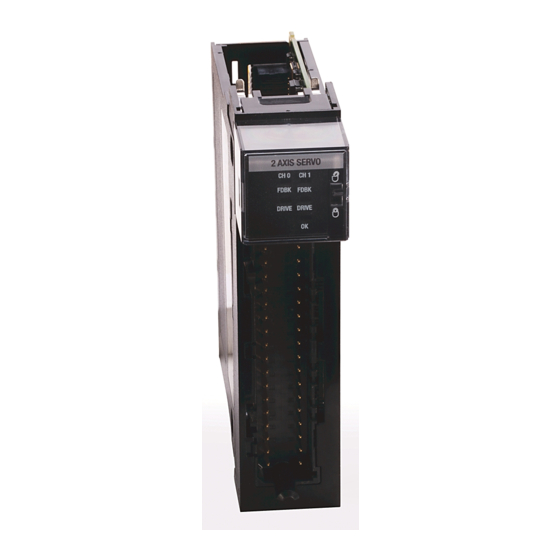

1756-M02AE
1756-M02AE Wiring to Kinetix 300 Indexing Drive
+
-
See M02AE drawing on
next page for General
Cable part numbers
24
A INPUT +
25
A INPUT -
29
Input A3
Enable/Inhibit
26
IN_A_Common
Programmable
43
Output 1 Collector
44
Programmable
Output 1 Emitter *
Buffered Encoder
7
Out A+
Buffered Encoder
8
Out A-
Buffered Encoder
9
Out B+
Buffered Encoder
10
Out B-
Buffered Encoder
11
Out Z+
Buffered Encoder
12
Out Z-
Kinetix 300
IOD Connector
