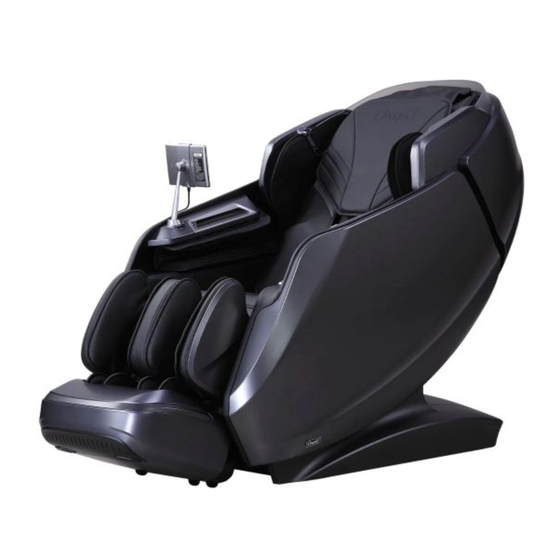

3D Avalon
MASSAGE CHAIR
OPERATION INSTRUCTIONS
SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3D Avalon and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Osaki 3D Avalon

Summary of Contents for Osaki 3D Avalon

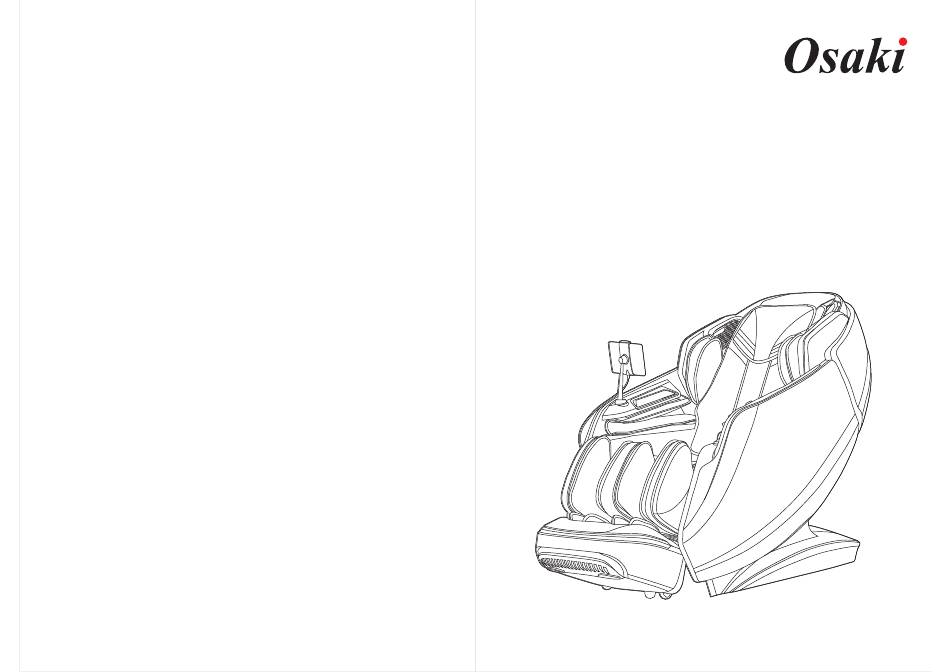

  • Page 1 3D Avalon MASSAGE CHAIR OPERATION INSTRUCTIONS SAVE THESE INSTRUCTIONS...

  • Page 2: Table Of Contents

    Thank You for purchasing this product. Please read this manual instruction carefully in order to know how to use this product correctly before operation. Please pay more attention to the important safety warnings and keep this manual book properly for future use. Note: We reserve the right to change the design and manual of the product.

  • Page 3: Important Safety Instruction

    Important Safety Instruction Important Safety Instruction Connect this appliance to a properly grounded outlet only ,see grounding When using an electrical appliance, basic precautions should instructions always be followed, including the following: 15)Keep children away from extended foot support (or other similar parts Read all instructions before using (this appliance) 16)Do not use massager in close proximity to loose clothing or jewelry.

  • Page 4: Instructions De Securite Importantes

    Instructions De Securite Importantes Instructions De Securite Importantes lors de l'utilisation d'un appareil électrique, des précautions de bases doivent être 15) Éloignez les enfants du support de pied ouvert (ou des autres pièces respectées, y compris ce qui suit : semblables).

  • Page 5: Installation Parts

    Installation Parts Installation Parts Calf Installation Instructions Armrest Installation Instructions 1. After power on, use the remote controller to lie down the backrest . 1. Insert the wires and air pipes of the footrest into the front sockets of the steel frame assembly respectively (Figure 1).

  • Page 6: Place Massage Chair

    Place Massage Chair Place Massage Chair Move method Installation placement Make sure there is enough Use the rear casters to move the Caution Caution space for the massage chair to massage chair.Move the chair by be tilted at least 4 inches. tilting it down and backward about 45°...

  • Page 7: Before Use

    Before Use Before Use Turn on the power Check around Make sure that there are no people, pets and Caution Caution other objects around the unit. Schematic diagram Turn on the power Plug in power cord switch ("I" position) of power on FU SE FU SE T6 .3A...

  • Page 8: Product Structure

    Product Structure Product Structure Description of Components Schematic view of functional distribution 1.Shoulder 5.Sole · · Airbag massage Roller massage 1.Head cushion 7.Shoulder air pressure 2.Arm 6.Both sides of the head 2.Remote controller 8.Shawl backrest cushion · · Remote controller rest Audio music playback 3.Arm air pressure 9.Armrest Shortcut Keys...
  • Page 9 Product Structure Product Structure How to use the shawl ·It is provided with a unique shawl assembly, with innovative heating functions on the shoulder, back, waist and abdomen and heating with graphene. Users can place the shawl at different massage positions according to massage requirements.
  • Page 10 Product Structure Product Structure I.Remote controller keys instruction Main information interface Shoulder Area Manual Shoulder Area Manual Health Home 4D + Width + 4D + Width + 00:30 00:30 Speed + Air intensity Speed + Air intensity Customise Auto Memory 4D I Full Manual...

  • Page 11: Operation Instructions

    Product Structure Operation Instructions II. Description of armrest shortcut keys III. Start massage 1. Press the remote controller side button on/off key or long press the armrest on/off key Button On/Off key Press this key to turn the equipment on 1.On/off...
  • Page 12 Operation Instructions Operation Instructions 4. Wait until body shape detection is completed, or you can press the skip key Skip to skip detection and start massage directly. Position too low Proper position Body sensing Position too high Checking, Please wait IV.
  • Page 13 Operation Instructions Operation Instructions Massage scenes(AI Intelligent) Massage scenes(Relaxing and Activating) Description Description Function Function With the aid of flexible guide rails, let the body posture angle closer By means of kneading, patting, finger pressing and medical to lying flat; with the effective anti-arch stretching of 3D movement massage techniques mainly, clamp the legs, hands and shoulders Full-body to the back, achieve zero pressure stretching, effectively relieve...
  • Page 14 Operation Instructions Operation Instructions Massage scenes(Exclusive for Family) Massage scenes(Overall Relaxation) Description Description Function Function Massage the waist, shoulders and neck by means of kneading, Massage the shoulders, neck, back and waist by means of patting, kneading and patting techniques, to awaken the body's kneading, patting, kneading and patting mainly, to relieve fatigue, vital energy, stimulate physical energy through such deep President...
  • Page 15 Operation Instructions Operation Instructions VI. remote program (please use this function after the equipment is turned on) Massage roller adjustment Function Remote program selection Press this key to massage without Stop Select the remote key in the left menu bar and click to enter the remote menu any technique.
  • Page 16 Operation Instructions Operation Instructions 2.The massage area menu has five options: Spot, Partial, Full, Upper and Lower. Select the corresponding massage area for massage. Shoulder Area Manual Home 4D强度 4D + Width + 00:30 Spot Manual 按摩速度 Speed + Air intensity Auto Manual Home...
  • Page 17 Operation Instructions Operation Instructions 4. For massage hand adjustment, select the Up arrow or the Down arrow down to upwards or downwards fine-adjust the massage hand position. Level 0 Level 1 Level 2 Level 3 Level 4 Level 5 Manual Manual Home Description...
  • Page 18 Operation Instructions Operation Instructions (1)The width can be adjusted only when the user enters the remote mode in Description selecting massage technique or massage area. (2)The massage width is available from 1 to 5 gears, with 1 being the narrowest and Press this key to increase massage width which is adjustable from 1 to 5.
  • Page 19 Operation Instructions Operation Instructions Note: You can also select the massage speed + key or massage speed - 7.For air massage, as shown in the figure below, enter the air massage menu to Speed + select the air mode. The air modes include upper body, lower body, and whole body in the "Current Status "...
  • Page 20 Operation Instructions Operation Instructions Note: You press also air massage key in the "Current Status " interface, Full and select corresponding air mode in the pop-up menu. (This function is a shortcut Level 0 Level 1 Level 2 Level 3 Level 4 Level 5 to the air massage in the current status interface of the remote function - air...
  • Page 21 Operation Instructions Operation Instructions VII. Seat adjustment Description Click the "Seat Adjustment " button in the menu bar on the left side of the Linkage Up key: press and hold this key to slowly raise the backrest unit display to enter the Seat Adjustment interface, with massage functions including leg while slowly lowering the leg unit, and release it to stop raising the unit extension/shortening, leg unit Up/Down, linkage Up/Down, zero-gravityⅠandⅡ.
  • Page 22 Operation Instructions Operation Instructions VIII. Setting (please use this function after the equipment is turned on) 3. Language selection The language is Chinese by default. English is optional. Click the "Setting " button in the menu bar on the left side of the display to enter the setting interface, where you can view the product model, software version Manual number, product serial number, and firmware version number.
  • Page 23 Operation Instructions Operation Instructions (1)Say “Hi Alice” or “Hey Alice”near the speaker to wake up the voice assistant, or 5.Voice Broadcast After clicking the "Voice Broadcast" switch and enabling the Voice Broadcast press the voice key in the right armrest shortcut to wake up the voice assistant. If function, the user will be reminded how to use the massage chair correctly in use of the voice assistant answers “I am here", it means it has been woken up.
  • Page 24 Operation Instructions Operation Instructions 7. Ambient lighting control Health check progress indicator Ambient lighting mode setting. The functions for setting include OFF, automatic mode, monochrome mode, breathing mode, flow mode, etc. Please set them according to your own preferences. Manual Home Settings Product number:...
  • Page 25 Operation Instructions Operation Instructions Note: In addition to setting in the Custom interface, the back heating function Manual (graphene heating) can also be enabled or disabled by selecting the "Back Heating " in the "Current Status " interface. It will become warm in 3 min after Health Customise the heating function is enabled.
  • Page 26 Operation Instructions Operation Instructions Note: In addition to setting in the Custom interface, the voice control function can Description also be enabled or disabled by selecting the "Voice Control " key in the "Current Press this key to enable or disable the Sole Roller function. Status "...

  • Page 27: Xii. Massage Close

    Operation Instructions Cleaning and Maintenance Cleaning synthetic leather and plastic parts Description Wipe the leather with a soft, dry cloth. Storage: Saving the currently running massage program, ■Do not use chemicals such as thinner, gasoline, alcohol, etc. to clean the unit. including automatic program, massage technique, air mode and intensity, position and angle of leg unit and backrest unit, and ■When using commercially available leather care products (rags), please follow...

  • Page 28: Troubleshooting

    Troubleshooting Product Specifications Model: 3D Avalon When the calf mechanism or the backrest reaches a certain position, Name: Massage Chair Fault press the corresponding adjustment button and it will no longer change, and a continuous "beep, beep" sound will be emitted.
