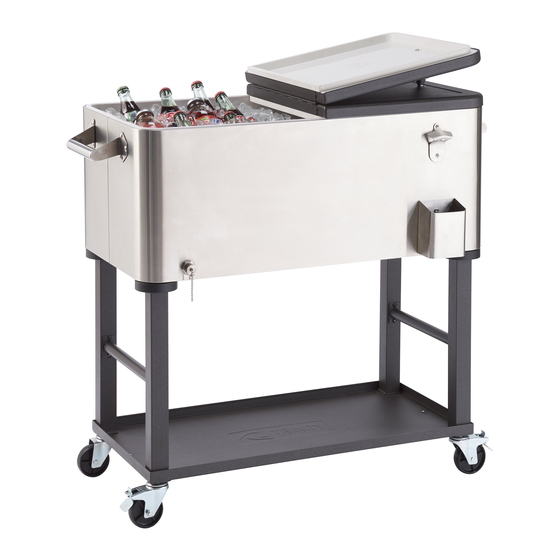

TRINITY 100 QT DETACHABLE STAINLESS STEEL
Important / Important / Importante
FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS
POUR DES DIRECTIVES D'ASSEMBLAGE 3D RAPIDES ET FACILES
PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D
DOWNLOAD THE FREE APP | TÉLÉCHARGER L'APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA
OWNER'S MANUAL
OWNER'S MANUAL
COOLER W/ SHELF
Model # TXK-0805
Intelligent Instructions
Directives intelligentes
Instrucciones Inteligentes
Advertisement
Related Manuals for Trinity TXK-0805
Summary of Contents for Trinity TXK-0805
- Page 1 OWNER’S MANUAL OWNER’S MANUAL TRINITY 100 QT DETACHABLE STAINLESS STEEL COOLER W/ SHELF Model # TXK-0805 Important / Important / Importante FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS Intelligent Instructions Directives intelligentes POUR DES DIRECTIVES D’ASSEMBLAGE 3D RAPIDES ET FACILES Instrucciones Inteligentes PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D...
-
Page 2: Parts List
Your TRINITY Stainless Steel Cooler should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online via “Contact Us”... - Page 3 Align HANDLES (F) on each side of TUB (A). Attach HANDLES (F) with LARGE SCREWS (G). Make sure to tighten securely. HANDLES (F) can be attached either angled up or down based on your preference. © 2020 TRINITY - 800.985.5506...
- Page 4 From outside, slide washer on first, then the second washer with chain attached, and then screw on nut. Be sure not to Outside the tub overtighten. Once DRAIN PLUG (J) is in place, screw on cap. Inside the tub © 2020 TRINITY - 800.985.5506...
- Page 5 Set TUB (A) on top of Cart. Make sure tub feet sit securely inside receivers on top of FRAME (D). STEP 6 Set LID (B) on top of TUB (A). Clean the inside of the Cooler thoroughly before use. © 2020 TRINITY - 800.985.5506...
- Page 6 SERVICE PARTS LIST – TXK-0805 TRINITY Customer Service provides the following replacement parts Part Number Description Part Number Description PBR-17-002-3317 Cooler Lid ZSV-99-011-3010 Non-Locking Caster AMA-05-005-0150 Lid Knob XXX-97-002-0007 Wrench XSV-01-010-0530 Knob Screw PBR-03-028-3116 Shelf XST-18-015-3317 Cooler Tub PBR-14-015-1717 Frame...
- Page 7 Lock the casters when leaving cooler in stationary position. 10. Ensure cooler tub is securely fastened to the leg frames before moving the cooler cart. 11. Do NOT push cooler with cart on uneven surface. Cooler tub may detach from the cart. © 2020 TRINITY - 800.985.5506...
-
Page 8: Care And Maintenance
Use a quality stainless steel cleaner and follow instructions that come with the cleaner. Wipe ALONG the grain (NOT against). • Cooler should not be left out unprotected in the elements. A protective Cooler Cover (part number UBK-24-001-3519) is available as an accessory through www.trinityii.com. © 2020 TRINITY - 800.985.5506... -
Page 9: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a TRINITY Stainless Steel Cooler. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com. - Page 10 © 2020 TRINITY - 800.985.5506...
-
Page 11: Year Limited Warranty
Product, use contrary to this User’s Manual, or alteration by any one other than Trinity. The warranty period of 1 year shall not be extended or renewed by the repair or replacement of, or compensation for, the Product. Any warranty implied by applicable law is limited in duration to one year from the date of purchase and is subject to the same conditions and limitations as is provided for our express warranty. - Page 12 WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com Monday through Friday 5:00 AM –...
