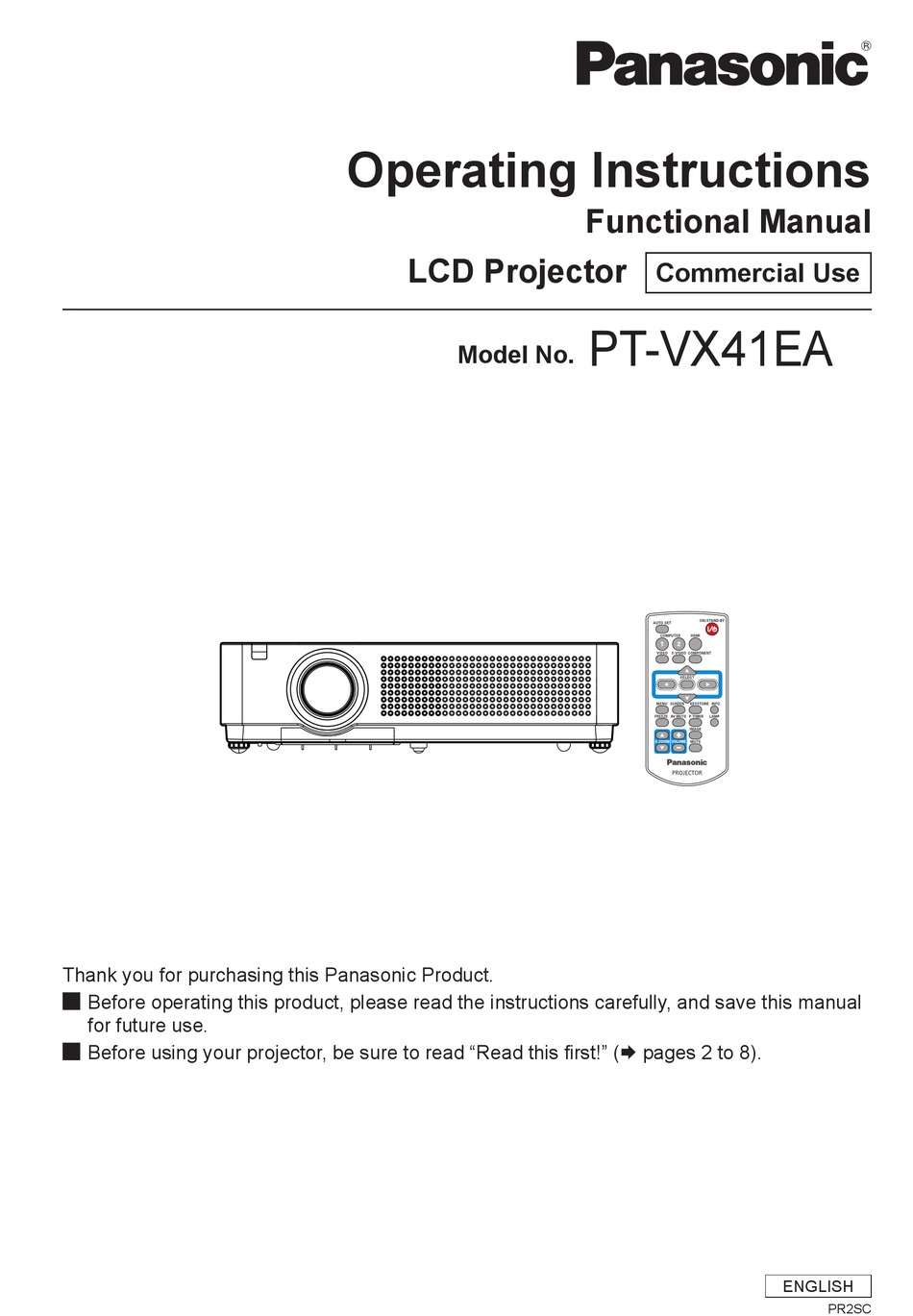

Thank you for purchasing this Panasonic Product.
Before operating this product, please read the instructions carefully, and save this manual
J
for future use.
Before using your projector, be sure to read "Read this first!" (
J
Operating Instructions
LCD Projector
Model No.
Functional Manual
Commercial Use
PT-VX41EA
Æ pages 2 to 8).
ENGLISH
PR2SC
Advertisement
Table of Contents
Related Manuals for Panasonic PT-VX41EA
Summary of Contents for Panasonic PT-VX41EA
- Page 1 Commercial Use PT-VX41EA Model No. Thank you for purchasing this Panasonic Product. Before operating this product, please read the instructions carefully, and save this manual for future use. Before using your projector, be sure to read “Read this first!” ( Æ...
-
Page 2: Read This First
Read this first! Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The sound pressure level at the operator position is equal or less than 70 dB (A) according to ISO 7779. - Page 3 Read this first! IMPORTANT: THE MOULDED PLUG (U.K. only) FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of13 amps and that it is approved by ASTA or BSI to BS1362.
- Page 4 Read this first! WARNING: POWER „ The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock. If foreign objects or water get inside the projector, cut off the power supply.
- Page 5 If liquid enters inside of the projector, consult your dealer. Particular attention must be paid to children. Use the ceiling mount bracket specified by Panasonic. Defects in the ceiling mount bracket will result in falling accidents. Attach the supplied safety cable to the ceiling mount bracket to prevent the projector from falling down.
- Page 6 Read this first! WARNING: ACCESSORIES „ Do not use or handle the batteries improperly, and refer to the following. Failure to observe this will cause burns, batteries to leak, overheat, explode or catch fire. Do not use unspecified batteries. Do not disassemble dry cell batteries. Do not heat the batteries or place them into water or fire.
- Page 7 Read this first! CAUTION: POWER „ When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result. When not using the projector for an extended period of time, disconnect the power plug from the wall outlet and remove the batteries from the remote control.
- Page 8 Read this first! Trademarks • HDMI, the HDMI logo and High-Definition Multimedia Interface is a trademark or registered trademark of HDMI Licensing LLC. PJLink™ is a trademark or pending trademark in Japan, the United States, and other countries and regions. •...
- Page 9 Quick steps Auto Setup Function For details, see the corresponding pages. This function enables Input search, 1. Set up your projector. Auto Keystone correction and Auto Æ page 21) PC adjustment by pressing the <AUTO SETUP> button. Direct Power Off Function 2.
-
Page 10: Table Of Contents
Contents Be sure to read “Read this first!”. ( pages 2 to 8) Using the AUTO SET function ........31 Important Information Switching the input signal ..........31 Using the SCREEN button ........... 31 Read this first! ........... 2 Using the KEYSTONE button ........32 Contents ........... - Page 11 Contents Color ................44 Filter counter ..............57 Tint ................44 Total power savings ............57 Color temp..............44 Warning log ..............57 Red ................45 Factory default .............. 57 Information ..........58 Green ................45 Blue ................45 Input Source Information Display .........
-
Page 12: Precautions For Use
Precautions for Use Cautions when transporting When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impacts. Doing so may damage the internal parts and result in malfunctions. Do not transport the projector with the adjustable feet extended. Doing so may damage the adjustable feet. Cautions when installing Do not set up the projector outdoors. -
Page 13: Security
Make your password as difficult to guess as possible. Change your password periodically. Panasonic or its affiliate company never inquires a password directly to a customer. Do not tell your password in case you receive such an inquiry. The connecting network must be secured by firewall or others. -
Page 14: Cautions On Use
It is recommended to have authorized engineer or your dealer replace the lamp unit. Pursuant to at the directive 2004/108/EC, article 9(2) Panasonic Testing Centre Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, F.R. Germany - ENGLISH... -
Page 15: Accessories
Precautions for Use Accessories Make sure the following accessories are provided with your projector. Numbers in the brackets ( ) show the number of accessories. Power cord (x1) Remote control unit (x1) CD-ROM (x1) Batteries (AAA/R03 or (6103580203) (6451048738) (6103609515) AAA/LR03 type) (x2) (6103580210) (for remote control unit) -
Page 16: Optional Accessories
Precautions for Use Contents of CD-ROM The following contents are stored on the supplied CD-ROM. Instructions/List (PDF) Software Multi Projector Monitoring & Control Operating Instructions – Functional Manual Software 2.6 (Windows) Operation Manual Multi Projector Monitoring & •... -
Page 17: About Your Projector
About Your Projector Remote control (17) (10) <ON/STAND-BY> Button Turn the projector on or off. ( page 27) Æ (11) <KEYSTONE> Button (10) Correct keystone distortion. ( page 32) Æ (12) <INFO.> Button Operate the information function. ( page 32) Æ... -
Page 18: Projector Body
About Your Projector Projector body (12) (1) (2) (9) (10) (11) (13) (1) Remote control signal receiver (2) Zoom Ring Adjust the zoom. (3) Focus Ring Adjust the focus. (4) Projection Lens (5) Air intake port (6) Control Panel and Indicators ( Æ... -
Page 19: Control Panel
About Your Projector Control panel Adjust the volume level (with <VOL -/+> buttons). page 33) Æ (3) <INPUT> button Selects the input signal. ( page 30) Æ (4) <ON/STAND-BY> button Turn the projector on/off. (5) <POWER> indicator Indicate the power status. (6) <MENU>... -
Page 20: Using Remote Control
Using Remote control Using Remote control Installing and Removing batteries Open the cover Install batteries and close the cover (Insert the – side first.) Remove the batteries in the reverse order of installation. Setting Remote control ID numbers When you use the system with multiple projectors, you can operate all the projectors simultaneously or each projector individually using single remote control, if unique ID number is assigned to each projector. -
Page 21: Setting Up
Setting up Projection method You can use the projector with any of the following 4 projection methods. To set the desired method in the projector. Setting on a desk/floor and Mounting on the ceiling and projecting forward projecting forward Menu setting Menu setting Ceiling Ceiling... -
Page 22: Screen Size And Throw Distance
Setting up Screen size and throw distance Place the projector referring Projected image to the diagram on the right and the figures of throwing Screen distance. You can adjust the L (LW/LT) display size. L (LW/LT) * Projection distance (m) Height of the projection area (m) L (LW/LT) Width of the projection area (m) -
Page 23: Adjusting Front Adjustable Feet
Setting up Adjusting front adjustable feet The adjustable feet can be extended by turning it as shown in the figure. It is retracted by turning it in the opposite direction. (Projection angle can be adjusted vertically.) Adjustable range Adjustable Feet Front adjustable feet : 41.2 mm(1.622") Attention Heated air comes out of the air exhaust port while the lamp is lit. -
Page 24: Connections
Basi Connections Before connecting to the projector Read carefully the instruction manual for the device to be connected. Turn off the power switch of the devices before connecting cables. If any connection cable is not supplied with the device, or if no optional cable is available for connection of the device, prepare a necessary system connection cable to suit the device. -
Page 25: Powering On/Off
ic Operation Powering ON/OFF Connecting the power cord Be sure to insert the attached power cord securely to its base to prevent it from coming off. Power cord holder A power cord holder is designed to prevent the AC power cord from coming off the projector. Please insert the power cord into the power cord holder correctly as Picture (1) shown: AC Power cord holder Clamp... -
Page 26: Power Indicator
Powering ON/OFF POWER indicator The power indicator informs you the status of the power. Confirm the status of the <POWER> indicator before operating the projector. POWER indicator Indicator status Status No illumination or flashing The power cord is unplugged. The power cord is plugged. The projector is in stand-by mode, after the cooling is completed. -
Page 27: Turning On The Projector
Powering ON/OFF Turning On the Projector Complete peripheral connections (with a Preparation display computer, VCR, etc.) before turning on the projector. Connect the projector’s AC power cord into an AC outlet. The <POWER> indicator lights red. Open the lens cap. Press the <ON/STAND-BY>... -
Page 28: Enter A Pin Code
Powering ON/OFF Enter a PIN code Press ▲▼ to enter a number. Press ► to fix the PIN Code Input Dialog Box number and move the red frame pointer to the next box. The number changes to . If you fixed an incorrect number, use the ◄... -
Page 29: Turning Off The Projector
Powering ON/OFF Turning Off the Projector Press the <ON/STAND-BY> button on the control panel or on the remote control, and Power off? appears on the screen. Power off? disappears after 4 seconds. Press the <ON/STAND-BY> button again to turn off the projector. The <POWER> indicator starts to blink red, and the cooling fans keep running. -
Page 30: Projecting
Projecting Æ Check the connections of the peripheral devices and connection of the power cord ( page 25) and switch on the Æ power ( page 27) to start the projector. Select the image and adjust the state of the image. Selecting the image Select an input signal. -
Page 31: Basic Operations By Using The Remote Control
Basic operations by using the remote control Switches to Computer 1(RGB)/ COMPUTER 1 Computer 1(Scart) input. Switches to Computer 2(RGB) COMPUTER 2 input. HDMI Switches to HDMI input. VIDEO Switches to Video input. S-VIDEO Switches to S-video input. Switches to Computer 1 COMPONENT (Component) input. -
Page 32: Using The Keystone Button
Basic operations by using the remote control Using the KEYSTONE button Using the INFO. button This function allows you to correct keystone distortion. This function allows you to display the information menu. button button If a projected picture still has keystone distortion after pressing the <AUTO SET>... -
Page 33: Using The Av Mute Function
Basic operations by using the remote control Using the AV MUTE function Using the LAMP button This function allows you to select the lamp mode for changing the brightness on the screen. button button Press the < AV MUTE> button on the remote control to black out the image. -
Page 34: Using The Image Button
Basic operations by using the remote control Using the IMAGE button This function allows you to select a desired image mode of the screen. button Press <IMAGE> button on the remote control to select the desired image mode among [Dynamic], [Standard], [Real], [Cinema], [Blackboard (Green)], [Colorboard], [Image 1], [Image 2], [Image 3] and [Image 4]. -
Page 35: Menu Navigation
Menu Navigation Press ► or the <SELECT> button. Navigating through the menu The submenu appears so that you can select the sub-menu item. Operating procedure Press the <MENU> button. The Main Menu screen appears. Press ▲▼ to select the desired sub- menu item. -
Page 36: Main Menu
Menu Navigation PC adjust [ Main menu Sub-menu item Factory default Page The main menu consists of the following 9 menu AUTO PC adj. items. When a main menu item is selected, the screen Fine sync. changes to a submenu selection screen. Total dots Horizontal Input... - Page 37 Menu Navigation Screen [ Sub-menu item Factory default Page Video delay control Sub-menu item Factory default Page Filter counter Normal Total power savings Full Warning log Wide (16:9) Factory default Zoom True* Information [ Custom Custom adj. Sub-menu item Factory default Page Digital zoom + * Input...
-
Page 38: Input Menu
Input menu The preset system is manually adjusted in Mode 1 Select [Input] from the Main Menu (see the PC adjust Menu. The adjusted data can “Navigating through the menu” on page 35), be stored in Mode 1-10. then select the item from the sub-menu. PC Systems provided in this projector SVGA 1 Remote Control... - Page 39 Input menu Component Auto The projector automatically detects an incoming video signal, and adjusts itself to optimize its performance. COMPONENT VIDEO SIGNAL FORMAT If the projector cannot reproduce proper video image, select a specific component video signal format among [480i], [576i], [480p], [576p], [720p], [1 035i] and [1 080i].
-
Page 40: Auto Pc Adjust
Auto PC adjust Auto PC adjust Select [PC adjust] from the Main Menu (see “Navigating through the menu” on page 35), then select the item from the sub-menu. Control Panel Remote Control Auto PC adj. Auto PC adjustment function is provided to automatically adjust [Fine sync], [Total dots], [Horizontal] and [Vertical] positions to conform to your computer. -
Page 41: Manual Pc Adjust
Manual PC adjust Manual PC adjust Horizontal Select [PC adjust] from the Main Menu (see “Navigating through the menu” on page 35), then select the item from the sub-menu. Press ▲▼ to select [Horizontal]. Press the <SELECT> button to display Control Panel Remote Control the adjustment dialog box. -
Page 42: Current Mode
Manual PC adjust Current mode Reset To reset the adjusted data, all adjustments will return Press ▲▼ to select [Current mode]. to their previous figures. Press ► or the <SELECT> button Press ▲▼ to select [Reset]. to enter the next submenu to show Press the <SELECT>... -
Page 43: Image Select
Image select Blackboard(Green) Select [Image select] from the Main Menu (see “Navigating through the menu” on page 35), For the image projected on a blackboard. then select the item from the sub-menu. Press ▲▼ to select [Blackboard(Green)] and then press the <SELECT> button. This mode helps enhance the image projected Remote Control Control Panel... -
Page 44: Image Adjust
Image adjust Image adjust Color Select [Image adjust] from the Main Menu (see “Navigating through the menu” on page 35), then select the item from the sub-menu. Press ▲▼ to select [Color]. Press the <SELECT> button to display Remote Control Control Panel the adjustment dialog box. -
Page 45: Red
Image adjust Sharpness Press ▲▼ to select [Red]. Press ▲▼ to select [Sharpness]. Press the <SELECT> button to display Press the <SELECT> button to display the adjustment dialog box. the adjustment dialog box. Press ◄► to adjust the setting value. Press ◄►... -
Page 46: Progressive
Image adjust Progressive Press ▲▼ to select [Progressive]. Press the <SELECT> button to display the dialog box. Press ◄► to select the desired item. An interlaced video signal can be displayed in progressive mode. Select one of the following options. [Progressive] cannot be selected when [480p], [576p], [720p], [1 035i] or [1 080i] is selected. -
Page 47: Normal
Screen Screen True Select [Screen] from the Main Menu (see “Navigating through the menu” on page 35), Provide the image in its original size. When the then select the item from the sub-menu. original image size is larger than the panel size (1 024 x 768), the projector enters to the panning mode Remote Control Control Panel... -
Page 48: Custom Adj
Screen To exit the Digital zoom +/– mode, press any button Custom adj. except the <D.ZOOM ▲/▼>, <SELECT> and ▲▼◄► buttons. Adjust the screen scale and position manually with this function. To return to the previous screen size, select a screen Press ▲▼... -
Page 49: Ceiling
Screen Ceiling This function is used to project the image from a ceiling-mounted projector. Press ▲▼ to select [Ceiling] and then press the <SELECT> button. Press ▲▼ to change the image. When this function is set to [On], the picture will be top/bottom and left/right reversed. -
Page 50: Sound
Sound Sound Select [Sound] from the Main Menu (see “Navigating through the menu” on page 35), Press ▲▼ to select [MIC] and then then select the item from the sub-menu. Press the <SELECT> button. Press ▲▼ to switch the [MIC] function Remote Control Control Panel [On]/[Off]. -
Page 51: Setting
Setting Setting Menu position Select [Setting] from the Main Menu (see “Navigating through the menu” on page 35), This function is used to change the position of the On- then select the item from the sub-menu. Screen Menu. Press ▲▼ to select [Menu position]. Remote Control Control Panel Press the <SELECT>... -
Page 52: Background
Setting Auto keystone *1 : Use this function when you want to project images after the lamp becomes bright enough. The factory default setting is in this option. Auto Always works and corrects keystone *2 : Use this function when you want to project the distortion according to the projector's tilt. -
Page 53: Hdmi Setup
Setting Logo PIN code change Terminal Logo PIN code can be changed to your desired four- The COMPUTER IN 2/MONITOR OUT terminal on digit number. the back of the projector is switchable for computer 2 Press ▲▼ to select [Logo PIN code input or monitor output. -
Page 54: Direct On
Setting Mode Direct on Press ▲▼ button to select one mode Press ▲▼ to select [Direct on] and among the items as below. then press the <SELECT> button. The P-timer display 000:00 Press ▲▼ to switch between [On] and appears on the screen and the Count up [Off]. -
Page 55: Closed Caption
Setting Closed caption Remote control [Only for NTSC, 480i input] This switching function prevents remote control interference when operating several projectors or Press ▲▼ to select [Closed caption]. video equipment at the same time. Press ► or the <SELECT> button to Press ▲▼... -
Page 56: Fan
Setting PIN code lock This function prevents the projector from being operated by unauthorized persons and provides the Press ▲▼ to select [Fan] and then following setting options for security. Press <SELECT> button. Press ▲▼ to select the desired items Press ▲▼... -
Page 57: Video Delay Control
Setting Video delay control Total power savings This function allows you to make a digital processing This function displays the saved amount of power and of a projected image faster. the exhausted CO2 of the projector. Press ▲▼ to select [Video delay Press ▲▼... -
Page 58: Information
Information Information Lamp power Select [Information] from the Main Menu (see “Navigating through the menu” on page 35), The selected lamp mode is displayed. then select the item from the sub-menu. Lamp runtime Remote Control Control Panel The cumulative lamp operating time is displayed. Power management [Off] , [Ready] or [Shut down], and [Timer] are displayed. -
Page 59: Network
Network Network If a DHCP server Select [Setting] from the Main Menu (see exists in the network “Navigating through the menu” on page 35), to which the projector then select the item from the sub-menu. is connected, the IP address will Control Panel Remote Control automatically be... -
Page 60: Network Control
Network Network control Network factory default Set when you want to control the projector from a You can reset the network setting to the factory computer connected to the network. default of the projector. Press ▲ ▼ to select [Network control]. Press ▲... -
Page 61: Network Connections
Network Network connections The projector has a network fuction, and the following operations are available from the computer using the web browser control. Setting and adjustment of the projector. Display of the projector status. Transmission of an E-mail message when there is a problem with the projector. Note A LAN cable is required to use the network function. -
Page 62: Computer Operation
“User name” and “Password”. The factory default settings are user1 (user privileges) or admin1 (administrator privileges) for the use name and panasonic (lowercase letters) for the password. Click [OK] to display the Projector status page. “Projector status” page is displayed. - Page 63 Network Description of each item 1 Page selection tabs 5 Change password button Click these to switch pages. Click this button to display the password change 2 Monitor information button page. Click this item, and the status of the projector is 6 Language switch button displayed.
- Page 64 Network Error information page If [Error (Detail)] is displayed in the self-diagnosis information display column on the [Projector status] screen, click the part to display the details of the error. • Depending on the nature of the error, the projector may be placed in the standby mode for its own protection. Normal operation FAILED: Occurrence of trouble...
- Page 65 Network Network status page Displays the current configuration information of the network. Displays the configuration details of wired LAN. Basic control page To move from another page, click [Projector control], then [Basic control]. 1 Power standby/on control 4 Switches image mode 2 Use these to select the input signals 5 Operation of AV mute 3 Volume adjust...
- Page 66 Network Network config page You can change network settings on projector when connecting with the administrator authority. LAN settings Click [Detailed set up] in the menu. Click [Change] to change the LAN settings. To return to the previous window, click [Back]. Complete the detailed settings and click [Next].
- Page 67 Network Ping test page This page makes it possible to check whether the network is connected to the e-mail server, POP server, DNS server, etc. Click [Detailed set up], then [Ping test] to display the Ping test page. Display which appears when the connection was successful.
- Page 68 Network E-mail set up page With this projector, if a problem occurs or if the lamp usage time reaches a set value, an e-mail message can be sent to one or more preset e-mail addresses (maximum two addresses). Click [Detailed set up], then [E-mail set up] to display the E-mail setup page. 1 Select Enable to use the e-mail function.
- Page 69 Network E-mail set up page (continued) 9 Enter the E-mail Address2 of your desired recipient. 10 Select the conditions for sending e-mail. MAIL CONTENTS: Select [NORMAL] or [SIMPLE]. ERROR: An error is detected by self-diagnosis. LAMP RUNTIME: Remaining lamp service time has reached the value set in the field. INTAKE AIR TEMPERATURE: Intake air temperature has reached the value set in the field.
- Page 70 Network Contents of mail sent Mail with the contents shown below is sent when the e-mail settings have been established. === Panasonic projector report(CONFIGURE) === Projector Type : PT-VX41 Serial No : 123456789 ----- E-mail setup data ----- TEMPERATURE WARNING SETUP...
- Page 71 Network Mail with the contents shown below is sent when an error has occurred. === Panasonic projector report(ERROR) === Projector Type : PT-VX41 Serial No : 123456789 ----- check system ----- INTAKE AIR TEMPERATURE EXHAUST AIR TEMPERATURE OPTICS MODULE TEMPERATURE...
- Page 72 Network Change Password page Click [Change password]. 1 Administrator 2 User Administrator mode 1 Account 2 Current user name input field 3 Current password input field 4 New user name input field 5 New password input field 6 New password input field (re-enter for confirmation) 7 Button for executing password change User account ...
-
Page 73: Lamp Replace And Warning Indicators
LAMP REPLACE and WARNING Indicators LAMP REPLACE and WARNING Indicators Managing the indicated problems If a problem should occur inside the projector, the <POWER>, <LAMP REPLACE> and/or <WARNING> indicators will inform you. Manage the indicated problems as follow. CAUTION Before you take a remedial measure, follow the procedure of switching the power off indicated in “Turning off the projector”. Æ... -
Page 74: Replacement
Replacement Before replacing the unit When you perform maintenance or replacement of the parts, make sure to turn off the power and disconnect Æ the power plug from the wall outlet. ( pages 25, 29) Æ Be sure to observe the procedure “Turning off the projector” ( page 29) when performing power supply operation. - Page 75 Replacement Replace the air filter units. Put new air filter units back into the position. Make sure that the filters are fully inserted to the projector. Resetting the Filter Counter Be sure to reset the Filter counter after replacing the air filter units. ( page 57"...
- Page 76 Replacement Lamp unit The lamp unit is a consumable component. You can check the total usage time using Lamp runtime in the Information menu on page 58. It is recommended to ask an authorized engineer to replace the lamp unit. Contact your dealer. Consult your dealer to purchase a replacement lamp unit (ET-LAV100).
- Page 77 Replacement Replacing the Lamp unit CAUTION: When the projector is mounted on a ceiling, do not work with your face close to the projector. Attach the lamp unit and the lamp cover securely. When you experience difficulty in installing the lamp, remove it and try again. If you use force to install the lamp, the connector may be damaged.
-
Page 78: Attaching The Lens Cap
Replacement Attaching the Lens Cap When moving this projector or while not using it over an extended period of time, attach the lens cap. Attach the lens cap according to the following procedures. Thread the string (supplied) through the hole on the lens cap. Push the other end of the string into the front part of the hook (as the picture shown) on the bottom of the... -
Page 79: Troubleshooting
Troubleshooting Please check following points. For details, see the corresponding pages. Reference Problem Cause page The power cord may not be connected. — No electric supply is at the wall outlet. — Power does not turn The circuit breakers have tripped. —... - Page 80 Troubleshooting Reference Problem Cause page Is the HDMI cable securely connected? Picture from a HDMI device does not Turn off the power of the projector and the connected devices. Then turn — appear or picture is the power of the projector and the connected devices back on. not stable.
-
Page 81: Technical Information
[11, 12, 13, 21, 22, 25, 33] NAME ? Projector name query The name set for [Projector name] in [Network] is returned. INF1 ? Manufacturer name query “Panasonic” is returned. INF2 ? Model name query Answer the model name with “VX41”. INF0 ? Other information query Information such as version number is returned. -
Page 82: Control Commands Via Lan
“xxxxxx:yyyyy:zzzzzzzz” xxxxxx : Administrator rights user name for WEB CONTROL (Default user name is “admin1”) yyyyy : Password of above administrator rights user (Default password is “panasonic”) zzzzzzzz : 8-byte random number obtained in Step 2 Command transmission method Transmit using the following command format. - Page 83 Technical Information When WEB Control administrator rights password is not set (Non-protect mode) Connection method Obtain the IP address and port number (Initial set value = 1 024) of the projector and make a request for connection to the projector. Acquire the IP address from the menu screen of the projector, and the port number from the WEB control page.
-
Page 84: Serial Terminal
Technical Information Serial terminal The serial connector which is on the connector panel of the projector conforms to the RS-232C interface specification, so that the projector can be controlled by a personal computer which is connected to this connector. Connection Connecting terminals on projector Computer... - Page 85 Technical Information Basic format Transmission from the computer begins with STX, then the command, parameter, and ETX are sent in this order. Add parameters according to the details of control. Colon (1 byte) Start 3 command Parameter (1 byte) characters (undefined length) (1 byte) (3 bytes)
- Page 86 Technical Information Cable specifications [When connected to a computer] Computer (DTE Projector specifications) Control commands When controlling the projector from a computer, the following commands are available: [Projector control command] Command Control contents Remarks Power [ON] Power [OFF] (Parameter) VID = Video SVD = S-video INPUT selection RG1 = Computer 1(RGB)
-
Page 87: Other Terminals
Technical Information Other terminals Pin assignments and signal names of <S-VIDEO IN> terminal Pin No. Signal names Outside view GND (luminance signal) GND (color signal) Luminance signal Color signal Pin assignments and signal names of <COMPUTER IN 1/COMPONENT IN> terminal Pin No. -
Page 88: List Of Compatible Signals
Technical Information List of compatible signals The following table specifies the types of signals compatible with the projectors. Format : V = VIDEO, S = S-VIDEO, C = COMPUTER, Y = YP , H = HDMI Scanning Display Dot clock frequency Picture PnP*... - Page 89 Technical Information Scanning Display Dot clock frequency Picture PnP* Mode resolution * frequency Format quality * (dots) (MHz) H (kHz) (Hz) 63.970 60.190 107.990 SXGA+ 1 400 x 1 050 65.350 60.120 122.850 65.120 59.900 122.430 48.36 60.00 65.00 ○ 68.677 84.977 94.504...
- Page 90 Technical Information Scanning Display Dot clock frequency Picture Mode resolution * frequency PnP* Format quality * (dots) (MHz) H (kHz) (Hz) 47.776 59.870 79.500 60.289 74.893 102.250 1 280 x 768 68.633 84.837 117.500 55.993 69.991 94.964 57.675 72.004 97.817 49.600 60.050 79.360...
- Page 91 Technical Information Scanning Display Dot clock frequency Picture Mode resolution * frequency PnP* Format quality * (dots) (MHz) H (kHz) (Hz) 47.700 60.00 86.670 1 360 x 768 56.160 72.000 100.190 46.500 50.000 67.400 1 366 x 768 48.360 60.00 86.670 1 376 x 768 48.360...
-
Page 92: Specifications
Specifications Model No. PT-VX41EA Power supply AC100 V - 240 V 50 Hz/60 Hz 100 V - 240 V 3.8 A-1.8 A 322 W When [Standby mode] of [Setting] is set to [Eco]: 0.48W Power consumption When [Standby mode] of [Setting] is set to [Network]: 10.0W When [Standby MIC out] of [Sound] is set to [On]: Max.26 W... - Page 93 Specifications Model No. PT-VX41EA 1 (D-sub 15 pin female) [RGB signal] 0.7 V [p-p] 75 Ω (When G-SYNC: 1.0 [p-p] 75 Ω COMPUTER IN 1/ HD/SYNC TTL high impedance, automatic positive/negative polarity compatible COMPONENT IN VD TTL high impedance, automatic positive/negative polarity compatible signal] Y: 1.0 V [p-p] including synchronization signal, P...
-
Page 94: Dimensions
Ceiling mount bracket safeguards Specifications Dimensions <Unit : mm(inch)> 350 (13.78) 216.5 (8.52) 94 (3.70) 256 (10.08) 208 (8.19) 60 (2.36) Actual dimension may differ by product. Ceiling mount bracket safeguards Installation work of the ceiling mount bracket should only be carried by a qualified technician. Even if it is during guaranteed period, the manufacturer is not responsible for any hazard or damage caused by using a ceiling mount bracket which is not purchased from an authorized distributors, or environmental conditions. -
Page 95: Index
Index Input search ........51 Specifications .........92 Installing and Removing batteries ..20 Standard .........43 About Your Projector.......17 Accessories ........15 Standby mode ........54 Sub menu ........36 Adjusting front adjustable feet ..23 Keystone........32, 48 Switching the input signal ....31 Attaching the Lens Cap ....78 Auto PC adjust........40 Auto setup ........51 Lamp power ........55... - Page 96 Note for the battery symbol (bottom two symbol examples): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved. Panasonic Corporation Web Site : http://panasonic.net/avc/projector/ © Panasonic Corporation 2012 M0512LH0 -ST...
