Thank you for purchasing this Panasonic Product.
Before operating this product, please read the instructions carefully and save this manual
J
for future use.
For information on using the product via a network, refer to "Operating Instructions – Network
Operations".

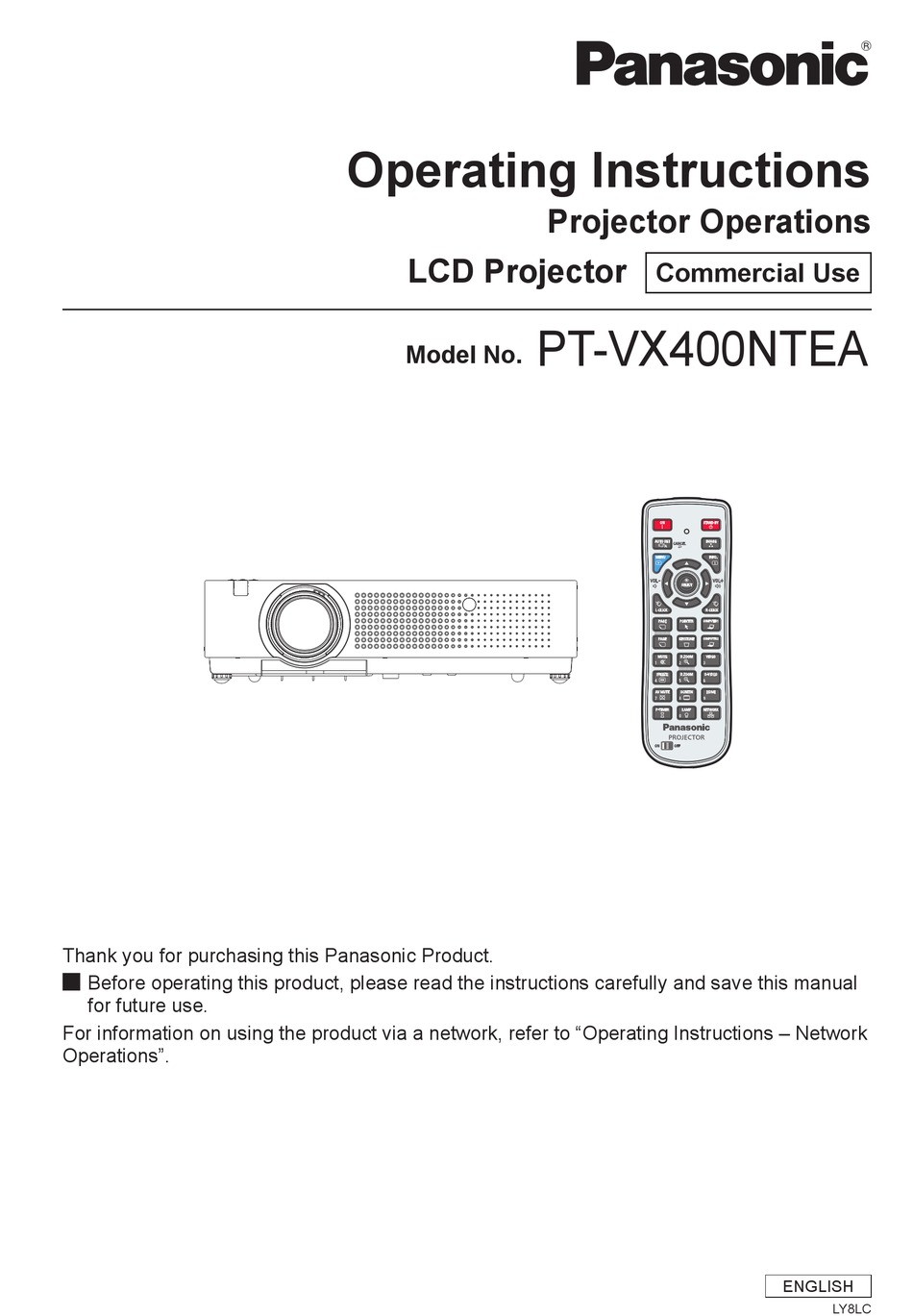

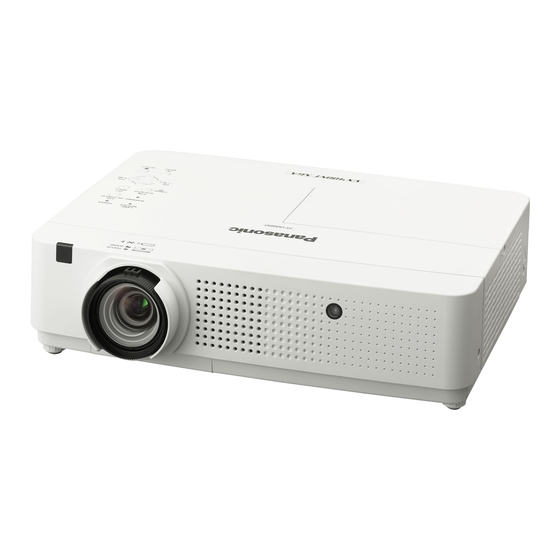

Operating Instructions
LCD Projector
Model No.
Projector Operations
Commercial Use
PT-VX400NTEA
ENGLISH
LY8LC
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Panasonic PT-VX400NTEA
Summary of Contents for Panasonic PT-VX400NTEA
- Page 1 Commercial Use PT-VX400NTEA Model No. Thank you for purchasing this Panasonic Product. Before operating this product, please read the instructions carefully and save this manual for future use. For information on using the product via a network, refer to “Operating Instructions – Network Operations”.
-
Page 2: Read This First
Read this first! Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The sound pressure level at the operator position is equal or less than 70 dB (A) according to ISO 7779. - Page 3 Read this first! IMPORTANT: THE MOULDED PLUG (U.K. only) FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of13 amps and that it is approved by ASTA or BSI to BS1362.
- Page 4 Read this first! WARNING: POWER „ The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock. If foreign objects or water get inside the projector, cut off the power supply.
- Page 5 If liquid enters inside of the projector, consult your dealer. Particular attention must be paid to children. Use the ceiling mount bracket specified by Panasonic. Defects in the ceiling mount bracket will result in falling accidents. Attach the supplied safety cable to the ceiling mount bracket to prevent the projector from falling down.
- Page 6 Read this first! WARNING: ACCESSORIES „ Do not use or handle the batteries improperly, and refer to the following. Failure to observe this will cause burns, batteries to leak, overheat, explode or catch fire. Do not use unspecified batteries. Do not disassemble dry cell batteries. Do not heat the batteries or place them into water or fire.
- Page 7 Read this first! CAUTION: POWER „ When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result. When not using the projector for an extended period of time, disconnect the power plug from the wall outlet and remove the batteries from the remote control.
- Page 8 Read this first! Trademarks • HDMI, the HDMI logo and High-Definition Multimedia Interface is a trademark or registered trademark of HDMI Licensing LLC. • Other names, company names or product names used in these operating instructions are the trademarks or registered trademarks of their respective holders.
-
Page 9: Declaration Of Conformity
Cet appareil est conforme aux exigences essentielles et aux autres dispositions pertinentes de la Directive 1999/5/EC. Les clients peuvent télécharger une copie de la DC originale pour ce produit à partir de notre serveur DC: http://www.doc.panasonic.de Coordonnées dans l’UE : Panasonic Services Europe, a Division of Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, F.R.Germany... - Page 10 Read this first! Important Safety Notice - ENGLISH NGLISH - 5...
- Page 11 Quick steps Easy Setting Function For details, see the corresponding pages. This function enables Input search, 1. Set up your projector. Auto PC adjustment, Focus assist, Æ page 25) Screen fit and Colorboard by pressing the <AUTO SETUP> button. 2. Connect with other devices. Direct Power Off Function Æ...
-
Page 12: Table Of Contents
Contents Be sure to read “Read this first!”. ( pages 2 to 10) Basic operations by using the remote Important Information control........... 36 Read this first! ........... 2 Using the AUTO SET function ........36 Using the IMAGE button ..........36 Declaration of Conformity .......... - Page 13 Contents Real ................48 Direct on ............... 59 Cinema ................. 48 Standby mode .............. 59 Blackboard(Green) ............48 P-timer ................60 Colorboard ..............48 Closed caption .............. 60 Image 1-4 ..............48 Lamp power ..............61 Image adjust..........49 Remote control ............. 61 Security ................
-
Page 14: Precautions For Use
Precautions for Use Cautions when transporting When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impacts. Doing so may damage the internal parts and result in malfunctions. Do not transport the projector with the adjustable feet extended. Doing so may damage the adjustable feet. Cautions when installing Do not set up the projector outdoors. -
Page 15: Security
Make your password as difficult to guess as possible. Change your password periodically. Panasonic or its affiliate company never inquires a password directly to a customer. Do not tell your password in case you receive such an inquiry. The connecting network must be secured by firewall or others. -
Page 16: Cautions On Use
ERAL PUBLIC LICENSE respectively. As for the terms and conditions, please refer to the software licence of the supplied CD-ROM. If you wish to ask any questions as to the software, please contact (sav.pj.gpl.pavc@ml.jp.panasonic.com) by email. Pursuant to at the directive 2004/108/EC, article 9(2) -
Page 17: Accessories
Precautions for Use Accessories Make sure the following accessories are provided with your projector. Numbers in the brackets ( ) show the number of accessories. Power cord (x2) CD-ROM (x1) Batteries (AAA/R03 or Remote control unit (x1) (6103580203) (6103569512) AAA/LR03 type) (x2) (6451049759) (6103580210) (for remote control unit) -
Page 18: Optional Accessories
Precautions for Use Contents of the supplied CD-ROM The contents of the supplied CD-ROM are as follow. [: Instructions/List (PDF), : Software] Operating Instructions – Projector Operations. Operating Instructions – Network Operations. Multi Projector Monitoring & Control Software 2.6(Windows) ... -
Page 19: About Your Projector
About Your Projector Remote control (1) <STAND-BY> Button Turn the projector off ( page 33). Æ (2) Signal Emission indicator Light red while a signal is being sent from the remote control to the projector. (3) Remote control signal emitter (4) <ON>... - Page 20 About Your Projector (14) (25) (15) (16) (24) (17) (18) (19) (20) (21) (22) (23) (24) Input Selection buttons: <COMPUTER (14) <POINTER> Button 1>, <COMPUTER 2>, <HDMI>, <VIDEO>, Act as the On-Off switch for the Pointer. <S-VIDEO>, <NETWORK>. page 37) Æ...
-
Page 21: Projector Body
About Your Projector Projector body (10) (11) (12) (13) (13) (1)(2) (3) ■ Bottom view (14) (1) Remote control signal receiver (2) Focus Ring Adjusts the focus. (3) Projection Lens (4) Zoom Lever Adjusts the zoom. (5) Air intake port (6) Control Panel and Indicators ( Æ... -
Page 22: Control Panel
About Your Projector Control panel (6) <MENU> Button (1) <SELECT> Button Displays the MENU screen. ( page 40) Execute the selected item. Æ (7) <AUTO SETUP/CANCEL> Button (2) ▲▼◄► (VOL -/+) Buttons Execute the setting of Auto setup in the setting _ Navigate the MENU display. -
Page 23: Rear Terminals
About Your Projector Rear terminals (10) (14) (11) (13) (12) (1) LAN (7) Security slot Connects to a LAN cable for network connection. Attach the commercial shackle lock, manufactured by Kensington, to protect your projector. (2) USB Connector (Series A) Compatible with the Kensington MicroSaver Insert the USB thumb drive directly (refer to Security System. -
Page 24: Using Remote Control
Using Remote control Using Remote control Installing and Removing batteries Open the cover Install batteries and close the cover (Insert the – side first.) Remove the batteries in the reverse order of installation. Setting Remote control ID numbers When you use the system with multiple projectors, you can operate all the projectors simultaneously or each projector individually using single remote control, if unique ID number is assigned to each projector. -
Page 25: Setting Up
Setting up Projection method You can use the projector with any of the following 4 projection methods. To set the desired method in the projector. Mounting on the ceiling and Setting on a desk/floor and projecting forward projecting from rear (Using translucent screen) Mounting on the ceiling and Setting on a desk/floor and... -
Page 26: Screen Size And Throw Distance
Attention Æ Before installing, please read “Precautions for Use” ( pages 14 to 18). Projection distance for PT-VX400NTEA (All measurements below are approximate and may differ slightly from the actual measurements.) Projection size For 4:3 aspect ratio For 16:9 aspect ratio... -
Page 27: Adjusting Front Adjustable Feet
Setting up Adjusting front adjustable feet Lift the front of the projector and press the feet lock latches on both side of the projector. Release the feet lock latches to lock the adjustable feet and rotate the adjustable feet to a proper height and tilt. You can turn the front adjustable feet to extend them. -
Page 28: Connections
Basi Connections Before connecting to the projector Read carefully the instruction manual for the device to be connected. Turn off the power switch of the devices before connecting cables. If any connection cable is not supplied with the device, or if no optional cable is available for connection of the device, prepare a necessary system connection cable to suit the device. -
Page 29: Powering On/Off
ic Operation Powering ON/OFF Connecting the power cord Be sure to insert the attached power cord securely to its base to prevent it from coming off. Power cord holder A power cord holder is designed to prevent the AC power cord from coming off the projector. Please insert the power cord into the power cord holder correctly as Picture (1) shown: AC Power cord holder Clamp... -
Page 30: Power Indicator
Powering ON/OFF POWER indicator The power indicator informs you the status of the power. Confirm the status of the <POWER> indicator before operating the projector. POWER indicator Indicator status Status No illumination or flashing The power cord is unplugged. The power cord is plugged. The projector is in stand-by mode, after the cooling is completed. -
Page 31: Turning On The Projector
Powering ON/OFF Turning On the Projector Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector. Connect the projector’s AC power cord into an AC outlet. The <POWER> indicator lights red. Open the lens cap. Press the <ON/STAND-BY> button on the control panel or the <ON>... -
Page 32: Enter A Pin Code
Powering ON/OFF Enter a PIN code When using the control panel PIN Code Input Dialog Box Press ▲▼ to enter a number. Press ► to fix the number and move the red frame pointer to the next box. The number changes to . If you fixed an incorrect number, use the ◄... -
Page 33: Turning Off The Projector
Powering ON/OFF Turning Off the Projector Press the <ON/STAND-BY> button on the control panel or the <STAND-BY> button on the remote control, and Power off? appears on the screen. Power off? disappears after 4 seconds. Press the <ON/STAND-BY> button on the control panel or the <STAND-BY>... -
Page 34: Projecting
Projecting Adjusting the image manually Adjusting the image automatically Check the connections of the peripheral devices and Æ connection of the power cord ( page 29) and switch Easy setting function makes the semi-automatically Æ on the power ( page 31) to start the projector. adjustment possible, so that to get the optimal image. - Page 35 Projecting The focus assist bar will display different colors ac- Then the [Colorboard] function is activated to get cording to the clarity of image. an optimal image. [Keystone (Standard)] appears and it can be adjusted manually if it is necessary. Color state Æ...
-
Page 36: Basic Operations By Using The Remote Control
Basic operations by using the remote control Using the MENU button This function allows you to open or close the On- Screen Menu. Button Press the <MENU> button on the remote control. Note For details, see "Menu Navigation". ( Æ page 40) Using the INFO. -
Page 37: Using The Wireless Mouse Function
Basic operations by using the remote control Using the wireless mouse Using the KEYSTONE button function This function allows you to correct keystone distortion. <L-CLICK/R-CLICK> buttons act as left/right mouse Button button while the projector and a computer are connected with a USB cable, and move the pointer on If a projected picture still has keystone distortion after the screen with <MOUSE POINTER>... -
Page 38: Switching The Input Signal
Basic operations by using the remote control Reduce the top Reduce the top HDMI Switches to HDMI input. right corner part left corner part VIDEO Switches to Video input. with press ◄▼. with press ►▼. S-VIDEO Switches to S-video input. Press the NETWORK Switches to Network input. -
Page 39: Using The Freeze Function
Basic operations by using the remote control Using the FREEZE function Using the SCREEN button You can freeze the projected image and stop the This function allows you to select screen mode or sound temporarily, regardless of the playing condition change the screen size. -
Page 40: Menu Navigation
Menu Navigation Press ► or the <SELECT> button. Navigating through the menu The submenu appears so that you can select the sub-menu item. Operating procedure Press the <MENU> button. The Main Menu screen appears. Press ▲▼ to select the desired sub- menu item. -
Page 41: Main Menu
Menu Navigation Main menu Sub menu The main menu consists of the following 9 menu The sub-menu screen of the selected main menu items. appears, and you can set and adjust the various items When a main menu item is selected, the screen in the submenu. - Page 42 Menu Navigation Image adjust [ Setting [ Sub-menu item Factory default Page Sub-menu item Factory Default Page Contrast Language English Brightness Menu position Center Color* Auto setup Tint* Background Blue Color temp. Display Logo Green HDMI setup Blue USB Terminal Display Sharpness Pointer...
-
Page 43: Input Menu
Input menu There is no signal input from the computer. - - - - Select [Input] from the Main Menu (see Check the connection between your “Navigating through the menu” on page 40), computer and the projector. then select the item from the sub-menu. The preset system is manually adjusted in Mode 1 Remote Control... -
Page 44: Network
Input menu PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N If the projector cannot reproduce proper video image, select a specific broadcast signal format from among [PAL], [SECAM], [NTSC], [NTSC 4.43], [PAL-M] and [PAL-N]. Component Auto The projector automatically detects an incoming video signal, and adjusts itself to optimize its performance. COMPONENT VIDEO SIGNAL FORMAT If the projector cannot reproduce proper video image, select a specific component video signal format... -
Page 45: Auto Pc Adjust
AUTO PC adjust AUTO PC adjust Select [PC adjust] from the Main Menu (see “Navigating through the menu” on page 40), then select the item from the sub-menu. Control Panel Remote Control AUTO PC adj. Auto PC adjustment function is provided to automatically adjust [Fine sync], [Total dots], [Horizontal] and [Vertical] positions to conform to your computer. -
Page 46: Manual Pc Adjust
Manual PC adjust Manual PC adjust Horizontal Select [PC adjust] from the Main Menu (see “Navigating through the menu” on page 40), then select the item from the sub-menu. Press ▲▼ to select [Horizontal]. Press the <SELECT> button to display Control Panel Remote Control the adjustment dialog box. -
Page 47: Current Mode
Manual PC adjust Current mode Reset To reset the adjusted data, all adjustments will return Press ▲▼ to select [Current mode]. to their previous figures. Press ► or the <SELECT> button Press ▲▼ to select [Reset]. to enter the next submenu to show Press the <SELECT>... -
Page 48: Image Select
Image select Blackboard(Green) Select [Image select] from the Main Menu (see “Navigating through the menu” on page 40), For the image projected on a blackboard. then select the item from the sub-menu. Press ▲▼ to select [Blackboard(Green)] and then press the <SELECT> button. This mode helps enhance the image projected Remote Control Control Panel... -
Page 49: Image Adjust
Image adjust Image adjust Color Select [Image adjust] from the Main Menu (see “Navigating through the menu” on page 40), then select the item from the sub-menu. Press ▲▼ to select [Color]. Press the <SELECT> button to display Remote Control Control Panel the adjustment dialog box. -
Page 50: Red
Image adjust Sharpness Press ▲▼ to select [Red]. Press ▲▼ to select [Sharpness]. Press the <SELECT> button to display Press the <SELECT> button to display the adjustment dialog box. the adjustment dialog box. Press ◄► to adjust the setting value. Press ◄►... -
Page 51: Progressive
Image adjust Progressive Press ▲▼ to select [Progressive]. Press the <SELECT> button to display the dialog box. Press ◄► to select the desired item. An interlaced video signal can be displayed in progressive mode. Select one of the following options. [Progressive] cannot be selected when [480p], [576p], [720p], [1035i] or [1080i] is selected. -
Page 52: Screen
Screen Screen True Select [Screen] from the Main Menu (see “Navigating through the menu” on page 40), Provide the image in its original size. When the then select the item from the sub-menu. original image size is larger or smaller than the panel size (1024 x 768), the projector enters to the panning Remote Control Control Panel... -
Page 53: Digital Zoom
Screen Digital zoom + Keystone Zoom in the images. This function is used to adjust keystone distortion of the projected image. Press ▲▼ to select [Digital zoom +] Press ▲▼ to select [Keystone]. and then press the <SELECT> button. The On-Screen Menu disappears and Press ►... -
Page 54: Rear
Screen Rear This function is used to project the image from rear of the screen. Press ▲▼ to select [Rear] and then press the <SELECT> button. Press ▲▼ to change the image. When this function is set to [On], the picture will be left/right reversed. -
Page 55: Sound
Sound Sound Select [Sound] from the Main Menu (see “Navigating through the menu” on page 40), Press ▲▼ to select [MIC] and then then select the item from the sub-menu. Press the <SELECT> button. Press ▲▼ to switch the MIC function Remote Control Control Panel On/Off. -
Page 56: Setting
Setting Setting Menu position Select [Setting] from the Main Menu (see “Navigating through the menu” on page 40), This function is used to change the position of the On- then select the item from the sub-menu. Screen Menu. Press ▲▼ to select [Menu position]. Control Panel Remote Control Press the <SELECT>... -
Page 57: Background
Setting Focus assist Background [Focus assist] function is available when it is set to Select the background screen for when no input signal [On]. Then press the <AUTO SET> button on the is detected. remote control or the <AUTO SETUP> button on the control panel, [Please wait...] appears, the adjustment Press ▲▼... -
Page 58: Logo
Setting Attention Logo Be sure to note the new [Logo PIN code] and keep it on hand. If you lost the number, you could no longer change This function allows you to customize the screen logo the [Logo PIN code] setting. with [Logo select], [Logo PIN code lock] and [Logo PIN code change] functions. -
Page 59: Pointer
Setting Mode Pointer Press ▲▼ and then press the You can emphasize a part of the projected image with <SELECT> button to select one mode this function. among the items as below. Press ▲▼ to select [Pointer]. Ready When the lamp has been fully cooled Press ►... -
Page 60: P-Timer
Setting *1 : Press the <SELECT> button at [Start] and the Attention indication changes into [Stop]. To stop [Count up] When selecting [Network], the cooling fans may be or [Count down], press the <SELECT> button at running depending on the temperature inside the [Stop] on the screen menu, then the indication projector even if the projector is turned off. -
Page 61: Lamp Power
Setting Lamp power Security This function allows you to change brightness of the This function allows you to use the Key lock and PIN screen. code lock function to set the security for the projector operation. Press ▲▼ to select [Lamp power] and Press ▲▼... -
Page 62: Fan
Setting PIN code change *2 : Select this mode when using the projector in high altitudes (about 1,200 meters or more above The PIN code can be changed to your desired four- the sea level) where the fans have less cooling digit number. -
Page 63: Total Power Savings
Setting Filter counter reset Factory default After replacing the filter, be sure to reset the timer. This function returns all setting values except for the Press ▲▼ to select [Filter counter [User logo], [IN code lock], [Logo PIN code lock], [Filter reset]. -
Page 64: Information
Information Information Lamp power Select [Information] from the Main Menu (see “Navigating through the menu” on page 40), The selected lamp mode is displayed. then select the item from the sub-menu. Lamp runtime Remote Control Control Panel The cumulative lamp operating time is displayed. Power management [Off] , [Ready] or [Shut down], and [Timer] are displayed. -
Page 65: Lamp Replace And Warning Indicators
LAMP REPLACE and WARNING Indicators LAMP REPLACE and WARNING Indicators Managing the indicated problems If a problem should occur inside the projector, the <POWER>, <LAMP REPLACE> and/or <WARNING> indicators will inform you. Manage the indicated problems as follow. CAUTION Before you take a remedial measure, follow the procedure of switching the power off indicated in “Turning off the projector”. Æ... -
Page 66: Replacement
Replacement Before replacing the unit When you perform maintenance or replacement of the parts, make sure to turn off the power and disconnect Æ the power plug from the wall outlet. ( pages 29, 33) Æ Be sure to observe the procedure “Turing off the projector” ( page 33) when performing power supply operation. - Page 67 Replacement Replace the air filter units. Put new filters back into the position. Make sure that the filters are fully inserted to the projector. Resetting the Filter Counter Be sure to reset the Filter counter after replacing the filter. ( page 63"...
- Page 68 Replacement Lamp unit The lamp unit is a consumable component. You can check the total usage time using [Lamp runtime] in the Information menu on page 64. It is recommended to ask an authorized engineer to replace the lamp unit. Contact your dealer. Consult your dealer to purchase a replacement lamp unit (ET-LAV100).
- Page 69 Replacement Replacing the Lamp unit CAUTION: When the projector is mounted on a ceiling, do not work with your face close to the projector. Attach the lamp unit and the lamp cover securely. When you experience difficulty in installing the lamp, remove it and try again. If you use force to install the lamp, the connector may be damaged.
-
Page 70: Attaching The Lens Cap
Replacement Attaching the Lens Cap When moving this projector or while not using it over an extended period of time, attach the lens cap. Attach the lens cap according to the following procedures. Thread the string through the hole on the lens cap and then tie a knot in the string to secure it in place. -
Page 71: Troubleshooting
Troubleshooting Please check following points. For details, see the corresponding pages. Reference Problem Cause page The power cord may not be connected. — No electric supply is at the wall outlet. — Power does not turn The circuit breakers have tripped. —... - Page 72 Troubleshooting Reference Problem Cause page The cable may be longer than the optional cable. — Picture from a computer does not The external video output from a laptop computer may not be correct. — appear. Is the HDMI cable securely connected? Picture from a HDMI device does not Turn off the power of the projector and the connected devices.
-
Page 73: Technical Information
Technical Information Serial terminal The serial connector which is on the connector panel of the projector conforms to the RS-232C interface specification, so that the projector can be controlled by a personal computer which is connected to this connector. Connection Connecting terminals on projector Computer... - Page 74 Technical Information Basic format Transmission from the computer begins with STX, then the command, parameter, and ETX are sent in this order. Add parameters according to the details of control. Colon (1 byte) Start 3 command Parameter (1 byte) characters (undefined length) (1 byte) (3 bytes)
- Page 75 Technical Information Cable specifications [When connected to a computer] Computer (DTE Projector specifications) Control commands When controlling the projector from a computer, the following commands are available: [Projector control command] Command Control contents Remarks Power [ON] Power [OFF] (Parameter) VID = Video SVD = S –video RG1 = Computer 1 (RGB) INPUT selection...
-
Page 76: Other Terminals
Technical Information Other terminals Pin assignments and signal names of <S-VIDEO IN> terminal Pin No. Signal names Outside view GND (luminance signal) GND (color signal) Luminance signal Color signal Pin assignments and signal names of <COMPUTER IN 1/COMPONENT IN> terminal Pin No. - Page 77 Technical Information USB CONNECTOR (Type A) Pin No. Signal names Outside view - Data + Data USB CONNECTOR (Type B) Pin No. Signal names Outside view - Data + Data ENGLISH -...
-
Page 78: List Of Compatible Signals
Technical Information List of compatible signals The following table specifies the types of signals compatible with the projectors. Format : V = VIDEO, S = S-VIDEO, C = COMPUTER, Y = YP , H = HDMI Scanning Picture Display Dot clock frequency quality * Mode... - Page 79 Technical Information Scanning Picture Display Dot clock frequency quality * Mode resolution * frequency Format (dots) (MHz) H (kHz) COMPUTER HDMI (Hz) VX400NTEA 48.36 60.00 65.00 68.677 84.977 94.504 ○ ○ 60.023 75.03 78.75 ○ ○ 56.476 70.07 75.00 ○ ○...
- Page 80 Technical Information Scanning Picture Display Dot clock frequency quality * Mode resolution * frequency Format (dots) (MHz) H (kHz) COMPUTER HDMI (Hz) VX400NTEA D-SXGA+3 1400 x 1050 65.120 59.900 122.430 75.00 60.00 162.00 ○ 81.25 65.00 175.50 UXGA 1600 x 1200 87.5 70.00 189.00...
- Page 81 AA: Maximum picture quality can be obtained. Signals are converted by the image processing circuit. Note The number of display dots is 1024 x 768 for the PT-VX400NTEA. A signal with a different resolution will be projected after converting the resolution to match the projector display.
-
Page 82: Specifications
Specifications Model No. PT-VX400NTEA Power supply AC100 V - 240 V 50 Hz/60 Hz 100 V - 240 V 3.8 A-1.8 A 322 W When [Standby mode] of [Setting] is set to [Eco]: Power consumption 0.48 W (100 V - 120 V), 0.5 W (220 V - 240 V) When [Standby mode] of [Setting] is set to [Network]: 14.5W... - Page 83 Specifications Model No. PT-VX400NTEA 1 (D-sub 15 pin female) [RGB signal] 0.7 V [p-p] 75 Ω (When G-SYNC: 1.0 [p-p] 75 Ω COMPUTER IN 1/ HD/SYNC TTL high impedance, automatic positive/negative polarity compatible COMPONENT IN VD TTL high impedance, automatic positive/negative polarity compatible signal] Y: 1.0 V [p-p] including synchronization signal, P...
-
Page 84: Dimensions
Ceiling mount bracket safeguards Specifications Dimensions <Unit : mm> 350.0（13.78"） 81.03 (3.19") Actual dimension may differ by product. Ceiling mount bracket safeguards Installation work of the ceiling mount bracket should only be carried by a qualified technician. Even if it is during guaranteed period, the manufacturer is not responsible for any hazard or damage caused by using a ceiling mount bracket which is not purchased from an authorized distributors, or environmental conditions. -
Page 85: Index
Index Installing and Removing batteries ..24 Sound ..........55 Specifications .........82 About Your Projector.......19 Accessories ........17 Standard .........48 Keystone........37, 53 Standby mode ........59 Adjusting front adjustable feet ..27 Sub menu ........41 Attaching the Lens Cap ....70 AUTO PC adjust ......45 Switching the input signal ....38 Lamp power ........61 Auto setup ........56 LAMP REPLACE indicator .....65... - Page 86 Information for Users on Collection and Disposal of Old Equipment and used Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.
