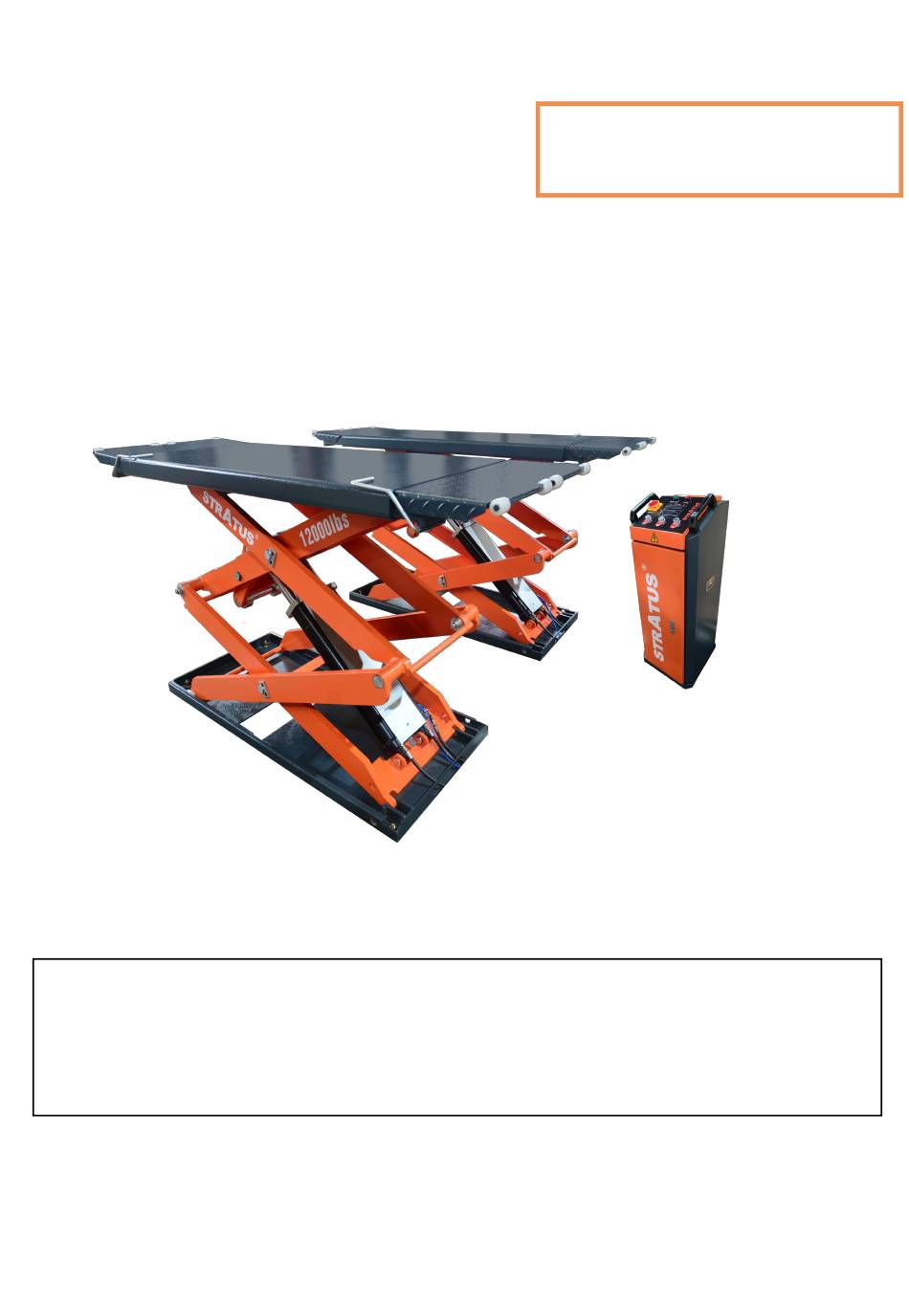

Model No. SAE-UT12000
Full Rise Ultra Thin
Scissor Lift
Lifting Capacity 12000 lbs
Important Note
1. This equipment can not be installed, operated or repaired without reading instructions.
2. Electricity must be hooked up by certified electrician.
3. Do not use this equipment beyond its rated capacity.
Installation & Operation &
Maintenance Instructions
Advertisement
Related Manuals for Stratus SAE-UT12000
Summary of Contents for Stratus SAE-UT12000
- Page 1 Model No. SAE-UT12000 Installation & Operation & Maintenance Instructions Full Rise Ultra Thin Scissor Lift Lifting Capacity 12000 lbs Important Note 1. This equipment can not be installed, operated or repaired without reading instructions. 2. Electricity must be hooked up by certified electrician.
-
Page 3: Table Of Contents
12000LBS Ultra-thin Scissor Lift Contents Chapter 1 Safety Precautions ..........4 Chapter 2 Product and Parameters ..........5 Chapter 3 Preparation for Installation ..........9 Chapter 4 Commissioning ............18 Chapter 5 Maintenance ............20 Chapter 6 Exploded views ............24... -
Page 4: Chapter 1 Safety Precautions
SAE-UT12000 Chapter 1 Safety Precautions 1. Make sure that you have read the User’s Manual completely including relevant instructions on installation, operation and safety before operating the lift. 2. Do not use the lift if any abnormality is found in the lift. - Page 5 12000LBS Ultra-thin Scissor Lift Chapter 2 Product Features and Parameters 2.1 Product features Movable ramp which can be used as extension board Monolithic base-plate without splice Stable and reliable control system Aluminum alloy motor with low noise and fast heat dissipation 2.2 Technical parameters Rated lifting capacity 12000LBS (5500KG)
- Page 6 SAE-UT12000 Diagram of product：...
- Page 7 12000LBS Ultra-thin Scissor Lift Electrical diagram...
- Page 8 SAE-UT12000 2.3 Schematic diagram for main components Working platform: For lifting the vehicle by contacting the chassis. Safety gear rack: Safety mechanism for mechanical locking. Gear block: Blocking safety gear rack. Ramp: Can be pulled up and used as extension board to bear load.
-
Page 9: Chapter 3 Preparation For Installation
12000LBS Ultra-thin Scissor Lift Chapter 3 Preparation for Installation 3.1 Unpacking All packing, loading/unloading, transportation and unpacking operations must be performed by professional personnel. Transportation: The scissor lift shall be loaded/unloaded and moved by a lifting machine and forklift with capacity over 3 tons. - Page 10 SAE-UT12000 3.1 Preparation for installation Installation scheme...
- Page 11 12000LBS Ultra-thin Scissor Lift Volta Start Operating Power Wire size Air switch Applicable to current current Scissor lift 220V 21A-25A ≥4mm² Two posts,four 220V 2.2KW 20A-22A ≥4mm² posts...
- Page 12 SAE-UT12000 3.3 Installation: Only professionals are allowed to conduct the installation • work. Moreover, they shall read and follow the operation instructions below carefully to prevent machine damage or injuries. Only authorized technicians are allowed to install the lift. •...
- Page 13 For the transportation and storage of the machine, refer to the“Transportation and Storage” on page 11.
- Page 14 12000LBS Ultra-thin Scissor Lift 3.3.2 Installation of lifting platforms Determine the installation direction of the lift according to the arrows on the lift package. When the lift is installed in the pit or on the ground, insert adjusting sizing blocks under the platform, lift the lifting platform with a forklift or other lifting equipment (Fig.
- Page 16 SAE-UT12000 Only the professionals qualified for electrical operation are allowed to conduct the electrical installation •Open the upper cover of the control cabinet first •Connection of power line: Connect the 380V three-phase four-wire power line (cable of 3×2.5MM2＋ 1×1.5 MM2) to the control cabinet interfaces U, V, W and...
- Page 17 12000LBS Ultra-thin Scissor Lift Connection schematic diagram of air pipe joint： Part No. Quantity Muffle Plug 1/8 Solenoid valve Plug 1/4 Air pipe PU0604 T-joint APE Small cylinder Air pipe PU0806...
- Page 18 SAE-UT12000 Schematic diagram of oil pipe joint： Note: Adjustment is only necessary in case of imbalance of both platforms...
- Page 20 12000LBS Ultra-thin Scissor Lift Hydraulic schematic diagram:...
-
Page 21: Chapter 4 Commissioning
SAE-UT12000 Chapter 4 Commissioning • 1. Filling of hydraulic oil:Open the door of the control cabinet and fill the hydraulic tank with 16L 46# anti-wear and antifreezing hydraulic oil (provided by the user) with a funnel. • 2. Pipeline connection: Connect the oil pipe according to Oil Circuit... - Page 23 12000LBS Ultra-thin Scissor Lift • Lift the platforms to the fifth or sixth teeth, then press the “Lock” button to fasten the safety jaws of the left and right platforms into the safety gear racks firmly. • Inspect that the surfaces of the left and right platforms are level laterally and longitudinally with a transparent leveling pipe or level gauge (Fig.
-
Page 24: Chapter 5 Maintenance
SAE-UT12000 Chapter 5 Maintenance •5.1 Maintenance: •Add oil at all shaft crossovers in the machine once a month. •Keep the safety gear rack clean. •Keep the upper and lower pulleys clean and lubricate them. •Change the hydraulic oil once a year. • Remove the waste in the tank. - Page 25 12000LBS Ultra-thin Scissor Lift •5.4 Oil-filling and leveling...
- Page 26 SAE-UT12000 •5.5 Emergency manual lowering procedures at power failure： Lift the safety jaws above the cylinders for both platforms and put paper blocks under the safety jaws to separate them from the gear racks.Switch off the power and open the control cabinet door to locate the oil return solenoid valve. Loosen the copper cap at the end of the solenoid valve (2) so that the platforms can be lowered.
- Page 27 12000LBS Ultra-thin Scissor Lift • Troubleshooting must be conducted by trained and experienced technicians. • Fault symptoms and troubleshooting methods：...
-
Page 28: Chapter 6 Exploded Views
SAE-UT12000 Chapter 6 Exploded views... - Page 29 12000LBS Ultra-thin Scissor Lift Name Name Baseplate Auxiliary arm central bushing Lower outerscissor arm Scissor arm bushing Auxiliary arm central shaft Upper outerscissor arm circlip Pane Oil cylinder tail shaft Upper innerscissor arm Lower sliding block Lower scissor arm central Lower innerscissor arm shaft Lower scissor arm central...
- Page 31 Date...
- Page 32 Date...
- Page 33 12000LBS Ultra-thin Scissor Lift SAE-UT12000 User’s Manual...
