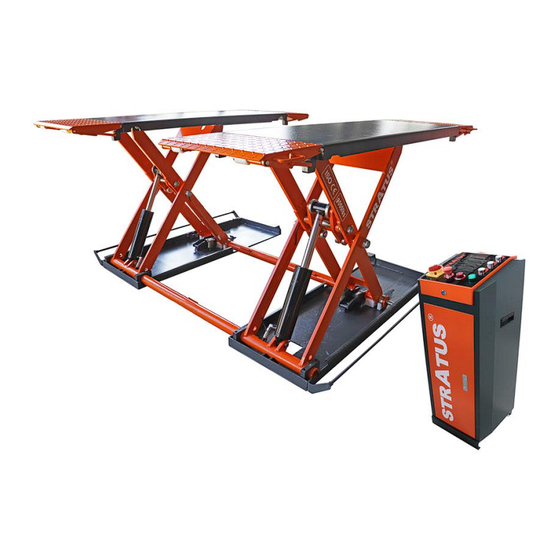

Model No. SAE-MS9000X
Mid Rise Scissor Lift
Automatic Release
Lifting Capacity 9000 lbs
Important Note
1. This equipment can not be installed, operated or repaired without reading instructions.
2. Electricity must be hooked up by certified electrician.
3. Do not use this equipment beyond its rated capacity.
Installation & Operation &
Maintenance Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stratus SAE-MS9000X
Summary of Contents for Stratus SAE-MS9000X
- Page 1 Model No. SAE-MS9000X Installation & Operation & Mid Rise Scissor Lift Maintenance Instructions Automatic Release Lifting Capacity 9000 lbs Important Note 1. This equipment can not be installed, operated or repaired without reading instructions. 2. Electricity must be hooked up by certified electrician.
- Page 2 STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions INDEX 1. Important safety instructions……………………………….….2~3 1.1 Important notices 1.2 Qualified personnel 1.3 Danger notices 1.4 Warning signs 1.5 Sound level 1.6 Training 1.7 Special reminder 2. Overview of the lift………………………………………………..3 2.1 General descriptions...
-
Page 3: Important Safety Instructions
STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions IMPORTANT SAFETY INSTRUCTIONS 1.1 Important notices We will offer one-year's quality warranty for the whole machine，during which any quality problem will be properly solved to the user's satisfaction. However, we will not take any responsibility for whatever bad consequence resulted from improper installation and operation, overload running or unqualified ground condition. -
Page 4: Sound Level
STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions 1.4 Warnings (Read and understand all safety warnings before operation) All safety warning labels are clearly depicted on the lift to ensure that the operator is aware of and avoids the dangers of using the lift in an incorrect manner. - Page 5 STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions Danger: When adjusting the flow valve, the rotation range can not be too large. Excessive adjustment range will cause the vehicle to fall/drop rapidly. Danger: The lift with loaded vehicle can not fall too fast. Otherwise it may cause damages to the lift or vehicle or even cause rollover accident.
-
Page 6: General Descriptions
STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions **Important Information** 1 Hydraulic Oil Flow Valve: Clockwise adjustment to make the down speed faster, counterclockwise adjustment to make the down speed slower. 2 Pressure Valve: Clockwise adjustment increases pressure to make the power unit to have more power, counterclockwise adjustment decreases pressure to make the power unit to have less power. -
Page 7: Ground Conditions
STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions 3.1.2 List for parts checking ---Annex 1（Packing list） Unfold the package and check if any parts missed as per Annex 1. Do not hesitate to contact us in case any parts missed, but if you do not contact us and insist installing upon the lack of some parts, Friend as well as our dealers will not bear any responsibility for this and will charge for any parts subsequently demanded by the buyer. -
Page 8: Flow Chart For Operation
STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions 3.4 Items to be checked after installation Check items YES NO Are two platforms on the same level? Are oil hoses well connected? Are electrical connections correct? Do valves on the pump assembly leak? 4. - Page 9 STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions 4.4 Operation instructions Raise the lift 1.Make sure that you have read and understood the operation manual before operation. 2.Drive and park the vehicle midway between two platforms. 3.Place the four rubber pads under the prop-points of the vehicle and ensure car’s gravity have fallen on the rubber pads.
- Page 10 STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions The safety lock is engaged: a. Screw off the fitting (opposite to the oil out-let) to connect a hand pump. (Optional) b. Connect the hydraulic assembly with the optional hand pump. Press down the handle of the pump to raise the platforms to have the safety teeth unlocked.
-
Page 11: Troubleshooting
STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions 5. Trouble Shooting ATTENTION: If the trouble could not be fixed by yourself, please do not hesitate to contact us for help. We will offer our service at the earliest time we can. By the way, your troubles will be judged and solved much faster if you could provide us more details or pictures of the trouble. -
Page 12: Maintenance
STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions 6. Maintenance Easy and low-cost routine maintenance can ensure the lift work normally and safely. Following are requirements for routine maintenance. You may choose the frequency of routine maintenance by consulting your lift’s working conditions and time. - Page 13 STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions 7. ANNEX Annex 1. Packing List of the whole lift Name Mechanical Assembly Mobile kit Optional Wheel Pull rod Feet protector Hydraulic system Annex 2. Overall diagram...
- Page 14 STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions Annex 3. Diagram for pneumatic system. (Only applicable to the version with pneumatic release mechanical lock) Air filter Pneumatic solenoid valve Pneumatic cylinder for the main platform Pneumatic cylinder for the assistant platform Annex 4.
- Page 15 STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions Annex 5. Wiring diagram Wiring diagram for electrical system with common transformer Single Phase...
- Page 16 STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions...
- Page 17 STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions Inside layout of control box...
- Page 18 STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions...
- Page 19 STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions Annex 6. Separate diagrams for the lift For the pump: DESCRIPTION MOTOR HYDRAULIC BLOCK OVERFLOW VALVE FITTING CUSHION VALVE ABSORBING OIL PIPE OIL FILTER THROTTLE VALVE OIL HOSE TIE-IN...
- Page 20 STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions Name Name Base plate(right) Fixed clap for slider Base plate(left) Outer scissor arm roller shaft Outer scissor arm Inner scissor arm fixed roller Inner scissor arm Hexagon bolt Slider for inner scissor arm(left)
- Page 21 STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions Annex 7. Spare parts list Spare parts list---electrical system Material No. Name Spec. Unit Pic. Power LW26GS-20/04 switch Button Power AD116-22DS/G2- indicator AC/DC24V JBK3-250VA 110V-24V Transformer JBK3-250VA 220V-24V CJX2-3210/AC24V...
- Page 22 STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions Material No. Name Spec. Unit Pic. Emergency XB2BS542C stop Bridge KBPC5A-35A rectifier Relay LY2NJ/DC24 Relay holder PTF-08A-E Spare parts list---machine part Name Note Self-lock screw Security shaft Nylon Slider...
- Page 23 STRATUS Mid Rise Scissor Lift Installation & Operation & Maintenance Instructions Annex 8. Size and weight requirements on vehicles Note: Offers may differ as per different requirements on the version. Model (inch) (inch) (inch) (lbs.) (lbs.) (lbs.) (lbs.) SAE-MS9000X 78.74 4.33...
