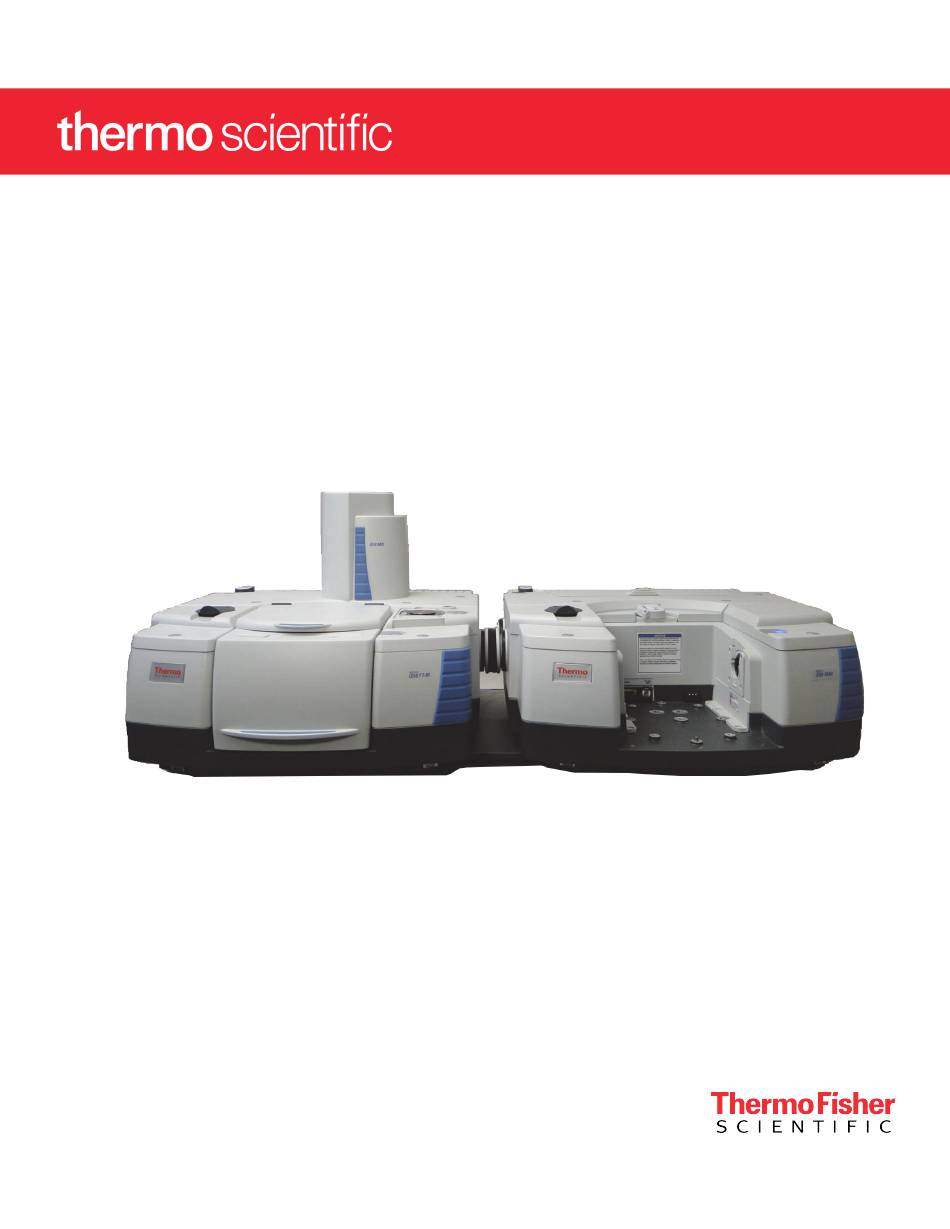

- Page 1 Nicolet AEM with OMNIC Paradigm software User Guide 269-361900 Revision A March 2023...
- Page 2 © 2023 Thermo Fisher Scientific Inc. All rights reserved. For technical support, please contact: www.thermofisher.com Thermo Fisher Scientific Inc. provides this document to its customers with a product purchase to use in the product operation. This document is copyright protected and any reproduction of the whole or any part of this document is strictly prohibited, except with the written authorization of Thermo Fisher Scientific Inc.
-
Page 3: Table Of Contents
Be sure that all persons operating this system read the Site and Safety manual first. Auxiliary Experiment Module Conventions used Other documentation About the AEM Important features From the front Inside the sample compartment Back panel features Thermo Scientific Nicolet AEM User Guide 3... - Page 4 Preparing the AEM for sampling Measuring data Maintenance Checking the desiccant Replacing sample compartment windows Troubleshooting AEM does not respond (loss of communication) Spectroscopic signal is reduced No IR beam present in AEM sample compartment Nicolet AEM User Guide Thermo Scientific...
-
Page 5: Conventions Used
NOTICE Follow instructions with this label to avoid damaging the system hardware or losing data. Note Contains helpful supplementary information. Tip Provides helpful information that can make a task easier. Thermo Scientific Nicolet AEM User Guide... -
Page 6: Other Documentation
We provide basic instructions for using the accompanying OMNIC Paradigm software. In-depth instructions for most accessories are included with the particular accessory. Further information on how to operate the software can be found in the OMNIC Paradigm User Guide. Nicolet AEM User Guide Thermo Scientific... -
Page 7: About The Aem

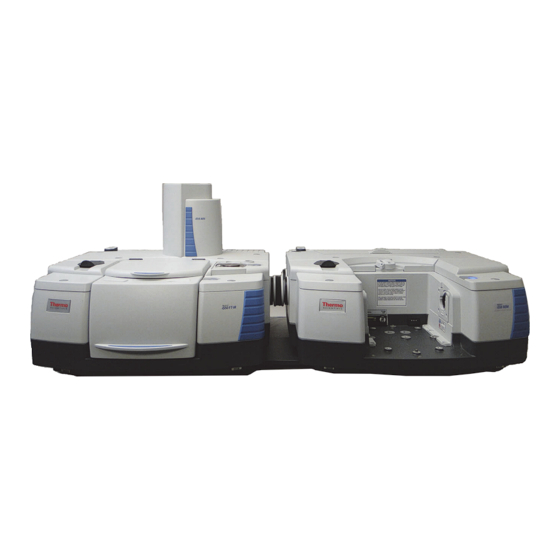

Note The AEM cannot be fitted with iS50 purge shutters, the IR beam polarizer, the ABX (automatic beamsplitter exchanger), or the built-in ATR Module. The Raman Module can only be used in the main spectrometer sample compartment and does not work with the Nicolet AEM. Figure 1-1: An iS50 spectrometer with the AEM... - Page 8 About the AEM Nicolet iS50 FTIR Spectrometer The Nicolet AEM provides these enhanced features: Integrated iS50 design Push button configuration High efficiency optics (redirects the IR source from the spectrometer) Up to three dedicated IR detectors Optional purge For information about additional sampling modules and accessories for your Nicolet iS50 spectrometer, contact our sales representative in your area.
-
Page 9: Important Features
Chapter 2 Important features This section describes the major features of the Nicolet AEM. Before operating the AEM, you should be familiar with the fundamentals of FTIR spectroscopy and the operating characteristics of your FTIR spectrometer. Thermo Scientific Nicolet AEM User Guide 9... -
Page 10: From The Front
Important features From the front Figure 2-1: AEM front view External beam port Detector compartment Desiccant compartment Detector fill port Sample compartment Touch Point Nicolet AEM User Guide Thermo Scientific... -
Page 11: Inside The Sample Compartment
Table 2-1: AEM status indicator states LED status Meaning Ready for use System is not configured for AEM sampling Blinking Optics are reconfiguring Inside the sample compartment There are two connectors inside the sample compartment of the AEM. Thermo Scientific Nicolet AEM User Guide... - Page 12 Do not use this connector for signals that exceed a ±12 VDS. Limit the current to a maximum of 500 mA. This table contains pinout information for the Accessory connector. Table 2-2: Accessory connector pinout descriptions Pin Number Description 3, 8 +5 VDC Nicolet AEM User Guide Thermo Scientific...
- Page 13 Analog ground (for +12 detectors and -12 detectors) Sample compartment motor + Sample compartment motor - Sample compartment detector + Sample compartment detector - SDA (for detector communication) SCL (for detector communication) SDA (for digital communication) SCL (for digital communication) Thermo Scientific Nicolet AEM User Guide...
- Page 14 Important features Figure 2-3: Sample compartment dimensions Nicolet AEM User Guide Thermo Scientific...
-
Page 15: Back Panel Features
Important features Back panel features Figure 2-4: AEM back panel connectors Accessory Purge input Thermo Scientific Nicolet AEM User Guide... - Page 16 AEM and its accessories from the spectrometer. The cable Accessory from this connector attaches to the Accessory port on the back of the spectrometer. The spectrometer has a right and left Accessory port. Use the one closest to the AEM. Nicolet AEM User Guide Thermo Scientific...
-
Page 17: Operating Precautions
Heat from the source or from laser absorption may ignite flammable gases or reactive materials in purge gas. Some detectors that can be used with the Nicolet AEM must be cooled with liquid nitrogen before use. Follow your organization’s Personal Protective Equipment (PPE) and handling guidelines when working with liquid nitrogen. - Page 18 [This page intentionally left blank]...
-
Page 19: Setting Up The Aem
Do not use argon as a purge gas. Argon is an insulator and prevents the system from cooling properly. NOTICE A purge is required when chlorinated or fluorinated solvents are present, purge. Failure to purge could cause accelerated corrosion of optical components and void the system warranty. Thermo Scientific Nicolet AEM User Guide 19... -
Page 20: Installing Sidewall Adapters
The fixed DTGS detector is a standard component located in the middle position of the detector compartment. The fixed DTGS detector is not user-replaceable; contact us if you suspect the fixed detector must be replaced. Nicolet AEM User Guide Thermo Scientific... -
Page 21: Cooling A Detector
5000 cm-1 and 600 cm-1. An MCT detector must be cooled with liquid nitrogen before you collect data. The MCT detector dewar is located in the back detector position, under the dewar cover on the AEM. Thermo Scientific Nicolet AEM User Guide... - Page 22 1. Open the detector dewar cover and remove the plastic stopper. 2. Insert a funnel into the liquid nitrogen fill port of the detector dewar. 3. Slowly fill the detector dewar with liquid nitrogen through the funnel. Nicolet AEM User Guide Thermo Scientific...
- Page 23 4. Let the vapor plume dissipate, replace the plastic stopper, and close the dewar cover. Allow at least 20 minutes for the detector to cool before use. Thermo Scientific Nicolet AEM User Guide...
- Page 24 [This page intentionally left blank]...
-
Page 25: Checking Performance
Nicolet FTIR - Factory Qualification qualification tests. Measures basic performance based on fact- Nicolet FTIR - PV Test ory recommended tests. Executes the qualification tests as defined Nicolet FTIR - CP Qualification in the Chinese Pharmacopoeia. Thermo Scientific Nicolet AEM User Guide 25... -
Page 26: System Status
Suite Description installed The system is connected and all services are run- ning correctly. You are ready to measure and save data. Click the system status icon to view details about the system. Nicolet AEM User Guide Thermo Scientific... - Page 27 There is a problem with one or more software ser- vices. Click the system status icon for details. If the service does not start automatically after a few minutes, restart the computer. Thermo Scientific Nicolet AEM User Guide...
- Page 28 [This page intentionally left blank]...
-
Page 29: Collecting Spectra
6. Press the Touch Point on the AEM to configure the instrument optics for AEM sampling. Alternatively, you can go to Configure > Sample location > AEM in OMNIC Paradigm software to select the beampath. Thermo Scientific Nicolet AEM User Guide 29... -
Page 30: Measuring Data
2. Press the AEM Touch Point. If no infrared background is available, a message may ask you to pre- pare for background collection. (Make sure the sample holder or accessory in the AEM com- partment is empty.) Nicolet AEM User Guide Thermo Scientific... - Page 31 If your spectrometer is purged, wait 1 minute before you continue in order to reestablish equilibrium. 5. Select Start Sample Measurement and wait for the process to complete. The final spectrum appears in the Spectra tab in OMNIC Paradigm software. Thermo Scientific Nicolet AEM User Guide...
- Page 32 [This page intentionally left blank]...
-
Page 33: Maintenance
Change the desiccant if the indicator has turned pink or white. Figure 7-1: Desiccant cap Contact us to order a desiccant replacement kit for your spectrometer. Thermo Scientific Nicolet AEM User Guide 33... - Page 34 4. Remove the old, pink sticker and replace it with the new one from your replacement kit. 5. Put the desiccant cap back and move it to the locked position. Figure 7-4: Desiccant, locked, blue label Nicolet AEM User Guide Thermo Scientific...
-
Page 35: Replacing Sample Compartment Windows
AEM to maintain proper seal with your accessories. The windows are made of potassium bromide (KBr). They must be clear, clean, and free of fingerprints. If the windows become scratched, broken, or fogged, you may need to replace them. Thermo Scientific Nicolet AEM User Guide... - Page 36 Do not allow liquids to come into contact with the sample compartment windows. If your instrument is purged, you can leave the purge on while you replace the windows to prevent ambient air from entering the AEM. Nicolet AEM User Guide Thermo Scientific...
-
Page 37: Troubleshooting
For more information, see "Replacing sample compartment windows". If the signal is still not satisfactory after you have replaced the windows, contact our service representative in your area. Thermo Scientific Nicolet AEM User Guide 37... -
Page 38: No Ir Beam Present In Aem Sample Compartment
If the beam does appear in the spectrometer sample compartment, then there is a problem with the passport mirror that sends the beam to the AEM. If the beam does not appear in either sample compartment, contact our service representative in your area. Nicolet AEM User Guide Thermo Scientific...
