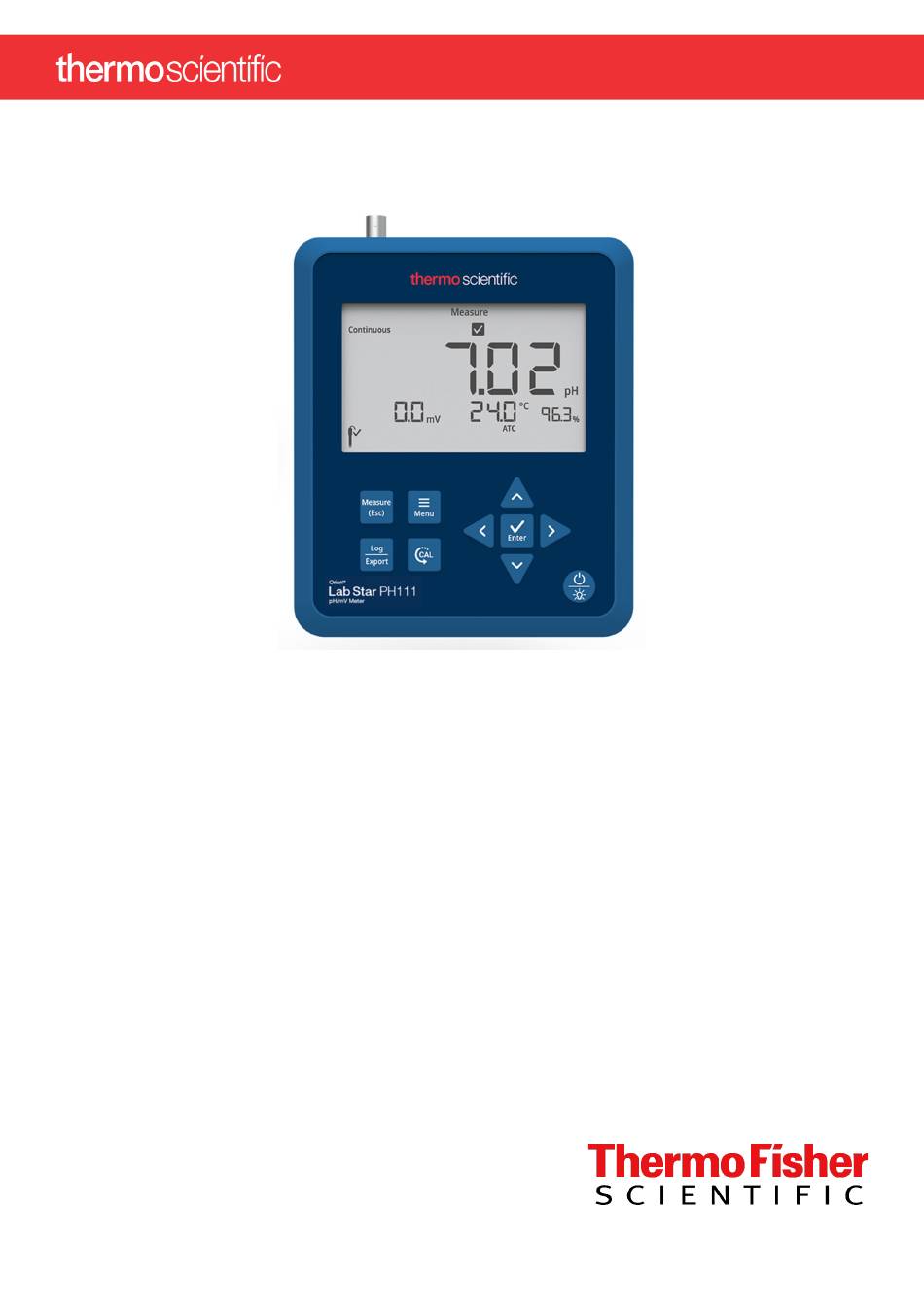

- Page 1 Operations Manual Electrochemistry Meters Orion Lab Star PH111 pH/mV Bench Meter User Manual 68X002222 | Revision 01 | June 2022...
-
Page 3: Table Of Contents
Table of Contents Chapter 1 ..............6 Introduction ............ 6 1.1 Intended Use ........6 1.1.1 Intended Use ..........6 1.1.2 Non-Intended Use ........6 1.1.3 Safety ............6 1.1.4 Power Connection ........6 1.2 Cleaning Instructions (Meter Only) ..6 Chapter 2 .............. - Page 4 3.2.4a Temperature Calibration ....... 16 3.2.4b Manual Temperature Input ....16 3.2.5 Measure Mode ........17 3.2.6 pH Resolution .......... 17 3.2.7 Calibration Buffer Set ....... 18 3.2.8 Read Type ..........18 3.2.9 Timed Interval .......... 19 3.2.10 Calibration Due Alarm ......19 3.2.11 Temperature Units .........
- Page 5 5.5.2 Remote Commands ......... 31 5.6 Software Update Procedure ....32 Chapter 6 .............. 33 Troubleshooting ..........33 6.1 Meter Troubleshooting ......33 6.2 Measurement Troubleshooting ... 33 6.3 Technical Support ......33 Chapter 7 .............. 34 Meter Info ............. 34 7.1 Meter Specifications ......
-
Page 6: Chapter 1

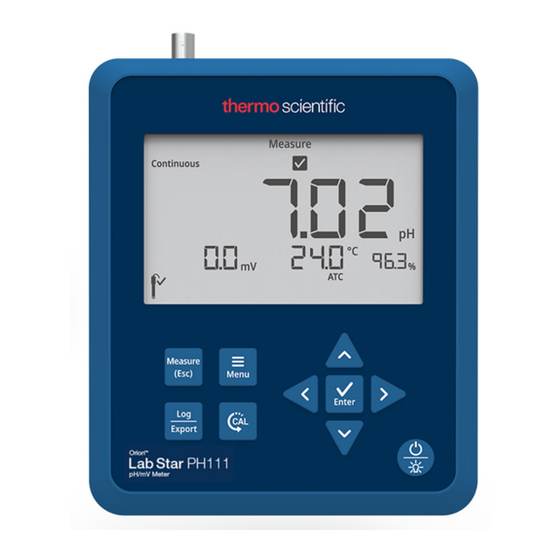

If the product is used in a The Orion Lab Star PH111 pH meters are capable of manner not specified by the manufacturer, measuring pH or ORP simultaneously with mV and the protection provided by the product may be impaired. -
Page 7: Chapter 2
Replace the screw from step 3 to attach the base plate to the meter. Turn the meter over, with meter display facing up. Insert the stand with electrode holder into the metal post on the base plate. Orion Lab Star PH111 pH/mV Bench Meter... -
Page 8: Universal Power Supply Assembly
2.2 Universal Power b. Align the two tabs on the power adapter Supply Assembly connector with the two slots on the meter power input. A universal power adapter (Catalog Number LSTAR-PWR) with US/Japan, Euro, UK/Singapore, Australia/New Zealand and China wall plug plates is included with the meter. -
Page 9: Keypad Functions
Press to power on the meter. When the meter is on, press to turn the backlight off or on. When the meter is on, press and hold for three seconds to power off the meter. Orion Lab Star PH111 pH/mV Bench Meter... -
Page 10: Display Overview
2.4 Display Overview Icon Description Calibration Icon: Indicates meter is in the calibration mode; also shown with the Setup Menu Icon and Memory Icon when viewing the calibration log. Setup Menu Icon: Indicates meter is in the Setup Menu mode. Measure Icon: Indicates meter is in the Measure mode. -
Page 11: Meter Connections
2.6 Electrode Information Icon Description Electrode Good Icon: Indicates the pH The Orion Lab Star PH111 pH/mV meter is compatible electrode condition is good, based on with pH electrodes and ORP (redox) electrodes with a BNC the last saved calibration data and resulting slope value. -
Page 12: Chapter 3
Chapter 3 Setup Menu Item Description View up to 500 data log points View Logs and active pH, RmV and Setup Menu temperature calibrations Set the export type as computer Log Export Type or printer or turn export off Send all saved data logs and 3.1 Setup Menu Overview Export All Logs calibration logs to the selected... -
Page 13: Setup Menu Items
If desired, press the “Log/Export” key to export the individual data log point being viewed. Press the “Menu” key to return to the main Setup Press the “Enter” key to view the display log. Menu list. Orion Lab Star PH111 pH/mV Bench Meter... -
Page 14: Viewing The Calibration Log
3.2.1b Viewing the Calibration Log Press the “Enter” key to view the display log. Press key For the calibration log, press the or key to change the view from the date/time screen to the calibration data screen. Press ... -
Page 15: Log Export Type
Note: If a large amount of data is exported, the meter may take a few minutes to complete exporting all saved data logs and calibration logs to the selected device. Press the “Enter” key to save the change. Orion Lab Star PH111 pH/mV Bench Meter... -
Page 16: Temperature Calibration Or Manual Temperature Input
3.2.4 Temperature Calibration or 3.2.4b Manual Temperature Input Manual Temperature Input When no ATC probe is connected, use the Manual Temperature Input menu to enter the sample temperature 3.2.4a Temperature Calibration value, from -5.0 °C to 105.0 °C. Press the or key to scroll through the Setup When an ATC probe is connected, use the Temperature Menu list until the Manual Temperature Input item is Calibration menu to perform a one-point temperature offset... -
Page 17: Measure Mode
Press the or key to set the measure mode. Press the or key to set the pH resolution. Press the “Enter” key to save the change. Press the “Enter” key to save the change. Orion Lab Star PH111 pH/mV Bench Meter... -
Page 18: Calibration Buffer Set
3.2.7 Calibration Buffer Set 3.2.8 Read Type Set the pH buffer set as USA or DIN for automatic buffer Set the Read Type as Continuous, Auto-Read or Timed to recognition during pH calibrations. define how measurements are performed and when measurements are saved and exported. -
Page 19: Timed Interval
Press the key to decrease the alarm value quickly decrease. by one hour. Press and hold the key to quickly decrease. Press the “Enter” key to save the change. Press the “Enter” key to save the change. Orion Lab Star PH111 pH/mV Bench Meter... -
Page 20: Temperature Units
3.2.11 Temperature Units 3.2.12 Set Date Format Set the temperature units as °C (Celsius) or °F (Fahrenheit). Set the date format as month-day-year (MM.DD.YYYY) or day-month-year (DD.MM.YYYY). Press the or key to scroll through the Setup Menu list until the Temperature Units item is shown. Press the ... -
Page 21: Set Date Value
The year value will flash. Press the or key to adjust the year. a. Press the key to increase by one year. Press and hold the key to quickly increase. Orion Lab Star PH111 pH/mV Bench Meter... -
Page 22: Set Time Value
3.2.14 Set Time Value 3.2.15 Audio Mode Set the time in AM/PM or 24 hour formats. Set the audible beep on or off. The audible beep is used when an alarm is triggered. Press the or key to scroll through the Setup Menu list until the Set Time Value item is shown. -
Page 23: Sleep Mode
Press the “Enter” key again to ensure the selected log is not accidentally erased. The meter will confirm when the selected log is fully erased. The meter will return to the measurement screen. Orion Lab Star PH111 pH/mV Bench Meter... -
Page 24: Factory Reset
3.2.18 Factory Reset Erase all data logs, calibration logs and settings and return the meter to its factory default state. Press the or key to scroll through the Setup Menu list until the Factory Reset item is shown. Press the “Enter”... -
Page 25: Chapter 4
Note: Press the “Measure” key at any time to abort the Press the “Cal” key to start and end the calibration. This calibration and return to the main measure mode. allows pH calibrations to be performed using one to five Orion Lab Star PH111 pH/mV Bench Meter... -
Page 26: Ph Calibration Example
4.1.3 pH Calibration Example The following is an example of a three point pH calibration using auto-recognized pH 4.01, 7.00 and 10.01 pH buffers. The pH buffers can be read in any order. For this example, pH buffers are read lowest to highest. Press the “Cal”... -
Page 27: Ph Value Vs. Temperature
4.086 6.841 8.942 11.499 1.733 4.103 6.847 8.922 11.396 1.744 4.122 6.854 8.903 11.301 1.755 4.142 6.861 8.885 11.213 1.766 4.163 6.984 9.455 11.130 The meter will proceed to the main measure mode. Orion Lab Star PH111 pH/mV Bench Meter... -
Page 28: Millivolt (Mv) Offset Adjustment
4.2 Millivolt (mV) Offset 4.3 Temperature Adjustment Calibration Oxidization Reduction Potential (ORP) or Redox is useful as The thermistor sensor used for automatic temperature a relative indicator of the oxidizing or reducing nature of a compensation and measurement is both accurate and sample solution. -
Page 29: Chapter 5
Electrode Error: pH calibration slope is less than 82.0% or higher than 114.0%, recommended actions include: • Replace all pH buffers • Replace pH electrode Refer to the Troubleshooting section for more recommended actions. Orion Lab Star PH111 pH/mV Bench Meter... -
Page 30: Data Viewing
5.4 Data Viewing 5.5 Data Exporting Store up to 500 data points in the meter memory. Use the Export data from the meter to a computer or printer. Use View Logs item in the meter Setup Menu to view the data Log Export Type item in the meter Setup Menu to set log points, active pH calibration log, active RmV calibration... -
Page 31: Remote Commands
MODE = PH or RMV Prints all logged measurement data Output format is based GETLOG on the Log Export Type <CR> setting If no data is logged, returns “>” to receive next command Orion Lab Star PH111 pH/mV Bench Meter... -
Page 32: Software Update Procedure
5.6 Software Update a. Select “Serial” as the connection method. b. Enter the COM port location of the USB Procedure computer cable (viewable in Device Manager under Ports). A computer with Microsoft Windows 10, 64bit (x64 based c. Enter the meter baud rate as 9600. processor) operating system is required to perform the software update procedure. -
Page 33: Chapter 6
Perform a factor reset on the meter • pH Electrode Icon: o Troubleshoot pH buffers and pH electrode o Replace pH buffers o Clean and condition pH electrode o Replace pH electrode as needed Orion Lab Star PH111 pH/mV Bench Meter... -
Page 34: Chapter 7
Chapter 7 Active pH, ORP, temperature with Calibration log time and date Calibration alarm Yes, 1 to 168 hours or off Meter Info Sleep mode Yes, optional Self-test Automatic with startup Memory Non-volatile 7.1 Meter Specifications Input BNC, ATC Data output Computer or printer Data output format CSV or print... -
Page 35: Meter Dimensions
A restocking charge will be made on all unauthorized returns. Note: The manufacturer reserves the right to make improvements in design, construction, and appearance of products without notice. Orion Lab Star PH111 pH/mV Bench Meter... -
Page 36: Chapter 8
Chapter 8 Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference Regulatory when the equipment is operated in a commercial environment. -
Page 37: Weee Compliance
Mehr Informationen über die Einhaltung dieser Anweisungen durch Thermo Scientific, dieVerwerter und Hinweise die Ihnen nützlich sein können, die Thermo Fisher Scientific Produkte zu identizfizieren, die unter diese RoHS. Anweisungfallen, finden Sie unter Orion Lab Star PH111 pH/mV Bench Meter... -
Page 38: Chapter 9
Orion Lab Star PH111 pH/mV meter with stand, PC cable and universal power adapter LSTAR1110 Orion Lab Star PH111 pH/mV meter standard kit, includes meter with stand, PC cable, universal power adapter, 9157BNMD refillable epoxy-body pH/ATC electrode, 916099 pH buffer and... - Page 39 Single junction silver-chloride pH and ORP electrode filling solution, 5 x 60 mL 900011 Double junction silver-chloride pH electrode filling solution, 5 x 60 mL 910008-WA Electrode storage sleeve (12 mm diameter electrodes) with stand 810017 Orion Lab Star PH111 pH/mV Bench Meter...
