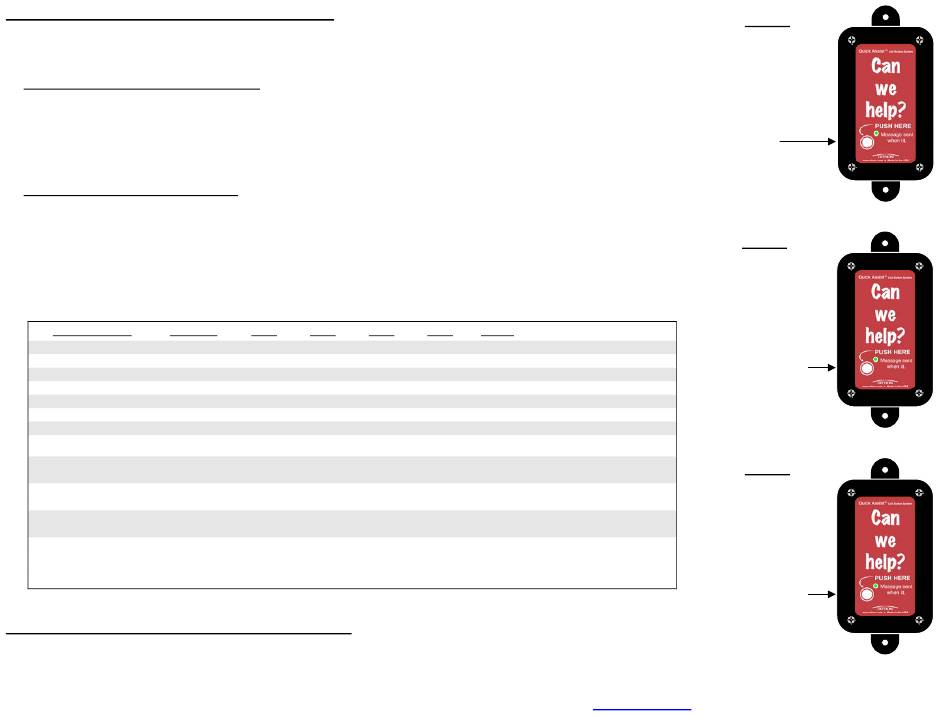

Set the CONFIG Switches for Keyfob Code Operation

RQT-xxx-RCVR models are required for Keyfob Code operation.
With Keyfob Code operation a Call Cleared message is independent of the normal Alert message.
• If a Call Cleared message is not required, each RQA-1B can be set to send RQT-KEYFOB codes 1 through 8,
requiring an RQT Quick Talk™ input for every 2 Keyfob messages as follows:
RQT Input 1 for RQT-KEYFOB-1 and RQT-KEYFOB-2
RQT Input 2 for RQT-KEYFOB-3 and RQT-KEYFOB-4
RQT Input 3 for RQT-KEYFOB-5 and RQT-KEYFOB-6
RQT Input 4 for RQT-KEYFOB-7 and RQT-KEYFOB-8
• If a Call Cleared message is required, an RQT Quick Talk™ input is required for each RQA-1B, with one
message used as an Alert message and the other as a Call Cleared message as follows:
RQT Input 1 for RQT-KEYFOB-1 Alert and RQT-KEYFOB-2 Call Clear
RQT Input 2 for RQT-KEYFOB-3 Alert and RQT-KEYFOB-4 Call Clear
RQT Input 3 for RQT-KEYFOB-5 Alert and RQT-KEYFOB-6 Call Clear
RQT Input 4 for RQT-KEYFOB-7 Alert and RQT-KEYFOB-8 Call Clear
IMPORTANT! For Call Cleared operation the RQT Quick Talk™ must be programmed for Press and Hold
Reset using the PC programmer.
Message Code Message
RQT-KEYFOB-1 Alert Only
RQT-KEYFOB-2 Alert Only
RQT-KEYFOB-3 Alert Only
RQT-KEYFOB-4 Alert Only
RQT-KEYFOB-5 Alert Only
RQT-KEYFOB-6 Alert Only
RQT-KEYFOB-7 Alert Only
RQT-KEYFOB-8 Alert Only
RQT-KEYFOB-1 Alert
RQT-KEYFOB-2 Call Clear
RQT-KEYFOB-3 Alert
RQT-KEYFOB-4 Call Clear
RQT-KEYFOB-5 Alert
RQT-KEYFOB-6 Call Clear
RQT-KEYFOB-7 Alert
RQT-KEYFOB-8 Call Clear

Set the LOCATION Switches for Keyfob Code Operation

All LOCATION switches must be set to the OFF position for Keyfob Code Operation.
_________________________________________________________________________________________________________________________________
SW1 SW2 SW3
OFF OFF OFF
ON OFF OFF
OFF ON OFF
ON ON OFF
OFF OFF ON
ON OFF ON
OFF ON ON
ON ON ON
OFF OFF ON
ON OFF ON
OFF ON ON
ON ON ON
CONFIG Switch Settings for RQA-1B operation
For assistance, call RITRON at 800-872-1872, or go to
SW4 NOTE
OFF Requires firmware 35.02 or higher
OFF Requires firmware 35.02 or higher
OFF Requires firmware 35.02 or higher
OFF Requires firmware 35.02 or higher
OFF Requires firmware 35.02 or higher
OFF Requires firmware 35.02 or higher
OFF Requires firmware 35.02 or higher
OFF Requires firmware 35.02 or higher
ON
ON
ON
ON
www.ritron.com
RQA-1B
Alert code with
no Call Clear
RQT-KEYFOB-
1, 2, 3, 4, 5, 6,
7, or 8
RQA-1B
Alert code with
Call Clear
RQT-KEYFOB-
1, 3, 5, or 7
RQA-1B
Call Clear Code
RQT-KEYFOB-
2, 4, 6, or 8
