Setting the RQA-1B ...................................................................

1. Separate the case front and back by removing the four corner screws
and gently lift the case front. The case front and case back are
connected with a flex cable. Do not place strain on the flex cable when
separating the case.
2. Remove the battery.
3. Note the three programming options available, a 4-position CONFIG dip
switch, a 4-position LOCATION dip switch, and a 10-position ADDRESS
programming array.
4. Set the RQA-1B per the following instructions.
5. Re-install the battery and verify operation with the RQT Quick Talk™.
Be sure to observe battery polarity when re-installing.
6. Carefully re-install the case front.
RQA-1B SETTINGS

Set the ADDRESS

For convenience, the RQT-433-RCVR receiver installed in the Quick Talk™
and all RQA-1B Wireless Call Buttons come from the factory set to the same
address. This establishes a relationship between the RQT-433-RCVR
receiver and the RQA-1B Wireless Call Buttons. For the vast majority of
users the address does not need to be changed.
_________________________________________________________________________________________________________________________________
For assistance, call RITRON at 800-872-1872, or go to
Occasionally the user may want to change the address to:
•
Install two or more RQT Quick Talk™ with RQT-433-RCVR receivers in
the same location.
•
Avoid interference with another transmitter using the same address.
•
Create a more secure "non-standard" address.
The RQT-433-RCVR receiver and RQA-1B transmitters allow the selection of
one of 1,024 unique addresses. To avoid contention with other units or to
create unique relationships, the address can be changed. This is
accomplished by cutting PCB traces with a sharp object, such as an X-Acto
knife.
On the RQA-1B Wireless Call Button the traces are accessed by removing
the front cover. If the trace is intact, the address line is connected to ground,
otherwise it is floating. The RQT-433-RCVR receiver address must match
exactly in order for the units to communicate.
IMPORTANT! The RQA-1B and the RQT-433-RCVR receiver installed in
the RQT Quick Talk™ housing must be set to the same address.

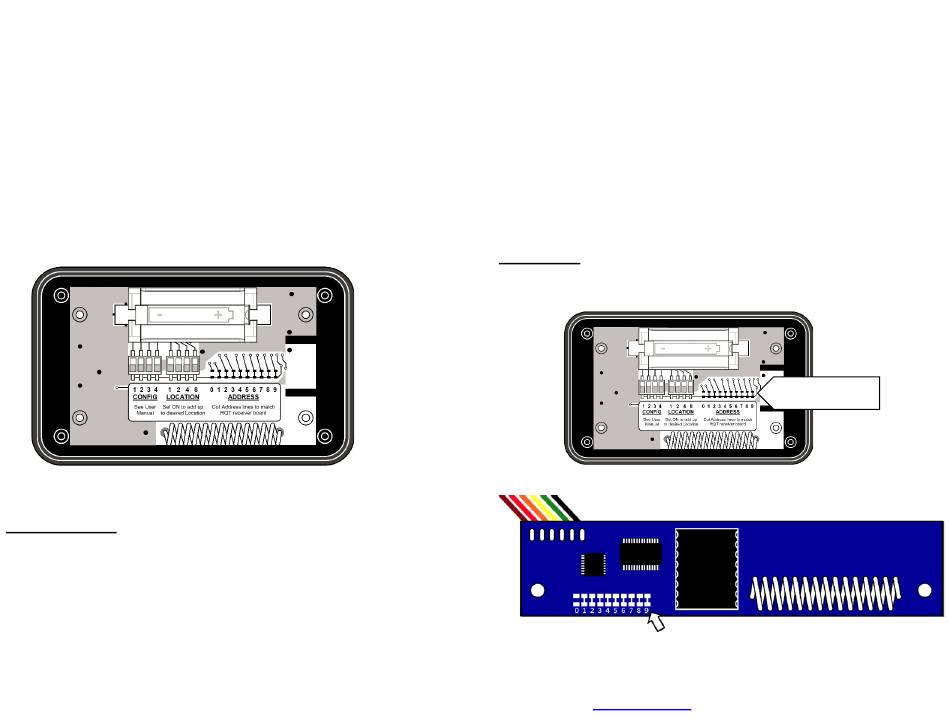

RQA-1B Address Programming
RQT-433-RCVR Address Programming
www.ritron.com
RQA-1B
Address traces
5
