General Information ..................................................................

The RQA-1B is a 433.92 MHz low power, short range Wireless Call Button
designed to be used with a Ritron RQT Quick Talk™ Voice Alert transmitter
with an RQT-433-RCVR receiver installed. See the section
Quick Talk™ Models for a list of Ritron model radios capable of operation
with the RQA-1B.
When the button on the RQA-1B is pressed the associated LED lights up and
a unique code is transmitted. The Quick Talk™ receives the code and
transmits an associated pre-recorded message. The RQA-1B can activate 1
of 8 Quick Talk™ "Assistance" messages. Simply record your desired
messages into the Quick Talk™ transmitter using the RQT PC Programmer
and you are ready to go.

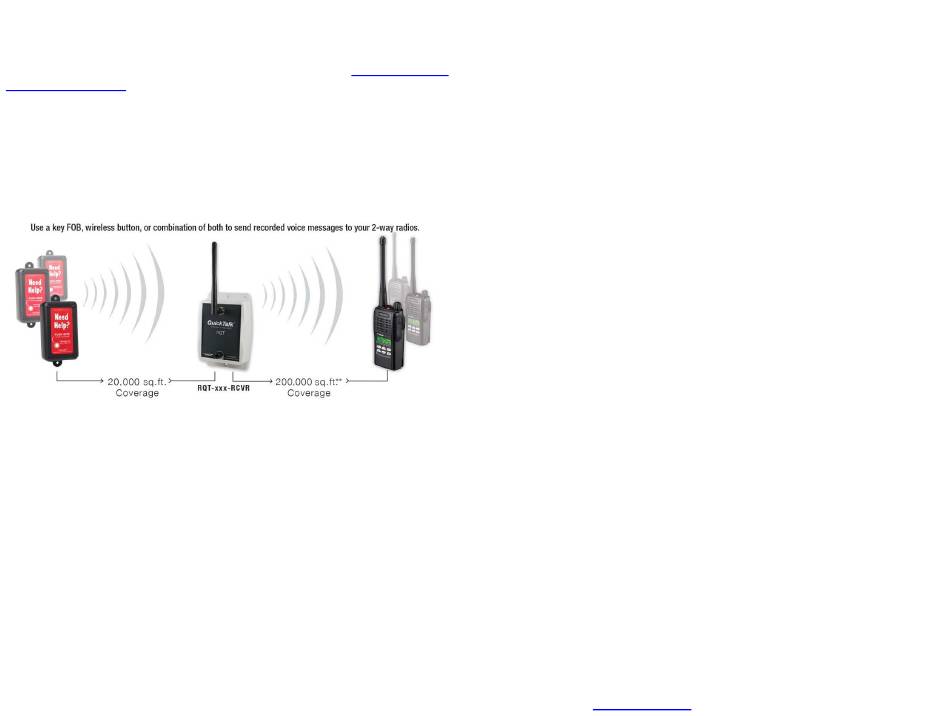

RQA-1B RQT Quick Talk™
When you press and hold an RQA-1B button for more than 5 seconds a "Call
Cleared" code can be transmitted to the Quick Talk™, which in turn transmits
a pre-recorded "Call Cleared" message. The LED will blink when the button
is held for more than 5 seconds, indicating that the "Call Cleared" code will
be transmitted.
The RQA-1B is powered by a single CR123A, 3 VDC, non-rechargeable
battery. Depending on usage, the battery can operate the RQA-1B for up to
3 years. The RQA-1B is in a low power "sleep" mode when not in use and
draws very little current.
_________________________________________________________________________________________________________________________________
Compatible RQT
·
Portables
· JBS Base radios
· RQX Callboxes
· Loudmouth™
For assistance, call RITRON at 800-872-1872, or go to
RQT-xxx-RCVR Quick Talk™ models for Keyfob Operation
• Can be set for operation with the RQA-1B on any one of the 4 inputs,
allowing RQT input operation and Wireless Call Button operation on the
same Quick Talk™ for maximum flexibility.
• Each of the 4 Quick Talk™ inputs can respond to two different pre-
assigned codes, both with their own message and programming.
• If an input is set for "KEYFOB" operation it will no longer respond to
switch closures or analog signals, the two input messages can only be
activated by the RQA-1B, or by the two Ritron RQT-KEYFOB models
associated with that input.
• Codes are compatible with Ritron RQT-KEYFOB models to allow
simultaneous operation.
• Each Quick Talk™ has a single "Location" message available.
• After the radio has been programmed and installed, Ritron model
keyfobs and the RQA-1B can be used to activate the Quick Talk™
transmitter and broadcast unique, user recorded voice messages.
www.ritron.com 3
