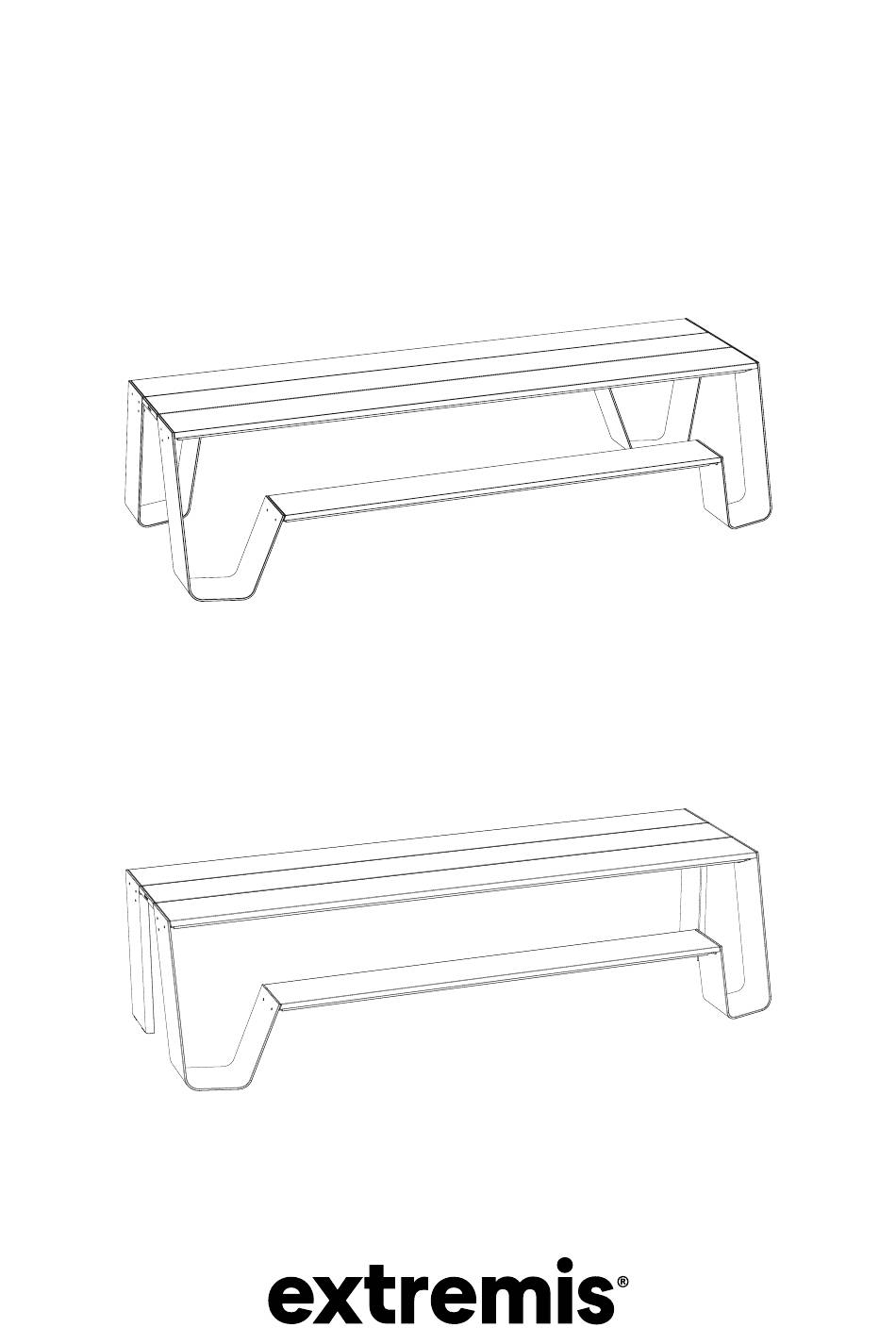

  • Page 1 Hopper AA picnic combo...
  • Page 2 IMPORTANT! RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
  • Page 4 Table of contents Mounting kit  Exploded view  Assembly Hopper picnic AA  Assembly Hopper combo AA  This is an interactive PDF You can easily navigate through this manual, allowing you to smoothly jump from one page to the other.
  • Page 5 Table of contents Assembly backrest  Assembly floor fastening set  Warnings - Text instructions - Maintenance  This is an interactive PDF You can easily navigate through this manual, allowing you to smoothly jump from one page to the other.

  • Page 6: Mounting Kit

    Mounting kit 20 x M10 20 x M10 HOP571 Mounting kit to fix legs to tabletop & bench 8 x M8x25 HOA339 Mounting kit to fix tabletop endcaps to tabletop...
  • Page 7 4 x M10 4 x M6x16 Mounting kit to fix one backrest to a bench...

  • Page 8: Exploded View

    Exploded view Hopper picnic AA Hopper combo AA...
  • Page 9 Hopper picnic AA N° 17 45’ The packaging material must stay intact for the rest of the assembly!
  • Page 11 HOA339 8 x M8x25...
  • Page 12 Side view...
  • Page 13 HOP571 Tighten carefully! Excessive force may 15 Nm MAX! damage the coating! 12 x M10 12 x M10...
  • Page 14 Remove packaging before mounting the benches 10a. Go to page 25 if you want to assemble a backrest ...
  • Page 15 10b.
  • Page 16 HOP571 Tighten carefully! Excessive force may 15 Nm MAX! damage the coating! 8 x M10 8 x M10...
  • Page 17 Hopper combo AA N° 17 45’ The packaging material must stay intact for the rest of the assembly!
  • Page 19 HOA339 8 x M8x25...
  • Page 20 Side view...
  • Page 21 HOP571 Tighten carefully! Excessive force may 15 Nm MAX! damage the coating! 12 x M10 12 x M10...
  • Page 22 Remove packaging before mounting the benches 10a. Go to page 25 if you want to assemble a backrest ...
  • Page 23 10b.
  • Page 24 HOP571 Tighten carefully! Excessive force may 15 Nm MAX! damage the coating! 4 x M10 4 x M10...
  • Page 25 Backrest N° 17 15’ 15’ Do this for both sides, do not tighten yet 4 x M10...
  • Page 26 Do this for both sides, tighten all bolts 4 x M6x16...
  • Page 27 Floor fastening set 15’ On the inside of the legs...
  • Page 28 On the inside of the table...
  • Page 29 Warnings Text instructions Maintenance Warnings  Assembly text instructions  Maintenance ...
  • Page 30 Warnings General • Do not use any sharp tools to open the packaging. • We strongly advise against using power tools. • Tripping hazard, mind your step. • Do not put out cigarettes on the table. • Not grafitti proof. •...
  • Page 31 under conditions of a fully developed fire these products will nog significantly contribute to the fire load and fire growth. • Dark colors can get very hot in sunny weather. Sunbrella • Not waterproof, store inside! • Shake or brush off loose dirt immediately. •...
  • Page 32 Assembly text instructions 1 - 2 - 3 - ... Take a look at the drawings, starting from page 9 Hopper picnic AA Hopper combo AA (p9) - (p17) 1. Remove the lid of the box. The packaging material must stay intact for the rest of the assembly! 2.
  • Page 33 sides of the legs, as shown in the drawing 11. Now mount the bench frame to the legs in the same manner, each with two M10 spring washers and M10 bolts. Backrest (p25) 1. a. Position the left & right backrest supports on the bottom of the bench.

  • Page 34: Maintenance

    Powder coating CLEANING Regularly Use Extremis Multicleaner, a 100% biodegradable detergent or common kitchen cleaning products. Avoid using aggressive products. These sur- faces are best cleaned with a neutral cleaning product diluted in water. REPAIRING DAMAGED POWDER COATING When damaged The impact of sharp objects can damage the coating.

  • Page 35: Regular Cleaning

    REGULAR CLEANING When dirty Make a solution to remove stains on your Sunbrella. MACHINE WASHING Rarely It is also possible to put the blankets and cushion covers in a washing machine (30°). Do not dry clean or tumble dry. The fabric can be cre- ased.
  • Page 36 All rights reserved. Unless otherwise specified, all designs and photographs contained in this publication are copyright protected and are the property of Extremis. No part of this publication may be copied or distributed without Extremis’ prior written consent. The names of the authors of photographs to which we do not hold rights are mentioned here. We have done our utmost to provide a...
