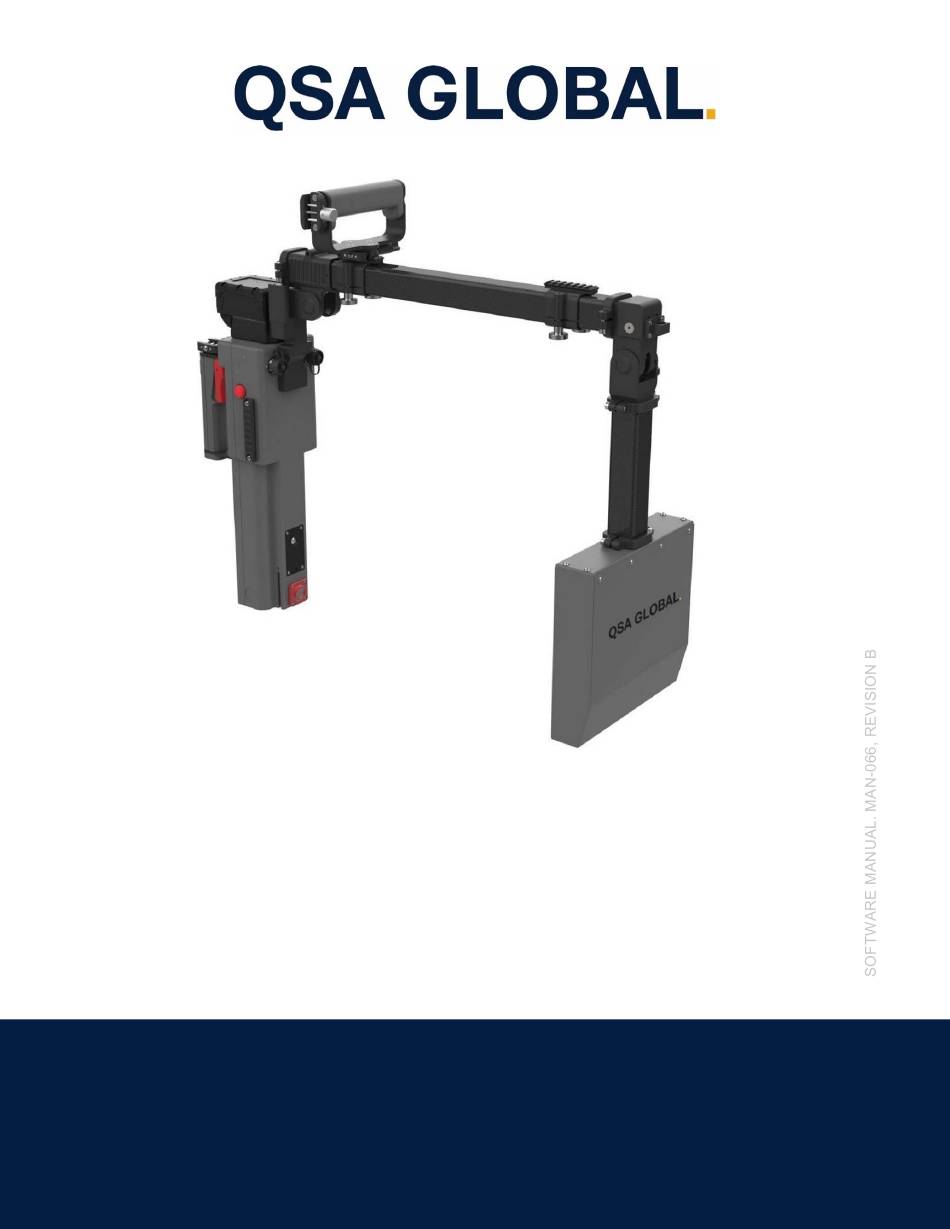

OPENVISION
HD.
OVHD-NDT-70 SOFTWARE MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPENVISION HD OVHD-NDT-70 and is the answer not in the manual?

Questions and answers

Related Manuals for QSA Global OPENVISION HD OVHD-NDT-70

Summary of Contents for QSA Global OPENVISION HD OVHD-NDT-70

  • Page 1 OPENVISION OVHD-NDT-70 SOFTWARE MANUAL...
  • Page 2 Revision Record Date Description 03/2023 Production Release 03/2023 Content Revision QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242  781.272.2000  qsa-global.com Software Manual  MAN-066  March 2023  Page 2 of 43...
  • Page 3 AND UNIT MAY NOT BE ABLE TO RESTART. Home Screen The Home Screen (Figure 2) displays the output of the targeting camera (outlined in red) and the Settings menu across the bottom (outlined in yellow). QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...

  • Page 4: Settings Menu

    The Settings menu becomes disabled when the hat switch is in its neutral (center) position for 15 seconds. Note: While the Settings menu is active, the hat switch cannot be used to navigate to another screen. QSA Global, Inc. ...
  • Page 5 System date and time  Software version  Current battery level (OpenVision HD)  X-Ray tube temperature  OpenVision HD online status indicator QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242  781.272.2000  qsa-global.com Software Manual ...
  • Page 6 System will transition to the X-Ray Warning Screen (Figure 5) for five seconds, during which the buzzer will pulse at one- second intervals. The System Status Indicators (on either side of main housing) will also turn amber. Figure 6 Trigger Switch Options QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...
  • Page 7 The X-Ray Live Image Screen remains active until the red trigger button is released or 90 seconds has elapsed. When either occurs, the following will happen:  System stops emitting X-rays  Buzzer turns off QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242 ...

  • Page 8: Image Capture

    The system will display the snapshot in the upper left-hand corner (Picture-in-Picture) of the current screen for five seconds (Figure 10) and is automatically saved to internal storage in PNG image format. Figure 10 Image Capture Retained (upper left corner) QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...

  • Page 9: Video Capture

    When finished, select “Apply”. The monitor will then return to the main screen. The system is now ready to record Images/Videos with the custom name. When the system is shutdown the filename sequence will return to its default value. QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...

  • Page 10: System Information

    This menu is navigated by the hat switch’s left/right positions. Up/down positions change the value of the highlighted setting. On-screen buttons (e.g., Apply) are actuated with the Snapshot Button (Figure 9). Exit transitions back to the Home Screen. Figure 13 System Info Screen QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...

  • Page 11: Video Playback

    CAUTION: TO ENSURE THAT THE USB DRIVE DOES NOT BECOME CORRUPTED, ALWAYS WAIT UNTIL THE SYSTEM TRANSITIONS BACK TO THE HOME SCREEN (Figure 2) BEFORE REMOVING THE USB DRIVE FROM OPENVISION HD. QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...
  • Page 12 Figure 15 USB Drive Folder Format QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242  781.272.2000  qsa-global.com Software Manual  MAN-066  March 2023  Page 12 of 43...

  • Page 13: Image Transfer

    HD, the message “No Images to transfer” message (Figure 18) will be displayed. Selecting [Cancel] will transition to the Home Screen and the USB drive can then be safely removed. QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...
  • Page 14 The amount of time this screen is displayed is determined by the number of images in the image directory. At the completion of the transfer, the system will transition to the Image Deletion Confirmation Screen (Figure 21). QSA Global, Inc. ...
  • Page 15 USB drive to hold all the images contained in the selected folder. If there is insufficient space, this screen will be displayed (Figure 22). Selecting the Close button will cause the system to transition to the Home Screen and the USB drive can be safely removed. QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...

  • Page 16: Admin Password Screen

    Enter, Exit, and the password digits. Pressing Exit will transition back to the Home Screen. If the correct password has been entered, selecting Enter transitions to the Admin Screen. Figure 23 Admin Password Screen QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...

  • Page 17: System Administration

    Video Stitching Enable/Disable *Power is limited to 12 W (kV x mA) max. (e.g., 70 kV @ .171 mA = 12 W, 40 kV @ .300 mA = 12 W) QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...

  • Page 18: Super Mode

    25). Activate the Settings menu (Settings Menu section beginning on page 4) and navigate to either the kV or mA setting. Pressing the up/down hat switch will change the value highlighted. Figure 25 Home Screen with Super Mode Enabled QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...
  • Page 19 The OpenVision HD APP will automatically launch on power up. To power down the tablet, press the Home Screen’s power button (Figure 27). Press the Okay button to verify shutdown. Figure 27 Software Power Button QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...

  • Page 20: Home Screen

    Tablet will automatically connect to Wi-Fi direct when the APP launches, which may take a few seconds. The Wi-Fi symbol will show “Connected” when a Wi-Fi connection has been established (Figure 29). Figure 29 OpenVision HD Wi-Fi Connected QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...
  • Page 21 HD, you can stream image data by pressing the streaming icon ( , Figure 30). To stop streaming, press the stop button ( , Figure 31). Figure 31 Streaming Image Data to Tablet QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242 ...
  • Page 22 , Figure 33) to indicate video recording in progress. Press this button again to stop recording. The tablet can perform seamless targeting to X-ray videos. Figure 33 Video Capture QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...
  • Page 23 OpenVision HD. Figure 34 Screen Display Other screens include the X-Ray Caution Screen (Figure 35), error screens (example shown in Figure 36), ADMIN Screen, etc. Figure 35 Caution Screen QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242 ...
  • Page 24 Figure 36 Error Screen Example QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242  781.272.2000  qsa-global.com Software Manual  MAN-066  March 2023  Page 24 of 43...

  • Page 25: Media Transfer

    (Figure 38). Figure 38 USB Adapter and Drive Connected to Tablet Press the Local Settings button ( , ) to go to the Local Settings Screen (Figure 39). QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...
  • Page 26 USB drive. Transfer in Progress window (Figure 42) will be displayed during transfer. CAUTION: DO NOT REMOVE USB DRIVE UNTIL “UNMOUNT USB” OPERATION HAS BEEN COMPLETED. OTHERWISE, USB FILES MAY BECOME CORRUPT AND UNUSABLE. QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...
  • Page 27 Once the media transfer is complete, tablet will transition back to the Local Settings Screen. Press the button (Figure 43) prior to removing the USB drive. This will assure the USB drive is properly unmounted. If this step is not completed, some files may be corrupted. QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...

  • Page 28: Image Playback

    (Figure 44). Images stored on the OpenVision HD will only appear if an Image Sync has been performed. Figure 44 Image Playback Button Press button (Figure 45) to select the device. QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242 ...
  • Page 29 Select a folder from the list (Figure 46). If only one folder is available, you can directly scroll through ALL images. Folders can also be deleted from the Folder List Screen. Figure 46 Image Folder List Once the folder is open you can scroll though images (Figure 47). QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...
  • Page 30 OpenVision HD will only appear if an Image Sync has been performed. Folder navigation and delete functions are identical to image playback. Figure 48 Video Playback Button Press button (Figure 49) to select the device. QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242 ...
  • Page 31 Select a folder from the list (Figure 50). If only one folder is available, you can directly scroll through ALL videos. Folders can also be deleted from the Folder List Screen. Figure 50 Video Folder List Standard video playback controls are available to the selected video (Figure 51). QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...
  • Page 32 Figure 51 Video Playback QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242  781.272.2000  qsa-global.com Software Manual  MAN-066  March 2023  Page 32 of 43...
  • Page 33 OpenVision HD. All images and videos from the OpenVision HD will be transferred to the tablet, it is recommended that files be sync’d daily. QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...
  • Page 34 Image sync progress screen appears (Figure 54). Figure 54 Image Sync in Progress If stitching is required a progress screen appears (Figure 55). You can cancel the sync process at any time. QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...
  • Page 35 All data transferred prior to the OpenVision HD shutting down will remain so the next sync process should be shorter. Figure 56 Sync Completed Screen QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...

  • Page 36: Brightness Adjustment

    The Control Panel on the Home Screen (Figure 28) can be positioned on the left or right side of the tablet’s screen. Default is on the right; the check box (Figure 58) allows you to position it on the left. NOTE: The button is for QSA Global, Inc. use only. Figure 58 Control Panel Configuration QSA Global, Inc.

  • Page 37: Remote Power Control

    A corresponding window will pop-up and you can adjust kV (Figure 60) or mA (Figure 61) by pressing either “-“ or “+” buttons and then pressing the Apply button. Figure 60 kV Selection and Adjustment QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242  781.272.2000 ...
  • Page 38 Scroll to “Ethernet Server”, and select it. Scroll back to “Apply Settings” and select it (Figure 62). Figure 62 Ethernet Connection QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...
  • Page 39 USB Port. In a moment, the Signal Strength meter on the tablet should go to full strength (Figure 63). The Tablet is now ready to sync and stream with all Tablet functions available. Figure 63 Tablet Tethering QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...
  • Page 40 It is mandatory that the OpenVision HD system and the wireless tablet are on the same software revision in order to be compatible. To upgrade the software on your OpenVision HD and or wireless tablet, please contact your local QSA Global, Inc. representative.
  • Page 41 The update will be complete when the system user interface returns to the screen. Note: the user interface may not fully return to the user screen and hold up on the main intro screen or display an 006 Error. QSA Global, Inc. ...

  • Page 42: Troubleshooting

     Turn unit on Communication error and/or failure with targeting camera. Perform a system restart, Imaging Camera if a restart does not clear the error, contact your QSA Global, Inc. representative for Failure repair options. Targeting Camera Communication error and/or failure with targeting camera. Contact your QSA Global, Failure Inc.
  • Page 43 3F Chunghae Building, 12 Sunrung-ro 103 Gil Kangnam-Ku, Seoul 06145, South Korea +82 2 558 3335 All goods and services are sold subject to the terms and conditions of QSA Global, Inc. A copy of these terms and conditions are available at www.qsa-global.com ®...
