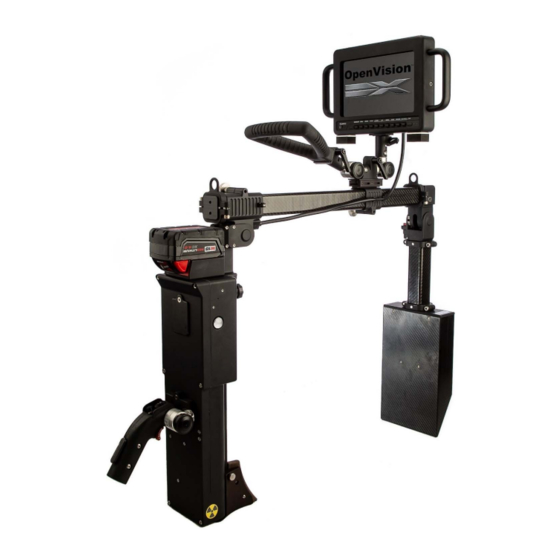

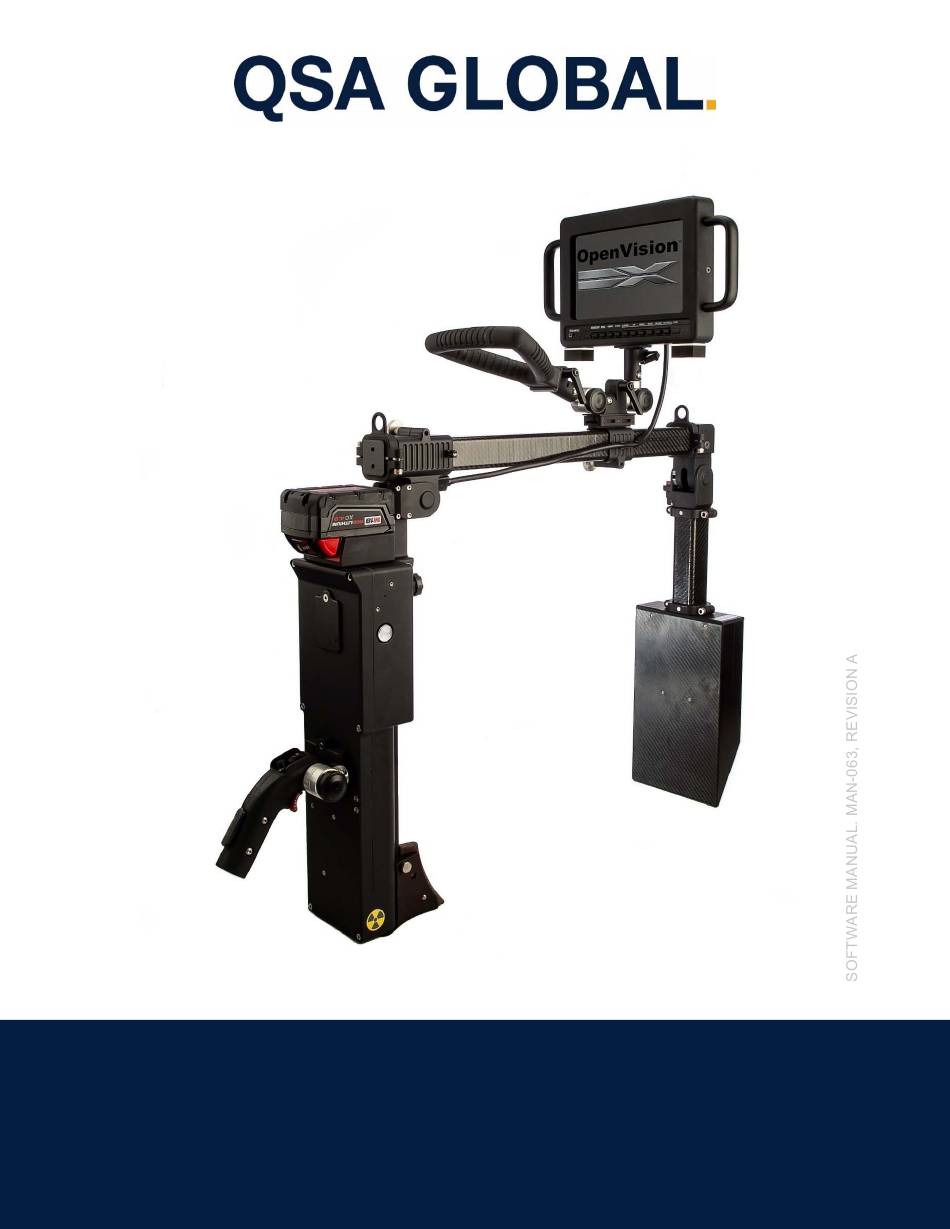

  • Page 1 OPENVISION OVDX-70 SOFTWARE MANUAL...

  • Page 2: Table Of Contents

    Admin Password Screen ..............................20 System Administration ............................... 21 Super Mode ................................... 21 Maintenance..................................22 Troubleshooting..................................23 QSA Global, Inc. Contact Information ..........................25 Page 2 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...

  • Page 3: Introduction

    32 in. x 20.5 in. x 12.5 in Shipping Dimensions (82 cm x 52 cm x 32 cm) FDA Accession # 1680071-000 Page 3 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242  781.272.2000 ...
  • Page 4 Battery/Charger California Energy Commission Underwriters Laboratory for Canada and U.S. Revision Record Revision Date Description 06/2019 Production Release Page 4 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242  781.272.2000  F: 781.359.9179 ...

  • Page 5: Safety Precautions

    Keep the OpenVision™ controller locked while assembling the system and when not being used to perform scanning. Locked is defined as the controller key switch in the Off position with the key removed. Store the key in a secure location. Page 5 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...

  • Page 6: Operating Conditions

    A Class 2 laser is not a skin or materials burn hazard. NEVER aim any laser towards an aircraft or vehicle in motion. Page 6 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...

  • Page 7: Openvision™ Digital X-Ray System (Ovdx) Software

    No additional cool down is required. CAUTION Failure to allow the system to properly shutdown may corrupt internal memory, and unit may not be able to restart. Page 7 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242 ...

  • Page 8: Home Screen

    The Settings menu becomes disabled when the hat switch in its neutral (center) position for 15 seconds. Note: While the Settings menu is active, the hat switch cannot be used to navigate to another screen. Page 8 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...
  • Page 9 The Settings menu also displays the following system information on the right-hand side:  System date and time  Software version  Current battery level Page 9 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242  781.272.2000 ...

  • Page 10: Firing X-Rays

    System Status Indicators (on either side of main housing) will also turn amber. Palm Switch Red Trigger Switch Figure 6 Trigger Switches Page 10 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242  781.272.2000 ...

  • Page 11: X-Ray Live Image Screen

    The X-Ray Live Image Screen remains active until the red trigger is released, or 90 seconds has elapsed. When either occurs, the following will happen:  System stops emitting X-Rays  Buzzer turns off Page 11 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242  781.272.2000 ...

  • Page 12: Image Capture

    The system will display the snapshot in the upper left-hand corner of the current screen for five seconds ( Figure ) and is automatically saved to internal storage in PNG image format. Figure 10 Image Capture retained (shown in upper left-hand corner) Page 12 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242 ...

  • Page 13: Video Capture

    When the button is pressed again, the recording stops and is automatically saved to internal storage in MPEG4 video format. Figure 11 X-Ray Video Recording in Progress System Information Figure 12 System Info Screen Page 13 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242 ...

  • Page 14: Image Playback

    If the directory does not exist at the point the first snapshot for the day is taken, the directory will be automatically created. Images within the directory are named in the format 'YYYYMMDD-HHMMSS.png' to ensure that unique names are created for each image taken. Page 14 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...

  • Page 15: Usb Drive Configuration For Media Transfer

    To ensure that the USB drive does not become corrupted, always wait until the system transitions back to the Home Screen (Figure 2) before removing the USB drive from the OVDX. Page 15 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...

  • Page 16: Image Transfer

    Selecting the [Cancel] on-screen button will transition to the Home Screen and the USB drive can then be safely removed. Figure 16 No Images Present Page 16 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...
  • Page 17 Home Screen and the USB drive may be safely removed. Selecting the [Yes] button will transition to the Transferring Images screen. Page 17 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...
  • Page 18 OVDX). Selecting the Yes button will cause the images for the specified date stamp to be deleted from the OVDX and the system will transition to the home screen. Page 18 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...

  • Page 19: Software Update

    OVDX. A properly configured USB for software update includes an 'ovdx' directory at the top-level directory of the USB drive and the content of the 'ovdx' directory must contain files associated with a software update including one Page 19 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...

  • Page 20: Admin Password Screen

    The hat switch’s left/right positions navigate between Enter/Exit buttons and the password digits. The Exit button will transition back to the Home Screen. If the correct password has been entered, selecting the Enter button transitions to the Admin Screen. Page 20 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...

  • Page 21: System Administration

    OVDX. With Super Mode enabled the operator can adjust (through the settings menu) voltage in 1 kV increments and current in .001 mA increments. Page 21 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803 ...

  • Page 22: Maintenance

    To clean the OVDX, a damp soft cloth should be used to remove dirt and grime. CAUTION Do not use solvents or apply cleaning agents directly on the OVDX as this can damage the components or corrode the electronics. Page 22 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242 ...

  • Page 23: Troubleshooting

    Opening the OVDX potentially will damage the system and will void any warranty. If faced with any issues with the OVDX, contact your QSA Global, Inc. representative immediately for guidance. The OVDX has been designed as a rugged, safe, reliable system. A series of interlocks and self-checks are built into the system to ensure safe operation.
  • Page 24 Camera Communication Communication error with internal camera. Cycle system Error power to clear error. Table 4 Error code guide. Page 24 of 25 QSA Global, Inc.  40 North Avenue Burlington, MA 01803  888.272.2242  781.272.2000 ...

  • Page 25: Qsa Global, Inc. Contact Information

    Telephone +1 713 944 3200 Fax +1 281 476 9309 All goods and services are sold subject to the terms and conditions of QSA Global, Inc. A copy of these terms and conditions is available upon request. OpenVision™ is a trademark of QSA Global, Inc.
