Spi Flash Boot - QMTECH XC7A100T User Manual

2.2.2

SPI Flash Boot

In def ault, the FPGA XC7A100T boots from external SPI Flash, detailed hardware design is shown in below
f igure. The SPI f lash is using MT25QL128 manuf actured by Micron, with 128Mbit memory storage.
The FPGA boot sequence setting M0:M1:M2 is configured as 1:0:0 which indicates FPGA will boot from SPI
Flash af ter power on.
The LED D1 will be turned on af ter the FPGA successfully loading configuration file from SPI Flash during
power on stage. In this case, LED D1 could be used as FPGA loading status indicator.
3V3
U3
1
FPGA_CSO_B
4.7K R3
nCE
2
FPGA_DQ1
SO/SIO1
3
FPGA_DQ2
4.7K R4
SIO2
4
VSS
MT25QL128ABA1ESE

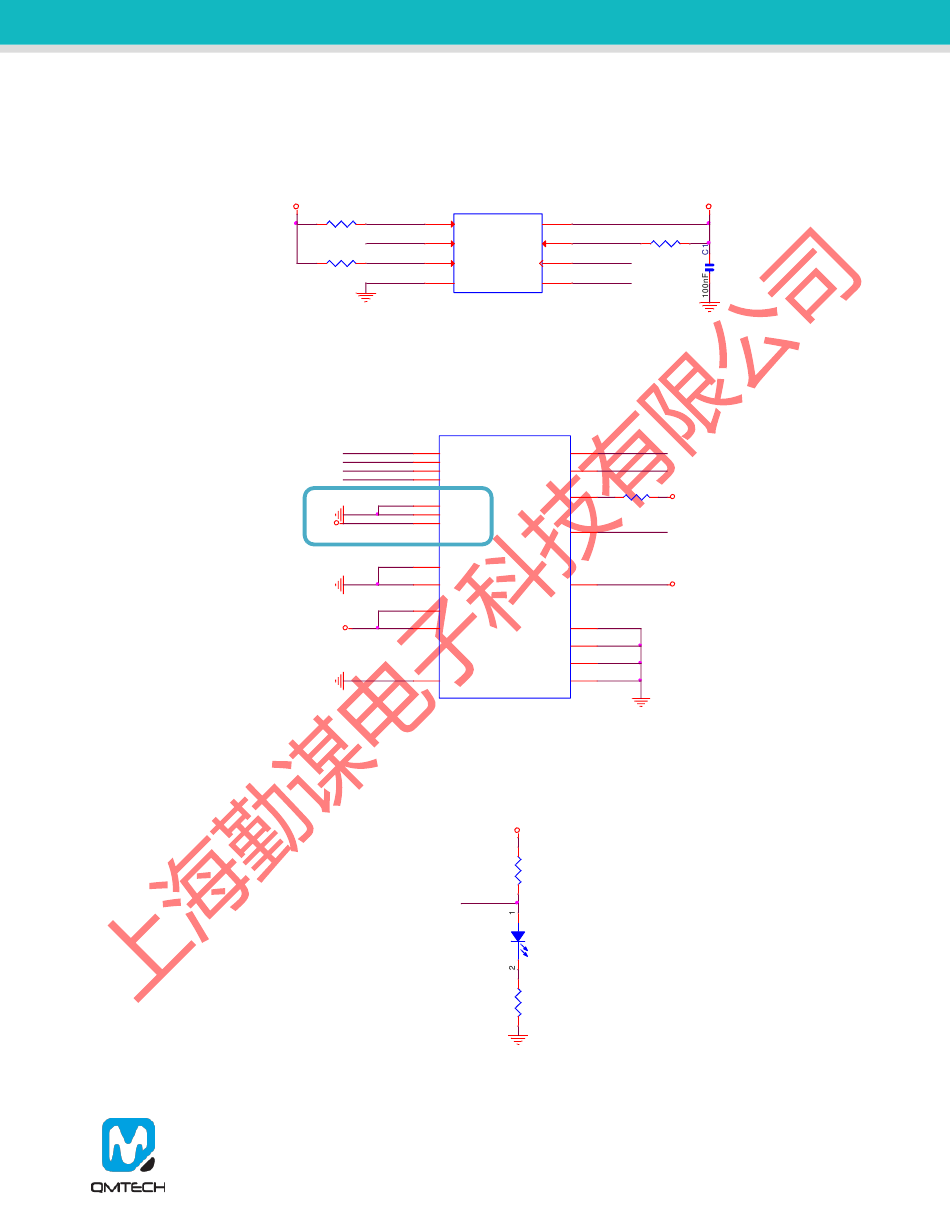

Figure 2-6. SPI Flash
