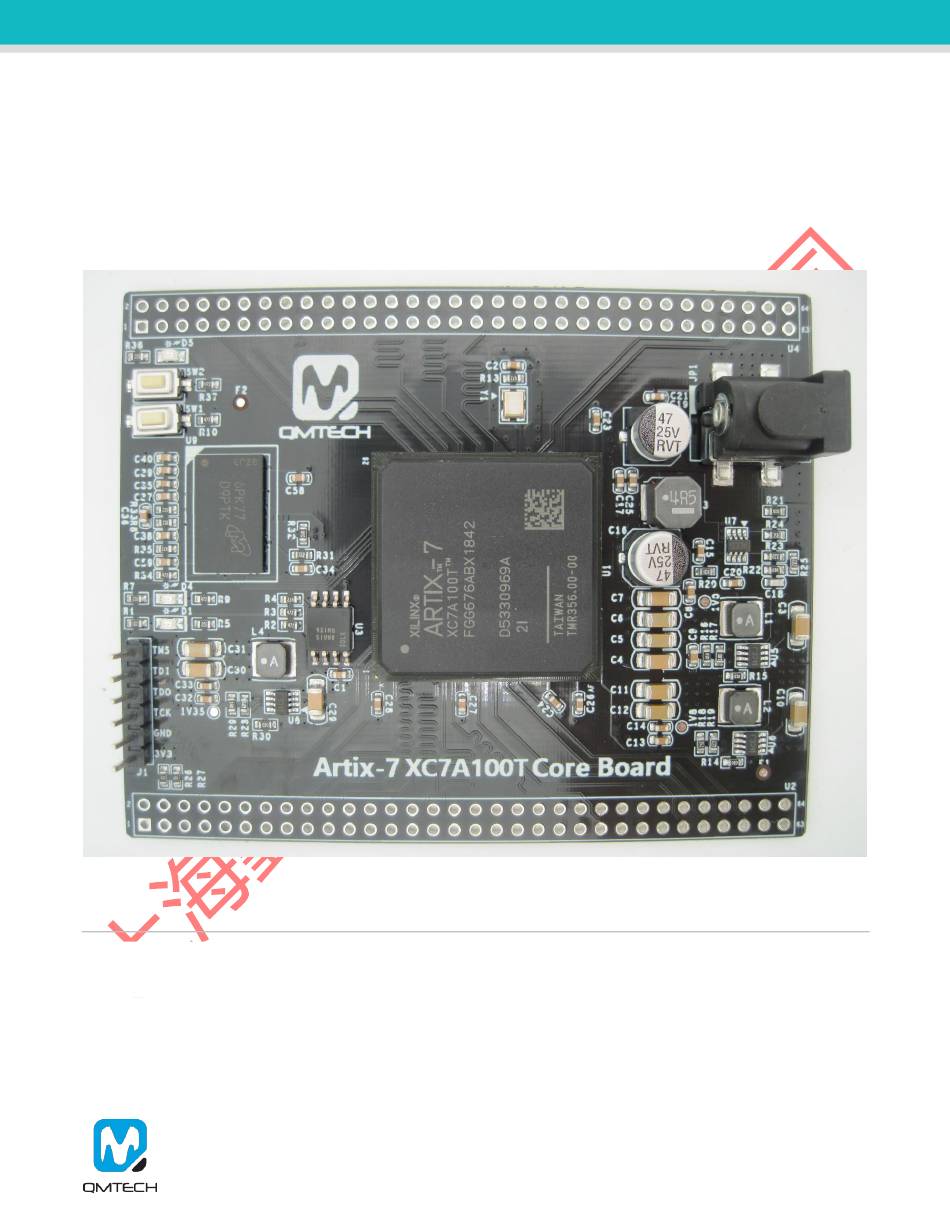

QMTECH XC7A100T STARTER KIT
USER MANUAL(CORE BOARD)
Preface
The QMTech® XC7A100T core board uses Xilinx Artix®-7 devices to demonstrate the highest performance-
per-watt fabric, transceiver line rates, DSP processing, and AMS integration in a cost -optimized FPGA.
MicroBlaze™ soft processor
Featuring the
and 1,066Mb/s DDR3 support, the family is the best value for a
variety of cost and power-sensitive applications including software-defined radio, machine vision cameras,
and low-end wireless backhaul.
For more information, updates and useful links, please visit QMTECH Official Website:
http://www.chinaqmtech.com
QMTECH XC7A100T Starter Kit
User Manual V01
Advertisement
Table of Contents
Summary of Contents for QMTECH XC7A100T
- Page 1 QMTECH XC7A100T STARTER KIT USER MANUAL(CORE BOARD) Preface The QMTech® XC7A100T core board uses Xilinx Artix®-7 devices to demonstrate the highest performance- per-watt fabric, transceiver line rates, DSP processing, and AMS integration in a cost -optimized FPGA. MicroBlaze™ soft processor...
-
Page 2: Table Of Contents
2.2.4 User Extension IOs.............. 8 2.2.1 3.3V Power Supply.............. 9 2.2.2 JTAG Port ................9 2.2.3 User LEDs ................10 2.2.4 User Keys................10 2.2.5 DDR3 Memory ..............11 REFERENCE ................12 REVISION ................13 QMTECH XC7A 100T Starter Kit User Manual V01... -
Page 3: Introduction
➢ On-Board 3.3V power supply f or FPGA by using MP2315 wide input range DC/DC; ➢ XC7A100T core board has two 64p, 2.54mm pitch headers f or extending user IOs. All IOs are precisely designed with length matching ; ➢... -
Page 4: Getting Started
The QMTECH XCA100T core board includes below item: Figure 2-1. QMTECH XC7A100T Top View Below image shows the dimension of the QMTECH XC7A100T core board: 6.71cm x 8.41cm. The unit in below image is millimeter(mm). Figure 2-2. QMTECH XC7A100T Core Board Dimension... -
Page 5: Install Development Tools
Install Development Tools The QMTECH XC7A100T core board tool chain consists of Xilinx Vivado 2018.3, Xilinx USB platform cable, XC7A100T core board and 5V DC power supply. Below image shows the Xilinx Vivado 2018.3 development environment which could be downloaded from... -
Page 6: Qmtech Xc7A100T Starter Kit Hardware Design
QMTECH XC7A100T Starter Kit Hardware Design 2.2.1 FPGA Power Supply The core board needs 5V DC input as power supply which could be directly injected from power header or the 64P f emale header U2/U4. Users may refer to the hardware schematic for the detailed design. The on board LED D4 indicates the 3.3V supply, it will be turned on when the 5V power supply is active. -
Page 7: Spi Flash Boot
2.2.2 SPI Flash Boot In def ault, the FPGA XC7A100T boots from external SPI Flash, detailed hardware design is shown in below f igure. The SPI f lash is using MT25QL128 manuf actured by Micron, with 128Mbit memory storage. FPGA_CSO_B 4.7K... -
Page 8: System Clock
2.2.3 System Clock FPGA chip XC7A100T-2FTG676I has system clock frequency 50MHz which is directly provided by external crystal. The crystal is designed with high accuracy and stability with low temperature drift 10ppm/°c. Below image shows the detailed hardware design: 4.7K... -
Page 9: 3.3V Power Supply
JTAG Port The on board JTAG port uses 6P 2.54mm pitch header which could be easily connected to Xilinx USB platform cable. Below image shows the hardware design of the JTAG port: QMTECH XC7A 100T Starter Kit User Manual V01... -
Page 10: User Leds
Below image shows two user LEDs and 3.3V power supply indicator: IO_LED_J19 Figure 2-13. LEDs 2.2.4 User Keys Below image shows the PROGRAM_B key and two user keys: 4.7k 4.7k PROG_B IO_KEY _H19 Figure 2-14. Keys QMTECH XC7A 100T Starter Kit User Manual V01... -
Page 11: Ddr3 Memory
VSS11 VDDQ9 VSS12 VSSQ1 VSSQ2 VSSQ3 100nF 1K 1% VSSQ4 VSSQ5 DDR_VREF VSSQ6 100nF VSSQ7 DDR_VREF VREFCA VSSQ8 1K 1% VSSQ9 100nF DDR_VREF VREFDQ 100nF 100nF MT41K128M16JT-125:K 240R 1% Figure 2-15. DDR3 QMTECH XC7A 100T Starter Kit User Manual V01... -
Page 12: Reference
Reference [1] ug470_7Series_Conf ig.pdf [2] ds181_Artix_7_Data_Sheet.pdf [3] ug475_7Series_Pkg_Pinout.pdf [4] MT25Q_QLHS_L_128_ABA_0.pdf [5] MT41J128M16JT-125K.pdf [6] MP2315.pdf [7] MP2143.PDF QMTECH XC7A 100T Starter Kit User Manual V01... -
Page 13: Revision
Revision Doc. Rev. Date Comments 01/09/2019 Initial Version. 03/09/2019 V1.0 Formal Release. QMTECH XC7A 100T Starter Kit User Manual V01...
