Install Development Tools

2.1
The QMTECH XC7A100T core board tool chain consists of Xilinx Vivado 2018.3, Xilinx USB platform cable,
XC7A100T core board and 5V DC power supply. Below image shows the Xilinx Vivado 2018.3 development
environment which could be downloaded from
Below image shows the JTAG connection between Xilinx USB platform cable and XC7A100T core board:
5V DC
Xilinx office

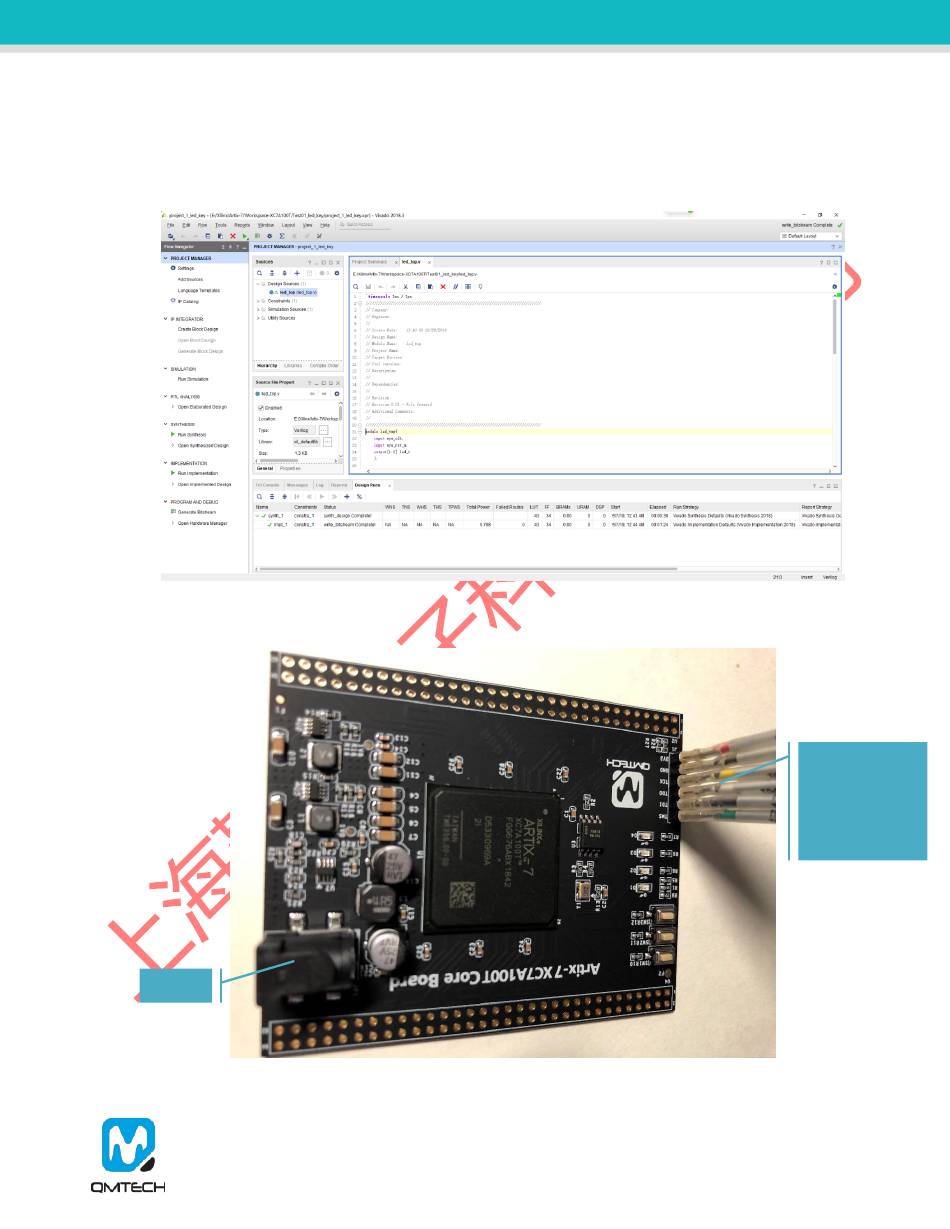

Figure 2-3. Vivado 2018.3
Figure 2-4. JTAG Connection and Power Supply
QMTECH XC7A 100T Starter Kit
website:
VREF (Red)
GND (Black)
TCK (Yellow)
TDO (White)
TDI (Purple)
TMS (Green)
User Manual V01
