Getting Started
2.
The QMTECH XCA100T core board includes below item:

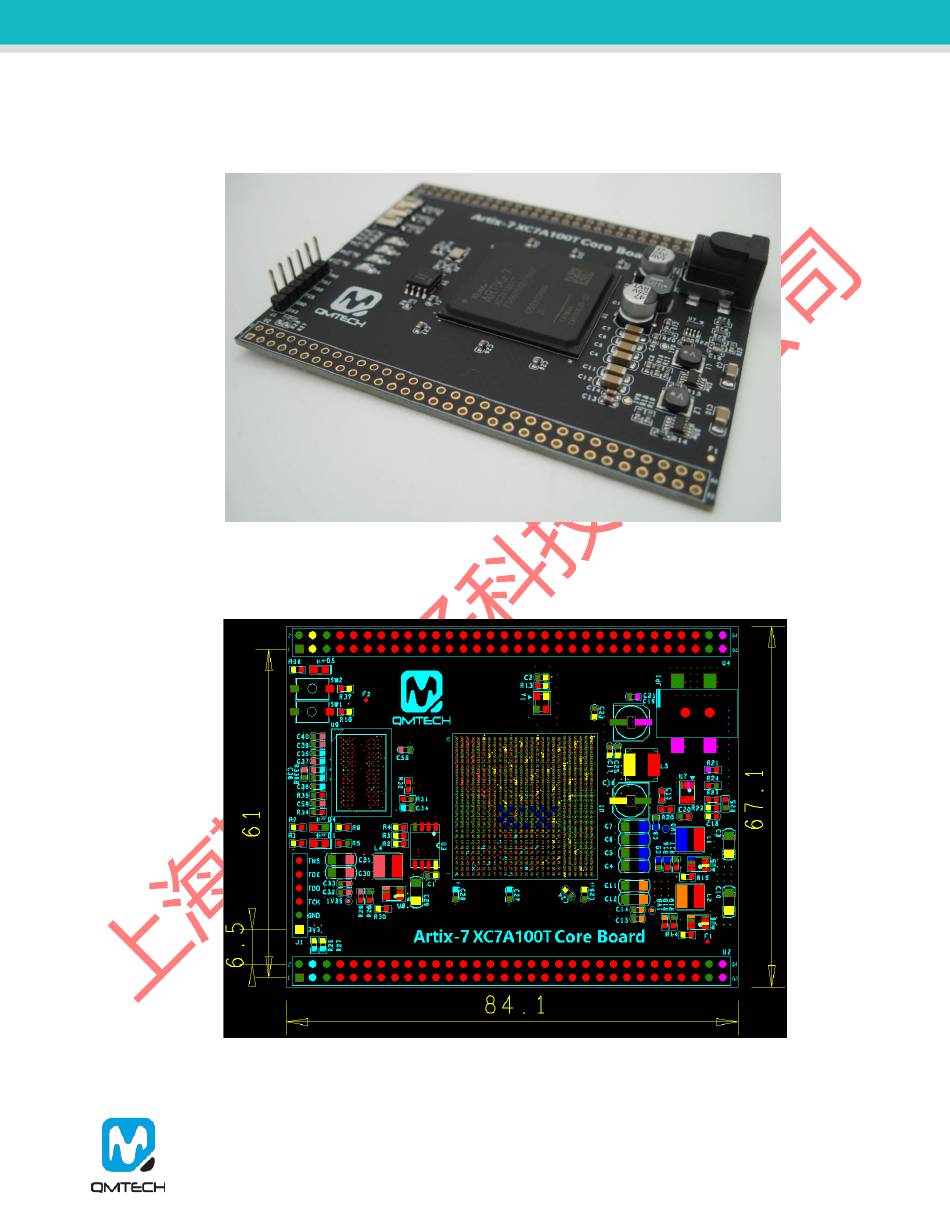

Figure 2-1. QMTECH XC7A100T Top View
Below image shows the dimension of the QMTECH XC7A100T core board: 6.71cm x 8.41cm. The unit in
below image is millimeter(mm).
Figure 2-2. QMTECH XC7A100T Core Board Dimension
QMTECH XC7A 100T Starter Kit
User Manual V01
