QMTECH XC7A100T Starter Kit Hardware Design

2.2
2.2.1

FPGA Power Supply

The core board needs 5V DC input as power supply which could be directly injected from power header or the
64P f emale header U2/U4. Users may refer to the hardware schematic for the detailed design. The on board
LED D4 indicates the 3.3V supply, it will be turned on when the 5V power supply is active. In default status, all
the FPGA banks IO power level is 3.3V because bank power supply is 3.3V. However, BANK34 and BANK35
IO's power level could be changed according to detailed custom requirement. There're two 0 ohm resisters
could be removed: R26/R27, and instead the BANK34 and BANK35's power supply could be injected from 64P
f emale header U8. Detailed design refers to hardware schematic.
Note: FPGA core supply 1.0V is regulated by Monolithic Power Systems, Inc. (MPS) DC/DC chip MP2143
which could output maximum 3A current.
U1M
AA15
NC_1
AA17
NC_2
AA18
NC_3
AA19
NC_4
AA2
NC_5
AA20
NC_6
AA3
NC_7
AA4
NC_8
AA5
NC_9
AA7
NC_10
AA8
NC_11
AB1
NC_12
AB16
NC_13
AB17
NC_14
AB19
NC_15
AB2
NC_16
AB20
NC_17
AB21
NC_18
AB22
NC_19
AB4
NC_20
AB5
NC_21
AB6
NC_22
AC1
NC_23
AC16
NC_24
AC17
NC_25
AC18
NC_26
AC19
NC_27
AC2
NC_28
AC21
NC_29
AC22
NC_30
AC23
NC_31
AC3
NC_32
AC4
NC_33
AC6
NC_34
AD1
NC_35
AD17
NC_36
AD18
NC_37
AD19
NC_38
AD20
NC_39
AD21
NC_40
AD23
NC_41
AD24
NC_42
AD25
NC_43
AD26
NC_44
AD3
NC_45
AD4
NC_46
AD5
NC_47
AE1
NC_48
AE17
NC_49
AE18
NC_50
AE2
NC_51
AE20
NC_52
AE21
NC_53
AE22
NC_54
AE23
NC_55
AE25
NC_56
AE26
NC_57
AE3
NC_58
AE5
NC_59
AF17
NC_60
AF18
NC_61
AF19
NC_62
AF2
NC_63
AF20
NC_64
AF22
NC_65
AF23
NC_66
AF24
NC_67
AF25
NC_68
AF3
NC_69
AF4
NC_70
AF5
NC_71
U7
NC_72
V1
NC_73
V2
NC_74
V3
NC_75
V4
NC_76
V6
NC_77
V7
NC_78
V8
NC_79
V9
NC_80
W1
NC_81
W14
NC_82
W15
NC_83
W16
NC_84
W3
NC_85
W4
NC_86
W5
NC_87
W6
NC_88
W8
NC_89
Y 1
NC_90
Y 15
NC_91
Y 16
NC_92
Y 17
NC_93
Y 18
NC_94
Y 2
NC_95
Y 3
NC_96
Y 5
NC_97
Y 6
NC_98
Y 7
NC_99
Y 8
NC_100
XC7A100T-FGG676
U1J U1G
AE15
GND_1
B15
GND_2
A10
GND_3
A12
GND_4
A14
GND_5
A16
GND_6
A26
GND_7
A6
GND_8
A8
GND_9
AA14
GND_10
AA16
GND_11
AA26
GND_12
AA6
GND_13
AB10
GND_14
AB12
GND_15
AB14
GND_16
AB23
GND_17
AB3
GND_18
AA9
GND_19
AB8
GND_20
AC15
GND_21
AC20
GND_22
AC7
GND_23
AD11
XC7A100T-FGG676
GND_24
AD13
GND_25
AD6
GND_26
AD9
GND_27
AD16
GND_28
AE24
GND_29
AE4
U1H
GND_30
AE6
GND_31
AF1
GND_32
AF10
GND_33
AF12
GND_34
AF14
GND_35
AF16
GND_36
AF21
GND_37
AF6
GND_38
AF8
GND_39
B16
GND_40
B23
GND_41
B3
GND_42
B6
GND_43
C11
GND_44
C13
GND_45
C16
GND_46
C20
GND_47
C6
GND_48
C9
GND_49
D15
GND_50
D17
GND_51
D7
GND_52
E10
GND_53
E12
GND_54
E14
XC7A100T-FGG676
GND_55
E24
GND_56
E4
GND_57
E7
GND_58
E8
GND_59
E9
GND_60
F1
U1I
GND_61
F14
GND_62
F21
GND_63
F9
GND_64
G10
GND_65
G11
GND_66
AB9
GND_67
G13
GND_68
Y 12
GND_69
G18
GND_70
G12
GND_71
H25
GND_72
H5
GND_73
J12
GND_74
J2
GND_75
J22
GND_76
K11
GND_77
K13
GND_78
K19
GND_79
K9
GND_80
L10
GND_81
L12
GND_82
L16
GND_83
L26
GND_84
L6
GND_85
M13
GND_86
M23
XC7A100T-FGG676
GND_87
M3
GND_88
M9
GND_89
N10
GND_90
N20
GND_91
P13
GND_92
P17
GND_93
P7
GND_94
P9
GND_95
R10
GND_96
R24
GND_97
R4
GND_98
T1
GND_99
T11
GND_100
T13
GND_101
T21
GND_102
T9
GND_103
U10
GND_104
U12
GND_105
U18
GND_106
U8
GND_107
V15
GND_108
V25
GND_109
V5
GND_110
E15
GND_111
W12
GND_112
W2
GND_113
W22
GND_114
Y 11
GND_115
Y 10
GND_116
Y 13
GND_117
Y 19
GND_118
V13
GND_119
XC7A100T-FGG676

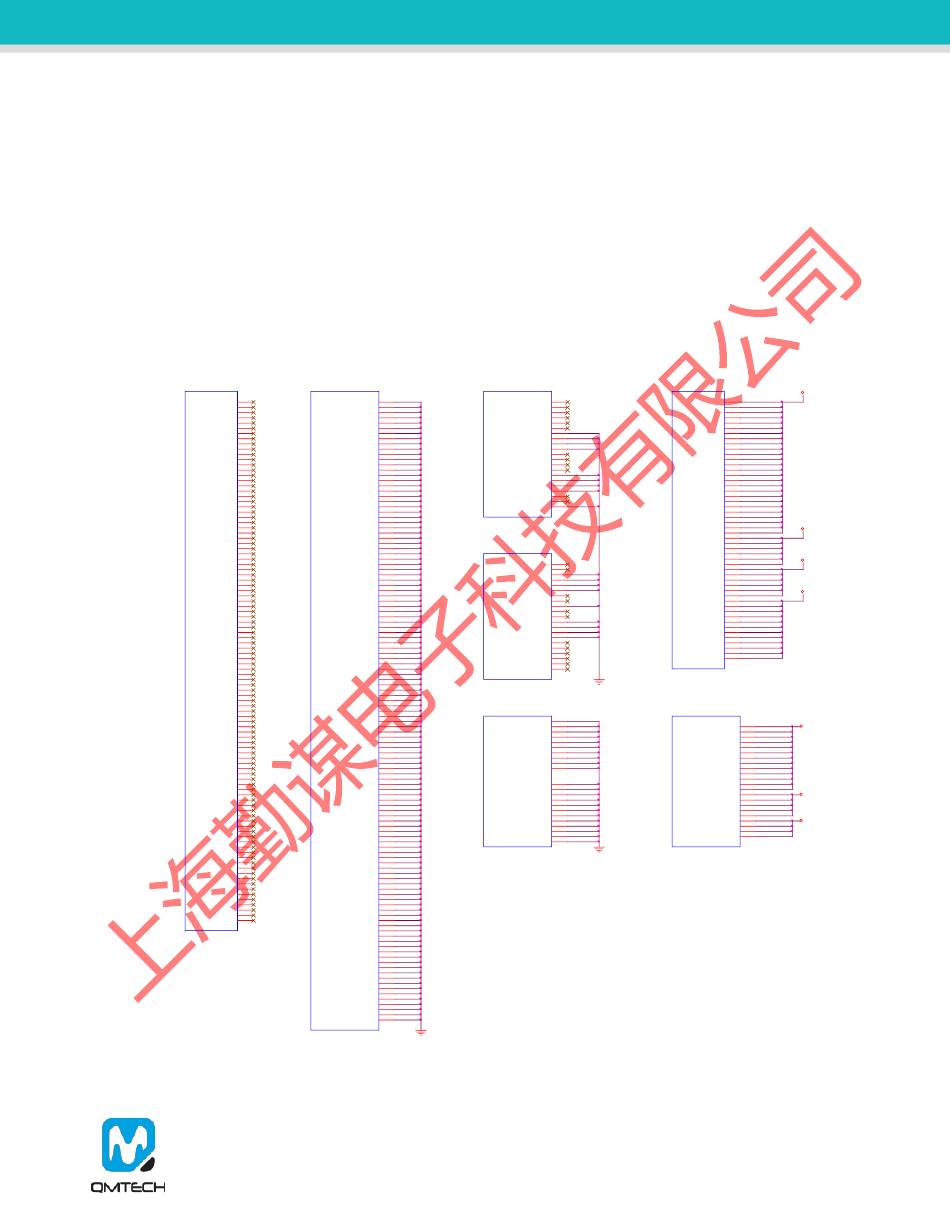

Figure 2-5. Power Supply for the FPGA
