Sealey HVLP-79/P.V3 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instruction protection
manual
1. SAFETY
Familiarise yourself with the application, limitations and potential hazards peculiar to the spray gun.
9
WARNING! Disconnect the spray gun from the air supply before changing accessories, servicing or performing any maintenance.
‰
Maintain the spray gun in good condition (use an authorised service agent).
9
Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
Keep the spray gun clean for best and safest performance.
9
Ensure that the compressed air system can supply the spray gun air consumption (6-10cfm).
9
Wear approved safety respiratory protection and safety eye goggles.
9
If spraying isocyanate based finisher, wear approved respirator/clean air breathing apparatus and protect skin with latex gloves and an
9
impervious hooded coverall.
Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery and tie back long hair.
9
Locate the spray gun in a suitable work area. Keep area clean and tidy and free from unrelated materials and ensure that there is
9
adequate ventilation and lighting.
Keep children and unauthorised persons away from the work area.
9
When not in use, ensure that the air supply is turned off.
9
Avoid unintentional operation of spray gun.
9
DO NOT point spray gun at yourself, other persons or animals.
8
DO NOT direct air from the air hose at yourself, other persons or animals.
8
DO NOT carry the spray gun by the hose, or yank the hose from the air supply.
8
DO NOT exceed the maximum air pressure of 43psi.
8
DO NOT use the spray gun for any purpose other than that for which it is designed.
8
DO NOT allow untrained persons to operate the spray gun.
8
DO NOT get the spray gun wet or use in damp or wet locations or in areas where there is condensation.
8
DO NOT operate the spray gun if any parts are missing or damaged as this may cause failure and/or personal injury.
8
When not in use, disconnect the spray gun from the air supply, clean thoroughly and store safely.
9

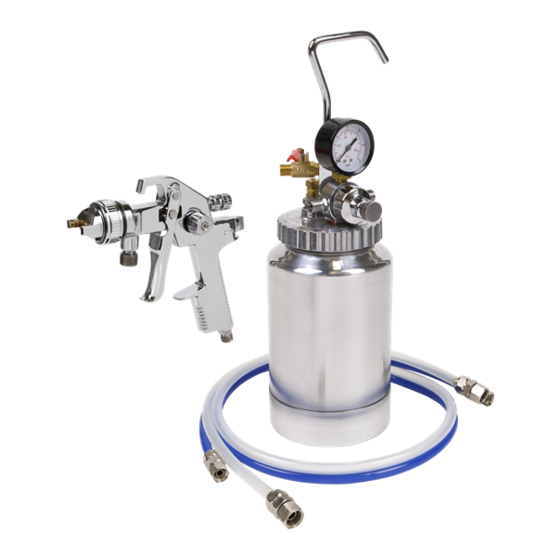

2. INTRODUCTION
Fully polished metal gun body resists corrosion and has low affinity for paint, making this unit ideal for water based paints and easy-to-clean.
Adjustable paint flow, fan width and air regulator controls. High capacity pressure pot holds up to 2L of paint. This unit is perfectly suited to the
commercial refinishing shop. Components of this set are also available individually. Alternative set-ups available separately.
3. SPECIFICATION
Model No: ....................................................... HVLP-79/P.V3
Air Consumption: ...................................................... 6-10cfm
Available Set-Up(s): ................. 1.2, 1.4, 1.6, 1.8, 2.0, 2.5mm
Contents: ..................... HVLP-79/P1, HVLP-79/P2, SSG1P/3
Pot Capacity: ..................................................................... 2L
Recommended Air Pressure: ........................................ 43psi
Standard Set-Up: ........................................................ 1.7mm
4. AIR SUPPLY
4.1.
Recommended supply system is shown alongside.
4.2. Ensure that the spray gun trigger is in the "off" position before connecting to the air supply.
4.3. You will require an air pressure between 43psi, and an air flow according to the specification.
WARNING! Ensure that the air supply is clean and does not exceed 43psi while operating the spray gun. Too high an air pressure and/or
‰
unclean air will shorten the product life, due to excessive wear, and may cause damage and/or personal injury.
4.4. Drain the air tank daily. Water in the air line will damage the spray gun and invalidate your warranty.
4.5. Clean compressor air inlet filter weekly.
4.6.
Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). The minimum hose diameter should be
1/4" I.D. and fittings must have the same inside dimensions.
4.7.
Keep hose away from heat, oil and sharp edges. Check hoses for wear, and make certain that all connections are secure.
© Jack Sealey Limited
HVLP PRESSURE POT SYSTEM
MODEL NO:
Wear Wear protective
respiratory clothing
protection
Original Language Version
HVLP-79/P.V3
HVLP-79/P.V3 Issue:1 15/11/21
