Sealey HVLP-79 Instructions

Issue No: 1
Date Issued: 200802

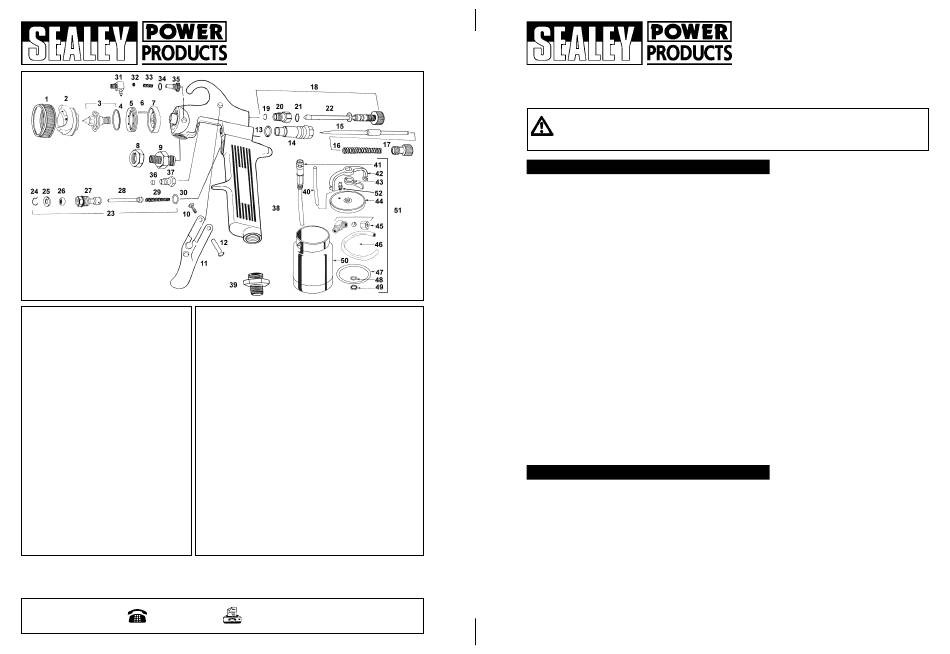

Item Part No. Description Item Part No.
1 HVLP79.01 Retaining ring - available only 25 HVLP79.25 Washer
in Set 08, 10 or 14
26 HVLP79.26 "U" Cup seal
2 HVLP79.02 Air cap - available only in Set
27 HVLP79.27 Air valve bushing
08, 10 or 14 28 HVLP79.28 Air valve
3 HVLP79.03 Fluid nozzle and gasket 29 HVLP79.29 Spring
(includes item 4) - available 30 HVLP79.30 Gasket
only in Set 08, 10 or 14
31 HVLP79.31 Air pressure elbow
4 HVLP79.04 Gasket - available only in Set
32 HVLP79.32 Steel ball
08, 10 or 14 33 HVLP79.33 Spring
5 HVLP79.05 Lock screw 34 HVLP79.34 O-Ring
6 HVLP79.06 Dowel pin 35 HVLP79.35 Air pressure plug
7 HVLP79.07 Baffle
36 HVLP79.36 Packing
8 HVLP79.08 Lock nut
37 HVLP79.37 Packing screw
9 HVLP79.09 Fluid connector 38 HVLP79.38 Gun body
10 HVLP79.10 Screw 39 HVLP79.39 Nipple
11 HVLP79.11 Trigger 40 HVLP79.40 Air supply tube (Available only with item 51)
12 HVLP79.12 Stud
41 HVLP79.41 Fluid tube (Available only with item 51)
13 HVLP79.13 Gasket
42 HVLP79.42 Yoke (Available only with item 51)
14 HVLP79.14 Bushing 43 HVLP79.43 Cam (Available only with item 51)
15 HVLP79.15 Fluid Needle (available only in 44 HVLP79.44 Lid (Available only with item 51)
Set 08, 10 or 14)
45 HVLP79.45 No-drip elbow assembly (Available only with item 51)
16 HVLP79.16 Spring
46 HVLP79.46 No-drip tube
17 HVLP79.17 Adjusting screw 47 HVLP79.47 Gasket
18 HVLP79.18 Side port control assembly - 48 HVLP79.48 Locking washer
contains items 19, 20, 21 & 22 49 HVLP79.49 Nut
19 HVLP79.19 Retaining ring
50 HVLP79.50 Cup
20 HVLP79.20 Bushing
51 HVLP79.51 Lid assembly, contains items 40, 41, 42, 43, 44, 45 & 52
21 HVLP79.21 O-Ring 52 HVLP79.52 Adapter (Available only with item 51)
22 HVLP79.22 Side port stem assembly
23 HVLP79.23 Air valve assembly - contains
items 24, 25, 26, 27, 28, 29 & 30
24 HVLP79.24 Snap ring
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No responsibility is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your name and address, including postcode.
Sole UK Distributor,
01284 757500
Sealey Group,
Bury St. Edmunds, Suffolk.
PARTS FOR:
HVLP SPRAY GUN
HVLP-79
Model:
Description
HVLP79.Set.08 Set up, 0.8mm, contains items 1, 2, 3 & 15
HVLP79.Set.10 Set up, 1.0mm, contains items 1, 2, 3 & 15
HVLP79.Set.14 Set up, 1.4mm, contains items 1, 2, 3 & 15
E-mail: sales@sealey.co.uk
01284 703534
Web: www.sealey.co.uk
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used
according to these instructions and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL
REQUIREMENTS, WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE
PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL
INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
! Familiarise yourself with the application, limitations and potential hazards peculiar to the spray gun.
F WARNING! Disconnect the spray gun from the air supply before changing accessories, servicing or
performing any maintenance.
! Maintain the spray gun in good condition (use an authorised service agent).
! Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous
and will invalidate the warranty.
! Keep the spray gun clean for best and safest performance.
! Ensure that the compressed air system can supply the spray gun air consumption (550l/min - 19.4cfm).
! Wear approved safety respiratory protection and safety eye goggles.
! If spraying isocyanate based finisher, wear approved respirator/clean air breathing apparatus and cover
exposed skin with latex gloves and an impervious hooded coverall.
! Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery and tie back long hair.
! Locate the spray gun in a suitable work area. Keep area clean and tidy and free from unrelated materials
and ensure that there is adequate ventilation and lighting.
! Keep children and unauthorised persons away from the work area.
! When not in use, ensure that the air supply is turned off.
! Avoid unintentional operation of spray gun.
% DO NOT point spray gun at yourself, other persons or animals.
% DO NOT direct air from the air hose at yourself, other persons or animals.
% DO NOT carry the spray gun by the hose, or yank the hose from the air supply.
% DO NOT exceed the maximum air pressure of 75psi.
% DO NOT use the spray gun for any purpose other than that for which it is designed.
% DO NOT allow untrained persons to operate the spray gun.
% DO NOT get the spray gun wet or use in damp or wet locations or in areas where there is condensation.
% DO NOT operate the spray gun if any parts are missing or damaged as this may cause failure and/or
personal injury.
2. DESCRIPTION & SPECIFICATIONS
The HVLP spray gun has an anodised body which resists corrosion and has a low affinity for paint, making this
unit easy to clean. The gun also has adjustable paint and fan width controls. HVLP (High Volume, Low Pressure)
uses lower air pressure but at a far higher throughput. The result of this is that very much more of the paint stays
on the panel and less disappears into the atmosphere. Suitable for heavy commercial use and particularly suitable
for applying commercial vehicle primers. Well balanced gun with positive pressure suction pot for smooth material
flow. Supplied with 1.0mm set-up. 0.8 and 1.4 set-ups available separately.
SPECIFICATIONS
Standard set-up . . . . . . . . . . . . . . . . . . . . .1.0mm
Available set-ups . . . . . . . . . . . . . . . . .0.8, 1.4mm
Working pressure range .50 - 75psi (3.5 - 5.0 bar)
Max. safe pressure . . . . . . . . . . . . . .75psi (4 bar)
Air consumption . . . . . . . . . . . . . . . . . . . . .19cfm
INSTRUCTIONS FOR:
HVLP SPRAY GUN
HVLP-79
Model:
HVLP-79 - 1 - 200802
