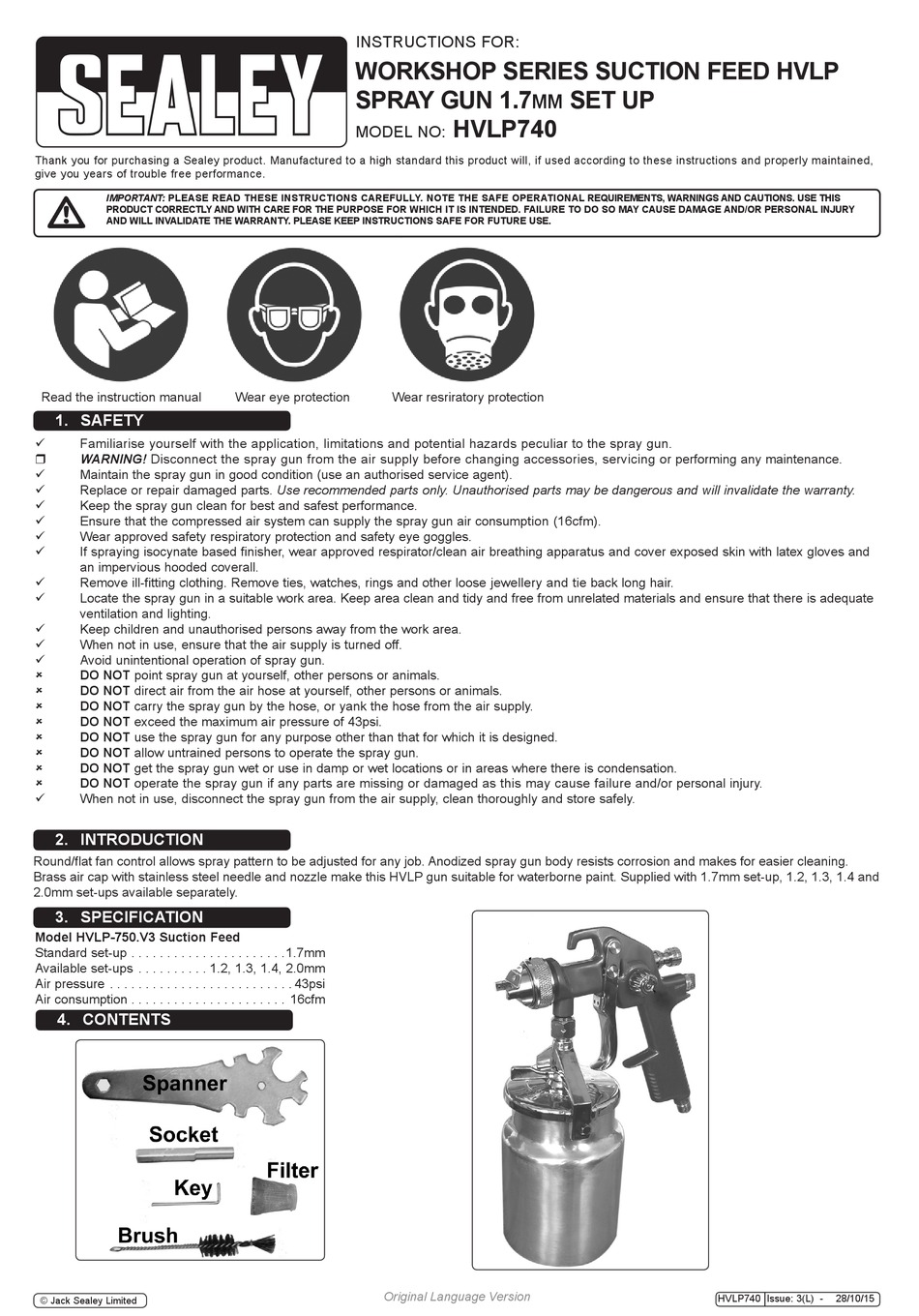

Sealey HVLP740 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly maintained,
give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS. USE THIS
PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY
AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
Read the instruction manual
1. SAFETY
Familiarise yourself with the application, limitations and potential hazards peculiar to the spray gun.

WARNING! Disconnect the spray gun from the air supply before changing accessories, servicing or performing any maintenance.

Maintain the spray gun in good condition (use an authorised service agent).

Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.

Keep the spray gun clean for best and safest performance.

Ensure that the compressed air system can supply the spray gun air consumption (16cfm).

Wear approved safety respiratory protection and safety eye goggles.

If spraying isocynate based finisher, wear approved respirator/clean air breathing apparatus and cover exposed skin with latex gloves and

an impervious hooded coverall.
Remove ill-fitting clothing. Remove ties, watches, rings and other loose jewellery and tie back long hair.

Locate the spray gun in a suitable work area. Keep area clean and tidy and free from unrelated materials and ensure that there is adequate

ventilation and lighting.
Keep children and unauthorised persons away from the work area.

When not in use, ensure that the air supply is turned off.

Avoid unintentional operation of spray gun.

DO NOT point spray gun at yourself, other persons or animals.

DO NOT direct air from the air hose at yourself, other persons or animals.

DO NOT carry the spray gun by the hose, or yank the hose from the air supply.

DO NOT exceed the maximum air pressure of 43psi.

DO NOT use the spray gun for any purpose other than that for which it is designed.

DO NOT allow untrained persons to operate the spray gun.

DO NOT get the spray gun wet or use in damp or wet locations or in areas where there is condensation.

DO NOT operate the spray gun if any parts are missing or damaged as this may cause failure and/or personal injury.

When not in use, disconnect the spray gun from the air supply, clean thoroughly and store safely.

2. INTRODUCTION
Round/flat fan control allows spray pattern to be adjusted for any job. Anodized spray gun body resists corrosion and makes for easier cleaning.
Brass air cap with stainless steel needle and nozzle make this HVLP gun suitable for waterborne paint. Supplied with 1.7mm set-up, 1.2, 1.3, 1.4 and
2.0mm set-ups available separately.
3. SPECIFICATION
Model HVLP-750.V3 Suction Feed
Standard set-up . . . . . . . . . . . . . . . . . . . . . .1.7mm
Available set-ups . . . . . . . . . . 1.2, 1.3, 1.4, 2.0mm
Air pressure . . . . . . . . . . . . . . . . . . . . . . . . . . 43psi
Air consumption . . . . . . . . . . . . . . . . . . . . . . 16cfm
4. CONTENTS
© Jack Sealey Limited
INSTRUCTIONS FOR:
WORKSHOP SERIES SUCTION FEED HVLP
SPRAY GUN 1.7
MODEL NO:
Wear eye protection Wear resriratory protection
Original Language Version
SET UP
MM
HVLP740
HVLP740 Issue: 3(L) - 28/10/15
