Quick Start Guide

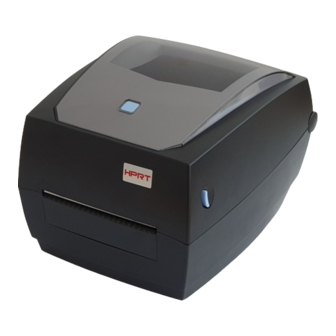

HT100
HT130
Xiamen Hanin Electronic Technology Co.,Ltd
ADD:
Room 305A,Angye Building,Pioneering Park,
Torch High-tech Zone,Xiamen,China.
TEL:
+86-(0)592-5885993
FAX:
+86-(0)592-5885992
WEB:
www.hprt.com
Appearance and Components
Front View
Printer Cover
Cover Open Levers
Rear View
Power Switch
Power Receptacle
USB Port
Inside View
Printhead Module
Moveable Roll Holders
Locking Tab
Platen
!
Note: The views above are for your reference. Ports vary
by your choice.
Rev.1.0
All manuals and user guides at all-guides.com
Feed Button
(Status Indicator)
Ethernet Port
Serial Port
Kick-stand Cover Lock
Moveable Label Guides
Moveable Label Sensor
-1-
Packing List
AC Adapter
Printer
Label Roll
USB Cable
Quick Start Guide
CD
Quick Start Guide
Note: The packing materials are actually based on the order.
!
Loading the Roll
1.Pull and lift the cover.
2.Pull the roll holders open and place the roll between
them.
Power Cord
Ribbon
Advertisement
Table of Contents
Related Manuals for HPRT HT100
Summary of Contents for HPRT HT100
- Page 1 Packing List All manuals and user guides at all-guides.com Quick Start Guide AC Adapter Power Cord Printer HT100 HT130 Ribbon Label Roll USB Cable Quick Start Guide Quick Start Guide Xiamen Hanin Electronic Technology Co.,Ltd ADD: Room 305A,Angye Building,Pioneering Park, Torch High-tech Zone,Xiamen,China.
- Page 2 2.Connect the AC adapter to power receptacle. 3.Connect the power cord to AC adapter. 4.Connect the other end of power cord to the outlet. Power Cord AC Adapter Varies by regions Note: Please refer to windows driver installation in HT100+HT130 User Manual. Rev.1.0...
